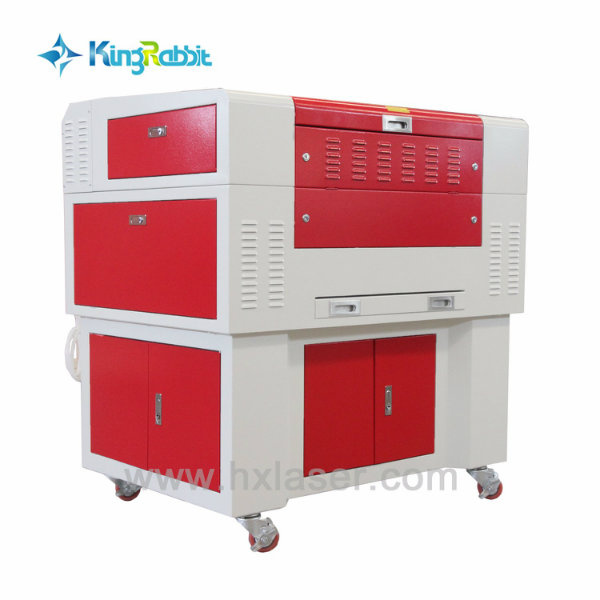

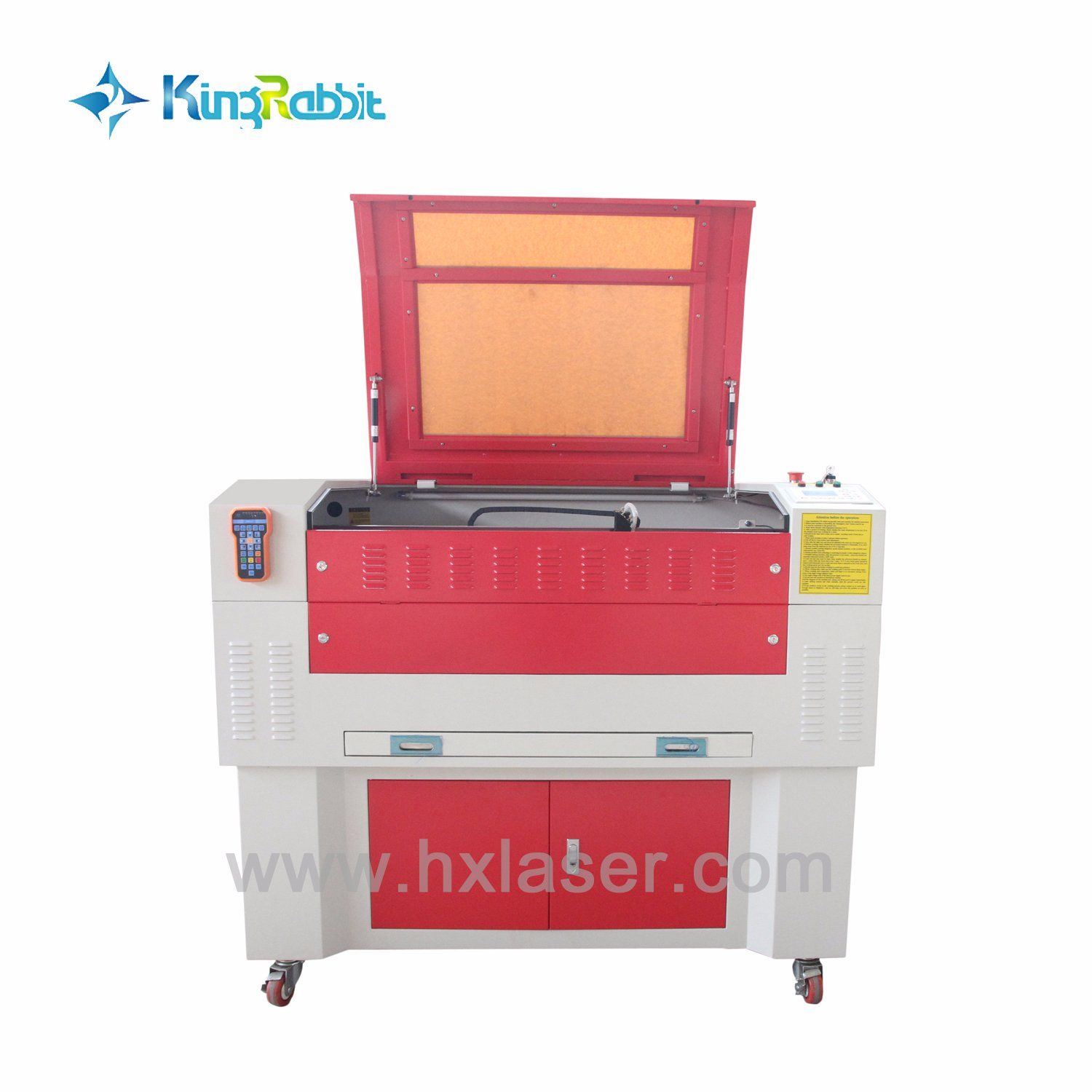

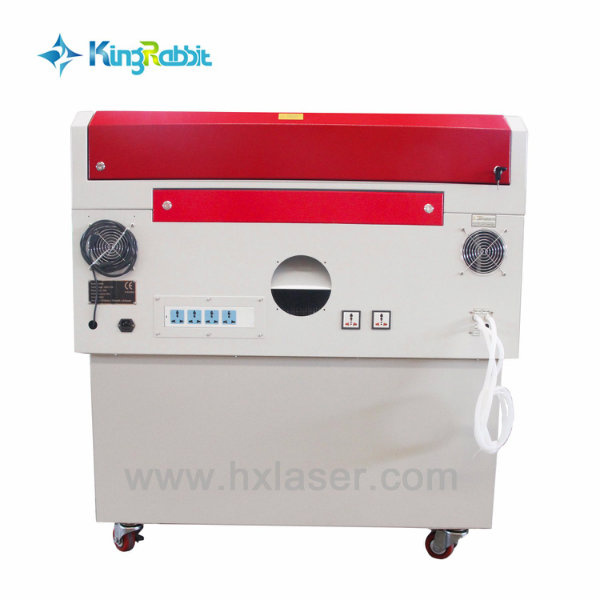

High Speed Laser Engraving Machine with Red-DOT (HX-1290SE)

Product Specifications

Prod Model:	HX-1290SE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	High Power
Drive Type:	Stepper Drive
Engraving Machine Type:	Laser Engraving Machine
Control:	CNC
Current:	AC
Laser Type:	CO2
Usage:	Advertising
Certification:	SGS, Ce, ISO 9001

Product Description

Detailed Product Description

New software realizes seamless connection with BMP, PLT and various graphic processingsoftware, such as Photoshops, AutoCAD and CorelDRAW and has direct originalgraph output function and meets users' site design requirements.

The product can define carving sequence freely and realize all or partial outputfor one time easily.

The product supports array output and fixed point output. It has quicker speed, carvingspeed can reach 830mm/s, cutting speed can reach 33mm/s and cutting accuracycan reach 0.1mm. So it can greatly improve working efficiency. The equipmentnewly adds 3, 600 carving slope function and has more powerful functions.

Carving materials include normal non-metal materials such as organic glass, wood, leather, cloth, plastic, rubber plate for printing, double-color plate, glass, synthetic crystal, jean, cardboard, dense plate and marble.

It has high speed cutting and smooth operation. It isn't limited by work efficiencyof traditional laser processing, using perfect mechanic combination so as toensure overall stability of equipment and make curve cutting without any saw tooth, shake or noise.

It has large power smoke emission system, large power water cooling system, specialcontrol software, air pump and automatic water cooler (option).

There is also no-water alarm available. Cooling water display, automatic alarm andcutting off the operation of laser during circular water failure to protect laser.

Smoke emission system starts automatically when carving machine operates; Smoke emissionsystem closes automatically when carving machine finishes.

Electric controlled automatic elevation platform has easy and flexible operation. The product has large range and is convenient for carving materials with differentthicknesses.

Features:
1) Uses newly developed digital controlled software
2) Equipped with CO2 glass inner cavity sealing type laser, continuous circular water cooling system, original imported liner guide rail and high speed stepping motor
3) Uses integral steel frame structure so as to ensure high accuracy and stability of equipment operation
4) Cutting speed: Acryl: L0 - 25mm
5) Carving speed: 0 - 830mm/s (32.7" )
6) Cutting speed: 0 - 33mm/s
7) Maximum forming character: English: 1.5 x 1.5mm
8) Locating accuracy: ≥ 0.01mm
9) Power supply: AC 200V± 10%
10) Operating temperature: 0-45oC
11) Circular water temperature: 5 - 30oC
12) Driving way: Constant flow and subdivision
13) Slope angle: 360°
14) Supported figure and image data formats: PLT, DXF, BMP, JPG, GIF, PNG, TIF





Type	HX-4060SE		HX-6090SE	HX-1290SE		HX-1490SE	HX-1610SE	HX-1613SE
Laser power:	40w		60w	80w/100w/120w/150w
Engraving Area (mm)	400 x 600		600 x 900	1200 x 900	1400x900		1600x1000	1600x1300
Gross power	1200w		1200w	1600w/1800w/2000w
Laser type:	CO2 Laser tube
Cutting depth:	acryl 0-20mm
Engraving speed :	0-1000mm/s
Cutting speed:	0-600mm/s
Resetting positioning accuracy:	<0.01mm
Maximum forming character:	English:1.5 x 1.5mm
Power supply:	220V±10% 50HZ or 110V±10% 60HZ
Software supported:	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic format supported:	PLT, DXF, BMP, JPG, GIF, PGN, TIF
Engraver for Curve surfaces:	we can provide rotary system so as to engrave on curse surfaces
Water Cooling:	Yes
Maximum Height of  Materials to Engrave:	280mm(by motor)
Assistant Equipment:	Water pump	Exhaust Fan			Aluminum alloy worktable			Air compressor
Optional Spare Parts:	RF Laser Tube	Rotary System			Cooling water system			Red dot pointer
Recommended Spare Parts/Consumables	Laser Tube and Lens
