Product Specifications
| Prod Model: |
1325, 1530 |
| Type: |
Engraving Router |
| Spindle Number: |
2-4 |
| Customized: |
Customized |
| Color: |
Customized |
| Feed Mode: |
Mechanical |
| Control System: |
Syntec 6MB Control System |
| Inverter: |
5.5kw E Type Taiwan Delta Inverter |
| Linear Rail: |
Taiwan PMI 25# Linear Guide |
| Rotary Device: |
Diameters: 200mm |
| Dimension(L*W*H): |
3050*1940*2200mm |
Product Description
Product Description

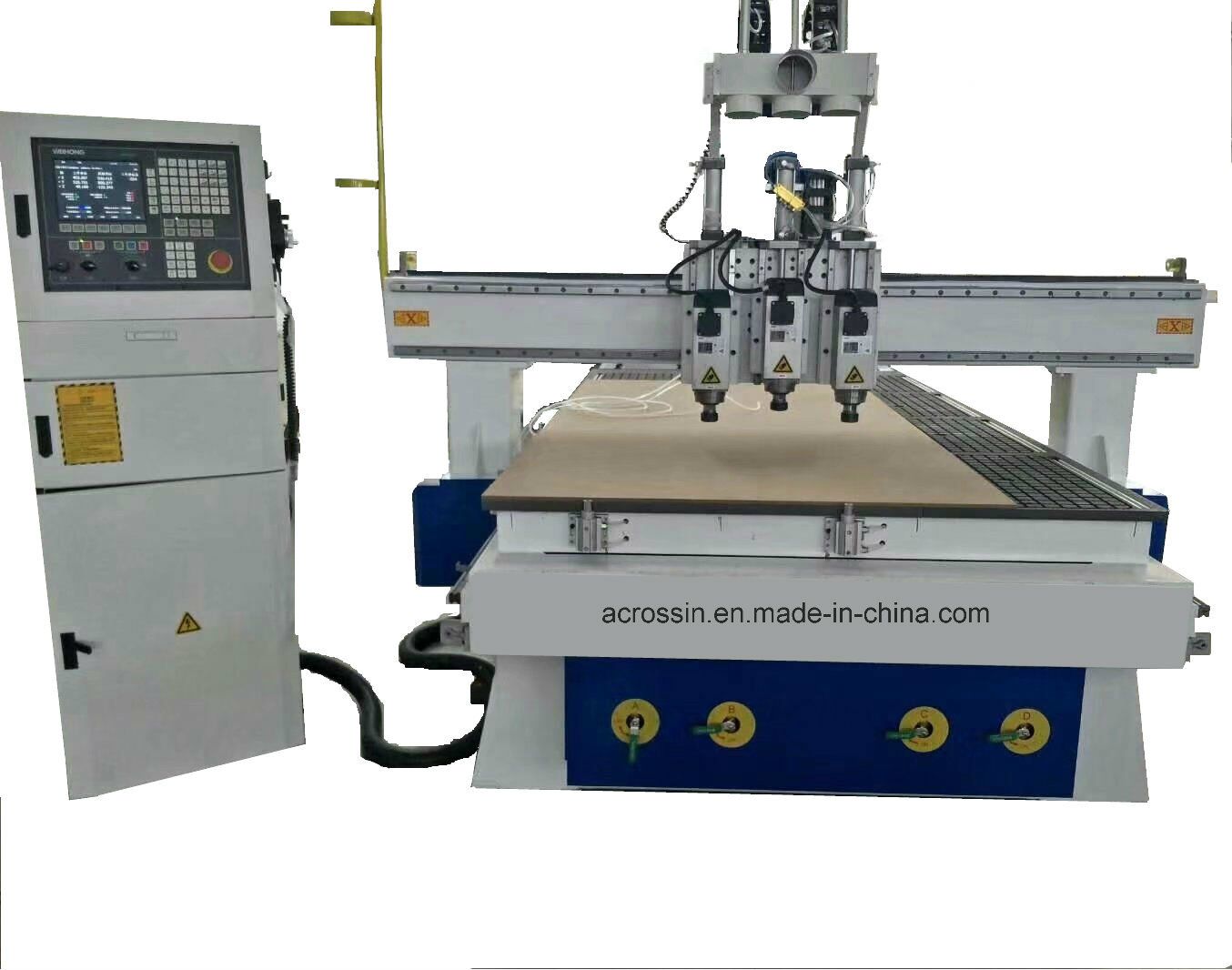

Pneumatic system cnc multi head router , cnc wood router automatic 3d , atc cnc router with 4 axis rotary 1530
Introduction of cnc multi head router:
New type thicker and heavy duty frame and gantry,high precision,more stable
Three heads,do different works one by one,like simple ATC cnc machine
With 200mm rotary for cylinder processing,It's very popular in wood industry
Features of cnc multi head router:
1500*3000*200mm effective working area
Original Italy HSD 4.5KW ATC air cooling spindle
Taiwan 5.5kw DELTA inverter
Japan YASKAWA 850W servo motor and drivers
Taiwan SYNTEC control system 6MB model
Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel, All axis with Taiwan HIWIN #20 Linear guide
French Schneider safety switch;
Vacuum and T-slot working table
Japan OMRON limit switch for X, Y, Z axis
Highly flexible towline, fire-resistant double-sheathed Shanghai Gardiff cable
Type 3 or Artcam or Ucancam software for free;
200mm Rotary
Parameters of cnc multi head router:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x3000mm |
| Table Surface | T-slot & vacumm working Table |
| Frame | Welded Structure |
| X, Y Structure | #20 Tiwan HINWIN linear guide rail,helical rack gear |
| Z Structure | #20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw |
| Max. Power Consumption | (Without Spindle)6Kw |
| Spindle Power | 4.5 KW Italy HSD air cooling spindle for all heads |
| Spindle Speed | 0-18000RPM |
| Drive Motors | 850w Japan YASKAWA servo motor and driver |
| Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
| Command Language | G Code |
| Operating System | SYNTEC 6MB control system |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software |
| Running Environment Temperature | 0 - 45 Centigrade |
PS:All the working area and specifications can be customized according to your requests.
Application:
WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
we are located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
We have our R & D department, Quality control department, and after sale & service department.
Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
We had got CE and ISO9001 certification always offer best quality machine.
Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
Our company manufacture CNC machinery.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We are belong to JINAN ACROSSIN IMP&EXP TRADING Co., Ltd,
We are a subsidiary corporation of it.
JINAN SAICHENG MACHINERY Co., Ltd is established in 2007, and be good at CNC router field in Chinese market, and get good feedback, Perfect quality and best Aftersale. Our products include woodworking CNC router, stone CNC router, laser machine, plasma machine, we can Produce many kinds of CNC router following client requirement.
JINAN ACROSSIN IMP&EXP TRADING Co., Ltd is a group company, it is established in 2006, scope of business include Machinery parts, building hoist, tower crane, and ball screw, and CNC machinery.
The continuously improving performance of our machines wins great trust of our customers. Our products are not only sold in Chinese maekrt, but also exported to Europe, north and south America, central and west Asia and other regions.
Of cause, we can produce every kind of CNC router, and We accept orders according to our customers' requirements.
