| Price: | US $ 1500-5000/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | QL-1610 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | Laser Engraving Machine |
| Control: | CNC |
| Current: | AC |
| Laser Type: | CO2 |
| Usage: | Rubber |
| Working Area: | 160cm*100cm (L*W) |
| Laser Power: | 60W/80W/100W/130W/150W/180W |
| Engraving Speed: | 0-6000cm/Min |
| Power Supply: | 220V/50Hz, 110V/60Hz |
| Graphic Format Supported: | BMP, Plt, Dst, Dxf, Ai |
Performance Features
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen
6) It can also be made according to customer's demands
specifications:
Effective area 1600*1000mm
Laser power 60w
Control system Leetro control system
Laser type 10.6um,CO2 sealed glass laser tube
Cooling mode Water cooling
Engraving scanning speed 0-60000mm/min
Cutting speed 0-30000mm/min
Laser energy control 1-100% software setting
Mini-shaping character Chinese character2.0*2.0mm,English1.0*1.0mm
Max-scanning precision 2500DPI
Positioning precision +0.01mm
Supported graphic format PLT BMP DXF DST AI
Supported software Tiandao embroidery,photoshop,coreldraw,autoCAD
power AC110V-220V+10%,50-60HZ
Driving system X,Y axis Stepper motor

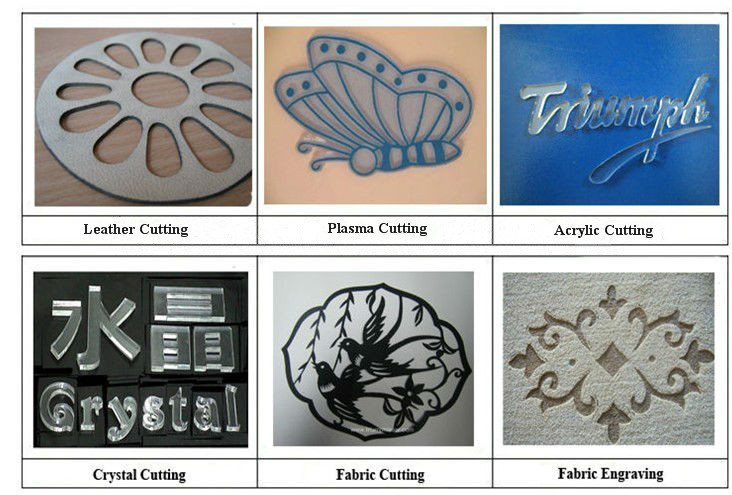

Material Cut Engrave
