Product Specifications
| Prod Model: |
CK1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC Machine Working Size: |
1300X2500mm |
| CNC Machine Stepper Motor: |
Leadshine Stepper Motor |
| CNC Machine Servo Motor: |
as Customers Choice |
| CNC Machine Colour: |
Orange or as Customers Choice |
| Spindle Power: |
3.0/4.5kw Water Cooling Spindle |
| Inveter: |
Fuling Inveter |
| Square Rail: |
Tai Wan PMI |
| Operation System: |
Weihong Nk 105DSP |
| Working Table: |
Vaccum Pump |
| Drive Motors: |
Stepper Motors and Leadshinem860 Driver |
| Type: |
Engraving Router |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Customized: |
Customized |
| Color: |
Orange |
Product Description

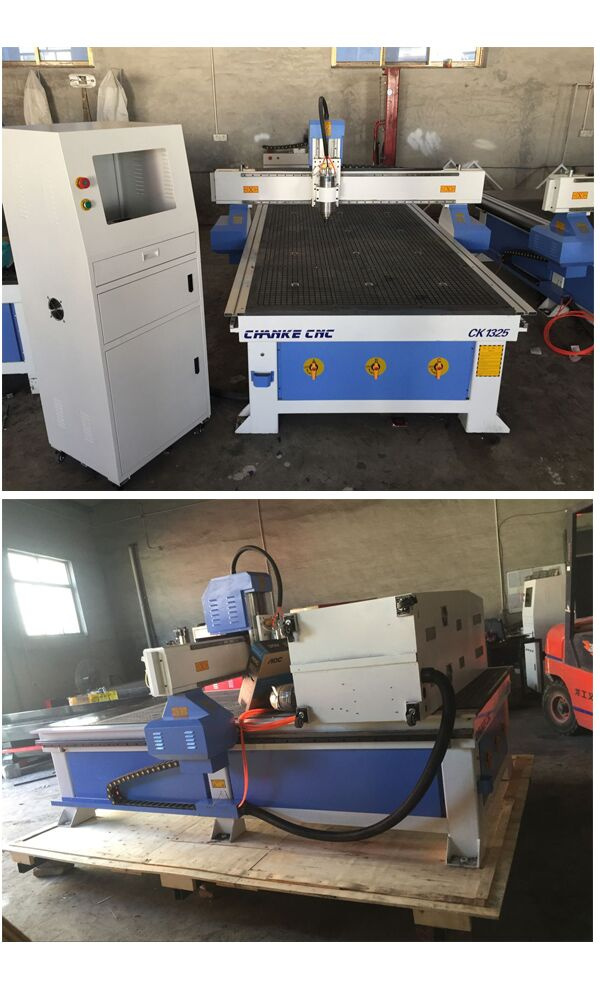

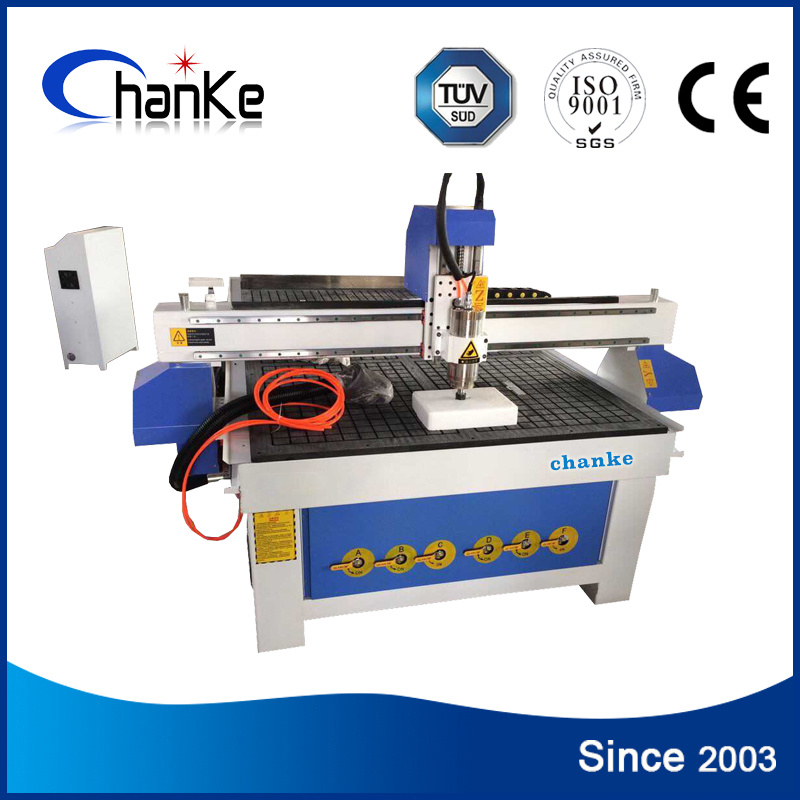

This machine is chanke company's vacuum table machine.It working size is:1300x2500x200mm, vacuum table, using the vacuum pump to absorb the mould on the table, it is convenience for our users is don't need the materials holders, put the mould on the table , open the vacuum pump , then can working , but it has one point that not absorb the irregular , out of faltness mould , 3D embossment.This vacuum table machine fit for the users who has the large volume productions, it can improve the working efficiency, it is save the time and labor than the aluminium profile wood cnc router.
But aluminium profile wood working machine can work on the 3D embossment and the irregular , out of faltness mould.
So welcome to contact us when you need wood working machines on the wooden , MDF doors or the furniture....
Forget to tell you, we can according to your requipments to produce the wood cnc router machine, like the working size, the colour of this machine, using which size of driving motor....So don't hesitate contact us !

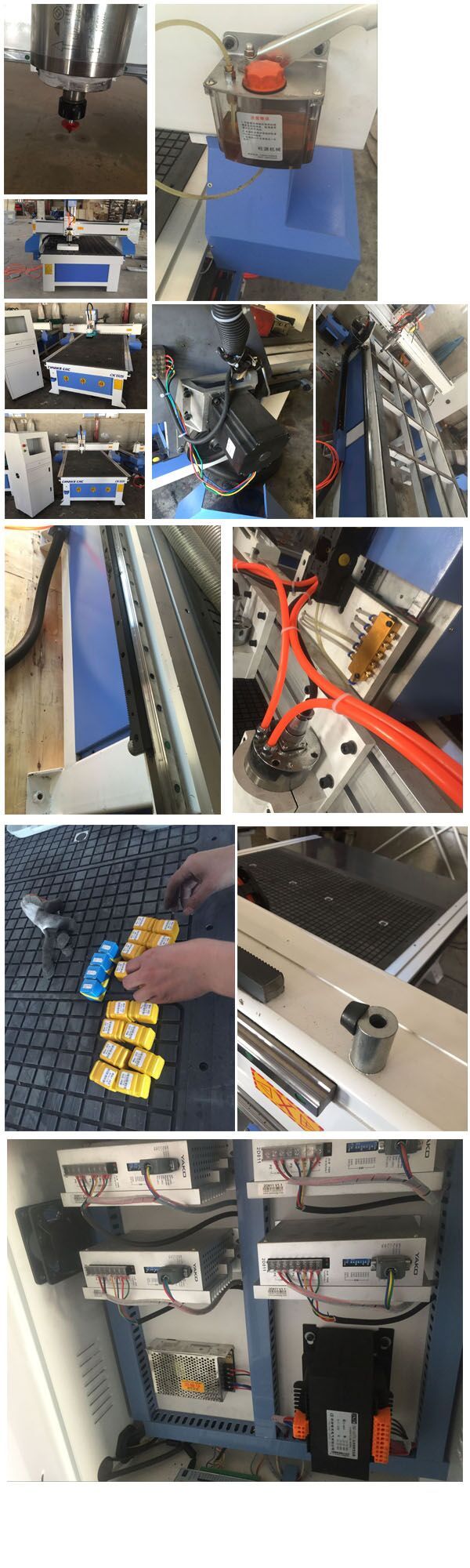

1.Machine Features
1) Vacuum table can fix materials of different sizes effectively
2)Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
3) Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4) Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5) DSP control system, with U disk available and not need computer ( can be completely off-line operation.), provides high independence and great convenience for operation.
6) Unique ability to save several point of origin on several workpieces.
7) No engraving saw-tooth, smooth undersurface, legible contour, by high-power spindle.
8) Auto seeking original point system, a good way to improve the working effeciency.
9) Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.
2.Application Industry and Materials:
Widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc.And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
---Woodworking Industry:Stereo wave board processing, wooden door, various furniture product auxiliary processing.
---Advertising Industry:Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
---Mold Industry:Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
---Musical instrument industry:Instrument 3D surface engraving, shape cutting
---Wooden crafts.
---Exhibition industry:Showcase, etc.
Applicable industry
Woodworking industry ,3D wave board processing,Cupboard doors,craft wooden doors,unpainting door,screen,crafts windows,milling and engraving on the furniture.
Applicable materials
MDF,wooden plate,veneer,wood ,application,PVC.
Model |
CK1325 MDF cnc router |
Working size |
1300*2500mm |
Z working travel |
120-450mm |
Working precision |
+-0.04mm |
Table structure |
Vacuum table |
Location precision |
+-0.05mm |
Power consumable |
3KW |
Max idle speed |
50000mm/min |
Max working speed |
25000mm/min |
Spindle power |
2.2KW-9.0KWor HSD for choice |
Spindle rotate speed |
0-24000 r/min |
Working mode |
Step motor ,option servo motor |
Working Voltage |
AC380V/50HZ, AC380V/60HZ |
Run command | G Code ,UOO file |
3.Applicable materials of cnc router wood price
1) Furniture:Plate, office furniture, doors, cabinets.
2) Wood products:Speakers, games cabinets, computer tables, sewing machines,
Musical instruments.
3) Board processing:Insulation, plastic chemical components, PCB, car body,
Bowling track, ABS, PP, PE, etc.
4) Decoration:Acrylic, PVC, MDF, glass, plastic and soft metals such as copper
And aluminum.
4.How to Order Our Machine?
Before we can recommend you the best suitable machine, please kindly tell us:
1) What materials will you work on?
2) What is your Max.Size of your processing materials?( Length & Width )
3) Do you mainly engrave or cut?If cut,What is your Max.Cutting thickness?
4) Does your materials are cylinder?If YES, what's the Max.Diameter of it?
5) If it is possible, could you send us your product samples' picture?It will
Help us better to understand.
5.Trade Items of Machine
| MOQ | 1 set |
| Package | Standard Plywood Box |
| Delivery Terms | FOB, CIF, EXW, Door to Door ect. |
| Delivery Time | 15 working days after receiving payment |
| Payment Type | T/T, Paypal, Western Union and others |
| Supply Ability | 200 sets/month |
| Port | Qingdao, China. |
6.Packing of Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
7.Guarantee & service of Machine
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
Consumables) shall be changed free of charge when if any problem during the warranty period.
Service:( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year.So if your machine has any unintentionall damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.

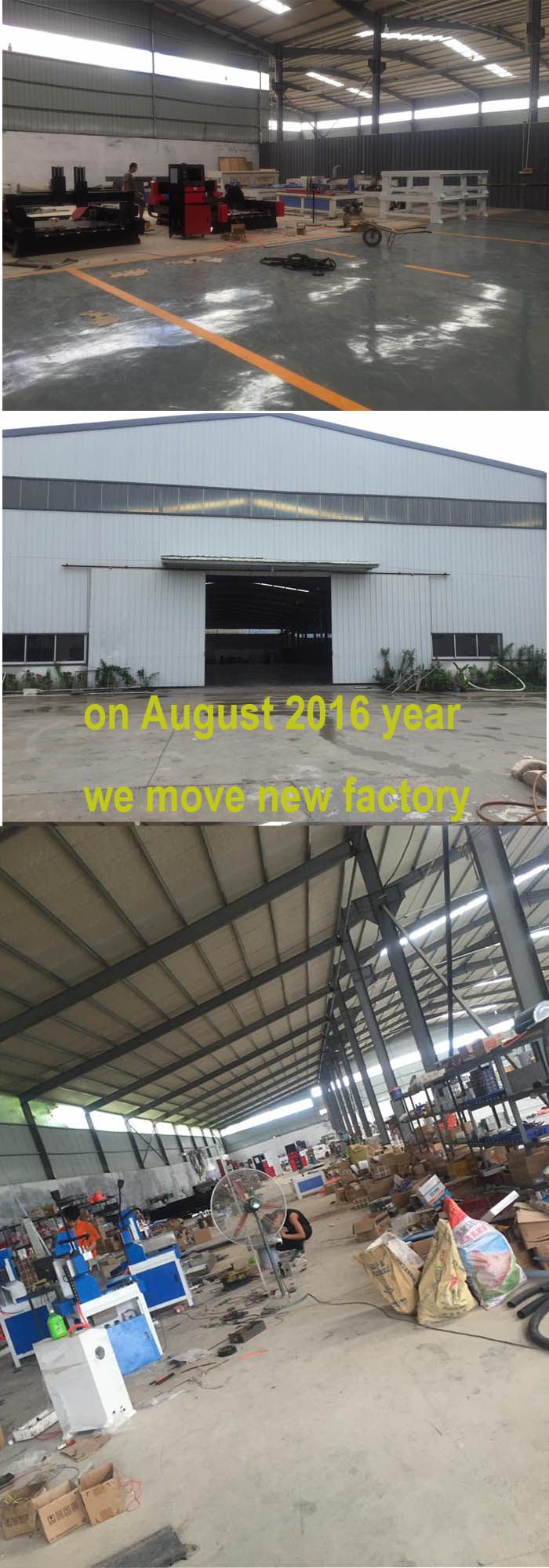

Jinan Chanke Mechanical Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of laser engraving machine, laser cutting machine, wood CNC router, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the CE, FDA certificate.
