Product Specifications
| Prod Model: |
ck1390 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300X900mm |
| Transmission: |
Ball Screw or Belt transmission |
| Motor: |
Leadshine Stepper/Panasonic |
| Rail: |
Square Rail Imported From Taiwan Hiwin |
| Software: |
Rdcam 6442g |
| Water Chiller: |
Cw5000 |
| Mirror: |
Imoported From America |
| Rotary: |
80mm Rotary or as Your Choice |
| Laser Head: |
Can Be Adjustale Automaticlly |
| Red DOT Pointer: |
Yes |
Product Description

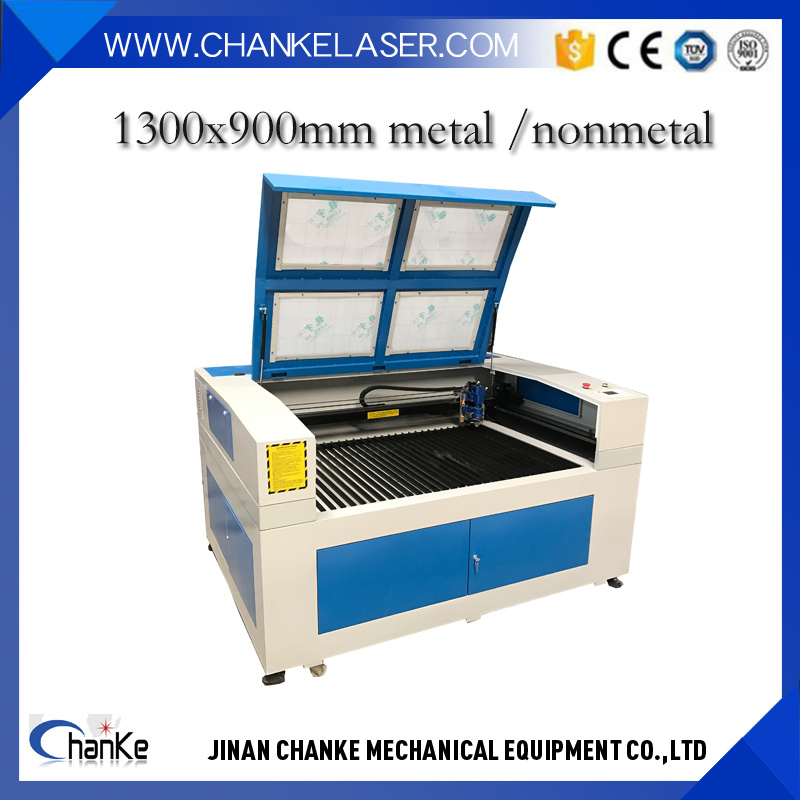

This 1300x900mm laser cutting machine introuduction:
with 130w RECI (Z6) Laser tube 1.2mm sheet metal and nonmetal laser cutter machine is belongs the laser machine type-metal and nonmetal cutting machine .
So its meaning is: It can cut metal and aslo can cut on the nonemtal: like acylic/paper/wood board /fabic .. and other materiasl.
It aslo can engraving . so don't think it not engraving . most of my customer, ask me : Can it engraving ? ..... My answer is: Yes!!!.
I think you are interested in how many thickness it can cut on each materials. Now let me answer you:
1. Metal it can cut : 1.2 mm. if you choose 150w (z6) laser tube, but if choose 180w ( Z8) laser tube, it can cut 1.5mm -2mm , if you want to cut more , like 3mm metal , so please choose 260w yongli laser tube .
2. Acrylic it can cut: 25mm.(150w ), 180w can cut :30mm acrylic .....
3. Wood board it can cut:10-16mm. You know our 90W RECI brand (Z2) Laser tube can cut : 5-8mm hard wood, like MDF..., so more big power, it can cut more thickness materilas.
4. By the way if you want to engrave on the glass, please choose CK6040/6090 with 60w/90w samll power laser engraving machine , it can't cut glass, but I pormise it can engrave on glass well , if you want to cut glass, please choose CK6090 small cnc router or the special machine to cut glass,but I promise it can do a good work engraving on glass.
So if you have any questions, please contact me, My name is vera, I am vera glad to help you choose a good machine for you. 1300x900mm 130w 1.5mm sheet metal and nonmetal laser cutter Features:1.Adopts new high-efficiency laser tube ,the laser beam is more stable and the life of the laser tube is more than 8000hours.2.The imported focus lens and metal reflect mirror from America have strong cutting ability and high precision,
3.Advanced DSP control system with professional motion control chip in it, has the function of consecutively high-speed curve cutting and shortest path selection .
4.the machine is equipped with USB offline control system,which makes the operation more convenient and faster.
5.Imported linear guide rail and step motor with reduce speed driver system to assure cutting incision more smooth. ( Taiwan HIWIN rail or PMI square rail )
Applicable materials
Non-metal materials such as double colour board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
| Model | 1300x900mm 130w(z6) 1.2mm sheet metal and nonmetal laser cutting machine |
| Working area | 130cm*90cm / 47in*35in (L*W) |
| Laser power | 130W RECI/180W RECI |
| Laser type | CO2 sealed laser tube,water-cooled |
| Engraving speed | 25-24000mm/min |
| Cutting speed | 50-5000mm/min |
| Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| Min. shaping character | Letter 1.0 x 1.0mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| Software supported | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control | 1-100% software setting |
| Highest Scanning Precision | 2000DPI |
| Resolution ratio | <0.01mm |
| Location precision | <0.01mm |
| Working temperature | 5°C-40°C |
| Operating humidity | 5%-95%(without condensed water) |
| Equipment Dimension | 1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
|
| Net Weight | 350KG |
| Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device, Industry chiller, DSP off-line operation with USB flash |

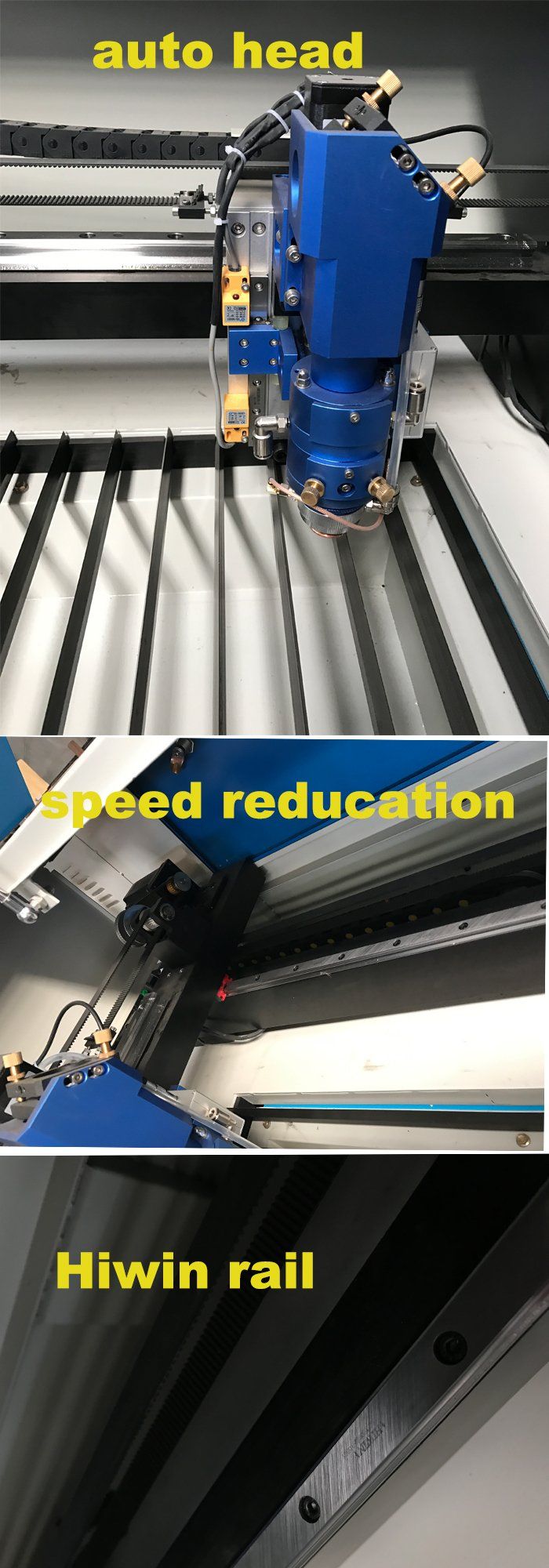

Laser cutting machine spare parts photos
Anther type:

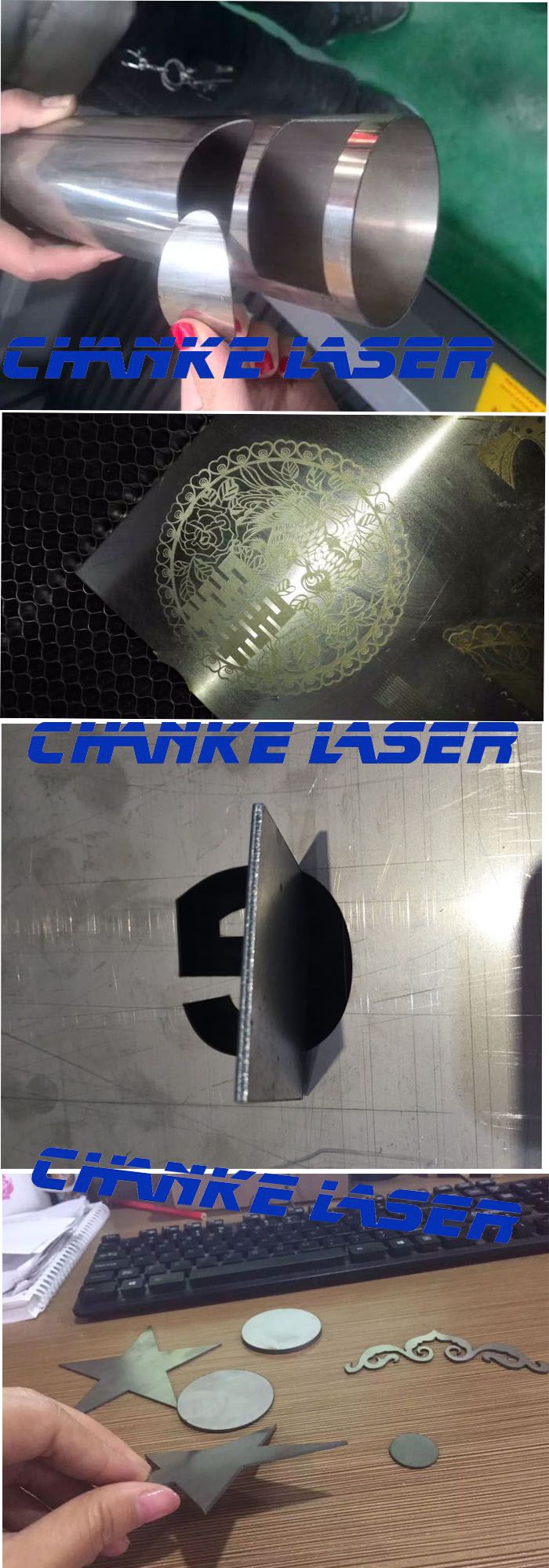

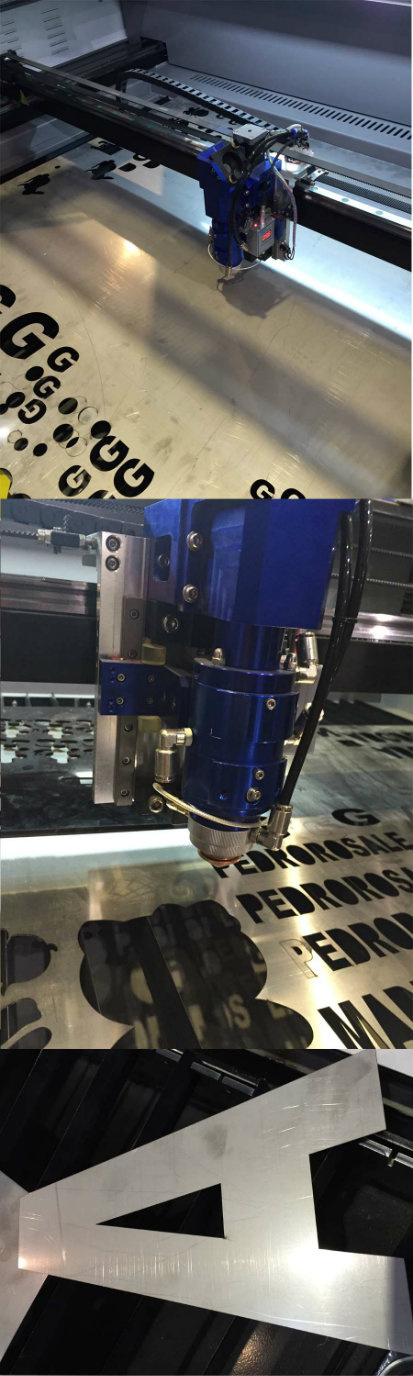

Laser cutting machine samples
Laser cutting machine packing
All laser engraving machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.
The advantages of plywood case package:(Laser cutting machine )
Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.
Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.
Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.
after sale service:Guarantee & After Sales Service
1. For the whole machine we give the warranty for 2 years.
2. For the RECI laser tubes,we give the warranty for 9 months.
3.For the focus lens and mirrors, we will give the warranty for 9 months too.
4.Any parts is broken during the warranty period( without human damage),we will change for you for free within2 years .
5.Engineer can go to your country to provide the technical support. and 24 hours after sale service worker is online.
Professional Service
From producing in our factory to shipping the goods directly to your
port or company, we supply all-in-one service for our customers.
With the rich experience of dealing with shipping issue and custom
clearance, we can make the most economical delivery plan for you and ensure the quick leading time. No matter your quantity is our MOQ or
very big, we take each customer as the only one.
Chanke serious products:
CK6040 Mini laser engraving machine, with 60w laser tube.
CK400 Rubber stamp laser engraving machine with 40w laser tube.
CK1325 Co2 nonmetal laser engraving and cutting machine , mainly cut the acrylic..
CK1325 wood working machine with vaccum working table.
Why Choose US?
1.CHANKE product is widely used in almost all the materials which you can think of.
2.CHANKE company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.
3.With high precision and high reputation is the most reliable goods you can choose.
4.CHANKEcompany has all kinds machines in store, the delivery time is much shorter than other companies.
5. CHANKE company has international tech service office and provides 24 hours' online service.

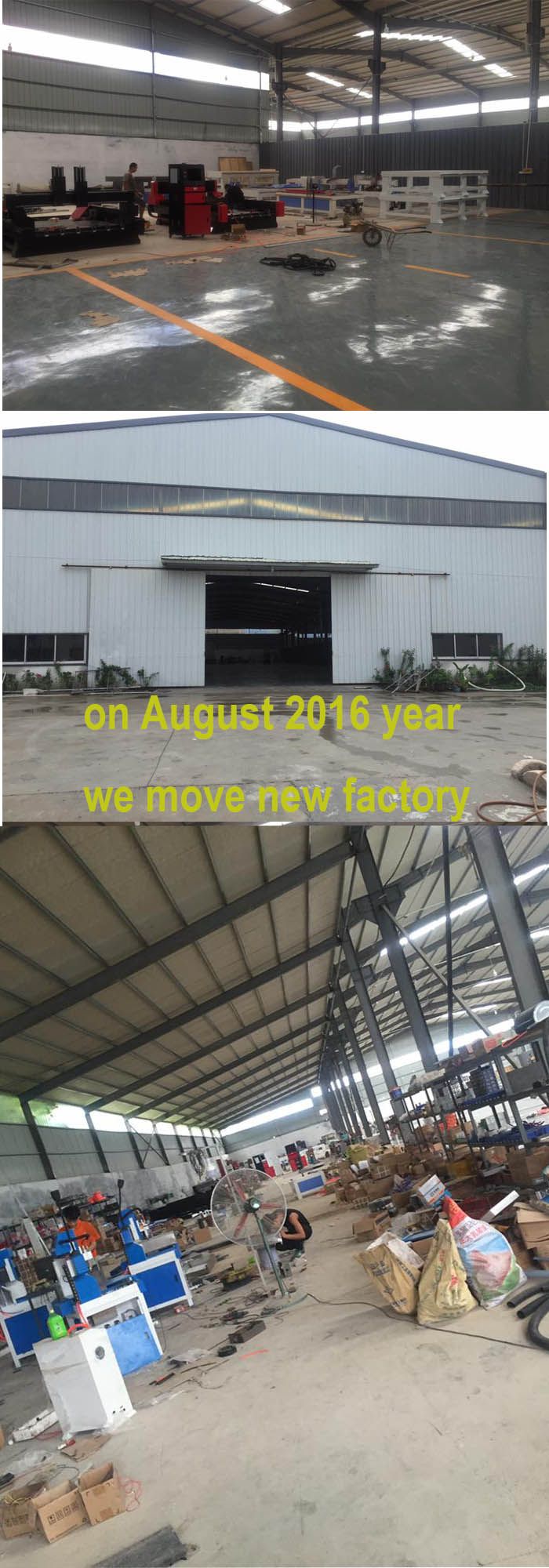

Factory:
Customers :
Jinan Chanke Mechanical Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of laser engraving machine, laser cutting machine, wood CNC router, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the CE, FDA certificate.
We prize quality above all else. We have a talented engineers and an experienced workers team. They have been in laser and CNC router area for a lot of years and love these machines very much. Our QC department is famous for strict attitude. Every parts should be checked step by step.
Competitive Pricing, Small Profit, Large Quantity is our rule when pricing. We keep our prices low through enhancing production efficiency, reducing the number of rejects and leaving more profit margins for clients to help them to get more orders. In addition, all our prices are based on good quality raw materials.
The aim of Jinan Chanke Mechanical Equipment Co., Ltd is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
