Product Specifications
| Prod Model: |
1325-20 |
| Electrical Equipment: |
Schneider |
| Spindle: |
9kw (Ltaly) |
| Process Size: |
2440*1240*200mm |
| Table Size: |
2500*1250mm |
| Transmission: |
X/Y/Z Ball Screw |
| Table Structure: |
Double Surface Vacuum Adsorption |
| Max Spindle Speed: |
24000r/Min |
| Max Speed: |
45m/Min |
| Max Working Speed: |
25m/Min |
| Knife Quantity: |
20 PCS |
Product Description
two years warranty

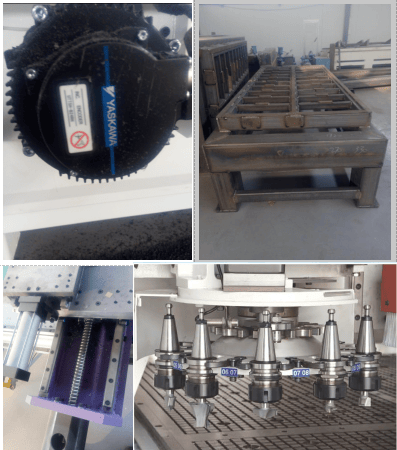

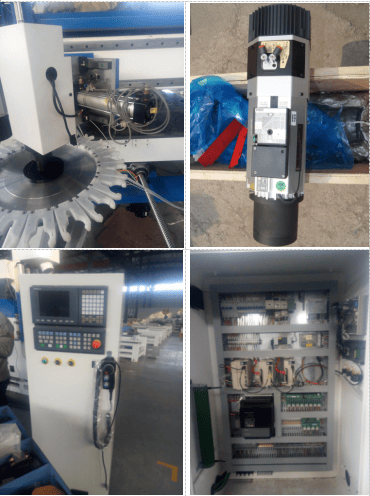

main accessories
| Model | AC-1325ATC | AC-1530ATC | AC-2030ATC |
| Machine Dimension | 2500 x 3200 mm
8.2'x10.5' | 3000 x3800mm
9.84'x12.5' | 3500 x3800mm
11.5'x12.5' |
| Working Size | 1300 x 2500 x 200mm
(4.3 x8.2 x0.66ft) | 1500 x 3000 x 200mm
(4.9 x9.8 x0.66ft) | 2000 x 3000 x 200mm
(6.6x9.8 x0.66ft) |
| Spindle Power | (12HP)9KW Italy ATC spindle |
| Driving motor | Japan YASKAWA servo motor & driver |
| Tool Stock | 8/10/12/18/20 Tools(Circular tool holder on Z axis) |
| Structure | Thick steel tube welding |
| Transmission | XY axis Germany Helical gear rack and reducer, Z axis high accuracy TBI ball screw |
| XYZ Guiding Rails | Taiwan HIWIN 30mm square rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Working Speed | 24000mm/m |
| Spindle Speed | 6000-36000rpm |
| Controller | Taiwan Syntec ATC controller ( NC studio is optional) |
| Format of instructions | G code or HPGL |
| Voltage | AC 380V/60Hz |
| Net Weight | 3600KG | 3800kg | 4800kg |
| Packing size | 3860x 2230x1900mm
17CBM | 4200x2230x1900mm
18CBM | 4200x2230x1900mm
18CBM |

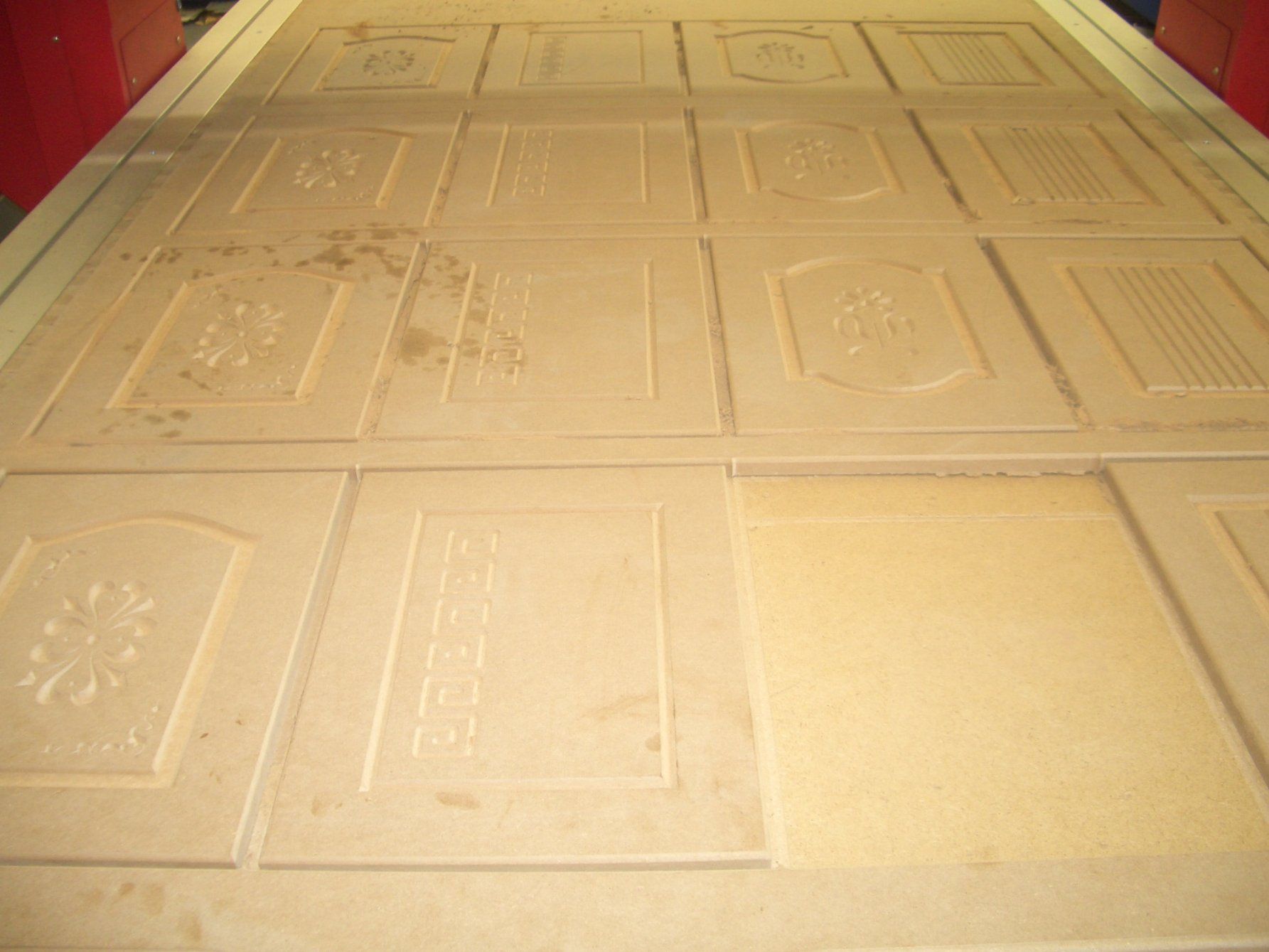

Applicable industry and materials1. Woodworking: all kinds of doors, windows, cabinets, wooden craft, paint doors, screens, process window, wave board processing and other furniture, wooden processing.2. Advertising industry: advertising signs, labeling, advertising material cutting, plastic molding, LED neon advertising and other materials produced decorative products3. Craft industry: a variety of exquisite designs and text engraving on wood, bamboo, artificial marble, organic board, color plates, crystal and other materials. samples
Products features:
1.heavy-duty thick -walled square tube lathe in good rigidity,is capable of large workload ,maintaining solid shape and non-deformed .
2.High -end CNC control system from Taiwan,achieves automated intelligent control on functions,such as work area protection ,processing cross-border protection auto working speed.off-line operation of multiple levels of 3d processing is capable.
3.Advanced documents pre-processing functions ensures speed and accuracy of operation.
4.Control pannel of 7'Led,multi-partition keyboard provide convenience and independence for user.
5.Automatic tool changer saves time for manual tool changing to improve efficiency.
6.Servo system from Japan is the core of drive system,with a large torque and complete security system.
Application:
Wood products processing : sewing machine table ,electrical counter table,sports equipment.
Furniture decoration industry: al large area flat plate engraving ,wood ,panel furniture carving ,wood cabinet doors carving.
Musical instrument industry: instrument three-dimensional surface engraving ,shape cutting
Electronic industry: circuit board,insulation material,LED display screen.
JINAN SAICHENG MACHINERY CO., LTD
(jinan acrossin imp&exp trading co., ltd)
+86 18615216576 +86 531 67811996
http://acrossin.en.made-in-china.com/
www.scygjx.com
Our company manufacture CNC machinery.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We are belong to JINAN ACROSSIN IMP&EXP TRADING Co., Ltd,
We are a subsidiary corporation of it.
JINAN SAICHENG MACHINERY Co., Ltd is established in 2007, and be good at CNC router field in Chinese market, and get good feedback, Perfect quality and best Aftersale. Our products include woodworking CNC router, stone CNC router, laser machine, plasma machine, we can Produce many kinds of CNC router following client requirement.
JINAN ACROSSIN IMP&EXP TRADING Co., Ltd is a group company, it is established in 2006, scope of business include Machinery parts, building hoist, tower crane, and ball screw, and CNC machinery.
The continuously improving performance of our machines wins great trust of our customers. Our products are not only sold in Chinese maekrt, but also exported to Europe, north and south America, central and west Asia and other regions.
Of cause, we can produce every kind of CNC router, and We accept orders according to our customers' requirements.
