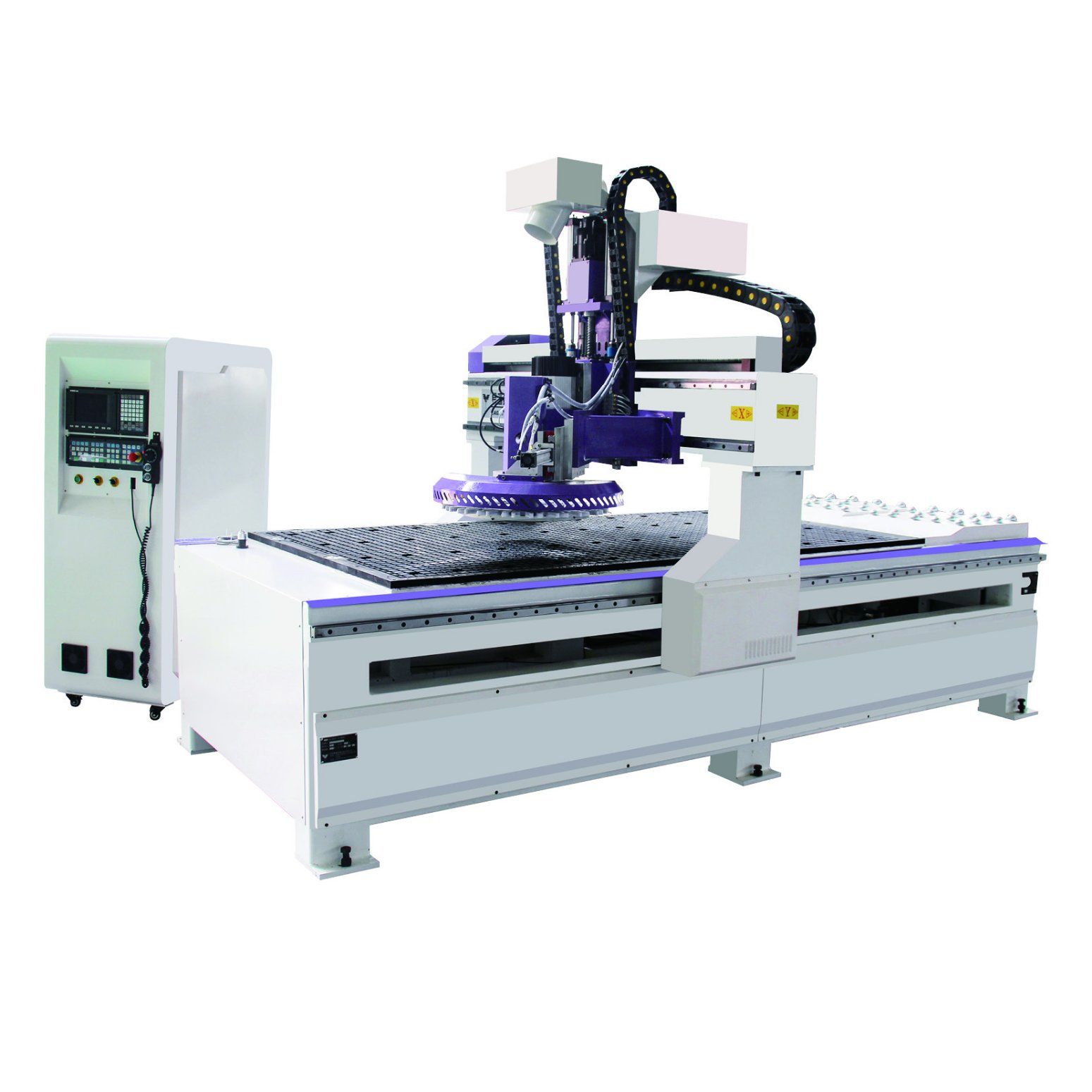

Product Specifications
| Prod Model: |
AC1325-12 |
| Electrical Equipment: |
Schneider |
| Spindle: |
9kw (Ltaly) |
| Process Size: |
2440*1240*200mm |
| Table Size: |
2500*1250mm |
| Transmission: |
X/Y/Z Ball Screw |
| Table Structure: |
Double Surface Vacuum Adsorption |
| Max Spindle Speed: |
24000r/Min |
| Max Speed: |
45m/Min |
| Max Working Speed: |
25m/Min |
| Knife Quantity: |
20 PCS |
Product Description

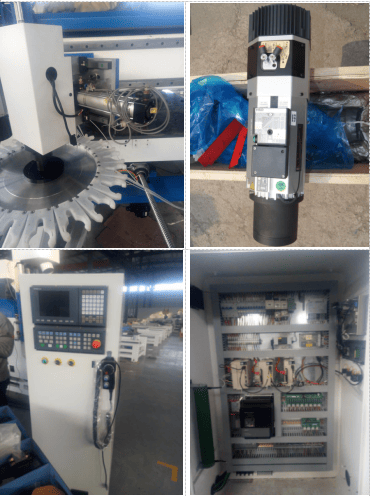

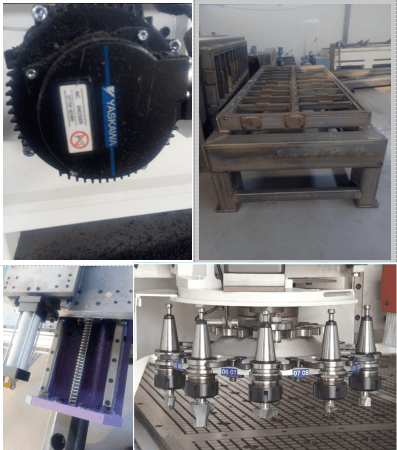

main accessories
| Model | AC-1325ATC | AC-1530ATC | AC-2030ATC |
| Machine Dimension | 2500 x 3200 mm
8.2'x10.5' | 3000 x3800mm
9.84'x12.5' | 3500 x3800mm
11.5'x12.5' |
| Working Size | 1300 x 2500 x 200mm
(4.3 x8.2 x0.66ft) | 1500 x 3000 x 200mm
(4.9 x9.8 x0.66ft) | 2000 x 3000 x 200mm
(6.6x9.8 x0.66ft) |
| Spindle Power | (12HP)9KW Italy ATC spindle |
| Driving motor | Japan YASKAWA servo motor & driver |
| Tool Stock | 8/10/12/18/20 Tools(Circular tool holder on Z axis) |
| Structure | Thick steel tube welding |
| Transmission | XY axis Germany Helical gear rack and reducer, Z axis high accuracy TBI ball screw |
| XYZ Guiding Rails | Taiwan HIWIN 30mm square rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Working Speed | 24000mm/m |
| Spindle Speed | 6000-36000rpm |
| Controller | Taiwan Syntec ATC controller ( NC studio is optional) |
| Format of instructions | G code or HPGL |
| Voltage | AC 380V/60Hz |
| Net Weight | 3600KG | 3800kg | 4800kg |
| Packing size | 3860x 2230x1900mm
17CBM | 4200x2230x1900mm
18CBM | 4200x2230x1900mm
18CBM |

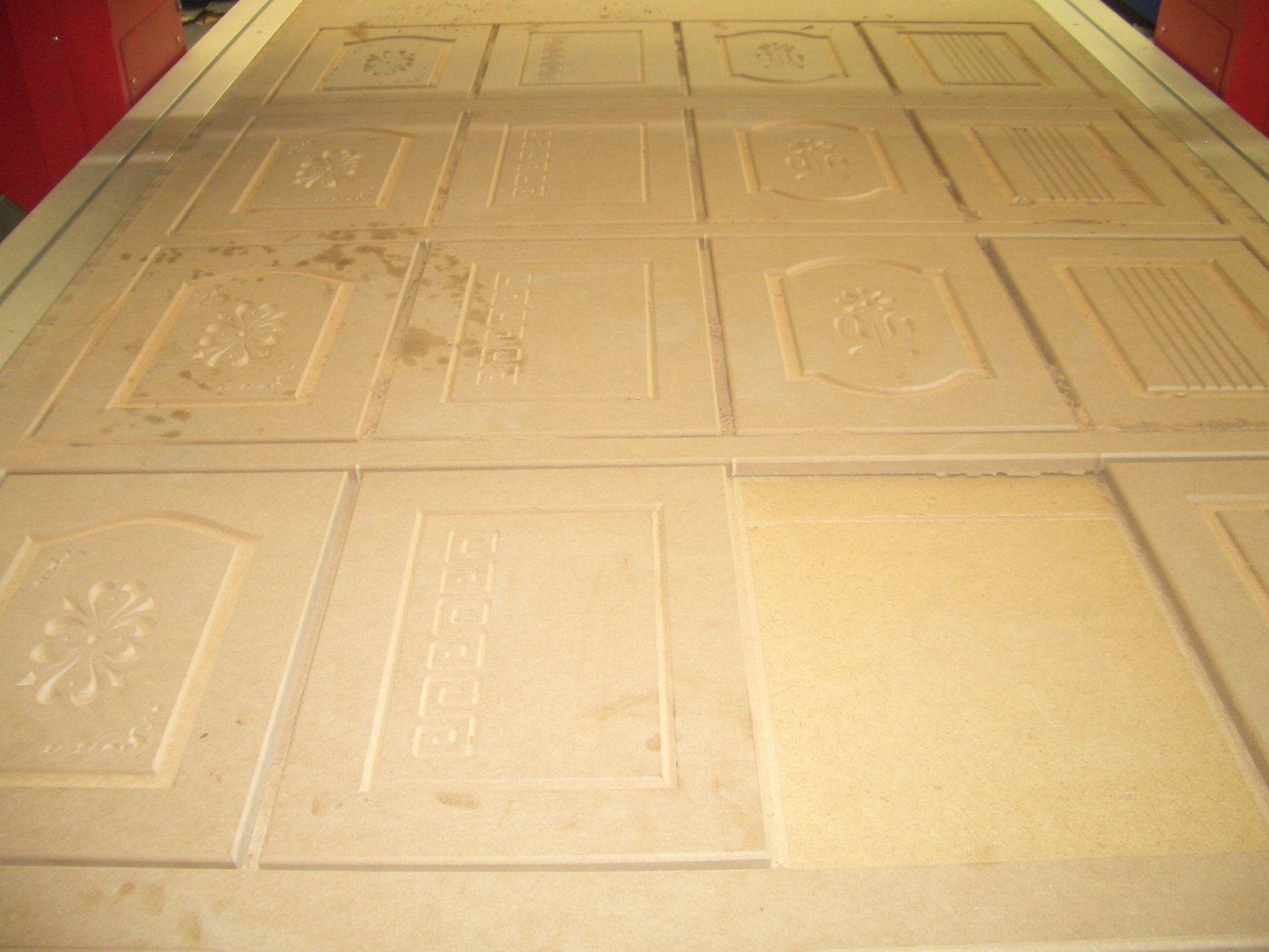

Applicable industry and materials1. Woodworking: all kinds of doors, windows, cabinets, wooden craft, paint doors, screens, process window, wave board processing and other furniture, wooden processing.2. Advertising industry: advertising signs, labeling, advertising material cutting, plastic molding, LED neon advertising and other materials produced decorative products3. Craft industry: a variety of exquisite designs and text engraving on wood, bamboo, artificial marble, organic board, color plates, crystal and other materials. samples
Products features:
1.heavy-duty thick -walled square tube lathe in good rigidity,is capable of large workload ,maintaining solid shape and non-deformed .
2.High -end CNC control system from Taiwan,achieves automated intelligent control on functions,such as work area protection ,processing cross-border protection auto working speed.off-line operation of multiple levels of 3d processing is capable.
3.Advanced documents pre-processing functions ensures speed and accuracy of operation.
4.Control pannel of 7'Led,multi-partition keyboard provide convenience and independence for user.
5.Automatic tool changer saves time for manual tool changing to improve efficiency.
6.Servo system from Japan is the core of drive system,with a large torque and complete security system.
Application:
Wood products processing : sewing machine table ,electrical counter table,sports equipment.
Furniture decoration industry: al large area flat plate engraving ,wood ,panel furniture carving ,wood cabinet doors carving.
Musical instrument industry: instrument three-dimensional surface engraving ,shape cutting
Electronic industry: circuit board,insulation material,LED display screen.
