High Performance DVB-S2 Modulator with DVB-S2 If Output
| Price: |
US $ 1-3300set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
HPS3402F |
| Asi Input: |
4 Asi |
| IP Input: |
1*IP Input |
| 10MHz Input: |
1*10MHz Input |
| If Output: |
Range: 50 to 800 MHz |
| Channel Coding And Modulation: |
DVB-S,DVB-S2 |
| Type: |
TV Front-end Equipment |
| Function: |
Signal Transmission Equipment |
| Certification: |
FCC,SGS |
| Condition: |
New |
Product Description

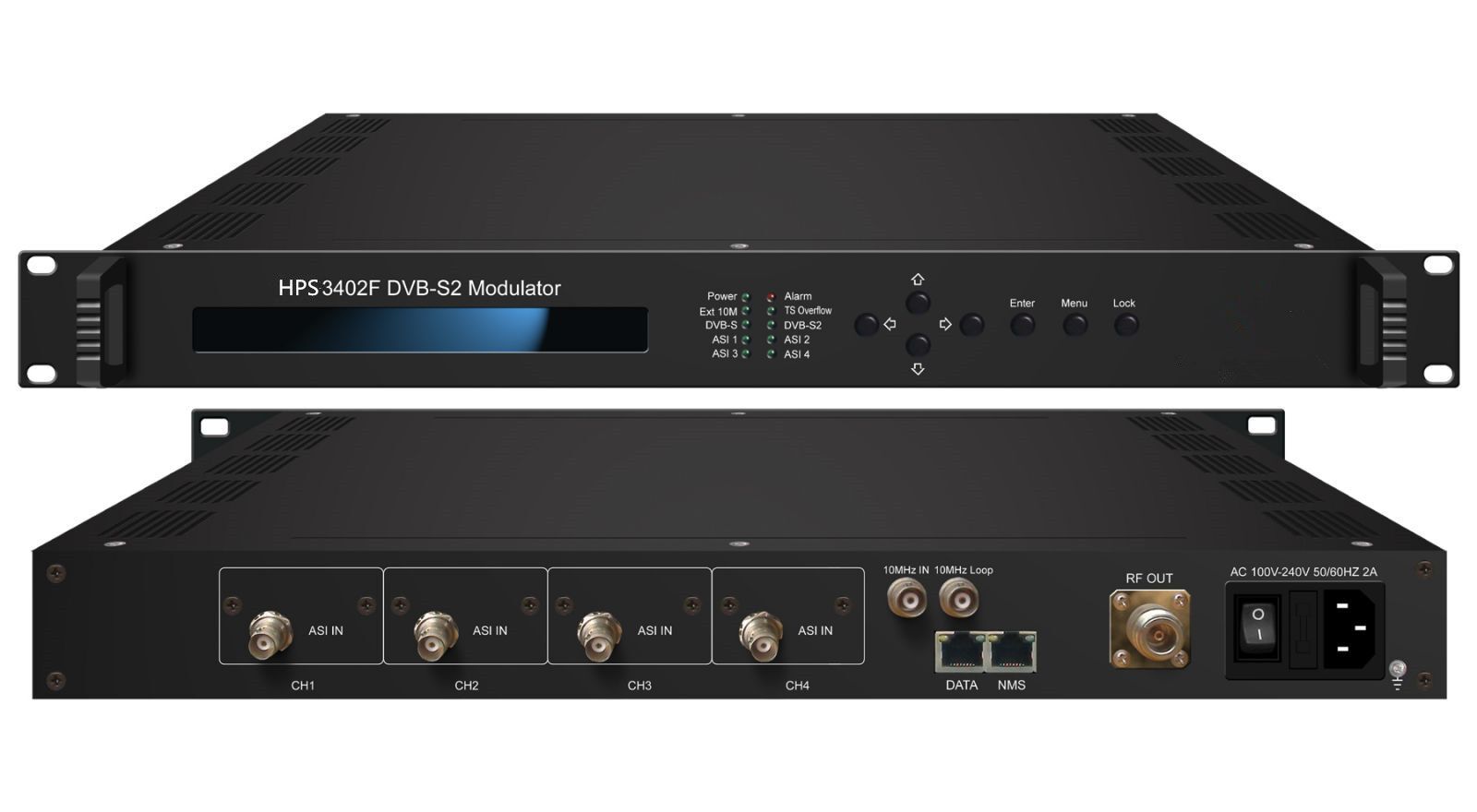

High-Performance DVB-S2 Modulator With DVB-S2 IF Output
HPS3402F is a high-performance modulator developed according to DVB-S2 (EN302 307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S2 IF output.BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.With its high cost-effective design, HPS3402F DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
Features:* Fully complying with DVB-S2 (EN302 307) and DVB-S (EN300 421) standard* 4 ASI inputs (3 ASI for hot backup)* Support IP signal input* Constant temperature crystal oscillator, as high as 0.1ppm stability* Support 1 external 10MHz reference clock input with loop out* Support BISS scrambling* Support local and remote control* Output frequency range: 50~800MHz, 1KHz stepping

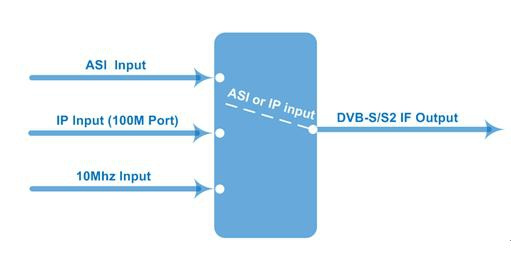

Principle Chart:
Specifications:| ASI Input | Supporting Both Packet And Byte Mode TS Input |
| 4 ASI input ( 3 ASI for hot backup) |
| Supporting 188/204Byte Transmission Stream Packet |
| ASI Input Connector: BNC, Impedance 75Ω |
| IP Input | 1*IP Input (Rj45, 100M TS Over UDP) |
| 10MHz Input | 1*10Mhz Input (BNC Interface) |
| IF Output | Range: 50 to 800 MHz, 1KHz stepping |
| Output Level Attenuation: 0dBm~31.5 dBm, 0.5dB Stepping |
| MER≥40dB |
| Connector: N type, impedance 50Ω |
Channel Coding
and Modulation | | DVB-S | DVB-S2 |
| Outer coding | RS Coding | BCH Coding |
| Inner coding | Convolution | LDPC Coding |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
| Constellation | QPSK | QPSK,8PSK |
| Roll-off Factor | 0.2, 0.25, 0.35 | 0.2, 0.25, 0.35 |
| Symbol Rate | 0.5~45MBauds | 0.5~30MBauds |
| BISS Scramble | Mode0, mode1, mode E |
| Miscellaneous | Dimension | 482mm×410mm×44mm |
| Weight | 4.3 KG |
| Temperature | 0~45ºC(operation), -20~80ºC (storage) |
| Power | 100-240VAC±10%,50Hz-60Hz |
| Consumption | 25W |
Technical Comparison | | HPS3402F | OTHER PRODUCT |
| Input | 4 ASI in with hot backup | 2 ASI in with hot backup |
| Frequency Out Range | 50 - 800 MHz | 36 - 1000 MHz |
| MER | MER≥40dB | MER> 38dB |
| Output Level | 0dBm~31.5 dBm | 0dBm~20 dBm |
| Symbol Rate | 0.5~45MBauds | 1~18MBauds |
| BISS Scramble | Support | Not support |
| Constant Temperature Crystal Oscillator | Support | Not support |
| CID Insert | Support | Not support |
