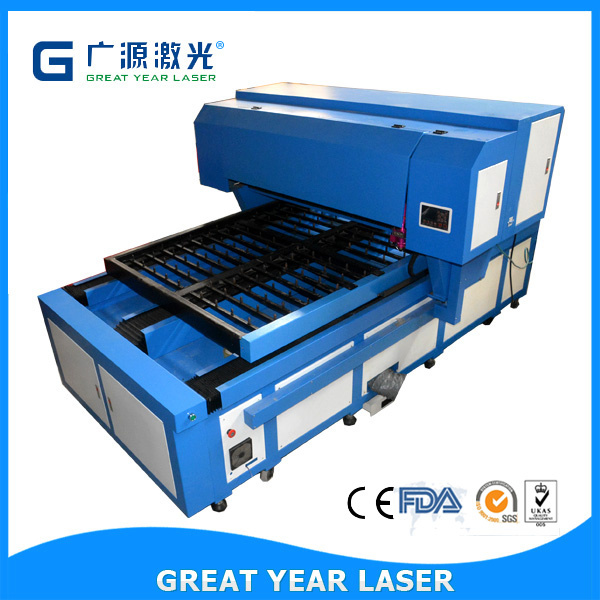

Gy-1218sh Automatic Die Cutting Machine for Wood
Price: |
US $ 18500-25000/Set |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
Prod Model: |
GY-1218SH |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Laser Power: |
400W |
Cutting Speed: |
18-25m/Hour 18mm Plywood |
Model: |
Gy-1218sh |
Working Area: |
1200*1800mm |
Transmitting System: |
3 Axis Ball Screw Rail |
Cutting Slit: |
0.71mm 1.05mm 1.42mm (One Time Cutting) |
Cutting Thickness: |
13-25mm Plywood |
Support Software: |
Autocad, Coreldraw |
Support Format: |
Plt, Dxf, Dsf, Ai |
Machine Voltage: |
220V/50-60Hz |
Product Description
Great Year Automatic die cutting machine :
Product Description:

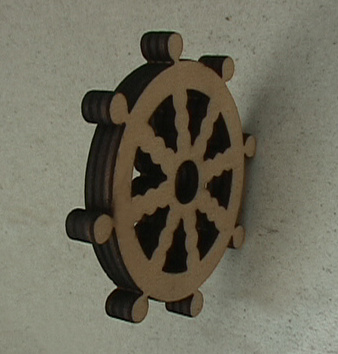

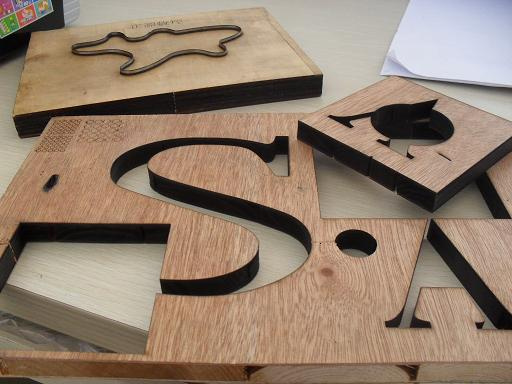

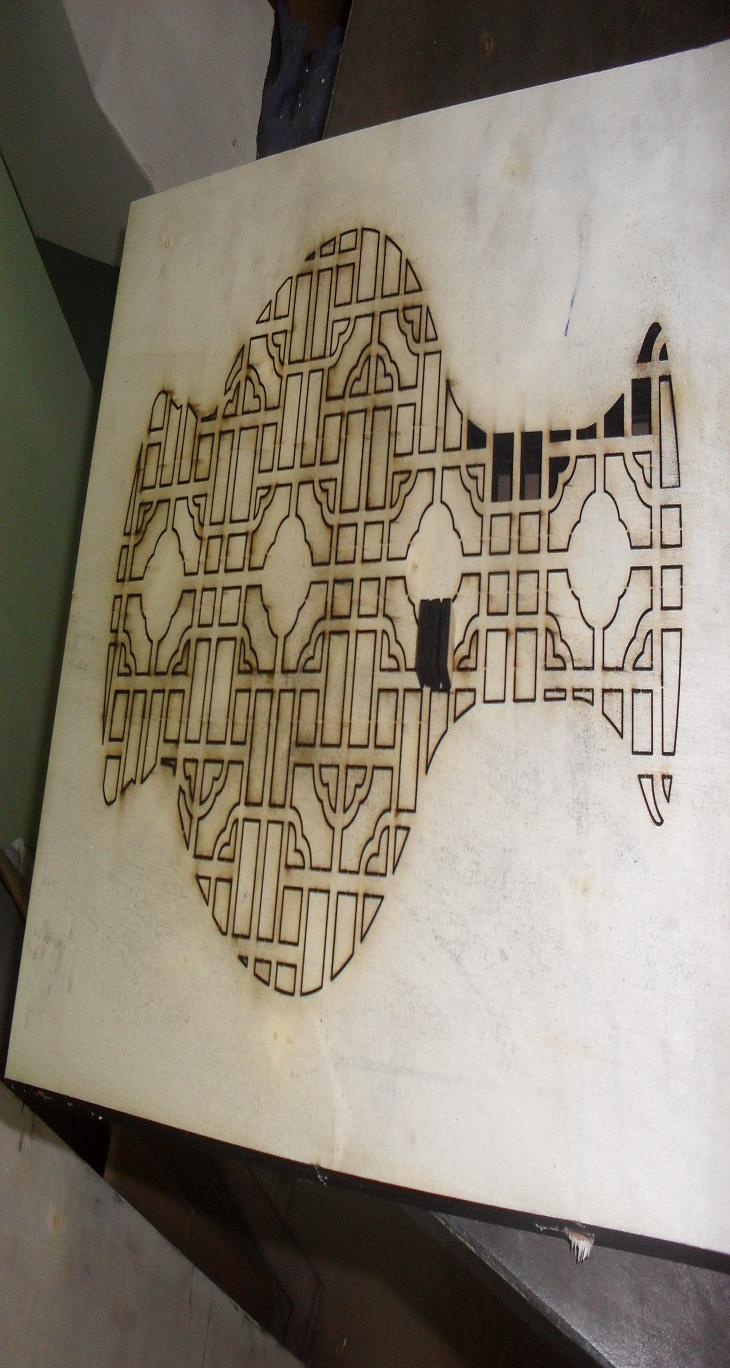

SAMPLE:
Features
Red light pointer
Human friendly software
Talent Controller RD CAM
Safety Tunneled Mirrors & Lens
Feeding extra long material door
RECI Co2 Laser Tube, '8000 Working Hours,
Components & Parts also from Germany or Japan for better Accuracy and Smoothness
Co2 Filtered Glass on the Door
Bigger & Silent Extraction Fan and Tube
Bigger Air compressor
Modern 'ZNSE Focus Lens
Updated software, compliable with all Windows Systems.
More stable stepper motors
Machine comes with both 'Legs & Locking Wheels' Can used both at once.
Technical Parameter: Model No. | GY-1218SH |
Processing scale | 1200mm*1800mm |
Net Weight | 2500Kgs |
Dimension(L*W*H) | 3100*2100*1600mm |
Laser Type | CO2 Sealed Laser Tube |
Laser Power | 400W Single Head |
Moving way | Gantry Type |
Driving Motor | High precision Ball screw rail and Servo Motor |
Cutting Depth | 6mm-22mm Plywood |
Cutting Precision | ±0.05MM |
USB Port Connection | Yes |
Operating Temperature | 0-45°C |
Mould Knife Thickness | 0.45mm, 0.71mm,1.07mmetc. controllable |
Cutting Speed | 25-30meters/hour |
Protective Gas | Dry and Oil-free Air |
Power Supply | Single-phase Electricity 220V±5% 60Hz 10A |
Numerical Control Panel | LCD Screen, Light-touched Key-press |
Software Supported | CorelDraw, Auto CAD, Photo Shop, |
Graphic format support | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS Memory | attached 32MB memory, can work under off-line condition |
Assistant Equipments | Air Dryer, industrial chiller, Exhaust Fan, Computer System |
Recommend spare parts | Laser Tube and Lens |
Our Laser Die Cutting Machine Include all this extras:
Industrial Water Chiller CW3000 CW5000
Industrial Exhaust Fan
Honey Comb Table
One Year Warranty
24/7 Support E-mail online, Skype video, Teamviewer online
Professional User's manual
CD installation video and Training video
Free Training at supplier factory.
Machine Maintenance
Detailed maintains steps was mentioned at the User's Manual!
Using Software
Adjust the optical laser path
Health And Safety Precautions
Can be used with following materials:
Acrylic, Perspex, Plastics, PVC, Glass, Acrylic Mirror, Leather, Slate, Stone, Paper, Granite, Wood, Organic Glass, Crystal, Garments, Jeans, Paper, Leather, Rubber, Stones, Ceramic, Mobile phones.
You are most welcome to come for a demonstration and view the machine, the cutting speed & all the accessory's that we provide with our Laser Cutting Machine. If you are unable to come at this moment you also are most welcome to send your material and a files so our engineer can send you a full report on the cutting speeds on the different materials.
We do deliver our machines all over the world, machine will be testing 24*7 hours. User's Manual, CD with video will show you how to maintain your Co2 Laser Machine & all the health and safety precautions and how to use the software.
Please feel free to ask any questions. we reply back each call !
We have machine and a full spares Parts in stock !
Service
a. One Year Warranty
b. 7*12hrs online service(E-mail, Skype WeChat, Whatsapp,Teamviewer)
c. Manual, Software, Video, CD
d. Free training in factory
e. Technician local service available
ABUOT US
FAQ
1. What kinds of laser machine do you have?
For industry purpose, there are many different laser sources for different laser application!
1)40w-150w CO2 Laser (S, D, E series)
Engraving and Cutting Non metallic material like Acrylic, Plastic, Wood, MDF, Paper, Fabric, Textile, Leather, Marble, Ceramic etc.
2)Mixed CO2 Laser Cutting Machine 150w 200w 300w (CS/CM series)
Cutting Thicker Acrylic, MDF, Wood and Thin Steel 2mm
3)Fast Flow CO2 Laser Cutting Machine1000w 1500w 2000w (H series)
Cutting Thicker Metal and Wood MDF Acrylic
4)Fiber Laser Cutting Machine 500w 1000w 2000w (CYM series)
Excellent Cutting Different Metal in different thickness
5)10w--50w Fiber laser, 50w-100w YAG laser (DP series, FLM series)
Engraving and Marking any Metal and some non metal (ABS plastic)
Such as Marking production date, company logo, serial no. bar code, 2D code on the object surface.
6)100w 150w 275w CO2 Galvo Laser Marking Machine (GYRF series)
Marking wood, leather, Jeans, Garments, Fabric, Acrylic (light guide plate)
2. Which machine is good for Garments/Cloth/Fabric/Textiles cutting?
S series, D series is suitable,
Most of customer will choose model GY-1490D 80W!
And refer to some added function model
With Auto feeding function TF and TK Series
Three Heads Laser Machine ST series,
Four Heads Laser Machine F series
3. What kind of materials can a GY laser cut / engrave?
Acrylic | Cork | Leather | Paper | Styrene |
Anodized Aluminum | Crystal coated metal | Marble | Plastic | Tile |
Anodized metal | Fabric | Matte board | Polyester | Veneer |
Bamboo | Fiberglass | Melamine | Polyester film | Vinyl |
Carbide | Foam | Mylar | Pressboard | Wood |
Cardboard | Glass | Nylon | Rubber | |
Ceramics | Kevlar | Painted metals | Silicon | |
Composites | Laminated plastic | Painted materials | Stone | |
4. Can I Engrave metals with a CO2 Laser?
Answer is No!
But Co2 laser can Engrave Anodized metal and some metal with Ceramic coatings, plastic coatings or paints!
5. How do I learn to operate lasers?
1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains,
2) Moreover, Skype, Team viewer online service is available for you,
3) Free training will offer you on our factory, Engineer is available to offer international service!
4) Local agent service available is extending all over the world!
6. How can I become a Agent of Great Year Laser?
Agent all over the world is wanted, welcome to visit our factory to know more of each other for start our long term cooperation!
Looking for agents all over the world! Any questions, welcome to contact us!
