| Price: | US $ 5200/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: | GY-1390E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: | High Power |
| Drive Type: | Stepper Drive |
| Engraving Machine Type: | Laser Engraving Machine |
| Control: | Automatic |
| Current: | AC |
| Laser Type: | CO2 |
| Usage: | Woodworking |
| Certification: | SGS, CE |
| Condition: | New |
Laser Tube fitted in working area !
Very Easy to Use !

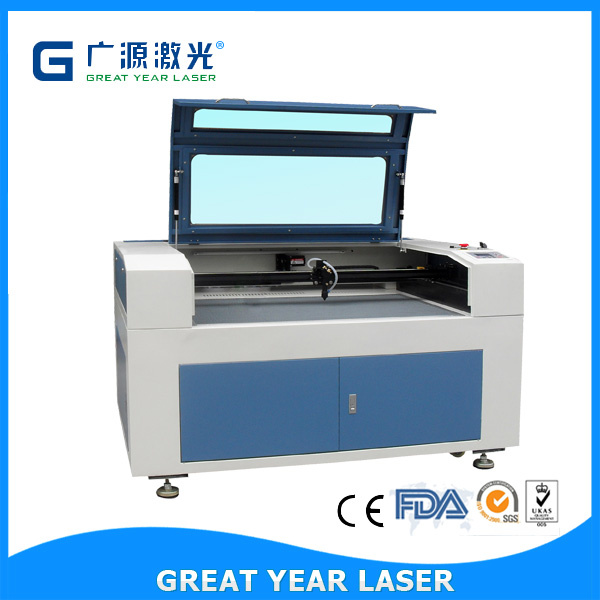

Co2 laser Engrave/Cutting Machine
Work area:1300 X 900 mm
X, Y and Z axes
Smooth cutting edges, free from polishing, faster processing speed, no dust less waste and higher efficiency.
Genuine Co2 Laser (RECI Laser Tube) Power 170 Watts which will cut through 25mm Acrylic
Stand alone, USB port, extra USB port for USB stick
Model: GY-1390E
Description:
1.Adopt originated imported motors and drivers, high performance, fast response, good stability.
2.Precision-linear rail guide,ensure the machine run accuracy.
3.High-perfomance laser tube and laser power supply,stability,durability,safety
Features:
Repositioning accuracies is 0.01mm
Working area: 1300mm X 900mm (Full 100%)
Laser power: Genuine Co2 Laser Power 170 Watts
Laser type: CO2 sealed laser tube, water-cooling
Engraving speed: 0-36000mm/min (0-1417inch/min)
Laser Output Resolution: 1-100% 1000DPI
Resetting positioning accuracy: 0.01mm
Power supply: 220V/50HZ
Operating temperature: 0 - 45°C
Operating humidity: 5 - 95%
Min. shaping character: English 1.0 x 1.0mm
Graphic format supported: BMP, HPGL, JPG, PLT, DXP, DXF,DWG, PLT, DST, DXF, AI
Software supported: CorelDraw, AutoCAD
Driving system: Stepper Motor
Equipment Dimension: L(182cm) X W(142cm) X H(107cm)
Packing Dimension : L(188cm) X W(148cm) X H(120cm)
Net Weight: 380Kg
Our Co2 Laser Machine Include all this extras:
Machine Maintenance
Detailed maintains steps was mentioned at the User's Manual!
Can be used with following materials:
Acrylic, Perspex, Plastics, PVC, Glass, Acrylic Mirror, Leather, Slate, Stone, Paper, Granite, Wood, Organic Glass, Crystal, Garments, Jeans, Paper, Leather, Rubber, Stones, Ceramic, Mobile phones.
You are most welcome to come for a demonstration and view the machine, the cutting speed & all the accessory's that we provide with our Laser Cutting Machine. If you are unable to come at this moment you also are most welcome to send your material and a files so our engineer can send you a full report on the cutting speeds on the different materials.
We do deliver our machines all over the world, machine will be testing 24*7 hours. User's Manual, CD with video will show you how to maintain your Co2 Laser Machine & all the health and safety precautions and how to use the software.
Please feel free to ask any questions.we reply back each call !
We have machine and a full spares Parts in stock !
Laser engraving machine Sample
PACKING AND LOADING
CUSTOMER ALL OVER THE WORLD
What kind of materials can a GY laser cut / engrave?
Pls see the form
| Acrylic | Cork | Leather | Paper | Styrene |
| Anodized Aluminum | Crystal coated metal | Marble | Plastic | Tile |
| Anodized metal | Fabric | Matte board | Polyester | Veneer |
| Bamboo | Fiberglass | Melamine | Polyester film | Vinyl |
| Carbide | Foam | Mylar | Pressboard | Wood |
| Cardboard | Glass | Nylon | Rubber | |
| Ceramics | Kevlar | Painted metals | Silicon | |
| Composites | Laminated plastic | Painted materials | Stone |
|
