Product Specifications
| Prod Model: |
DEK-1325S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V,Single Phase,50/60Hz |
| Working Area: |
1300*2500*300mm |
| Spindle Power: |
5.5kw |
| Motors: |
Stepper Motor |
| Operating System: |
DSP Control System |
| Inverter: |
6.0kw Fuling Inverter |
| Drivers: |
Leadshine Drivers |
| Transmission: |
Taiwan Tbi Ballscrew |
| Table Surface: |
T-Slot Extrusion PVC |
| Warranty: |
12 Months |
| Function: |
Lettering |
| Application Material: |
Granite |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

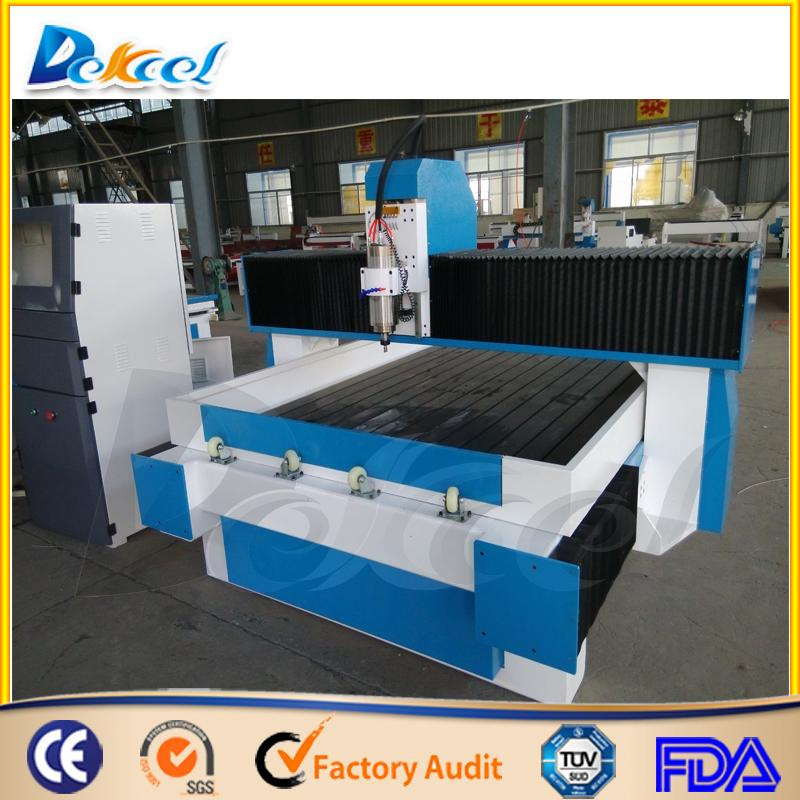

Granite Stone marble Cnc Carving Machine 1325
Introduction for stone carving machine
DEKCEL stone carving machine can engrave letter or patterns on natural granite, marble,bluestone, crystal stone, rock quartz, crystal stone, microlite, all kinds of artificial stone, glass, village tablet, tombstone, milestone, decorating baseboard etc., Can make
protuberant engraving and hollow engraving. carving material depth can reach 200mm.
Features for stone carving machine:
1.Machine structure is simple, pragmatic, clean appearance.
2.Machine Table adopts heavy and thick steel, which improve load-bearing of the whole machine, it can bear 3 ton heavy stone.
3.Machine sides use heavy steel, it can reduce vibration during work, then improve processing accuracy.
4.Gear wheel for X Y axis, ball screw are uncovered, so it is very easy to clean it, after work, ball screw can be cleaned for many times.
5.Water tank can be moved, it is easy to clear
Stone carving machine technical parameter :
Items |
Parameters |
Working area(mm) |
1300mm*2500*300mm |
Table Structure |
1.5 mm stainless steel T-slot table |
Transmission system |
X,Y axis Gear Rack from Taiwan,z axis Ballscrew from Taiwan but with German technology |
Lead rail system |
Linear round guide rail |
Spindle power |
5.5 kw Water-cooling ,3.175/4/6/12.7mm |
spindle speed |
0-24000 rpm |
Motor |
stepper(Panasonic/Yaskawa optional) |
Drive |
leadshine drivers |
Dust collector system |
For your option |
Tool sensor |
Option |
Software environmant |
Windows 98/2000/XP |
Control System |
Ncstudio control system [DSP is optional] |
Compatible file formats |
G code ; *.u00 ; *.mmg ; *.plt . |
Compatible CAD/CAM Softwares |
Ucancam V8 / Type3 / Artcam / |
Working Voltage |
AC380V,3ph, 50Hz |
Precision |
0.005mm |
Max speed |
26.0m/min |
Max engraving speed |
18.0m/min |
Max feeding height |
200mm |
Work-holding devices |
by fixture |
Interface type |
USB |
Warranty guarantee |
One-year after-sale services |
Applicable Industries of stone carving machine
Suitable for stone materials , tombstone processing ,artistic relief ,advertising&decoration ,artware industry ,etc .
Applicable Materials
Marble ,granite ,bllue stone ,sand stone ,tile ,glass ,crystal ,artificial stone ,tombstone ,mile stone ,jade ,etc ,also can for the woodworking materials ,metal ,advertising materials processing .
Warranty and technical support
12 months for the whole machine
24 Hours technical support by email or calling
User friendly English manual and Video CD for machine operation and maintain
After-sale service
1.Small parts will be supplied to you for free, such as, software CD, dongle.
2.Any problem will be replied to you within 24 hours!
3.By video, solution manual in English, Email, Skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.
FAQ
1,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 20 days.
3,Do you arrange shipment for the machines?
Yes, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Welcome to DEKCEL CNC, where our friendly and knowledgeable staffs are happy to assist you with your CNC needs. DEKCEL do not just sell CNC machines. We offer CNC solutions to Customers. Provision of a CNC machine is more than just the provision of a machine tool. Jinan DEKCEL provide a range of CNC Router, CNC laser, plasma cutting machine, laser marking machine etc. Having manufactured, sold, installed and supported over 7000 CNC machines. The professional CNC router, laser, plasma cutter we offer have exceptional long term stability, high cutting performance potential in a variety of applications and the machine systems are built to last. Listening to customers'needs and building high quality CNC Routers, laser, Plasma Cutters etc to fulfill their requirements is the way we do business in the CNC marketplace. If you are looking to get into the CNC world, have a CNC application in mind, have a new business idea or looking to further your production, have a look at what DEKCEL have to offer you!
