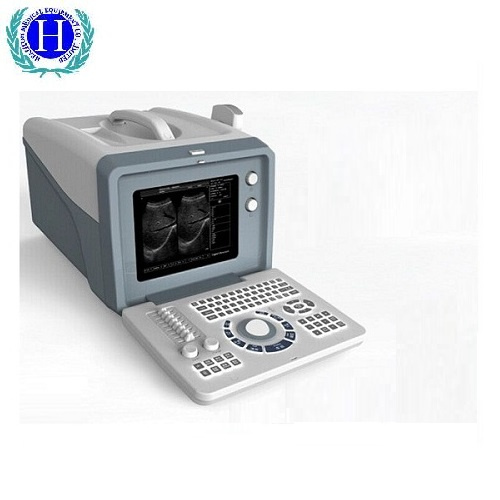

Good Quality Hbw-5plus Portable Ultrasound Scanner Ultrasonic Diagnostic System
| Price: |
US $ 1000-1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
HBW-5Plus |
| Screen: |
10 Inch CRT Monitor |
| Displaymode: |
B, B/B, 4b, B+M, and M |
| Dynamic Range: |
64-96dB Adjustable |
| Frequency Conversion Arrange: |
2.5MHz/3.0MHz/3 .5MHz/4 .0MHz/6 .5MHz/7MHz |
| Image Polarity’: |
Left/Light, Black/White and up/Down Reverse |
| Image Memory: |
128 Pictures Permanent Storage |
| Gw/Nw: |
10kgs/ 7kgs |
| Packing Size: |
480X380X410mm |
| Optional: |
Transvaginal, Linear, Rectal, Micro-Convex Probe; |
| Feature: |
Multi-Frequency Probe |
| Group: |
for Any People |
Product Description
Features:High Cost-effective
Multi-frequency probe
Double probe socket
B,B/B,4B,B+M,M display mode
Full digital bring crystal-clear lmage
10 inch CRT screen
USB(Optional),VGA,Video output connector
Cineloop and image storage

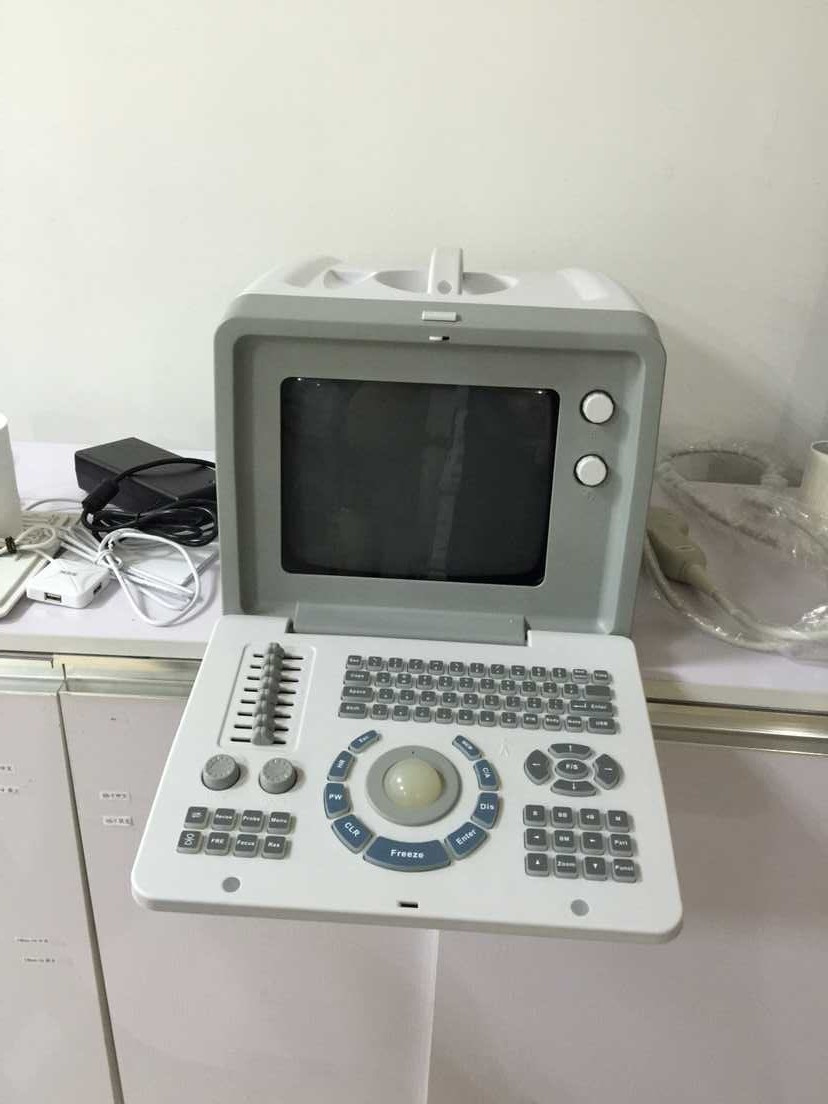

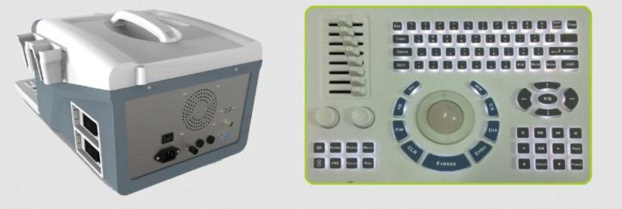

Backlight keyboardSpecification:Screen: 10 inch CRT monitor
Displaymode: B,B/B,4B,B+M,and M
Magnification: x 0.8, x 1.0, x 1.2 (Depth hoist display). and x 1.5x 1.8x2.0 (Depth hoist display
Dynamic range: 64-96dB adjustable.
Focusing: Four sections of dynamic electronic focusing may be elected.
Pre-processes: changeable aperture, dynamic changes of the marks, dynamic fiter and edge enhancement, etc.
Pro-processes: 8 kind of adjustments,16 kinds of color process, line correlation, frame correlation and linear interpolation,etc.
Frequency conversion arrange: 2.5MHZ/3.0MHZ/3 .5MHZ/4 .0MHZ/6 .5MHZ/7MHZ
Calculation:distance,perimeter,area,heart rate, pregnancy week (BPD,GS,CRL,FL,AC veterinary version with animal pregnancy week) and anticipated delivery date.
Note: name, serial numbers of case history gender age, 16 body marks (with probe), full-screen character,real-time clock
Puncture guide: The puncture guide line can be displayed under B mode.
Gain control: The total gain, near field and far field can be adjusted successively.
Image polarity': left/light, black/white and up/down reverse.
Fractionated gain: 2 time of enlargements
Movie memory: 256 pictures can be memorized successively when the real-time is displayed.
Image memory: 128 pictures Permanent storage.
Image review: Images can be reviewed successively and checked one by one.

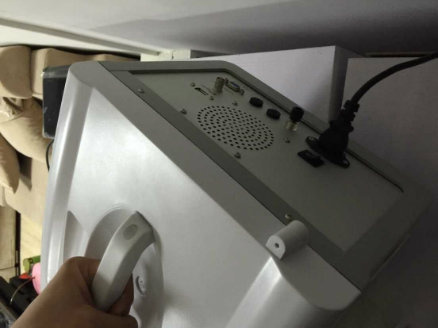

Output interface: 1groups of SVGA video output may mate with SVGA color monitor, 1groups of PAL video output may mate with PAL monitor, video image recording instrument and image workshop, etc;
1 group of USB Connection(Optional) for plug USB storage disk.
GW: 10KGS, NW: 7KGS, Packing size: 480x380x410mmStandard Configuration: One host (silicone keyboard), one convex probe
Optional:

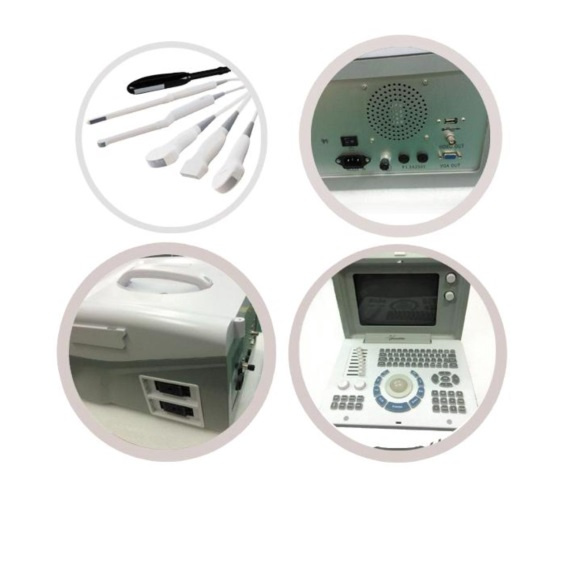

Transvaginal,linear,rectal,micro-convex probe;
Change to laser carving keyboard; USB Connection.
