Glass PVD Vacuum Coating Machine/Glassware Vacuum Metallizing Machine
| Price: |
US $ 88/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ZZ-1214, ZZ-1416, ZZ-1618, ZZ-1820 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Glass Vacuum Coating Machine |
| Size: |
Hcca-1215, Hcca-1618 |
| Coating Technology: |
Arc Ion Coating Technology |
| Coating Colors: |
Silver, Golden, Red, Blue, Black, Grey etc. |
| Coating Film: |
Aluminum, Tin, Tic, Crn etc. |
| Coating Material: |
Glass, Stainless Steel, Zinc Alloy, Brass etc. |
| Application: |
Glass, Ceramics, Crystal, Furniture, Kitchen Bath |
| Chamber Size: |
1250*1500mm, 1600*1800mm, 1800*2000mm |
| Control Mode: |
Automatic PLC Touch Screen Control |
| Brand: |
Hcvac, Dongguan, China |
| Coating: |
Vacuum Coating |
| Substrate: |
Glass |
| Type: |
Glass Vacuum Coating Machine |
Product Description
Glass PVD Vacuum Coating Machine/Glassware Vacuum Metallizing Machine
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.

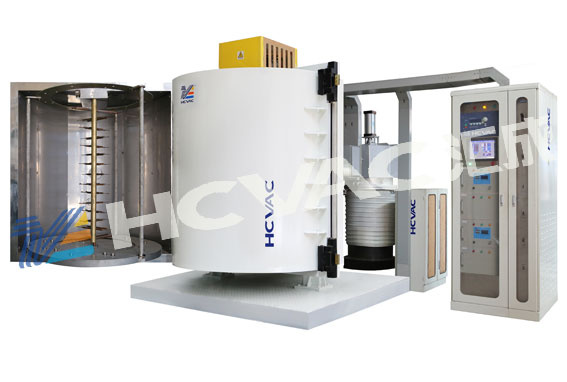

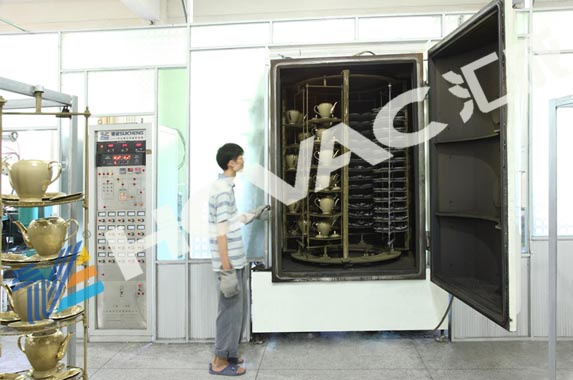

Front of the machine ( we can make it both vertical and horizontol type. Usually make it to double door for vertical type to achieve high efficient production).
Back of the machine (pumping system: We will design the whole set of puming system according to the size of the chamber).
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: General electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;

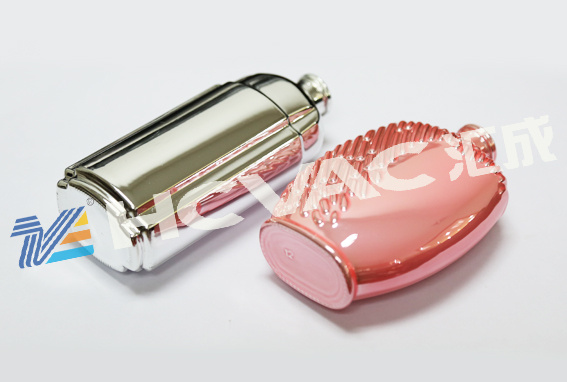

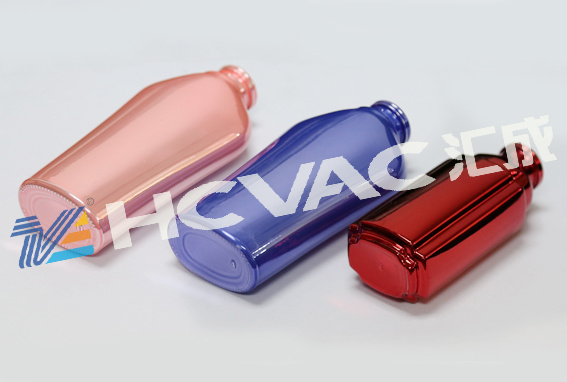

Coating color: Gold, silver, red, blue, green, purple, multi color, and so on. Strong adhesion coating!
We can design the chamber size according to your requriements.
The coating experts of your own company:Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technicto meet your requirements, to ensure high efficiency of production.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
A special after-sales service hotline is set up to provide the customers with satisfactory problem solutions and technical support.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
For further information, please feel free to contact us!Contact: Lillian Yang
Mobile: 0086-13825720037Technical parameters:Mode
Dimension | ZZ-1214 | ZZ-1416 | ZZ-1618 | ZZ-1820 |
| 1200*1400mm | 1400*1600mm | 1600*1800mm | 1800*2000mm |
| Film Type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. |
| Power source Type | Thermal evaporation power, ion bombard power, RF power |
| Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition |
| Ultimate vacuum | 8.0*10 -4 Pa |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Pump time | Pump from atmosphere to 5.0*10 -2 ,6 minutes |
| Workpiece motion mode | Public rotation/Frequency control |
| Control mode | Manual/Automatic all-in-one mode, Touching screen+PLC |
| Remark | We can design the dimension of the vacuum chamber according to customers demand. |
Why a HCVAC system? Over 1000 plants installed worldwideQuick cycle timesHigh production capability with low energy consumptionMore up time due to ease of loading/unloading and low maintenanceHigh productivity with only a single operatorSteel process chambers, built to lastEco-friendlySpace saving designPVD option available on all plants1 year component warranty and 12 years minimum guaranteed working lifeComplete global network of consulting, engineering and renowned after sales service
