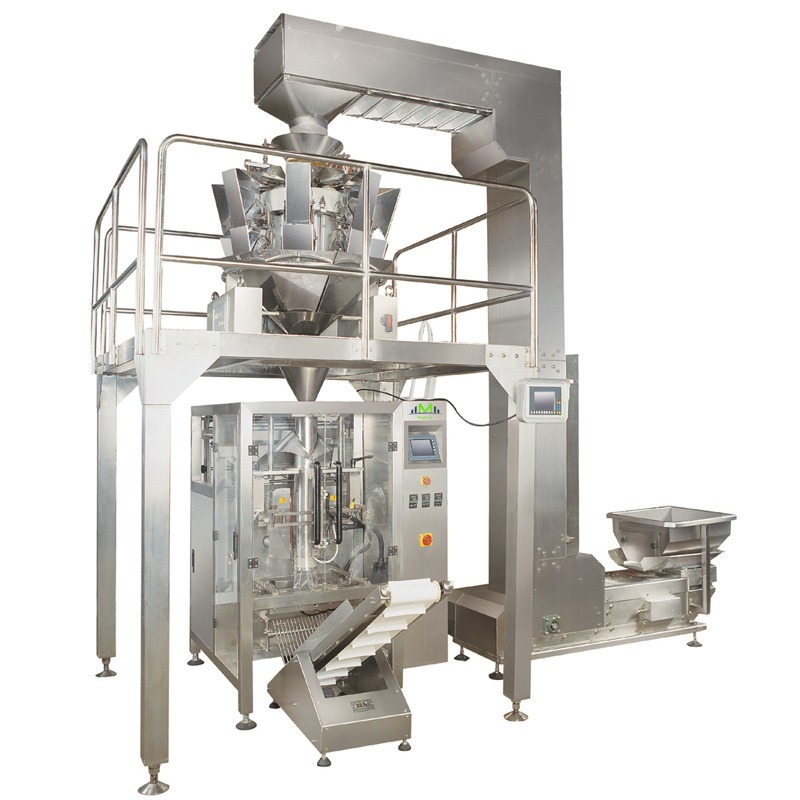

Full automatic large vertical weighing type packing machine
| Price: |
US $ 30000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
MZH-P5240 |
| Bag Length (mm): |
80-400mm(L) |
| Bag Width: |
80-250mm(W) |
| Max Width Of Roll Film: |
520mm |
| Packing Speed: |
20-90bags/Min |
| Measuring Range: |
3000ml(Max) |
| Air Consumption: |
0.65MPa |
| Gas Consumption: |
0.4m³/Min |
| Voltage: |
220VAC/50Hz |
| Power: |
4kw |
| Wight Of Machine: |
600kg |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Electric |
| Material Type: |
Powder |
| Packaging Material: |
Plastic |
| Packaging Type: |
Bags |
Product Description
I. Product DescriptionFull automatic large vertical weighing type packing machine
USEAGESuitable for packing of various of granule, slice , stripe , such as potato chips , shrimp chip, jelly, peanut. Etc . Packing with in 3000ml .Technical Characteristics1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Double servo control, high precision orientation, size more nicety.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine. Technical parameters| Type | MZH-P5240 |
| Bag length | 80-400mm(L) |
| Bag width | 80-250mm(W) |
| Max width of roll film | 520mm |
| Packing speed | 20-90bags/min |
| Measuring range | 3000ml(Max) |
| Air consumption | 0.65Mpa |
| Gas consumption | 0.4m³/min |
| Voltage | 220VAC/50HZ |
| Power | 4Kw |
| Dimension | (L)1150×(W)1795×(H)1650mm |
| Wight of machine | 600kg |
AC-10 MULTIHEAD WEIGHER
Application All kind of grain material, sheet material and abnormity material which such as candy , melon seeds ,chips , peanuts, nutlet, preserved fruit, jelly, biscuit, confect , compet foodstuff, dilatant foodstuff , hardware and plastic can be weighed by the ration .Technical characteristics 1. Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.2. High precision data-type weighing sensor realizes precise weighing.3. Liquid crystal screen operating system in multiple languages such as Chinese and English ,etc.4. IP65 grade water-proof and dust-proof design . It's clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.5. It can fine the opening and closing speed of hopper door according to the feather of items to be weighed , and prevent crushing and blocking of material .6. With powerful digital automatic counting function . It can record the index for each batch such as total bag number , pass rate and difference of single bag , etc.7. Optional devices: trigliyph balance ball ,suction hopper ,printing device ,tolerance sorting device . Technical parameters | Type | AC-10 |
| Measure number | 10 |
| Range of single weighing | 10-1000g |
| Quantity precision | ±0.3-1g |
| Weighing speed | Up to 70bags/min |
| Structure | Stainless steel-single level hopper |
| Preliminary programs | 99kinds |
| Net/gross | 310/370Kg |
| Overall size | 1400mm(W)*1130mm(D)*1120mm(H) |

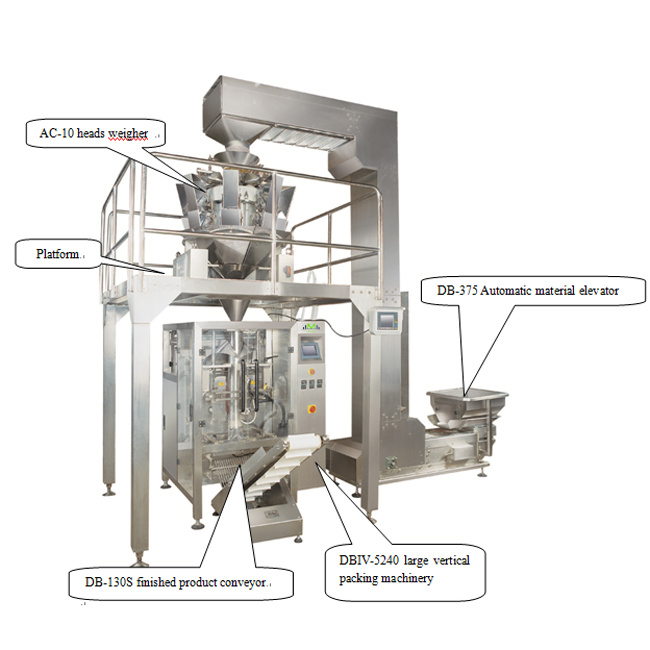

II. Machinery Main Parts

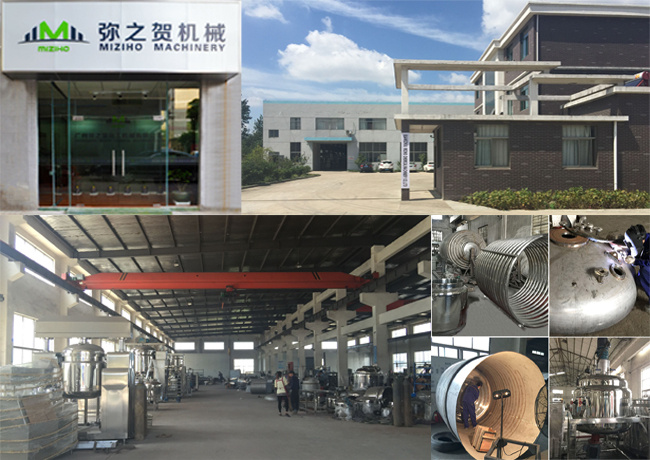

III. Our Factory

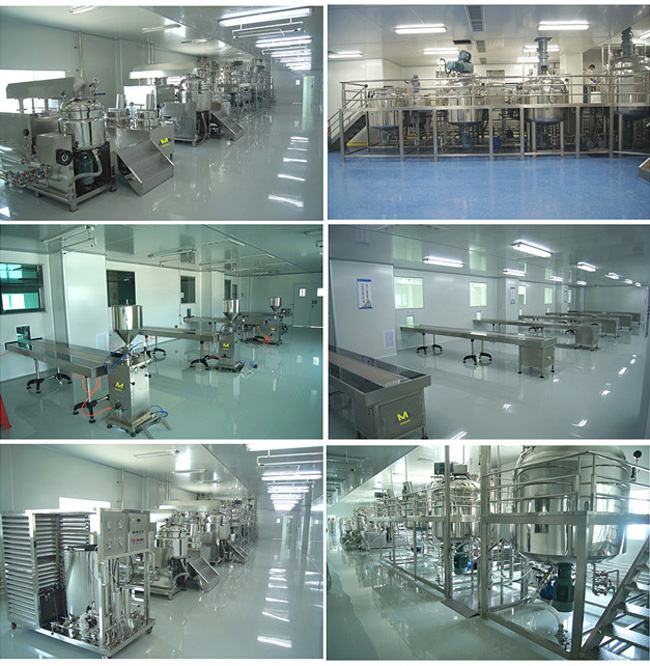

IV. The Main Project
V. After Sale Service1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within 24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.
VI. FAQ1. Q: Are you factory or trading company?
A: We are the professional manufacture of cosmetic machinery in China more than 10years.
2. Q: Where is your location?
A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai Province.
3. Q: Are your engineer be able to serve in oversea?
A: Yes, we have a lot of experience install the machine in oversea.
4. Q: What is your material of your product?
A: adopt with full stainless steel 304-2b and 316L
5. Q: How does your factory do regarding quality control?
A: Two years spare parts,and full-life service of our machinery.
Our Company to customer satisfaction for the development of three goals: Product quality, Product technology and After-sales service.
GUANGHZOU MIZIHO CHEMICAL MACHINERY Co., Ltd, Located in Guangzhou Guangdong Province of China, is a new high-tech company with a combination of design, manufacture, consultation and sale. Taking advantage of the professional standards and mechanical Engineering mellow technology in the field of chemical machinery, Now, This company is making great progress.
On the basis of introducting and absorbing advanced technology from domestic and foreign cosmetics engineering machinery, our company is constantly pursuiting the innovation and development of products for providing satisfied chemical machinery and related products to customers. The main products are suitable in the field of cosmetics, pharmaceutical, food and so on. The main production: Vacuum emulsifier mixer series, liquid mixer series, RO reverse osmosis water treatment series, all kinds of paste filling, liquid filling and powder filling machine, labeling machine, perfume equipment and other related equipment. Thanks to the first-class product quality and skillful technical service, our Company has received consistent high reputation from customers.
Our company always adheres to the operating principles of "people-oriented, integrity-based" as its foundation. By combining the advanced manufacturing technology and management experience domestic and abroad with the enterprise's specific conditions, the enterprise remains competitive in the fierce market competition and achieves rapid and steady development.
The Three-Development-Goal of company: Satisfied production quality, Satisfied production technology and Satisfied after-sale service, We are continuously enhance the comprehensive competitiveness of company. The company develop in competition, seek opportunities in challenge, Just trust us that we can offer best and advanced chemical machinery, advanced technology and best after-sale service for you. We are willing to cooperate with you, create brilliant!
