Product Specifications
| Prod Model: |
MZH-P |
| Product Type: |
Solid |
| Capacity: |
40-100 Bags/Min |
| Bag Size: |
L:50-300 W: 100-200 mm |
| Sealing Type: |
Pillow Sealing |
| Control Way: |
PLC Control |
| Total Power: |
3.2kw |
| Voltage: |
220V 50-60Hz |
| Bag Material: |
OPP CPP Pet PE |
| Grass Weight: |
600kg |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Electric |
| Material Type: |
Solid |
| Packaging Material: |
Plastic |
| Packaging Type: |
Bags |
Product Description

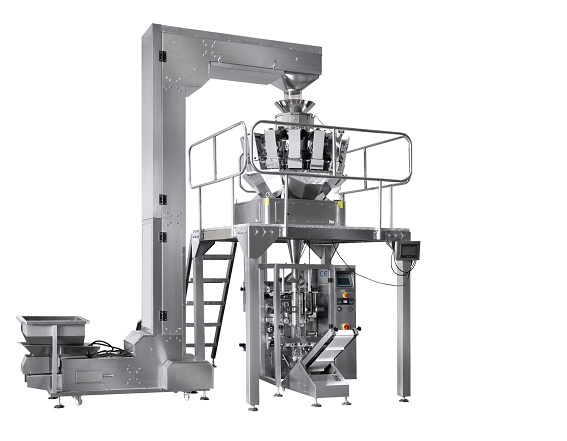

420 Automatic 10 heads scale packing machine for nuts
Application:
Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.
Technical Parameter:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
Technical characteristic:
1, the international famous brand PLC, can make performance, durable.
2, this mechanism bag, measuring, filling, sealing, code, cut bag, counting one-time finish.
3, servo motor synchronous wheel tension membrane, membrane resistance is small, beautiful, beautiful bag;The belt is not easy to wear and tear.
4, on the condition of material, device, effectively prevent the torn bags.
Technical Parameter:
| Model | MZH-420 |
| Bag Length | 50-300mm |
| Bag Width | 100-200mm |
| Roll Film Width | 420mm max. |
| Air Consumption | 0.3m³/min 1.0Mps |
| Voltage | 220V/50/60Hz |
| Power | 3.2KW |
| Machine Size | 1080(L)×1300(W)×1400(H)mm |
| Machine weight | 600Kgs |
Technical characteristics
1. Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages such as Chinese and English, etc.
4. IP65 grade water-proof and dust-proof design. It's clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
5. It can fine the opening and closing speed of hopper door according to the feather of items to be weighed, and prevent crushing and blocking of material.
6. With powerful digital automatic counting function. It can record the index for each batch such as total bag number, pass rate and difference of single bag, etc.
7. Optional devices: trigliyph balance ball, suction hopper, printing device, tolerance sorting device .
Technical Parameter:
| Model | MZH-10 |
| Weighing Range | 10-1000g |
| accuracy measuring range | X(0.5) |
| Max. Weighing Speed | 65PPM |
| Hopper Volume | 1600ml |
| Driving Type | Stepping Motor |
| Choosable Device | collecting hopper/printing device/overproof device /rotating vibrating machine |
| Operation Interface | 7inch touch panel /10.4 touch panel |
| Power Spec. | 220V/1000W/50/60HZ/10A |
| Packing Size | 1620(L)x1100(W)x1110(H)mm |
| Packing Weight | 380KG |
Technical Parameter:
| Model | Platform |
| Max.Loading weight | 2T-3T |
| Product Size | 1850(L)×1850(W)×1850(H)mm |
| Net weight | 350kg |
Technical Parameter:
| Model | MZH-130-2 |
| Material of Belt | Food grade(PP) |
| Material of feeding shelf | 304 stainless steel |
| Feeding Speed | 30m/min |
| Voltage | 220V/50/60Hz |
| Power | 0.55KW |
| Product weight | 80KG |
| Height | 100MM |
| Product Size | 1850(L)×550(W)×1230(H)mm |
Technical Parameter:
| Model | Z type Feeder and Vibrating Hopper |
| Power | 750W |
| Max. Feeding Speed | 4T/hour(rice) |
| Product Size | 3000(L)×650(W)×3750(H)mm |
II. Machinery Main Parts
III. Our Factory
IV. The Main Project
V. After Sale Service
1. Warranty time: One year guaranteed for quality, product whole life service any damage except the wrong operation during warranty. Period is repaired freely, But the travel and hotel expenses should be count on buyer.
2. Commissioning services: The product's installation and commissioning at the demand side, our engineers will not leave there until get your agreement.
3. Traning Services: Our engineers will train your staff in your factory or video to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4. Manintenance Services: Any malfunction happened, Once you inquiry us, We will reply you within 24 hours.
5. The File: The manual specification, report of the material which used to the equipment and other documents video related to GMP authentication information will be provided by us.
VI. FAQ
1. Q: Are you factory or trading company?
A: We are the professional manufacture of cosmetic machinery in China more than 10years.
2. Q: Where is your location?
A: Company and Showroom located in Guangzhou china, Factory located in Jiangsu and Shanghai Province.
3. Q: Are your engineer be able to serve in oversea?
A: Yes, we have a lot of experience install the machine in oversea.
4. Q: What is your material of your product?
A: adopt with full stainless steel 304-2b and 316L
5. Q: How does your factory do regarding quality control?
A: Two years spare parts,and full-life service of our machinery.
