Full Automatic High Speed Premade Pouch Rotary Food Packing Machine
| Price: |
US $ 18000-28000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
MR8-200RW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Packing Machine: |
Stainless Steel 304 or 316 |
| Food Filling And Sealing Packing Machine: |
Food Packaging Machinery |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Pneumatic |
| Packaging Material: |
Film |
| Material Type: |
Solid, Liquid, Powder, Mix Material |
Product Description
Features 1, Full automatic performed bags packaging system suitable for large and medium size production industries.
2, Typical advantages of preformed pouch packaging system are minimum material wastages, easy product and bag size changeover, better sealing property especially for boil-in-bag and pasteurize bag products, excellent packaging presentation, versatile and suitable for all types of preformed bags packaging including sides seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc. Only by quick adjustment without size parts change over.
3, Operators-friendly in design
4, Easy to clean and low in maintenance.
5, Complying with GMP standard, all product contact parts are in stainless steel and food grade materials
6, Sate of the-art PLC and touch screen electric control system Optional
7, Wash down and anti-rust construction
8. Possibility to lick-up and synchronize with other up and down stream packaging equipmentApplications1. Solid: Candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, dailycommodities, cooked food, pickles, puffed food, pet food, etc.
2. Granule: Grain, refined monosodium glutamate, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, granular drug, pesticide, fertilizer, feed, etc.
3. Powder: Spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticidesfertilizers, chemical raw materials.
4. Liquid: Rice wine, soy sauce, ricevinegar, fruit juice, beverages, detergent and so on.
5. Thick liquid: Tomato sauce, peanutbutter, jam, chili sauce, bean paste and so onParameter| Model | MR8-200RW |
| working station number | Eight |
| Function | Bags dispensing, Coding, Opening, Dosing1, Dosing2, Heat sealing1, Heat sealing2 and Bag discharge |
| Pouch Type | All type of heat sealable preformed side seal bags, fin seal bags, gussetedbas, bloc bottom bas, zip-lock erecloseable bags, stand-up pouch with or withou spout etc. |
| Bags size | W:80-200mm L: 100-300mm |
| Filling Volume | 10-1500g(depending on type of product) |
| Capacity | 35-60bags/min(depending on type of product and packaging material used) |
| Total power consumption | 2.5Kw |
| Machine Weight | 14800KG |
| Machine Dimension | 1710*1505*1640mm |
Packing Process1.For General Bags 2. For Zipper bagsStation 1 Bag feeding Station 1 Bag feeding Station 2 Date Printing Station 2 Date Printing and Zipper opening Station 3 Opening bag Station 3 Opening bag Station 4 Filling 1 Station 4 Filling 1 Station 5 Filling 2 Station 5 Filling 2 Station 6 Sealing 1 Station 6 Closing the zipper Station 7 Sealing 2 Station 7 Sealing 1 Station 8 Forming and Output Station 8 Sealing2 and outputThe function of working station will be different according to your products and bags

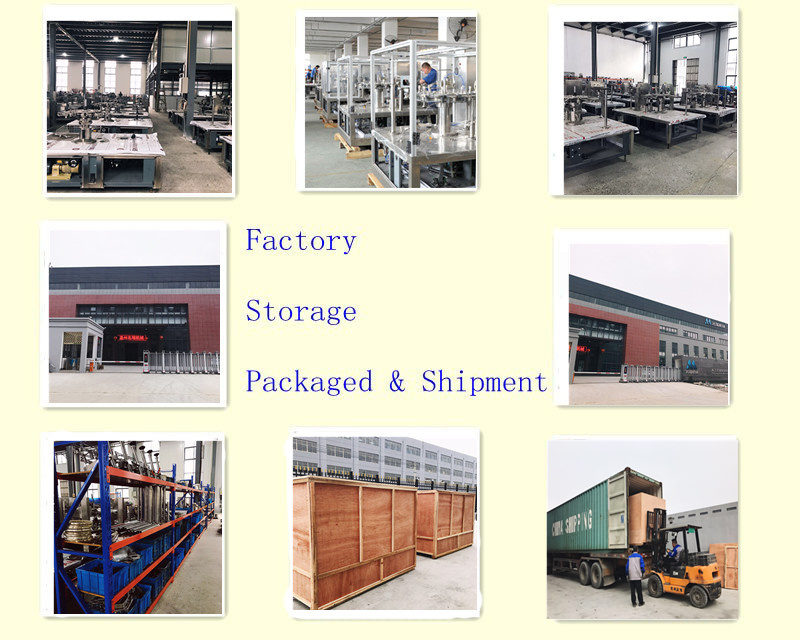

Company information
Our company is specialized in packing machine for many years, and we have been one of the biggest manufacturer in this field. We have a very strong team in research, design and production. Our machines got ISO9001 certification, CE approval and many utility model patents. Besides, we provide nice pre-sales consulation, program design and optimization product recommendation. Simultaneously, we also have perfect production progress tracking service, timely after-sales solving solution, excellent one-to-one service and establishing comprehensive customer files.
Wenzhou ECHO machinery Co; Ltd establish in 2010, is located in the important birthplace of zhe nang mode-Ruian. The company is specialized in automatic given bag packing machine and vacuum packing machine. ECHO packing machinery is a National high and new technology company combined with research, manufacturing, marketing and service, and possess the largest research and development institutions in the domestic industry, perfect production system and huge marketing service network, annual output and market share all reside the ex-row in profession.
At present, the company marketing network through the country, and exported to Europe, America, Southeast Asia, West Asia, the Middle East and other dozens of countries and regions. Our various products are applied in food, medicine, commodities, chemical industry, pesticides and other industries.
The company take "superior quality, user first, excellent service, continuous improvement" as guidance. To making incessant innovations on behalf of their customer for the mission. And in the first place through the IS09001 quality management system certification and CE certification in the industries. In the future, ECHO will develop in depth in for ares: " Technology, institution, management and culture. " With outstanding product quality and good market reputation to meet customer' S inspection!
