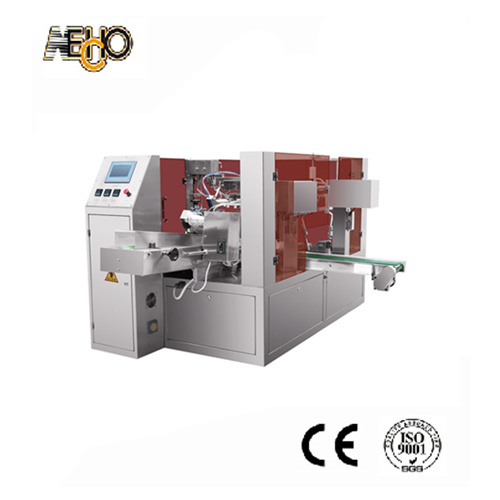

Product Specifications
| Prod Model: |
MR8-200R |
| Material Of Packing Machine: |
Stainless Steel 304 or 316 |
| Gusset Pouch Packing Machinery: |
Rice Packing Machine |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Pneumatic |
| Material Type: |
Grain |
| Packaging Material: |
Plastic |
| Packaging Type: |
Premade Pouch |
Product Description
Applications
1. Solid: Candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, dailycommodities, cooked food, pickles, puffed food, pet food, etc.
2. Granule: Grain, refined monosodium glutamate, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, granular drug, pesticide, fertilizer, feed, etc.
3. Powder: Spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticidesfertilizers, chemical raw materials.
4. Liquid: Rice wine, soy sauce, ricevinegar, fruit juice, beverages, detergent and so on.
5. Thick liquid: Tomato sauce, peanutbutter, jam, chili sauce, bean paste and so on
Main Features
1, Full automatic performed bags packaging system suitable for large and medium size production industries.
2, Typical advantages of preformed pouch packaging system are minimum material wastages, easy product and bag size changeover, better sealing property especially for boil-in-bag and pasteurize bag products, excellent packaging presentation, versatile and suitable for all types of preformed bags packaging including sides seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc. Only by quick adjustment without size parts change over.
3, Operators'friendly in design
4, Easy to clean and low in maintenance.
5, Complying with GMP standard, all product contact parts are in stainless steel and food grade materials
6, Sate of the-art PLC and touch screen electric control system Optional
7, Wash down and anti-rust construction
8. Possibility to lick-up and synchronize with other up and down stream packaging equipment
Parameter
| Model | MR8-200R |
| No. of working station | Eight |
| Function | Bags dispensing, Coding Opening, Dosing#1, Dosing#2, Heat sealing#1, Heat sealing#2 and Bag discharge |
| Pouch Type | All type of heat sealable preformed side seal bags, fin seal bags, gussetedbas, bloc bottom bas, zip-lock erecloseable bags, stand-up pouch with or withou spout etc. |
| Bags size | W:80-210mm L: 100-300mm |
| Filling Volume | 10-1500g(depending on type pf product) |
| Capacity | 25-60bags/min(depending on type of product and packaging material used) |
| Total power consumption | 2.5Kw |
| Mahine Weight | Approx. 1480KG |
| Machine Dimension | Approx 1710*1505*1640mm |
working process
1.For General Bags 2. For Zipper bags
Station 1 Bag feeding Station 1 Bag feeding
Station 2 Date Printing Station 2 Date Printing and Zipper opening
Station 3 Opening bag Station 3 Opening bag
Station 4 Filling 1 Station 4 Filling 1
Station 5 Filling 2 Station 5 Filling 2
Station 6 Sealing 1 Station 6 Closing the zipper
Station 7 Sealing 2 Station 7 Sealing 1
Station 8 Forming and Output Station 8 Sealing2 and output
The function of working station will be different according to your products and bags.
Our service
1. Pre-sale service: provide cost accounting, plant layout
2.In the sale of service: We have our own professional engineers to meet any of your requirement.According to your information of products,I will recommend most suitable machine for you.We appoint technicians to install machine and adjust machine. And train the operator to know well about the operation, fixing and maintaining of machine. Or you can appoint operator to study in our factory.
3.After sales: the amchine warranty is 1 year, our aftersale team will respond your question or solve the problem by call or on-the-spot service depand on situation.
Wenzhou ECHO machinery Co; Ltd establish in 2010, is located in the important birthplace of zhe nang mode-Ruian. The company is specialized in automatic given bag packing machine and vacuum packing machine. ECHO packing machinery is a National high and new technology company combined with research, manufacturing, marketing and service, and possess the largest research and development institutions in the domestic industry, perfect production system and huge marketing service network, annual output and market share all reside the ex-row in profession.
At present, the company marketing network through the country, and exported to Europe, America, Southeast Asia, West Asia, the Middle East and other dozens of countries and regions. Our various products are applied in food, medicine, commodities, chemical industry, pesticides and other industries.
The company take "superior quality, user first, excellent service, continuous improvement" as guidance. To making incessant innovations on behalf of their customer for the mission. And in the first place through the IS09001 quality management system certification and CE certification in the industries. In the future, ECHO will develop in depth in for ares: " Technology, institution, management and culture. " With outstanding product quality and good market reputation to meet customer' S inspection!
