Focus Cheap Price Garment Laser A2 UV Flatbed Printer

Name: Focus Cheap Price Garment Laser A2 UV Flatbed Printer
Brand: china-crystals.com
SKU: 827093195
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	US $ 3259-3769/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	Vocano-Jet Pro
Product Name:	Vocano-Jet PRO A3 UV Printing Machine
Voltage:	110V/220V
Print Head:	1390/1400
Color Model:	6 Color A3 UV Printing Machine
Color:	Cmyk+Ww
Max. Printing Size:	Available on Dark Media
Rip Software:	Focus Rip 8.2.6/ Custom Rip
Machine Body:	Thicken Aluminium Profile
Ink:	UV Ink, Eco Solvent Ink, DTG Ink
White Ink:	Available on Dark Media
Plate:	Relief Printing
Structure:	Platen Press
Color & Page:	Double Faced Multi Colors
Printing Interface:	USB2.0
System Supported:	Win7/Win8/Win10
Printing Speed:	64s/A4

Product Description

Focus Cheap Price Garment Laser A2 UV Flatbed Printer

Vocano-Jet Pro Vocano-Jet Pro key chain lighter printing machine UV flatbed printer that made by Focus Digital, it can print on the galss, metal, plastic, acrylic, ceramic...etc. with vivid color and fast speed, it is really a good choice for entrel level customer or kiosk using. it was made from R1390/1400 engine, can get max. printing speed by A4/63s, 6 color model, so can print on dak materials with CMYK+WW to get a good white ink density. also non-chips ink system can allow you refill the ink without buy original cartridges. Please check the details as following:

Specificatons:

Model		Focus-Vocano-Jet Pro Vocano-Jet Pro key chain lighter printing machine UV flatbed printer

	UV lamp system	6 Power degree adjustable system
	UV Power	100W
	UV lamp life time	50000hours
LED-UV Function	UV light wavelength	390-400nm
	Light power	500mw/w


	Cooling type	Water circulation
	Cooling adjustment	Automatic on/off between 25-30c
	Control Software	FocusRIP-UV 8.2.6
Repeat printing precision		Overlap small than 0.1mm
Head maintain		Head clean during/after printing, Keep-wet system when idle.
Ink system		Ink damper refill system
Max. printing size		A3+: 330mm*500mm
Print head		Epson 1390/1400
Print color		CMYK+WW
Print direction		Unidirection / Bidirection
Print speed		A3(1440dpi)/ 90s
Max. media thickness		12CM
Max. media weight		25KG
Max. printing resolution		2880dpi*1440dpi
Ink volume		150ML
Ink type		UV environmentally ink
Height adjustable		Manual / Automatic
Print head protection		Intellective automatic detect
Working power		110-220V 50-60HZ 75W
Interface		USB2.0 /3.0/IEEE1394
System require		Windows XP /8/10 Vista/ Win7 / MAC I Linus
Working environment		25-30C, 50% Humidity, Dust free
Net weight/Gross weight		65KG/88KG
Printer size		75CM65CM50CM
Packing size		91CM76CM64cm

6 color and max. 2880 dpi printing resolution. Output with good 3D texture printing result...

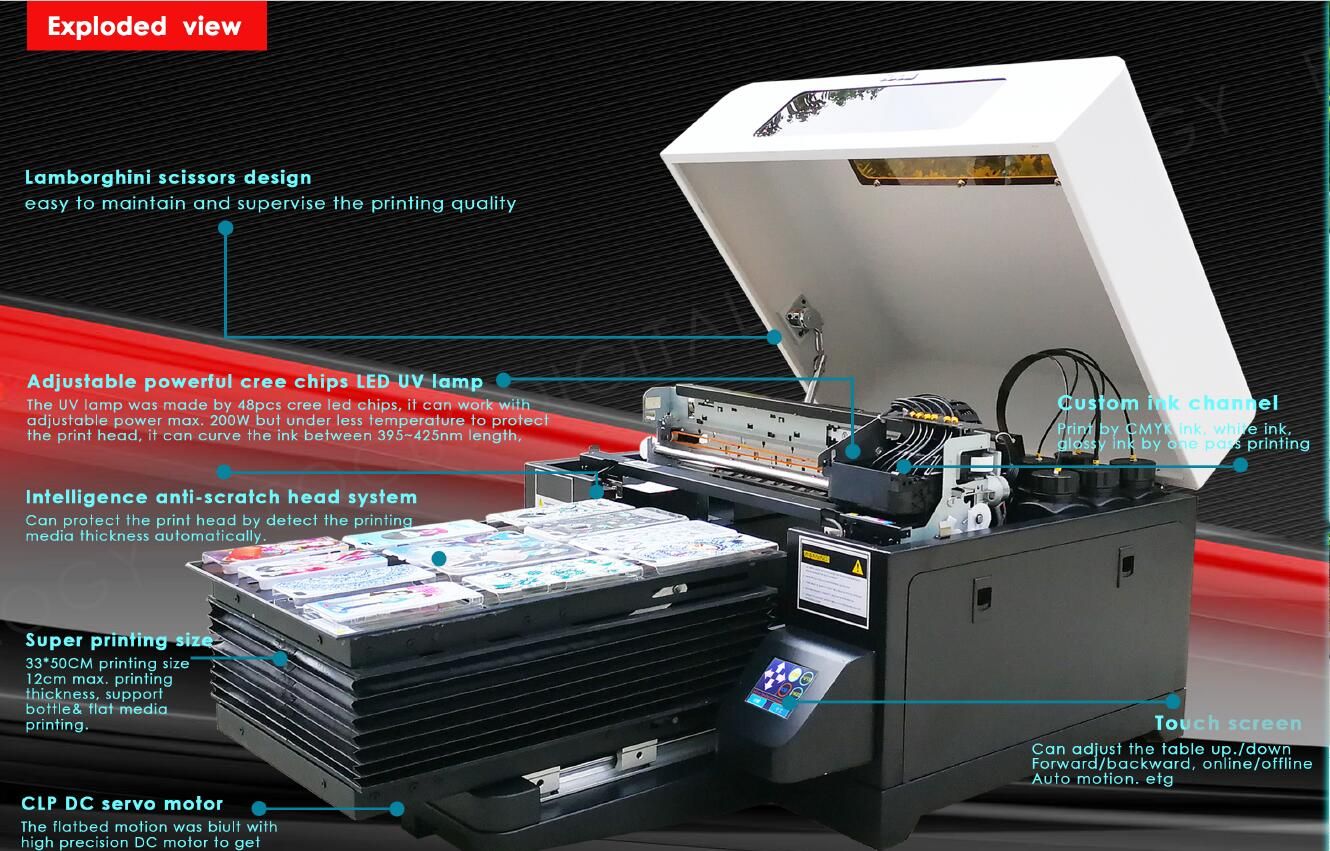

Vocano-Jet PRO Vocano-Jet Pro key chain lighter printing machine UV flatbed printer has Unique Clamshell design for the top cover to make the printing and maintain job more convinence and effective.

High density touch screen pannel can control the flatbed X, Y ,Z axis motion, online/offline easier.

Our Vocano-Jet Pro equip with Dual ball rail drive the flatbed motion with high precision.

Added white ink circulation system to avoid white ink settling by the high quality Peristaltic pump design.

The high quality degassing valve added ahead the ink damper can remove the air bubbles from the ink to avoid printing lack of ink and pass line, White ink circulation directly outlet to the sub ink tank and ink damper can reduce white ink settling during ink damper and ink tube also, it can prevent printing ink clog and lack ink printing to improve the printing quality and save lots of ink for head cleaning.

Vocano-Jet PRO Vocano-Jet Pro key chain lighter printing machine UV flatbed printer support lots kind of printing method as one pass printing, halftone printing, white ink printing first...

Powerful FocusRIP 8.7.0 is the artist for raster process the image before printing, it can support variable data printing, high quality victor processing, custom setting ink channel, 1bit/2bit/3bit/ 1.5-15PL ink dot control printing to get a good white ink density and vivid color result.

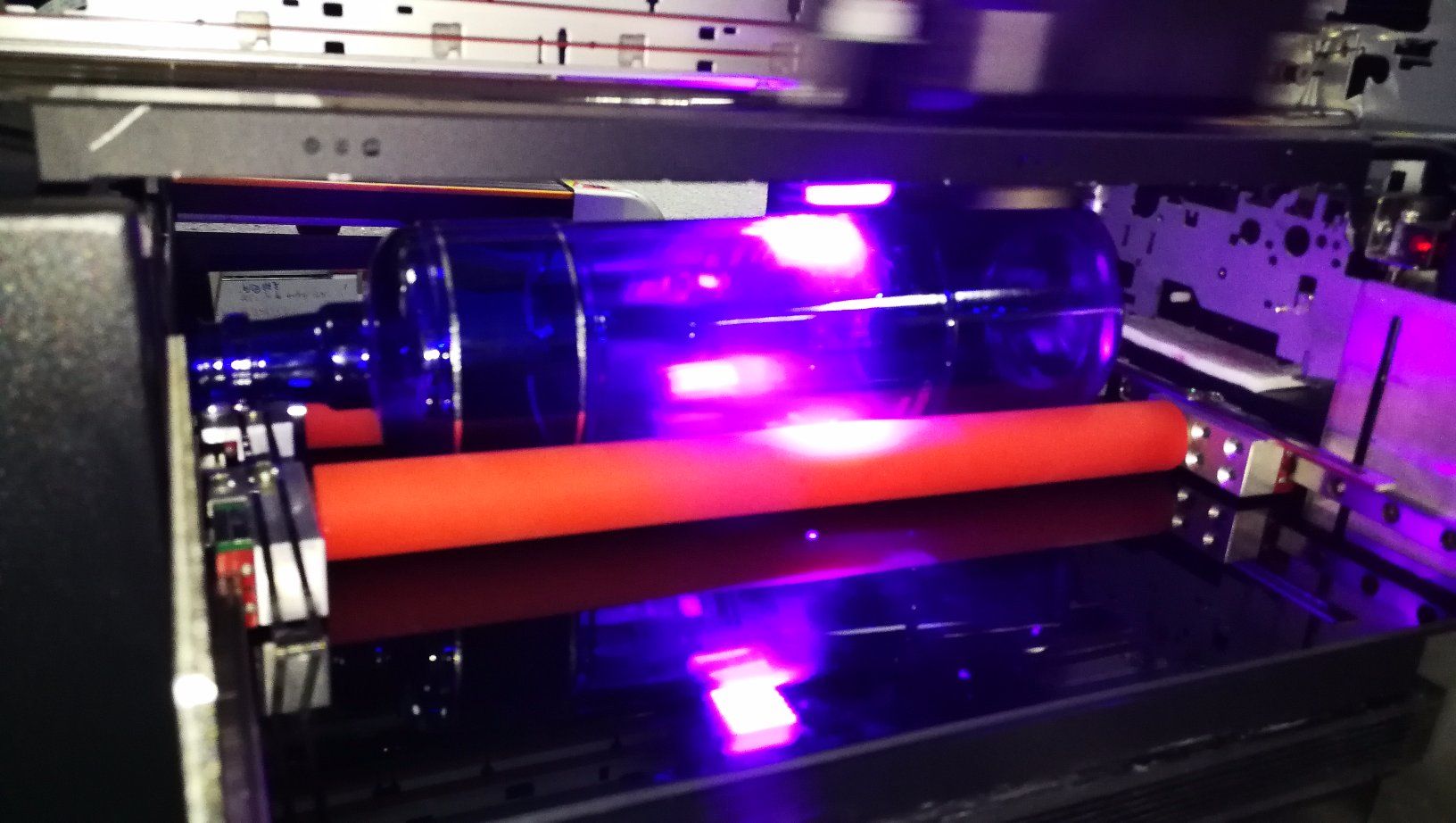

Rotary printing Pallet

Application field:

    <1>. Sign making shop
    <2>. Photo studio or film development shop
    <3>. Screen printing.
    <4>. Garment, Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
    <5>. Leather, shoes, clothes, crystal, glass, metal, wood, plastic, ceramic tiles and other crafts & gifts industries
    <6>. All kind of factories of art items with image.
Vocano-Jet PRO UV flatbed printer is a compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.

Warranty:

1. We provide 13months guarantee and lifelong technical support since the shipping date.

2. We provide professional user manual, installation video to guide you the installation and daily maintenance.

3. We provide 2 days free online training or at our factory.

4. Engineer fly to your site for final repair if needed.

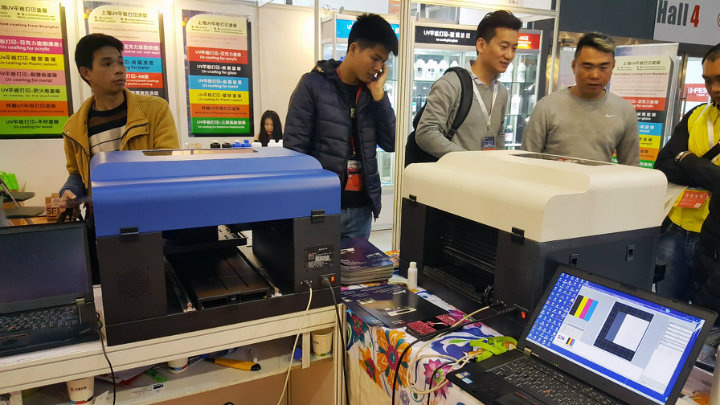

Exhibition:
Vocano-Jet PRO Key Chain Lighter Printing Machine UV Flatbed Printer

Sample:

Packing :
