Mobile Cover UV Flatbed Printer A3 UV Phone Case Printer

Name: Mobile Cover UV Flatbed Printer A3 UV Phone Case Printer
Brand: china-crystals.com
SKU: 829727285
Availability: InStock
Rating: 4.6 (32 reviews)

Price:	US $ 3800-5800/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	Murphy-Jet
Printer Model:	Mobile Cover UV Flatbed Printer A3 UV Phone Case
Printing Technology:	Micro Piezo
Print Head:	Dx5 (5760dpi)
Ink Type:	UV Curing Ink, Soft UV Ink, Flexible Ink
Color:	8color Cmyk+Wwww
Printing Size:	33*60cm
Print Speed:	120s/Full Size
Printing Material:	Metal, Glass, Crystal, Tile Ceramic, Acrylic, PVC
Media Thickness:	170mm of This UV Printer
Rip Software:	Focusrip V8.2.6
Plate:	Relief Printing
Structure:	Flat-Bed Cylinder Press
Color & Page:	Double Faced Multi Colors
Printing Interface:	USB3.0
Printing Speed:	63s/A4
System Supported:	Windows 7/8/10/XP

Product Description

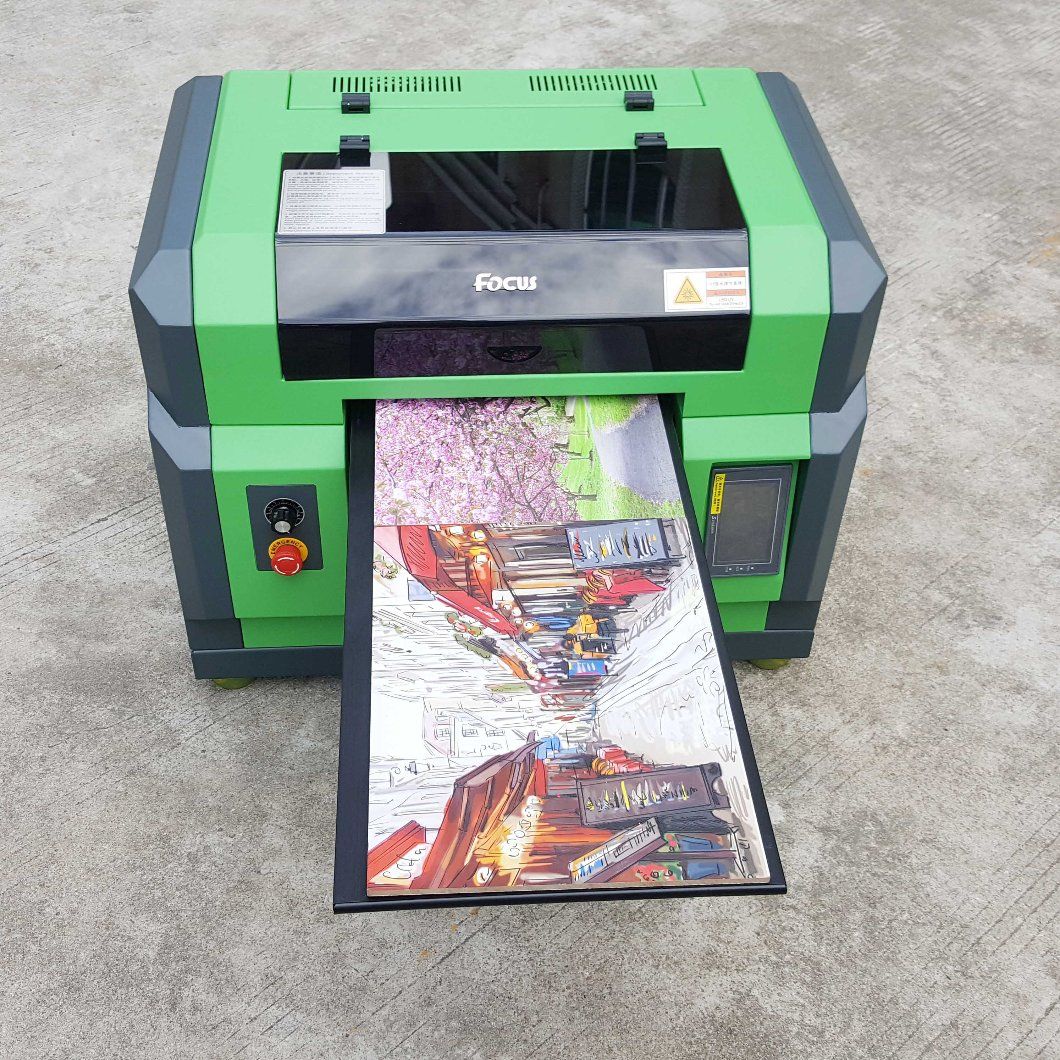

Murphy-Jet Mobile cover uv flatbed printer a3 uv phone case printer

Murphy-Jet A3+ dx5 Mobile cover uv flatbed printer a3 uv phone case printer was specical designed for customer who want to get a industrial printing speed and commercial printing result, special for customer who want to get a vivid color result and high density of white ink printing. Also this A3 digital all purpose printing machine inkjet flatbed printer was built with industrial level configuration as Linear rail for both X carriage and Y flatbed motion. Dual Servo motor go with the Ball screw to let the motion with high precision. Also the one pass printing model (Print white ink and color ink in one time) and high carriage printing frequency up to 18000K can save the time and improve the printing speed for customers with this stable printing effect.

New low cost Murphy-Jet dx5 Mobile cover uv flatbed printer a3 uv phone case printer can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicome, wooden... ...No matter what material printed on, it will dry immediately. The speed for printing 1 iphone 5s case about 1-2min. Please check the clear explaination as following:

Model	Murphy-Jet dx5 Mobile cover uv flatbed printer a3 uv phone case printer
Print Method	Eightcolor On-demand inkjet (micro piezo print technology, intelligence drops transformation technology)
Print head	R2000 with DX5 MicroPiezo print head
Printer resolution	5760*1440dpi
Print speed (Two heads)	120seconds / Full A3 size
Print direction	Unidirection / Bidirection
Ink cartridge type	Split type
Minimum ink drop size	<1.5PL
Ink cosume	15-20ml/square meter
Ink supply system	CISS
Ink configuration scheme	8 color: CMYK+WWWW
Max printable area	A3 320 *580mm
Max adjustable height	170mm
Max object thickness	160mm
Printing gap	1mm-5mm
Height adjust	electric
Printing resolution	7201080dpi / 7201440dpi / 7202160dpi/ 7202880dopi
Speed	400 Mbp
Support Ink type	LED-UV Curing ink /soft uv ink/ flexible ink
Color management	ICC Curve &Default ICM
Rip software	FocusRIP-8.2.6 / Photoprint servo
Printhead Protection	Intelligent Self Protect System
Power	100-120V/200-240V 50-60HZ (Special requirements can be customized)
Printing Interface	USB2.0/3.0/LTP
Operation System	WindowsXP/32bit, WIN7/32bit WindowsXP/64bit, WIN7/64bit
Working Environment	50%humidity, 21-29Degree, Clean room, low dust, less sun light, good
Printer Size	L900mmW750mmH600mm
Shipping Size	L1080mmW950mmH850mm
Printer N.Weight/G.Weight	90kg/150kg

1. Focus unique ANSR-PT^s system

Name: ANSR-PT system
BRAND: OMRON ( JAPAN)

As we all know , the print head is the CPU of the printer, focus unique ANSR-PT^S system can protect the print head without scratch during printing, also it can detect the printing media intelligence.

2. The Focus Murphy-Jet A3 digital all purpose printing machine inkjet flatbed printer refit the original EP R2000 printer with DX5 MicroPiezo print head, greatly save cost, and adhering to the high precision, high speed function

3.All materials about our Murphy-Jet is Aluminum. And you can see whole Alumium without srew. Cause we use Famouse Brand BRO Technology to open moulding for it.

4. It's also made by open moulding with Famouse Brand BRO mechanical laser engraving Technology.

5. Friendly Electronic protection system

Technology: Dust free & Magnetic resistant

All motor in Murthy-Jet are serve motor. It's very important for keeping frquency about the printer. Then you can get the best printing effect.

6. Super mechanical making

Technology: Laser engraving

Firmed and 0.35mm thickness plate.

Each printer must go through shaking test before packing. And all of them will shake for 24-48hours. We want to make sure about the quality of each printer. This is our responsibility for each customers.

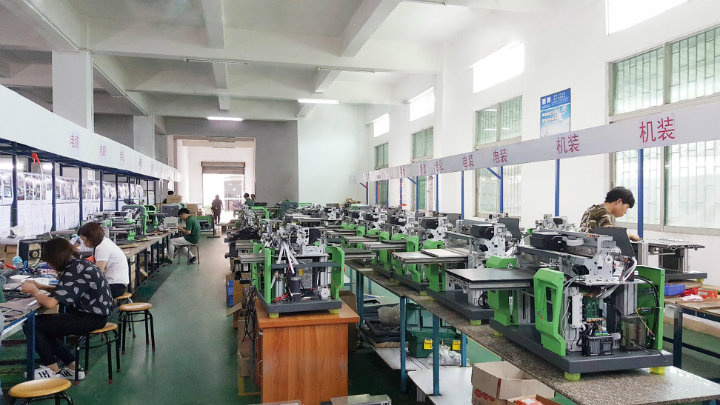

FOCUS DIGITAL --- OUR FACTORY

We have the most professional R&D team for our amazing Murphy-Jet A3 digital all purpose printing machine inkjet flatbed printer. Every spare parts will be checked and tested again and again.

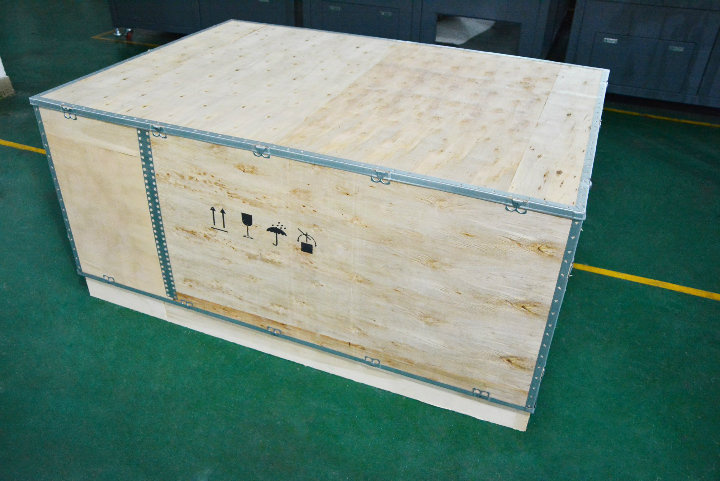

Packing:

Samples

Customer visiting

QUALITY IS OUR CULTURE

Our mission is making the best solution for international printing industry!

Welcome to vist our company and willing to contact us if you need any further support before or after sales:

Focus Digital Technology Company Limited.

ADD: Jianan Hongta Road, #246 Sibao Road, Sijing Town, Songjiang District, Shanghai 201615, China.

Website: www.focus-printer.com
www.focusdigi.com

Please contact us for Big surprise :) ( Only limited for first 10 enquiry people each day on Beijing time)

Don't hesitated to contact us, this is the machine you need. Please click " send " immidiately!

Focus digital technology Co., Ltd (Online register checking). Was set up in Shanghai, China. Which is the manufacturer to create and produce the best and potential DTG direct to garment printer, digital LED-UV flatbed printer, CTS computer to screen imaging system, signs &adverting products for the customers. We had focus in this digital printing field for 17 years. We supply all products by the reasonable price and real-time support lean upon our own production line, professional experience, strict parts purchase channel and altitudinal responsible action, we focus on the market to provide the latest major news and create the profitable products, our experiential support team gather all the technique and receive the newest training timely to provide the best support.

All the merchants may face these problems: Good quality but high price, Reasonable price but bad service, Good support but bad quality, inconsequential charge, cannot got the fully training, cannot got the real-time support, Response be delayed as the complex examination and application. Focus digital is a company to solve out this kind of problem for you maximal

How we do?

------- Rigorous "FOUR CHAIN" quality control; Real-time "LONG-DISTANCE-LOG-ON -DIAGNOSIS" Support; "ONE STOP" service

We refers to the rigorous " Four Chain (Material department control-Assemble line control-QC department control-Logistic department control ") quality control system to make sure all the products are intact before delivery, But no products are 100% perfect,

The real-time and effective support are the most important, customer can got the real-time effective support by our ONLINE SUPPORT and LONG-DISTANCE-DIAGNOSE SUPPORT to insure that all the problems and questions can be solved out quickly. Also we gather all the problems together to form as the solution documentations, so the customer can download from our FTP expediently.

For save customer's time and energy, we provide the "ONE STOP" service that includes Call center register, Question require, Problem handling, Online diagnosis, Spare parts shipping and return forwarding.
