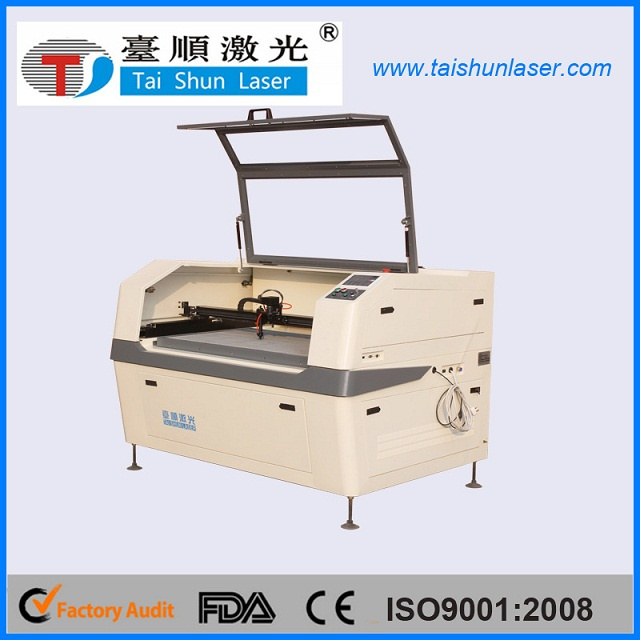

Product Specifications
| Prod Model: |
TSHY-15090 |
| Laser Type: |
CO2 |
| Laser Power: |
80W |
| Working Area: |
1500mmx900mm |
| Working Table: |
Conveyor Working Table |
| Position Accuracy: |
+/-0.1mm |
| Movement System: |
Single Side Servo System |
| Standard Accessories: |
550W 1 Set Exhaust Fans |
| Supported File Format: |
Ai, BMP Plt Dxf Dst Ai BMP Plt Dxf |
| Guarantee: |
One Year Free Maintenance |
| Delivery Days: |
20 Working Days |
Product Description
Main Configuration :
| 1). 1 × 80watts Co2 Laser tube (Installed in the machine). |
| 2). 3 × Reflecting Mirrors + 1× Focusing Lens (Installed in the machine). |
| 3). 1× 3000W Industrial Water Chiller |
| 4). 1× conveyor working table OR 1× Honeycomb table |
| 5). 1× Air Compressor + 2× Exhaust blower |
| 6). 1× USB cable (Connecting PC and Laser) |
| 7). 1× Manual (User-friendly User's Manual, Guiding video & Demo video.) |
| 8). 1× Power cable(we also stock 110V~240V power version and USA.UK.EU.AU plugs for the country all over the world) |
| 9). 1× Tool box |
Samples:
Feature:1 Cut the felt labels quickly and there is no burrs or fringe ,one-time finished product,no need to do any more procedure
2 Especially for mass production with various shapes on the same fabric,auto CCD camera focus,fast catch the routh
3 Compared with micro-ware cutting machine,laser cutting machine is more fast ,more suitable for mass production
4 With CCD auto focus functions,laser machine can save material much better than other machines
parameter| Working size: | 1500mmx900mm | Smaller size 210300,160300 are for optional |
| Laser power: | 80W | 100W,110W,130W,150W available |
| Laser tube: | RECI laser tube | Domestic Weiju laser tube for optional |
| Engraving speed | 0-1000mm/s | adjustable |
| Cutting speed: | 0-800mm/s | adjustable |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system,Ruida control software | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC220V+/-5% 50/60HZ | |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water | |

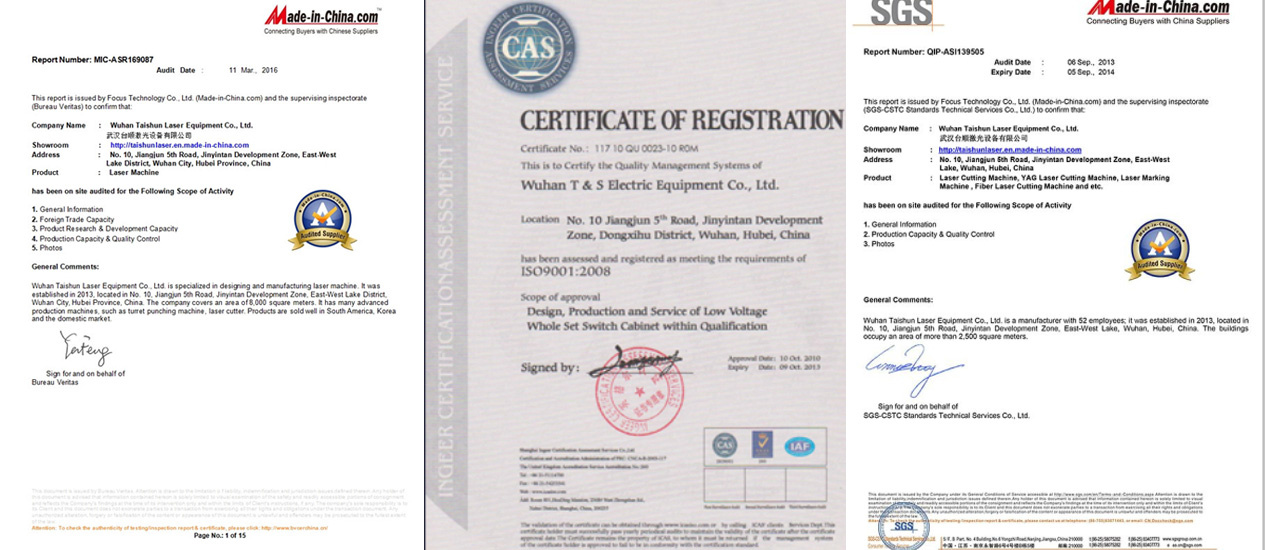

Why our product better than other similar product?1.International quality certificate:CE,FDA,SGS,ISO9001:2008,BV 2. Professional laser machine supplier in China with 12 years experience,over 80 type machines.3. Adopt Japan imported mainboard and chip .4. Adopt Germany imported bearing and high accuracy stepping belt.5. The reinforced and thickened machine body ensure the long working process stable and withstand quake6 High Precision Stepping motor makes cutting and engraving more precise. FAQ:
Q1.What's the guarantee for the product quality?
A:We offer one-year free maintenance services for our customers. Generally speaking, our technician will figure out what the cause may be one the problems arise according to clients' feedback. Fault parts with the valid period will be replaced for free except for consumable parts.
Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating manual in English ,also our technician can help you via MSN ,Skype or other instant communication tools.
Q3. What i need to do when the machine suffer trouble?
A: Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q4. How to maintain the machine?
A: After 3 hours working, it's better close 10 minutes.
B, Keep lens and mirrors clean.
C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.
Q5 .How about the life-span of the laser tube ?
A: If you operate the machine rightly, it can reach to 1500 or 3000hours.(RECI laser tube can max to 10000hours),It depends on your usage
For example, if it works 8 hours per day, the detailed data as follows:
1, If you set the power at 20%-30% of the total power, the service life is about 1-2years
2, If you set the power at 40-50% of the total power, the service life is about 1 year
3, If you set the power at 70%-80% of the total power, the service life is about 6-8 months
Q6: How can I know the power of the laser tube has been exhausted?
A: you can check the color of the laser beam ,new and strong laser tube is purple when working, otherwise it will be white color.
Q7:Is it better to increase blow system to improve laser processing performance?
A: It works for some kind materials,it can stop firing
Q8: How long time does it take for a learning of the laser machine operation ?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation, You just need to do some simple tests on different processing materials to learn how to adjust the speed and laser power.
Q9: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser don't direct shoot the skin and eyes.
Q10: Does it need to be connected by a laptop or computer ?
A: Yes, either is ok, It supports Windows 2000, Windows XP, Win 7 and other operating systems.
Q11:How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length(relatively speaking, the longer, the bigger/stronger)
2. Laser tube diameter(relatively speaking, the thicker,the stronger)
3.The machine with bigger laser tube can cut deeper&more quickly, also its light spot is bigger, So, it is better to choose low-power for engrave, such as 40w, 50w, or 60w and strong power for cutting.
Why choose us:1.Supported by the government of Wuhan City
2.Has its own R & D center, update for technology
3.We are the manufacturer, our price are the most competitive!
4.With 20 years history on researching and producing all kinds of laser machines
5.Our company welcomes AGENTS all over the world
Notice:Please let us know following informations:
1. What materials you want to cut ?
2. What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cuting, what will be the metal used for?
5. Are you an end user or retailer?
According to your above information,we'll recommend the most suitable machine to you.
Watch more video:http://v.youku.com/v_show/id_XNTQ5NTc0NTI4.html laser cutting airbag applicationhttp://v.youku.com/v_show/id_XNTU2Nzc2NTky.html?from=y1.2-1-106.3.1-2.1-1-1-0-0 laser cutting carpet applicationhttp://v.youku.com/v_show/id_XNTU2ODEwMDE2.html?from=s1.8-1-1.2 laser cutting printing rug applicationhttp://v.youku.com/v_show/id_XNTU2NzA1MjQ4.html?from=y1.2-1-103.3.2-2.1-1-1-1-0 laser cutting foot pad for the automotive industryhttp://v.youku.com/v_show/id_XNTQ5NDk3MzI4.html?from=y1.2-1-103.3.5-2.1-1-1-4-0 laser engraving paper pattern machinehttp://v.youku.com/v_show/id_XNTkyNDU1NDQw.html?from=s1.8-1-1.2 laser cutting garment fabric applicationhttp://v.youku.com/v_show/id_XNjIxNjY0NzY0.html?from=s1.8-1-1.2 laser cutting slipper plush applicationhttp://v.youku.com/v_show/id_XNTU2NzY1MjU2.html?from=s1.8-1-1.2 laser cutting precious leather applicationhttp://v.youku.com/v_show/id_XNTU3NzA0Njg4.html?from=s1.8-1-1.2 laser engraving hallowing leather applicationhttp://v.youku.com/v_show/id_XNTU2ODA1Nzg4.html?from=s1.8-1-1.2 laser cutting diving fabric applicationhttp://v.youku.com/v_show/id_XNTM3NDI2MjE2.html?from=s1.8-1-1.2 laser punching holes applicationhttp://v.youku.com/v_show/id_XNTU3NjU0MTcy.html?from=s1.8-1-1.2 laser punching holes for leather material http://v.youku.com/v_show/id_XNTU2Nzg0MTky.html?from=s1.8-1-1.2 laser cutting EVA applicationhttp://v.youku.com/v_show/id_XNTU2Nzk3OTM2.html?from=s1.8-1-1.2 double head cutting insole applicationhttp://v.youku.com/v_show/id_XNTUxMDk3MTIw.html?from=s1.8-1-1.2 four head cutting plush toy material http://v.youku.com/v_show/id_XNTU3NjkwMTg4.html?from=s1.8-1-1.2 Laser cutting multi-layer Chemical fiber cloth application

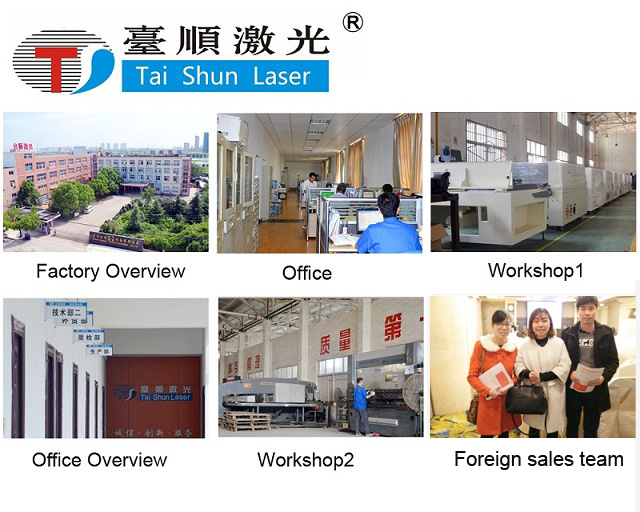

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
