Product Specifications
| Prod Model: |
QL-6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Rubber |
| Engraving Machine Type: |
Laser Engraving Machine |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Control: |
CNC |
| Certification: |
SGS, Ce |
| Laser Type: |
CO2 |
| Current: |
AC |
| Condition: |
New |
| Cutting Speed: |
0-30000mm/Min |
Product Description

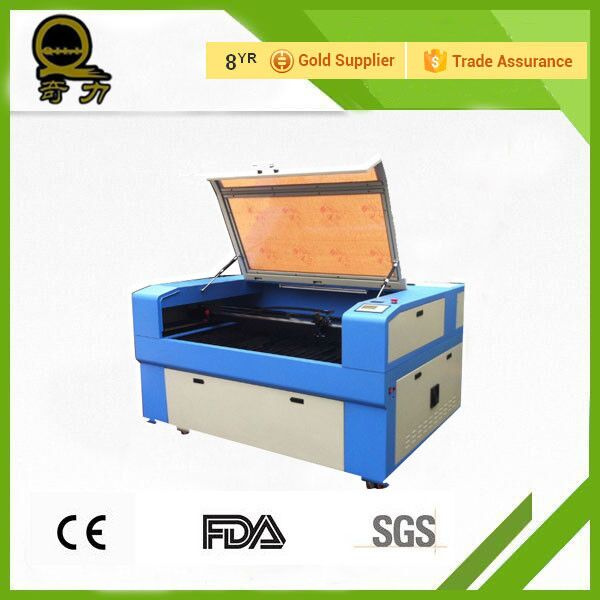

Factory supply high quality QL-6090 laser engraving machine
Performance Features
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) It can also be made according to customer's demands
Specifications:
Laser power : | 80W (optional) |
| Laser tube type: | CO2 glass tube |
| Power supply: | AC220±10, 50 HZ/ or AC110±10, 50 HZ |
| Cooling way: | Water cooled with protection system |
| Working area: | 600mmx900mm |
| Max travel speed: | 60000mm/min |
| Worktable: | Honey comb worktable (mainly engraving and small pieces cutting) /aluminum knife (engraving and cutting) /normal table (engraving) (optional) |
| Locating precision: | <0.01mm |
| Min shaping character: | Character:2mm,letter:<1mm |
| Operating temperature: | 5°C-35°C |
| Working humidity | 5%-95%(without condensed water) |
| Resolution ratio: | 4500dpi |
| Control configuration: | DSP5.3 |
| Data transfer interface: | USB(offline) |
| System environment: | WINDOWS 2000/WINDOWS XP/ windows 7 |
| Graphic format supported: | The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc. |
| Compatible software | CorelDraw, AutoCAD, Photoshop, laser cut software |
| Cutting thickness | 0-20mm also (depends on different material) |
| Color separation | Separation of cutting up to 256 colors |
| Sloping engraving | Yes, slope can be designed discretionarily |
| Cuts off the water supply the protection | yes |
Whole machine dimension
| 1360*1010*1070(mm) |
| Gross weight | 300kgs |
| packing | Plywood case (veneer wood case for export) |
| Optional parts | 1. RECI type laser tube (8000-10000 hours life time)
2. Bigger power tubes (100w, 130w, 150w etc)
3. High-grade cooling system (from 100w or bigger than 100w better to choose this)
4. double-head or more heads
5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc)
6. irregular rotary clamp
7. servo motor
8. Red pointer
9. Ball screw transfer
10. Auto feeding system etc.
Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks.
|
Material Cut Engrave
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate Yes Yes
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards YesYes
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood YesYes
Leather, Pig leather, Cow Leather, Sheep leather YesYes
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece YesYes
Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR
)Neopren® YesYes
Paper, Cardboard, Chipboard, Press Board YesYes
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate NoYes
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
Silicone rubber, Synthetic rubber YesYes
Glass, Pressed glass, Float glass, Crystal glass, Mirror glass NoYes
