| Price: | US $ 250/Square Meter |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 20/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | BLP-SG |
|---|---|
| Markets: | North America,South America,Southeast Asia,Western Europe |
| Max Size: | 1300*3200mm |
| Life Time: | >50, 000hr (on) |
| View Angle: | 140 |
| Storage Temperature: | <30, Humidity <85% |
| Usage: | Window |
| Type: | Switchable Glass Pdlc Film |
| Color: | Opaque, Transparent |
Electric Window Screen Glass Film
- Switchable PDLC Film
Specification and Features:
(1) Size: according to client specific custom but have to within maximum size. Cheapest selection is width less than 1.2m.
| None-adhesive film maximum size | 1.8m(width) * 50m(length) |
| Self-adhesive film maximum size | 1.5m(width) * 50m(length) |
(2) Power: 110v/220V AC-48V AC (5 watts per square metre).
(3) Multiple Shapes, Sizes and Colors Available
(4) Superior quality with satisfaction guarantee
| 1.Total ight transmittance: | ON >76% OFF>50% |
| 2. Haze: | ON<6% OFF>90% |
| 3. Minimum privacy distance: | 3cm (switch off) |
| 4. Operating Temperature: | -20 to 70 ( °C ) |
| 5. Storage Temperature: | <30°,humidity <85% |
| 6. Rated Voltage: | 45 V(AC,50/60 Hz) |
| 7. Current: | <0.1A/sq |
| 8. Energy Consumption: | 4W/sq.m. |
| 9. Viewing Angle: | > 140 ° |
| 10. Rate of Anti-UV: | ≥98% |
| 11. Response Time: | < 45ms |
| 12. Working life: | >50000 hours |
| 13. Switching times: | >80,000,000 |
| 14. sound insulation: | >35dB |
| 15. heat insulation: | >class 2 |
| 16. shotgun bag impact: | II-1 |
| 17. Vibration performance: | GB18910.5-2008 |
| 18.falling-ball impact peel performance: | GB15763.3-2009 |
| 19. heat resistance: | GB15763.3-2009 |
| 20: damp heat test: | GB15763.3-2009 |
| 21: radiation resistance: | GB15763.3-2009 |
PDLC Film

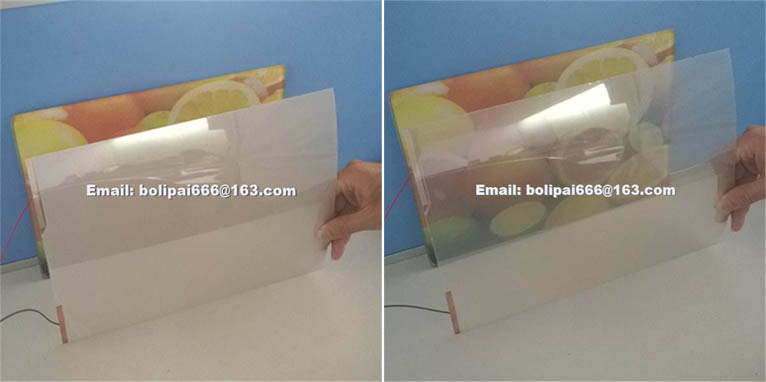

PDLC film (polymer dispersed liquid crystal) is the mixed product of two sheet transparent conductive film (ITO) with polymer dispersed liquid crystal(PDLC) material inside. Through the function of electric fields, PDLC film can make a fast switch of condition between "transparent - opaque" and " opaque - transparent ".
PDLC film can be laminated or sticked with the glass to make so-called "smart glass".
Not Self-Adhesive Film

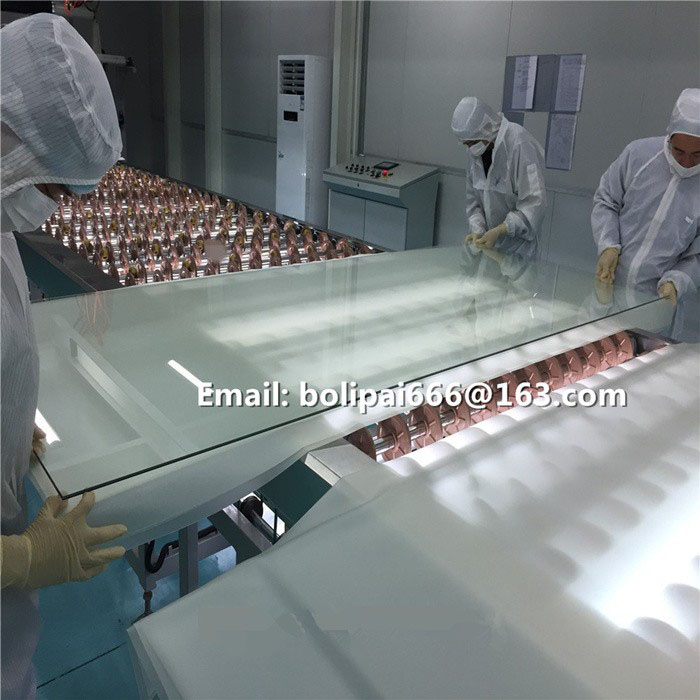

PDLC film (not self-adhesive film) is used for making smart glass by laminating machine. It is laminated between two pieces of glass to make smart glass.
Self-Adhesive Film

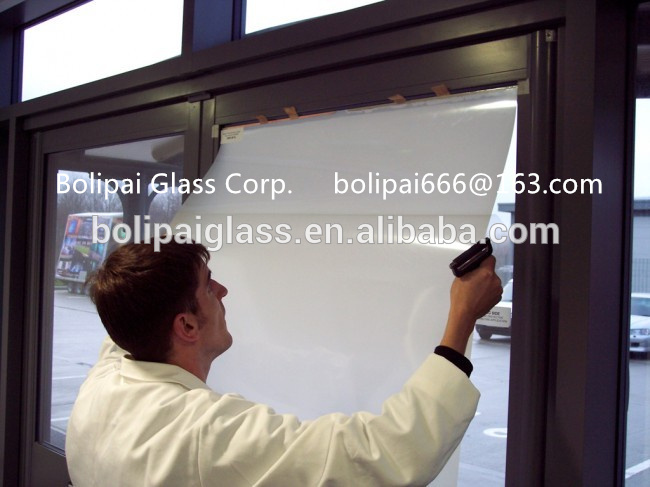

PDLC film (self-adhesive film) has a special glue on one side of the film. People can paste the film on their existing glass directly to make smart glass.
In brief, self-adhesive smart film can be used directly by customers, but not self-adhesive smart film is used for factory to processe to make smart glass, can't used by customers directly.
Smart Glass
Liquid Crystals are dispersed within a formulated polymer matrix enabling the particles to be aligned parallel to each other when a flow of electricity occurs. Once the flow of electricity is stopped, the crystals return to their original position (randomly oriented towards each other), blocking the flow of light. Liquid Crystal Polymer coated film is then laminated between 2 glass panes to become laminated switchable glass. This glass is also known as magic glass, intelligent glass, smart glass and smoke glass.

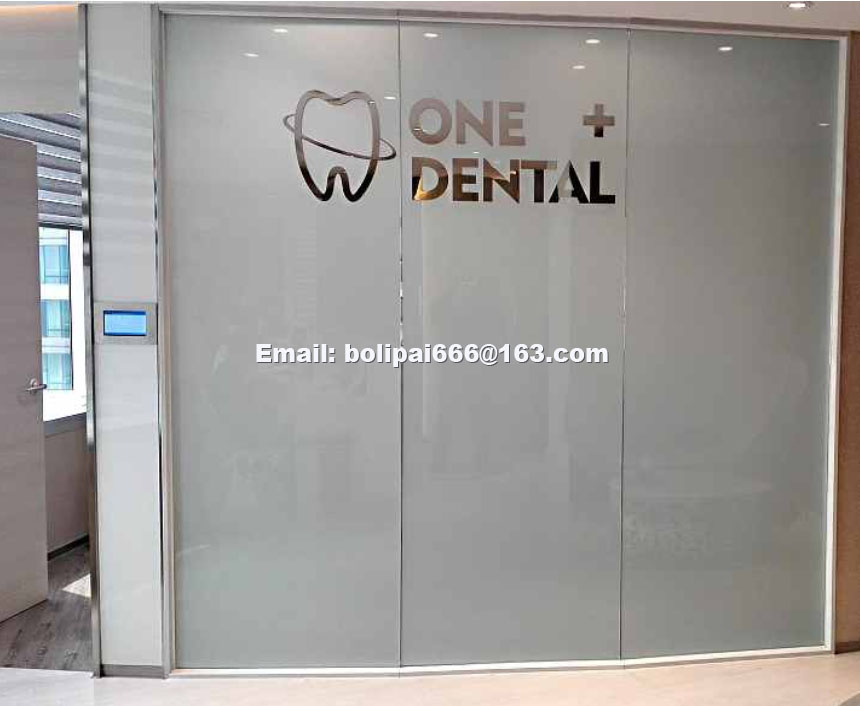

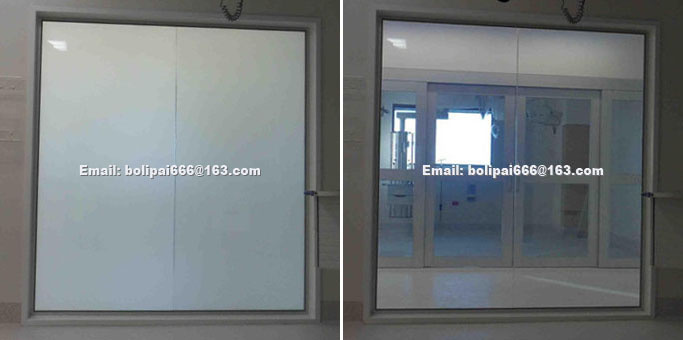

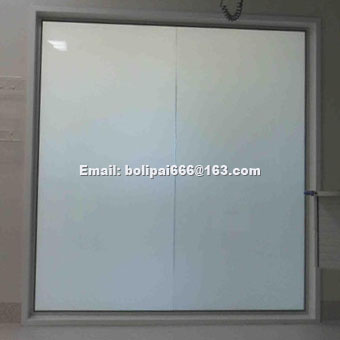

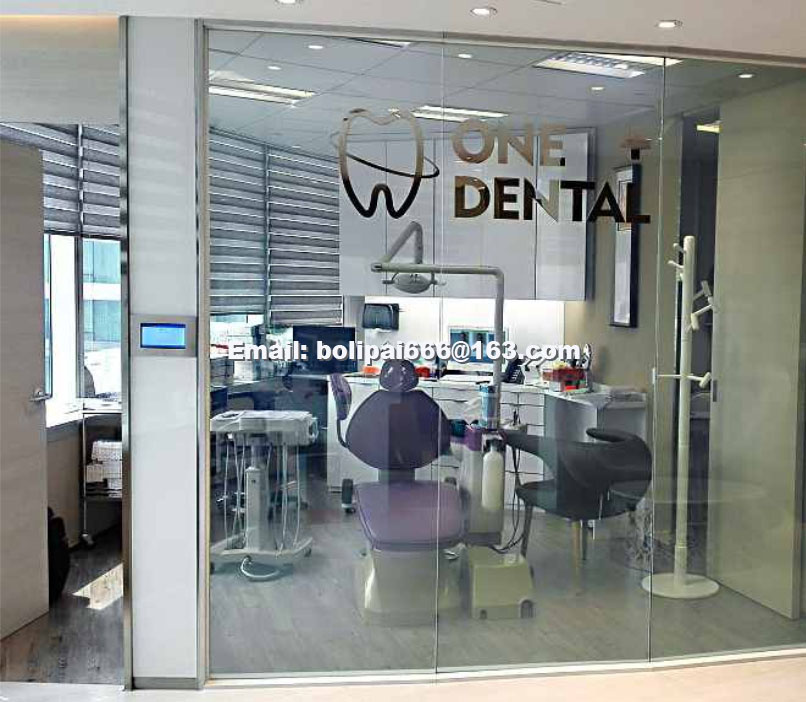

Smart glass enable glass to be instantly transformed from a clear state to an opaque state, by the flicking of a switch, providing immediate privacy and security, when required. It replaces the need for old fashioned blinds or curtains, offering greater control and comfort within any room.
Smart Glass Founction
1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.
2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
3. Blocks more than 99% UV rays ,avoiding fading in the room.
4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.
5. Rear Projection. Smart glass is a good projection screen.
Company Information
FAQ
1 How does Smart Film work?
On, clear. Off, frosting.
2 What is smart film lead time?
Lead time for its PDLC Film Products is 7-15 days after PO confirmation.
3 What is the maximum size of your roll?
Self-adhesive film 1.2*50m or 1.5*50m
Not self-adhesive film 1.8*50m
4 What are your shipment terms?
We deliver it by air/express/shipping transportation.
Customer clear custom, release and deliver to final destination.
5 Is there a MOQ (Minimum of Quantity)?
MOQ is flexible.
