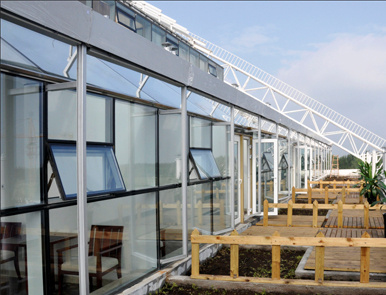

Double Glazed Structural Curtain Wall Glass

Name: Double Glazed Structural Curtain Wall Glass
Brand: china-crystals.com
SKU: 730112265
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 10/Square Meter
Trade Terms:	FOB
Min Order:	100/Square Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	117
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Flat
Structure:	Hollow
Usage:	Building
Type:	Insulated
Color:	Blue

Product Description

structural glass curtain wall

.*** manufactured by fusing tinted glass and low-E glass spaced by dry air or Argon gas. It is with exellent solar heat insulation property which greatly reduces cooling or heating loads and make building looks colorful and beautiful.

*** FUNCTION AND PROPERTY
1.Thermal insulation low heat gain and heat loss value (low U value)
2. Light transmission.
Appropriate level of solar transmission and solar reflectance can be selected to meet the design and functional requirement.
3. Noise insulation
reduce noise level by 30 dB. with inert gas in-filled, a 5 dB further reduction can be achieved.
4. Condensing prevention
Our insulated glass are designed to withstand down to -65degrees without condensing, which is far exceeding the National Requirement of -40degrees.
5. Leak proof

*** Specifications
clear folat glass, color tinted glass,reflective glass,sun shading glass, Nano glass, spandrel glass,low E glass,ultra clear glass , hst glass, laminated glass ,color ceramic glass, acid etched glass are available
air space 6A/9A/12A/15A /16A//20A/21AMax. Size 3000mm X 6000mm.

*** Strictly producing quality control1.
1. we use top quality raw materials to manufacture insulating to ensure the safe and quality
glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass

2. top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decoration spacer are available

3. top branded silicone sealant, polysulfide sealant, butyl sealant are available

4. top branded molecular or dry agent availble

5 . we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.

6 .most important isAll these insulating processes are automatically finished by advanced machines, and robot arms, then the quality and surface quality is ensured, from aluminium framing, molecular filling, space sealing to packing.

7..Specially, to ensure IGU air tight, automatic bending machine is used for all four corners bending, with use of linear connector for the spacer.A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide,as secondary seal. We use advanced fully automatic IG production line ,with automatic production operations covering spacer bending,filling of desiccant, edge deletion of coated glass, glass assembly,filling with inert gas and application of primary and secondary sealants

*** Some technique data

			off-line low -E insulating glass data

item No.	product name	filling	visible light			sun light			SC	SHGC	U(K)	RHG	U(K)
		gas	trans.(%)	reflec.(%)		direct	direct reflec.(%)				day time	day time	night time
		type	trans.(%)	outdoor	indoor	trans.(%)	outdoor	indoor			in summer	in summer	in winter
2.19	5mm clear + 6A + 5mm clear	air	67.76	12.13	12.30	46.98	18.35	22.9	0.63	0.54	2.416	415	2.433
2.19	5mm clear + 6A + 5mm clear	argon	67.76	12.13	12.30	46.98	18.35	22.9	0.62	0.54	2.089	409	2.027
2.20	5mm clear + 9A + 5mm clear	air	67.76	12.13	12.30	46.98	18.35	22.9	0.62	0.54	2.028	408	1.973
2.20	5mm clear + 9A + 5mm clear	argon	67.76	12.13	12.30	46.98	18.35	22.9	0.62	0.537	1.7	403	1.632
2.21	5mm clear + 12A + 5mm clear	air	67.76	12.13	12.30	46.98	18.35	22.9	0.62	0.538	1.752	404	1.77
2.21	5mm clear + 12A + 5mm clear	argon	67.76	12.13	12.30	46.98	18.35	22.9	0.62	0.535	1.466	400	1.507
2.22	6mm clear + 9A + 6mm clear	air							0.6	0.517	2.015	392	1.962
2.22	6mm clear + 9A + 6mm clear	argon							0.59	0.514	1.689	386	1.623
2.23	6mm clear + 12A + 6mm clear	air							0.59	0.514	1.741	387	1.759
2.23	6mm clear + 12A + 6mm clear	argon							0.59	0.511	1.455	383	1.498
2.24	6mm dark bule + 9A + 6mm clear	air	51.75	9.74	11.36	31.73	10.34	21.41	0.48	0.412	2.019	316	1.965
2.24	6mm dark bule + 9A + 6mm clear	argon	51.75	9.74	11.36	31.73	10.34	21.41	0.47	0.405	1.694	308	1.627
2.25	6mm dark blue + 12A + 6mm clear	air	51.75	9.74	11.36	31.73	10.34	21.41	0.47	0.406	1.746	309	1.763
2.25	6mm dark blue + 12A + 6mm clear	argon	51.75	9.74	11.36	31.73	10.34	21.41	0.46	0.4	1.461	302	1.502
2.26	6mm light bule + 6A + 6mm clear	air	51.65	15.50	11.56	35.55	16.89	18.91	0.52	0.45	2.53	348	2.493
2.26	6mm light bule + 6A + 6mm clear	argon	51.65	15.50	11.56	35.55	16.89	18.91	0.51	0.445	2.185	341	2.111
2.27	6mm light bule + 9A + 6mm clear	air	51.65	15.50	11.56	35.55	16.89	18.91	0.51	0.444	2.129	340	2.059
2.27	6mm light bule + 9A + 6mm clear	argon	51.65	15.50	11.56	35.55	16.89	18.91	0.51	0.439	1.829	334	1.739
2.28	6mm light bule + 12A + 6mm clear	air	51.65	15.50	11.56	35.55	16.89	18.91	0.51	0.44	1.877	335	1.864
2.28	6mm light bule + 12A + 6mm clear	argon	51.65	15.50	11.56	35.55	16.89	18.91	0.5	0.436	1.615	330	1.616
2.29	5mm light bule + 6A + 6mm clear	air	51.94	17.03	11.27	36.29	18.95	18.69	0.52	0.454	2.538	350	2.5
2.29	5mm light bule + 6A + 6mm clear	argon	51.94	17.03	11.27	36.29	18.95	18.69	0.52	0.449	2.192	344	2.117
2.30	5mm light bule + 12A + 6mm clear	air	51.94	17.03	11.27	36.29	18.95	18.69	0.51	0.445	1.883	338	1.869
2.30	5mm light bule + 12A + 6mm clear	argon	51.94	17.03	11.27	36.29	18.95	18.69	0.51	0.441	1.621	334	1.621
2.31	6mm dark green + 6A + 6mm clear	air	46.2	8.97	11.39	26.12	9.33	21.08	0.43	0.37	2.448	289	2.421
2.31	6mm dark green + 6A + 6mm clear	argon	46.2	8.97	11.39	26.12	9.33	21.08	0.42	0.36	2.08	278	2.019
2.32	6mm dark green + 9A + 6mm clear	air	46.2	8.97	11.39	26.12	9.33	21.08	0.41	0.358	2.019	277	1.965
2.32	6mm dark green + 9A + 6mm clear	argon	46.2	8.97	11.39	26.12	9.33	21.08	0.4	0.349	1.694	267	1.627
2.33	6mm dark green + 12A + 6mm clear	air	46.2	8.97	11.39	26.12	9.33	21.08	0.4	0.351	1.746	269	1.763
2.33	6mm dark green + 12A + 6mm clear	argon	46.2	8.97	11.39	26.12	9.33	21.08	0.4	0.343	1.461	261	1.502
2.34	5mm light grey + 6A + 5mm clear	air	43.32	32.51	15.06	30.67	33.13	23.28	0.43	0.373	2.488	291	2.457
2.34	5mm light grey + 6A + 5mm clear	argon	43.32	32.51	15.06	30.67	33.13	23.28	0.42	0.368	2.124	285	2.058
2.35	5mm light grey + 9A + 5mm clear	air	43.32	32.51	15.06	30.67	33.13	23.28	0.42	0.368	2.065	284	2.005
2.35	5mm light grey + 9A + 5mm clear	argon	43.32	32.51	15.06	30.67	33.13	23.28	0.42	0.363	1.745	278	1.67
2.36	5mm light grey + 12A + 5mm clear	air	43.32	32.51	15.06	30.67	33.13	23.28	0.42	0.364	1.796	279	1.804
2.36	5mm light grey + 12A + 5mm clear	argon	43.32	32.51	15.06	30.67	33.13	23.28	0.42	0.361	1.517	274	1.545
2.37	6mm light grey + 6A + 6mm clear	air	42.81	30.78	14.82	29.05	31.04	22.07	0.42	0.368	2.475	288	2.445
2.37	6mm light grey + 6A + 6mm clear	argon	42.81	30.78	14.82	29.05	31.04	22.07	0.42	0.363	2.115	281	2.049
2.38	6mm light grey + 9A + 6mm clear	air	42.81	30.78	14.82	29.05	31.04	22.07	0.42	0.363	2.056	280	1.996
2.38	6mm light grey + 9A + 6mm clear	argon	42.81	30.78	14.82	29.05	31.04	22.07	0.41	0.358	1.739	274	1.664
2.39	6mm light grey + 12A + 6mm clear	air	42.81	30.78	14.82	29.05	31.04	22.07	0.41	0.359	1.79	275	1.796
2.39	6mm light grey + 12A + 6mm clear	argon	42.81	30.78	14.82	29.05	31.04	22.07	0.41	0.356	1.513	270	1.539
2.41	8mm clear + 12A + 8mm clear	air	65	11	12	33	27		0.45	0.39	1.63	297	1.67
2.42	8mm green + 12A + 8mm clear	air	52	9	11	20	9		0.33	0.28	1.63	221	1.67
2.43	8mm bule + 12A + 8mm clear	air	37	7	11	19	12		0.31	0.27	1.63	208	1.67
2.44	8mm grey + 12A + 8mm clear	air	25	6	10	14	10		0.26	0.23	1.63	177	1.67
2.45	8mm clear + 12A + 8mm clear	air	59	13	15	27	33		0.38	0.33	1.59	252	1.65
2.46	8mm green + 12A + 8mm clear	air	47	9	13	18	8		0.29	0.25	1.59	195	1.65
2.47	8mm bule + 12A + 8mm clear	air	32	7	13	14	10		0.25	0.22	1.59	170	1.65
2.48	8mm grey + 12A + 8mm clear	air	23	7	13	11	11		0.23	0.2	1.59	158	1.65
2.49	8mm clear + 12A + 8mm clear	air	52	13	17	24	29		0.35	0.3	1.6	233	1.65
2.50	8mm green + 12A + 8mm clear	air	42	10	16	15	9		0.27	0.23	1.6	183	1.65
2.51	8mm bule + 12A + 8mm clear	air	29	7	16	14	10		0.25	0.22	1.6	170	1.65
2.52	8mm grey + 12A + 8mm clear	air	20	6	15	10	10		0.21	0.18	1.6	145	1.65
2.53	8mm clear + 12A + 8mm clear	air	45	15	17	20	31		0.29	0.25	1.59	195	1.64
2.54	8mm green + 12A + 8mm clear	air	38	11	16	15	8		0.26	0.22	1.59	177	1.64
2.55	8mm bule + 12A + 8mm clear	air	25	8	16	12	10		0.22	0.19	1.59	151	1.64
2.56	8mm grey + 12A + 8mm clear	air	18	6	15	9	10		0.2	0.17	1.59	139	1.64
2.57	8mm clear + 12A + 8mm clear	air	40	17	19	18	33		0.27	0.23	1.58	183	1.64
2.58	8mm green + 12A + 8mm clear	air	34	12	19	13	9		0.24	0.2	1.58	164	1.64
2.59	8mm bule + 12A + 8mm clear	air	23	8	18	11	10		0.21	0.18	1.58	145	1.64
2.60	8mm grey + 12A + 8mm clear	air	16	6	18	8	10		0.18	0.16	1.58	126	1.64

Yilin Glass Manufacturing Co., Ltd, one of Chinese leading glass processing manufacturers, established in 2001, located in Suzhou city, near Shanghai sea port, with 62 employees, including 8 engineers, specialized in manufacturing tempered glass (toughened glass), insulated glass, laminated glass. They are widely used for window, door, partition, building inside and out side decoration, as well as for furniture and appliance. Annual producing capability of 750, 000sq. Meters

Equipped with the most advanced machines, production and administration approved by ISO 9001: 2000, our products have been certificated by AS/NZ, CE, ANSI, CCC(3C).

In China, our glass is accepted and enjoys a good reputation in Shanghai building market. In overseas building market, it is exported and used in Canada, USA, Germany, Russia, Australia, Indonesia, South Africa and Brazil.

No matter where you are! We are looking forward to working with you in the near future.

Our Business Advantage

1) stable and mature deep-processing technology

2)skilled workers and engineers team & advanced business management mode

3)specialized production & competitive cost

We manufacture the following high quality glass products

1)Tempered Glass Products: Pool fence glass, shower screen glass, balustrade glass, balcony glass, partition glass, shop front glass, wall curtain glass, shelf glass, door table glass etc.

2)Insulated Glass Products: Double glazing, low-E insulated glass, reflective insulated glass, tinted insulated glass, double glazing venetian blinds, used for window door and building curtain wall.

3)Laminated Glass Products: Large size laminated, color PVB film laminated

Glass, balustrade glass, ceiling glass, curtain wall glass
