Heat Strengthened Laminated Double Glazed Glass

Product Specifications

Prod Model:	2004
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Float Glass
Shape:	Flat
Structure:	Hollow
Deep Processing Depth:	Hollow Glass
Usage:	Window

Product Description

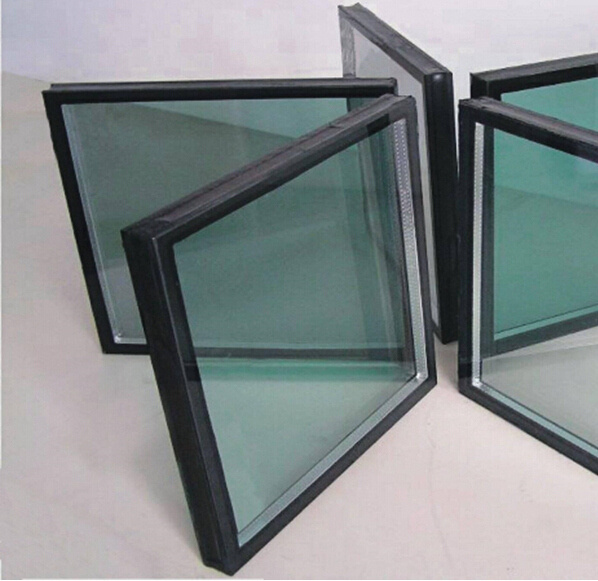

heat strengthened  laminated double glazed glass


***  Description

heat strengthened laminated insulated glass is made of laminating   one tempered glass and one  heat strengthened glass  together, and then insulated with another   piece of glass.

This combinated units has  the funtions of the strenghened glass and insulated glass

***  Features
1)  It is more stronger than nomal laminated glass. Once broken, the sharp and large breakges are stuck on the pvb film, and keep the robber or thief out of the room.

2)  Heat-strengthened glass has outstanding thermal stability.It can withstand temperature difference of 100°C (in range of 50°C to 150°C).Heat strengthened glass is that it is far less susceptible to spontaneous breakage.
3)  Sound insulation, anti ultraviolet radiation, to protect indoor furniture, displays, artwork from UV fading

***  Strictly producing quality control1.
1.  we use top quality raw materials to manufacture insulating to ensure the safe and quality
glass of low-E glass, solar control glass, tinted float glass, float glass are from Chinese 5 brands, such as Shanghai pilkinton(SYP), China south glass(CSG), Taiwan glass, Xingyi glass, Jinjing glass(G-crystal) or as to your nominated brand for raw glass

2. top branded aluminium spacer, stainless steel spacer and warm -edge spacer, color decoration spacer are available

3. top branded silicone sealant, polysulfide sealant, butyl sealant are available

4. top branded molecular or dry agent availble


5 . we use soft water to clean the glass,then the galss surface are very clean and keep the quality in the further deeply processing.

6 .most important isAll these insulating processes are automatically finished by advanced machines, and robot arms, then the quality and surface quality is ensured, from aluminium framing, molecular filling, space sealing to packing.

7..Specially,  to ensure IGU air tight, automatic bending machine is used for all four corners bending, with use of linear connector for the spacer.A dual seal system is adopted with PIB as primary seal, and silicone or polysulfide,as secondary seal. We use advanced fully automatic IG production line ,with automatic production operations covering spacer bending,filling of desiccant, edge deletion of coated glass, glass assembly,filling with inert gas and application of primary and secondary sealants





****  Factory Introduction

Our glass factory was founded in 2000, now it is leading glass manufacturer in China. We have three workshops, and are specialized in manufacturing building glass, household appliances glass, with annual producing capability of 750, 000sq. Meters
For Building Glass, they are toughened glass, laminated glass, insulated glass, acid itched glass, heat soak tested glass, silk-screen printed glass. They are used for swimming pool fence, shower screen, balustrade, balcony, winds, doors, glass wall, glass table, elevator and so on.
For Household Appliance Glass, they are furniture glass for door, table, TV crack, microwave oven door glass, cooktop glass, range hood glass.
We have complete and advanced equipments and machines for making glass. They are imported from USA, Italy Bottero, Finland Tamglass, South Korea Ekang etc. The products have been certificated and approved by AS/NZS 2208: 1996, ISO9002, SGCC: ANSI Z97.1 CPSC 16 CFR 1201, TNO: EN12150, CCC(3C), etc. With high-grade quality and good controlling system, the products have been exported to USA, Australia, New Zealand, U. K., Holland, Norway, Germany, Japan, South Africa and Singapore.
