Deiss Stable Ti-Plated Smooth Running Elevator Lift From China Manufacture
| Price: |
US $ 10000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
DK series |
| Driving Type: |
Gear and Rack Elevator |
| Persons: |
>20 |
| Capacity: |
630-1600kg |
| Speed: |
1.00-4.00m/S |
Product Description
This is a DEISS passenger elevator (DK series)This passenger elevator has an exact and effective control system by using the most advanced electronic technology. In additon to this, DEISS elevators adopt the latest environment-friendly technonoly in manufacturing, as well as safety device and signal device. DEISS passenger elevator, small room passenger elevator to no room passenger elevator, all with a variety of options to meet the installation needs of different occasions. Whether for business or residential home office can be fully satisfied. OEM is available.

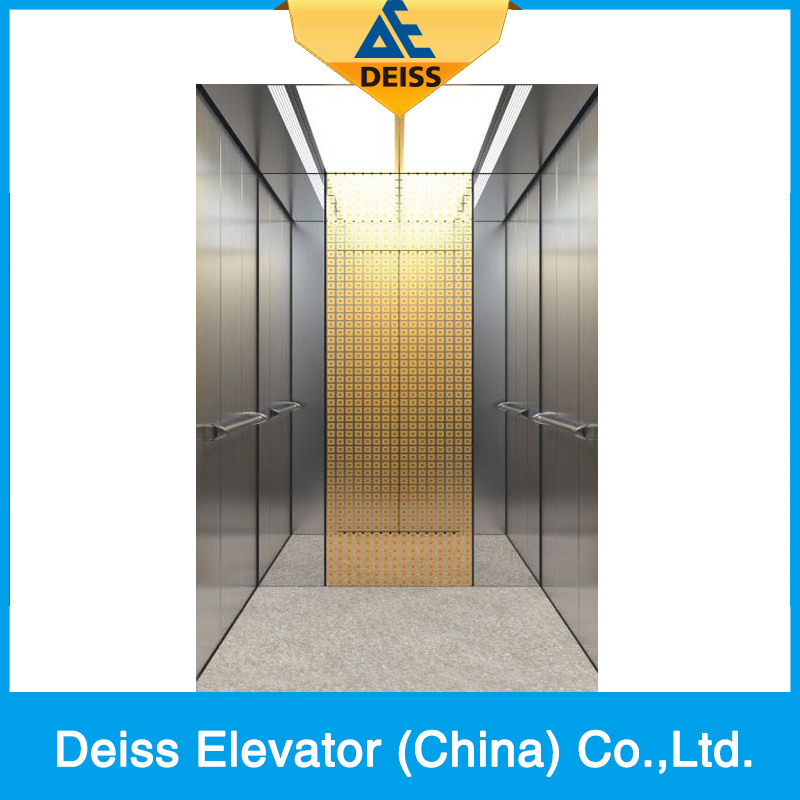

The decoration of the car:Ceiling: Hairline finished stainless steel
acrylic lighting decoration
Car wall: Hairline finished stainless steel
Car door: Hairline finished stainless steel
Floor: PVC
Display: Dot matrix display
Integrated control box

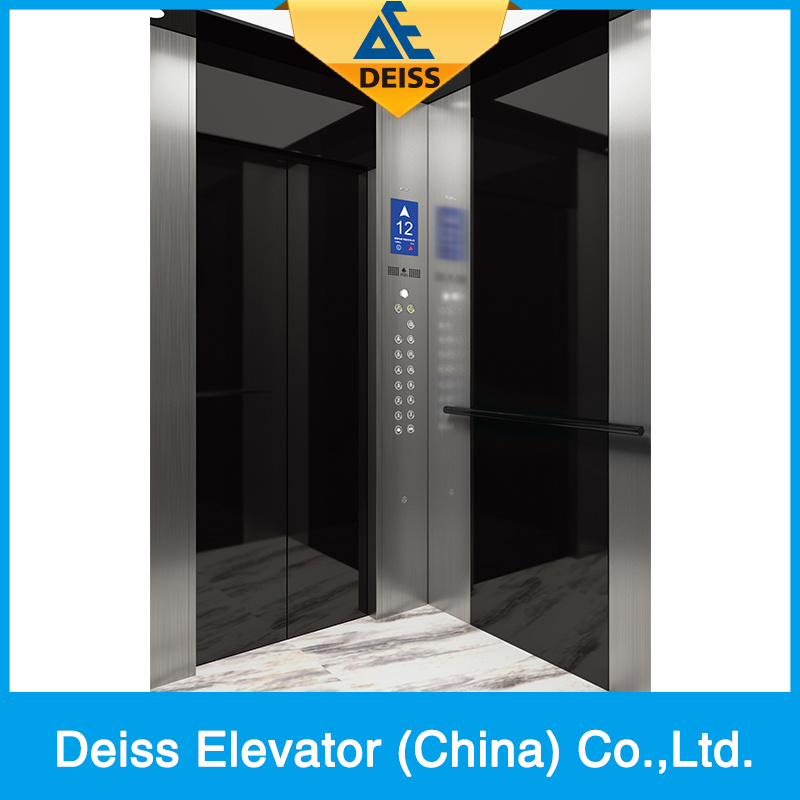

The decoration of the car:Ceiling: Mirror finished stainless steel
down lamp
Car wall: Hairline finished stainless steel
Mirror finished stainless steel
Car door: Mirror finished stainless steel
Floor: PVC
Display: Dot matrix display
Integrated control box
The decoration of the car:Ceiling: Black titanium mirror stainless steel frame,
acrylic lighting decoration
Car wall:Hairline finished stainless steel
Black titanium mirror
Car door: Black titanium mirror stainless steel
Floor: PVC
Display: LCD liquid crystal display
Integrated control box

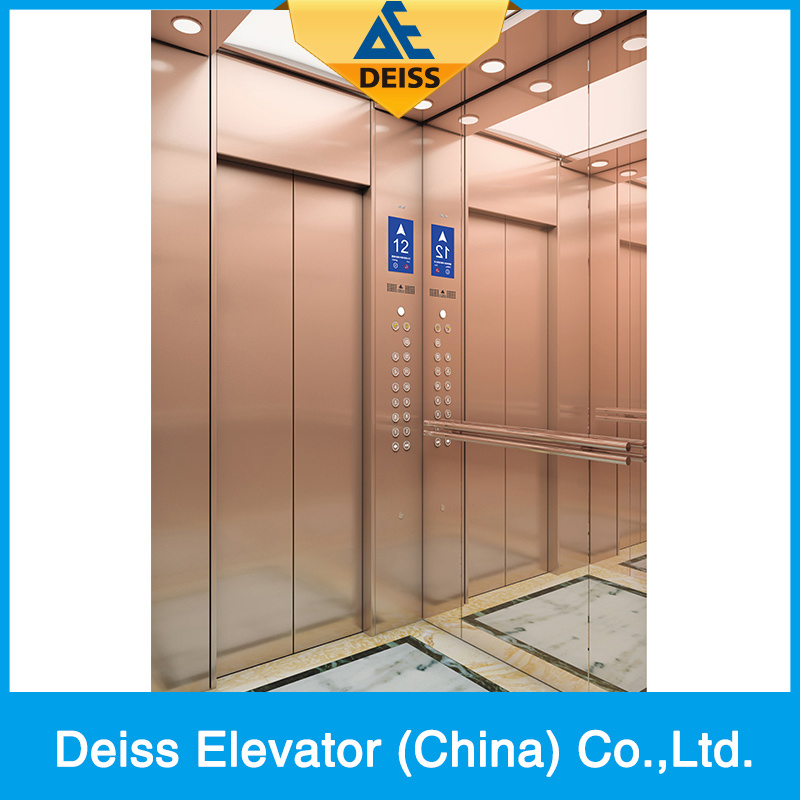

The decoration of the car:Ceiling: Rose gold stainless steel,
acrylic lighting decoration
Car wall:Rose gold mirror stainless steel,
mirror stainless steel
Car door: Rose gold stainless steel
Floor: PVCDisplay: LCD liquid crystal display
Integrated control box
The decoration of the car:Ceiling: Integrated type, Fan axial flow and lighting system LED floor.
Car wall: Hairline finished stainless steel in right & left sides; on the rear wall of the central cloth and hairless stainless steel at both sides.
Car door: Black titanium mirror stainless steel
Floor: PVC
Display: LCD liquid crystal display
Integrated control boxParametersLoad
(kg) | Speed
(m/s) | Hoistway size(mm) | Machine room size (mm) | Car dimension
(mm) | Door-opening size (mm) | Overhead height (OH0 | Pit depth (PP) |
| XxY | SxT | Inner size AxB | Door net opening | Net door height |
| Passenger elevator | Small machine room | | |
| 450 | 1.0 | 1950x1500 | 3000x3500 | 1950x1500 | 1400x850 | 700 | 2100 | 4300 | 1500 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4500 | 1500 |
| 630 | 1.0 | 2000x1800 | 3000x3500 | 2000x1800 | 1400x1100 | 700 | 2100 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 2 | 4900 | 2000 |
| 800 | 1 | 2000x2000
| 3000x3800 | 2000x2000 | 1400x1350 | 800 | 2100 | 4500 | 1500 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4500 | 1500 |
| 2.0 | 4900 | 2000 |
| 2.5 | 5500 | 2500 |
| 1000 | 1 | 2200x2200 | 3200x4000 | 2200x2200 | 1600x1450 | 900 | 2100 | 4500 | 1500 |
| 1.5 | 4500 | 1500 |
| 1.75 | 4500 | 1500 |
| 2.0 | 4900 | 2000 |
| 2.5 | 2250x2250 | 2250x2250 | 5500 | 2500 |
| 3.0 | 2400x2400 | 2400x2400 | 5800 | 3200 |
| 4.0 | 6000 | 4000 |
| 1250 | 1.0 | 2400x2300 | 3400x4100
| 2400x2300 | 1800x1550 | 1100 | 2100 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 2 | 4900 | 2000 |
| 2.5 | 2450x2300 | 2450x2300 | 5500 | 2500 |
| 3.0 | 2600x2550 | 2600x2550 | 5800 | 3200 |
| 4.0 | 6000 | 3400 |
| 1350 | 1.0 | 2400x2300 | 3400x4100 | 2400x2300 | 1900x1600 | 1100 | 2100 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 2.0 | 4900 | 2000 |
| 2.5 | 2450x2300 | 2450x2300 | 5500 | 2500 |
| 3.0 | 2600x2550 | 2600x2550 | 5800 | 3200 |
| 4.0 | 6000 | 3400 |
| 1600 | 1.0 | 2400x2300 | 3400x4100 | 2400x2300 | 1950x1700 | 1100 | 2100 | 4500 | 1500 |
| 1.5 | 4600 | 1600 |
| 1.75 | 4700 | 1700 |
| 2.0 | 4900 | 2000 |
| 2.5 | 2450x2300 | 2450x2300 | 5500 | 2500 |
| 3.0 | 2600x2550 | 2600x2550 | 5800 | 3200 |
| 4.0 | 6000 | 3400 |
The data is for design reference only. For the detailed parameters, please take the technical drawing as the criterion.
Note: If the specification exceeds above range, please contact us, DEISS Elevator Company.Function:| Standard Function |
| Running Function | VVVF drive | Safety function | Fault self-diagnosis |
| VVVF door operator | Repeated door closing |
| Independent running | Up/down over-run and final limit protection |
| Automatic pass without stop | Down over-speed protection device |
| Automatic adjustment of door-open time | Upward over-speed protection device |
| Reopen with hall call | Human-machine Interface | Micro-touch button for car call and hall call |
| Express close of door | Floor and direction indicator inside car |
| Car stop and door open | Floor and direction indicator |
| Cancel command register | Emergency Function | Emergency car lighting |
| Safety function | Light curtain protection | Inching running |
| Designated stop | Five way intercom |
| Overload holding stop | Bell |
| Anti-stall timer protection | Fire emergency return |
| Start protection control | Energy Saving | Car ventilation, light automatic shut off |
| Inspection operation | Remote shut-off |
| Optional Function |
| Emergency function | Leveling when power failure |
| Running function | Anti-nuisance |
| Open the door in advance |
| Direct parking |
| Group control function |
| Duplex control |
| On-duty peak service |
| Off-duty peak service |
| Door open time extending |
| Car arrival gong |
| Human-machine Interface | Voice announcer |
| Car assistant operation box |
| Operation box for the handicapped |
| Intelligent calling service |
| IC card control function |
| Monitor function | Remote monitor |
| Remote control |
| Camera function in the car |
ABOUT DEISSDEISS ELEVATOR is the leading elevator & escalator manufacturer in China. Our main products include passenger elevator, freight elevator, goods lift, panoramic elevator, observation lift, hospital bed elevator, villa home lift, escalator, waving escalator and moving walk. etc.
AGENT WANTED:Welcome experienced elevator company act our distributors/agent to cooperate with us on long term basis. We would like to provide our distributor/agent promotion price as reward for the cooperation. If you are interested, please do not hesitate to contact with us at anytime. Thanks.

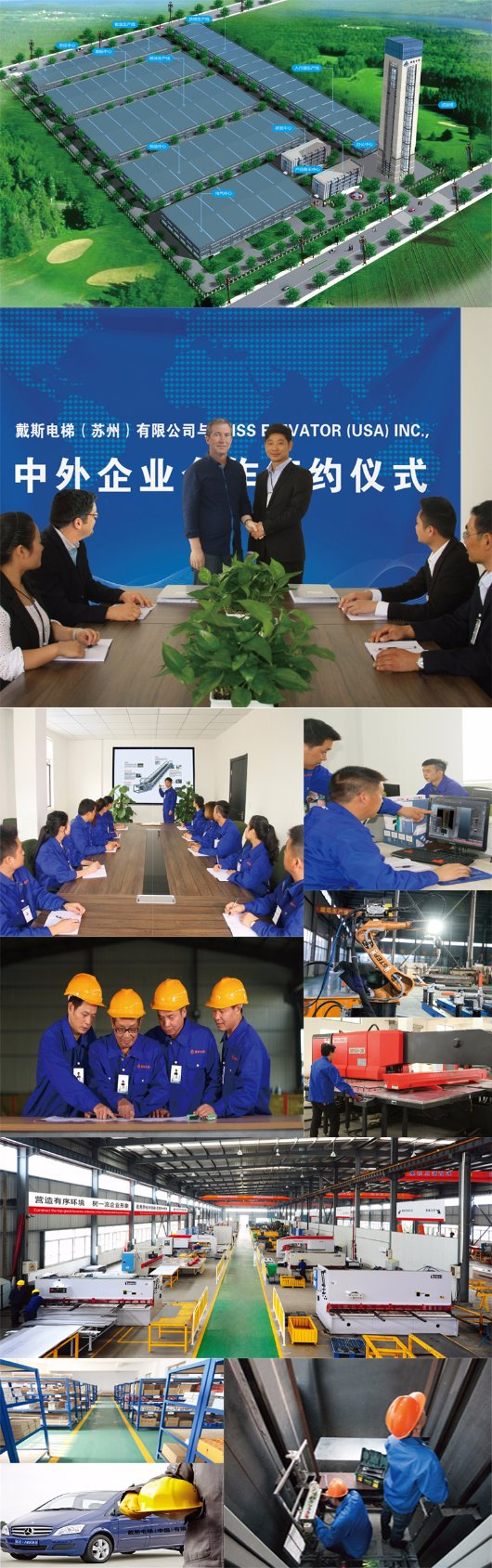

DEISS ELEVATOR (China) Co., Ltd, a Sino-American joint venture, is located in Wujiang, Suzhou, Jiangsu province. The company's main brand is DEISS. OEM is available.
DEISS, a leading elevator manufacturer, supplies different kinds of elevator products.
Our main products include passenger elevator, freight elevator, goods lift, panoramic elevator, observation lift, hospital bed elevator, villa home lift, escalator, waving escalator and moving walk. etc.
Based on the accumulated technical experience in past decades of years, DEISS provides many kinds of elevators and escalators to stisfied different customers' requirements.
Until now, our company acquired qualification are as follows: Passenger elevator with capacity 1600kg at 4m/s, panoramic elevator with capacity 1600kg at 2.5m/s, hospital bed elevator with capacity 1600kg at 2.5m/s, freight elevator with capacity 4000kg at 0.5m/s, and MRL freight elevator with 4000kg capacity. Besides, we can also customize the products according to different customers' requirements.
Good service is the source of good products. In pursuing excellent quality, DEISS Elevator pays more attention on the individual products and customer-oriented perfect service.
Honor is a good approval and encouragement. We've got the following honors, for example: "The Elevator Industry's Most Influential Enterprises In China", "Famous New Motor Products", "One of the Ten Famous Brands in China Elevator Industry", "China Quality. Service. Credit AAA Enterprises" and "Hundred Excellent Enterprises in China".
Besides, the company has got ISO9001-2008 Quality control system certifiate, GB/T28001-2011/OHSAS18001: 2007 standard certificate. We have many patent certificates and main honor certificates in elevator industry.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
High quality and reasonable price.
