Deiss Elevator (China) Co., Ltd. >> China Top Residential Villa Passenger Home Elevator with Stable Running

China Top Residential Villa Passenger Home Elevator with Stable Running

China Top Residential Villa Passenger Home Elevator with Stable Running
Price: US $ 10000-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Specifications


Prod Model: DK series
Driving Type: Gear and Rack Elevator
Persons: 11 - 19
Capacity: 630kg
Speed: 1.00-4.00m/S

Product Description

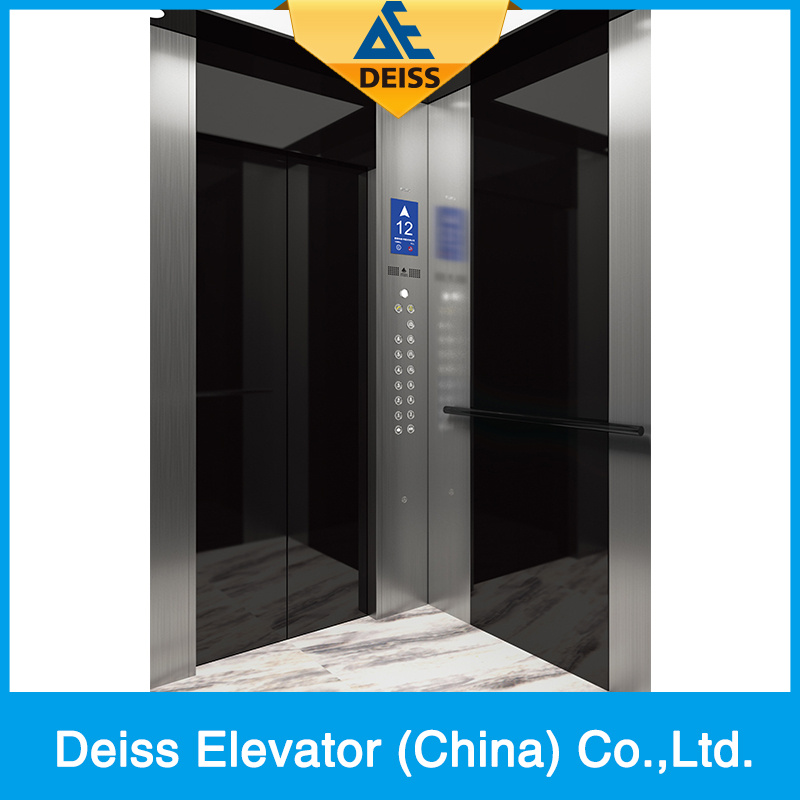

This is a DEISS passenger elevator (DK series)

This passenger elevator has an exact and effective control system by using the most advanced electronic technology. In additon to this, DEISS elevators adopt the latest environment-friendly technonoly in manufacturing, as well as safety device and signal device. DEISS passenger elevator, small room passenger elevator to no room passenger elevator, all with a variety of options to meet the installation needs of different occasions. Whether for business or residential home office can be fully satisfied.
OEM is available.

The decoration of the car:
Ceiling: Black titanium mirror stainless steel frame,
        acrylic lighting decoration
Car wall:Hairline finished stainless steel
         Black titanium mirror
Car door: Black titanium mirror stainless steel
Floor: PVC
Display: LCD liquid crystal display
Integrated control box


Parameters
Load
(kg)
Speed
(m/s)
Hoistway size(mm)Machine room size (mm)Car dimension
(mm)
Door-opening size (mm)Overhead height (OH0Pit depth (PP)
XxYSxTInner size AxBDoor net openingNet door height
Passenger elevatorSmall machine room
4501.01950x15003000x35001950x15001400x850700210043001500
1.545001500
1.7545001500
6301.02000x18003000x35002000x18001400x1100700210045001500
1.546001600
1.7547001700
249002000
80012000x2000

3000x38002000x20001400x1350800210045001500
1.545001500
1.7545001500
2.049002000
2.555002500
100012200x22003200x40002200x22001600x1450900210045001500
1.545001500
1.7545001500
2.049002000
2.52250x22502250x225055002500
3.02400x24002400x240058003200
4.060004000
12501.02400x23003400x4100

2400x23001800x15501100210045001500
1.546001600
1.7547001700
249002000
2.52450x23002450x230055002500
3.02600x25502600x255058003200
4.060003400
13501.02400x23003400x41002400x23001900x16001100210045001500
1.546001600
1.7547001700
2.049002000
2.52450x23002450x230055002500
3.02600x25502600x255058003200
4.060003400
16001.02400x23003400x41002400x23001950x17001100210045001500
1.546001600
1.7547001700
2.049002000
2.52450x23002450x230055002500
3.02600x25502600x255058003200
4.060003400
The data is for design reference only. For the detailed parameters, please take the technical drawing as the criterion.
Note: If the specification exceeds above range, please contact us, DEISS Elevator Company.


Function:
Standard Function
Running FunctionVVVF driveSafety functionFault self-diagnosis
VVVF door operatorRepeated door closing
Independent runningUp/down over-run and final limit protection
Automatic pass without stopDown over-speed protection device
Automatic adjustment of door-open timeUpward over-speed protection device
Reopen with hall callHuman-machine InterfaceMicro-touch button for car call and hall call
Express close of doorFloor and direction indicator inside car
Car stop and door openFloor and direction indicator
Cancel command registerEmergency FunctionEmergency car lighting
Safety functionLight curtain protectionInching running
Designated stopFive way intercom
Overload holding stopBell
Anti-stall timer protectionFire emergency return
Start protection controlEnergy SavingCar ventilation, light automatic shut off
Inspection operationRemote shut-off
Optional Function
Emergency functionLeveling when power failure
Running functionAnti-nuisance
Open the door in advance
Direct parking
Group control function
Duplex control
On-duty peak service
Off-duty peak service
Door open time extending
Car arrival gong
Human-machine InterfaceVoice announcer
Car assistant operation box
Operation box for the handicapped
Intelligent calling service
IC card control function
Monitor functionRemote monitor
Remote control
Camera function in the car


ABOUT DEISS
DEISS ELEVATOR is the leading elevator & escalator manufacturer in China. Our main products include passenger elevator, freight elevator, goods lift, panoramic elevator, observation lift, hospital bed elevator, villa home lift, escalator, waving escalator and moving walk. etc.





AGENT WANTED:
Welcome experienced elevator company act our distributors/agent to cooperate with us on long term basis. We would like to provide our distributor/agent promotion price as reward for the cooperation. If you are interested, please do not hesitate to contact with us at anytime. Thanks.

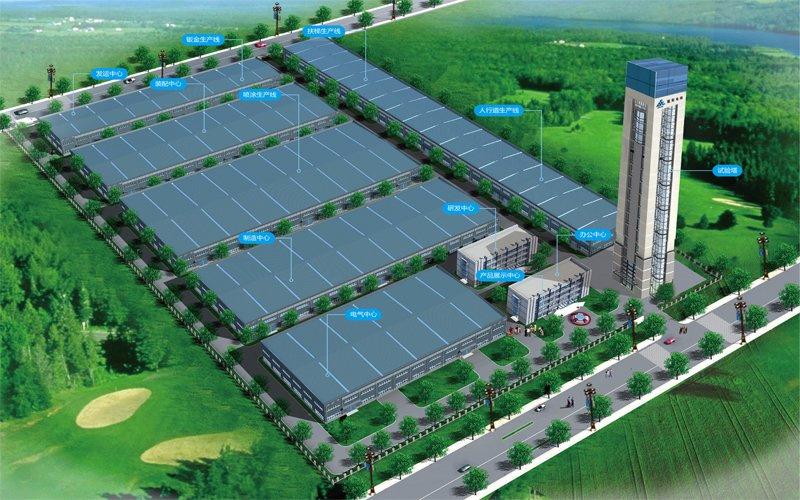

DEISS ELEVATOR (China) Co., Ltd, a Sino-American joint venture, is located in Wujiang, Suzhou, Jiangsu province. The company's main brand is DEISS. OEM is available.

DEISS, a leading elevator manufacturer, supplies different kinds of elevator products.

Our main products include passenger elevator, freight elevator, goods lift, panoramic elevator, observation lift, hospital bed elevator, villa home lift, escalator, waving escalator and moving walk. etc.

Based on the accumulated technical experience in past decades of years, DEISS provides many kinds of elevators and escalators to stisfied different customers' requirements.

Until now, our company acquired qualification are as follows: Passenger elevator with capacity 1600kg at 4m/s, panoramic elevator with capacity 1600kg at 2.5m/s, hospital bed elevator with capacity 1600kg at 2.5m/s, freight elevator with capacity 4000kg at 0.5m/s, and MRL freight elevator with 4000kg capacity. Besides, we can also customize the products according to different customers' requirements.

Good service is the source of good products. In pursuing excellent quality, DEISS Elevator pays more attention on the individual products and customer-oriented perfect service.

Honor is a good approval and encouragement. We've got the following honors, for example: "The Elevator Industry's Most Influential Enterprises In China", "Famous New Motor Products", "One of the Ten Famous Brands in China Elevator Industry", "China Quality. Service. Credit AAA Enterprises" and "Hundred Excellent Enterprises in China".

Besides, the company has got ISO9001-2008 Quality control system certifiate, GB/T28001-2011/OHSAS18001: 2007 standard certificate. We have many patent certificates and main honor certificates in elevator industry.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

High quality and reasonable price.
