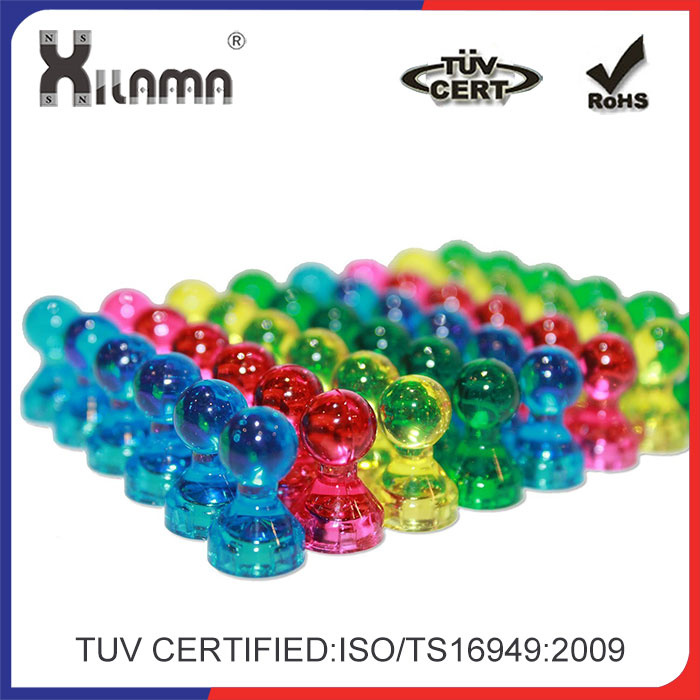

Colorful Crystal Magnet Push Pin Magnetic Holding NdFeB Fridge Magnet

Product Specifications

Prod Model:	CY magnet pushpin
Size:	Custom-Make Welcome
Certificate:	SGS, RoHS, Reach
Quality System:	ISO/Ts16949:2009; ISO9001:2000; QS-9000
Factory:	Over 20 Years Experiences
Material:	Magnet+Plastic
Customized:	Customized Welcome

Product Description

Welcome to Jiangmen Magsource New Material Co.,LTD.
www.jpmfmagnet.com
Specialized in producing magnet materials over 20years
Aims to be the best Neodymium Magnet supplier in China
Offer Super Strong NdFeB Magnet, Professional Service.

NdFeB magnets -The Strongest Permanent Magnets Today

NdFeB(Neodymium-Iron-Boron) magnet is used most popular by people in industry and our daily life, because it has superior magnetic properties than other kind of magnets.

1. Specifications of Sintered Neodymium Magnet


Place of Origin	Guangdong, China(Mainland)
Magnet Type	Sintered NeFeB / rare earth / Permanent
Composite	Neodymium-Iron-Boron
Grade	N35-N54( M, H, SH, UH, EH, AH series )
Working Temperature	The Max. temp. is up to 80 / 100 /120 /150 / 230 celsius under different grade.
Tolerance	+/-0.03 to +/-0.15
Shape of Magnet	Disc, Cylinder, Block, Ring, Sphere(ball), Arc Segment(Tile) and more custom shapes
Size	various sizes custom-make welcome
Coating	Ni, Zn, NiCuNi, gold, silver, copper, epoxy, etc.

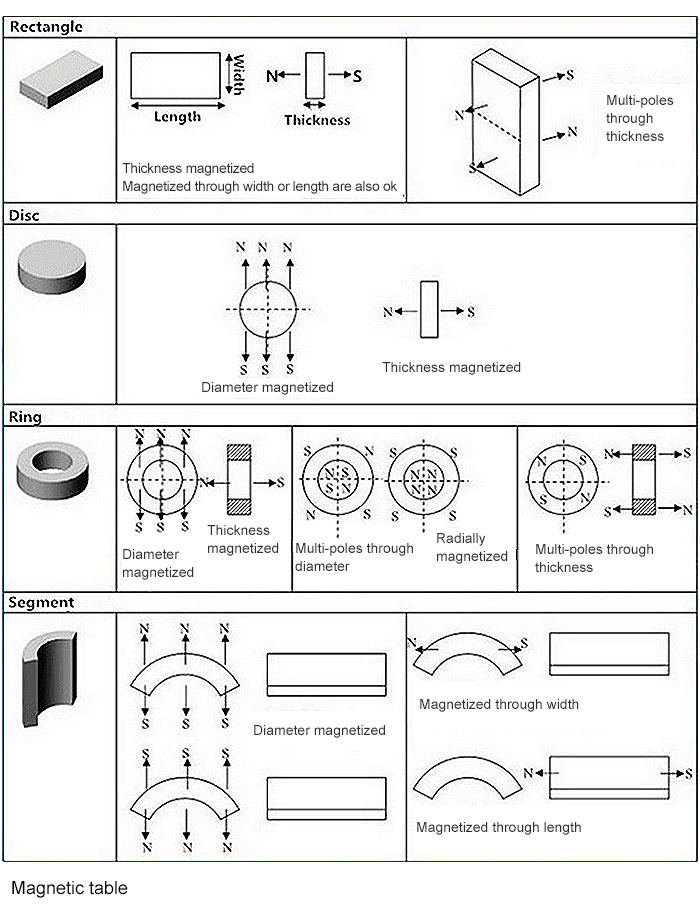

Magnetization Direction	Axially Magnetized, Radially Magnetized(Diametrically), Multi-poles Magnetized or other customized
Certificate	ISO9001:2000,QS-9000:1998,SGS,RoHS,REACH
Application	Industrial Magnet, Toy Magnet, Health Magnet and more
Packaging	Antimagnetic Packaging / Neutral Packing / Custom-make welcome
Shipping Method	by see, by air or by int'l express
Lead Time	10~25days

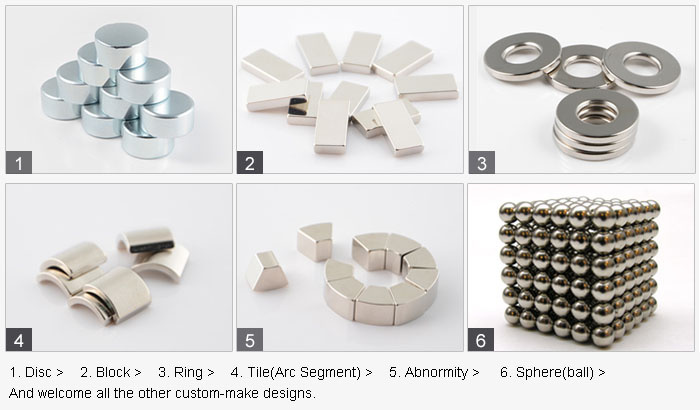

2. Magnet Display
Neodymium-Iron-Boron (NdFeB) magnets are composed of neodymium, iron, boron and a few transition metals. These kind of permanent magnets are extremely strong and can be producted in different shapes and sizes (ie. arcs, blocks, discs, rings).
It has higher unit magnetic properties than other magnet and assure you of smaller size and lighter weight in designing devices.

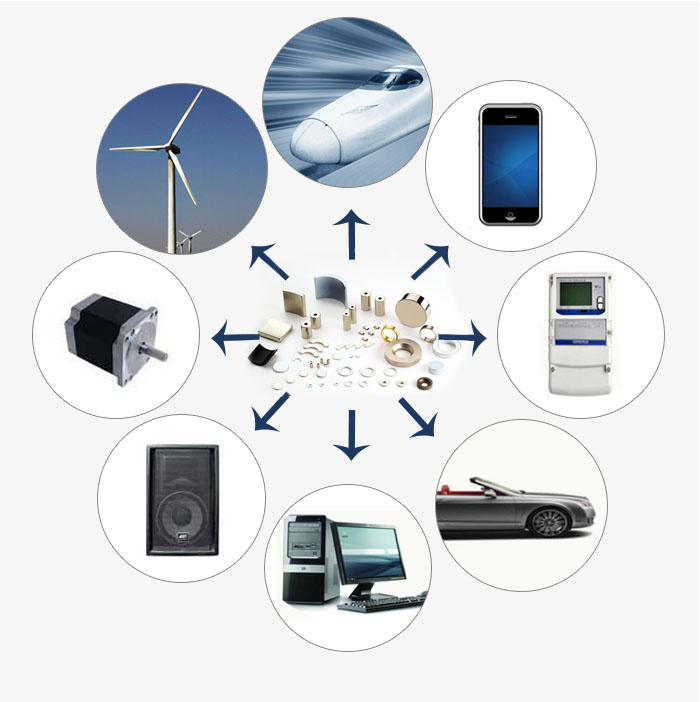

3. Applications of Sintered NdFeB Magnets


· Automotive Starters	· Microphone Assemblies
· Computer Rigid Disc Drives	· Particle Accelerators
· DC Motors	· Printers
· Headphone	· Relays
· Halbach Arrays	· Servo Motors
· Linear Actuators	· Stepper Motors
· Linear Motors	· Switches
· Loud Speakers	· Undulators
· Magnetic Bearings	· Vacuum Deposition
· Magnetic Couplings	· Voice Coil Motors (VCM)
· Magnetic Separators	· Wind Turbines

4. Technical Data of Sintered NdFeB Magnets


 MAGNETIC AND PHYSICAL CHARACTERISTICS

Series	Grade	Remanence		Coercive Force		Intrinsic Coercive force		Max. Energy Product		Max. Working Temp.
		Br		Hcb		Hci		(BH) max		L/D=0.7
		T	kGs	KA/m	KOe	KA/m	KOe	KJ/m3	MGOe	ºC	°F
N	N35	1.17-1.24	11.7-12.4	≥860	≥10.8	≥955	≥12	263-295	33-37	80	176
	N38	1.22-1.30	12.2-13.0	≥860	≥10.8	≥955	≥12	287-318	36-40	80	176
	N40	1.26-1.32	12.6-13.2	≥860	≥10.8	≥955	≥12	302-334	38-42	80	176
	N42	1.29-1.35	12.9-13.5	≥860	≥10.8	≥955	≥12	318-350	40-44	80	176
	N45	1.32-1.38	13.2-13.8	≥860	≥10.8	≥955	≥12	334-366	42-46	80	176
	N48	1.37-1.43	13.7-14.3	≥836	≥10.5	≥876	≥11	358-390	45-49	80	176
	N50	1.40-1.45	14.0-14.5	≥836	≥10.5	≥876	≥11	374-406	47-51	80	176
	N52	1.42-1.48	14.2-14.8	≥836	≥10.5	≥876	≥11	390-422	49-53	80	176
	N54	1.45-1.51	14.5-15.1	≥836	≥10.5	≥876	≥11	398-438	50-55	80	176
M	N35M	1.17-1.24	11.7-12.4	≥860	≥10.8	≥1114	≥14	263-295	33-37	100	212
	N38M	1.22-1.30	12.2-13.0	≥915	≥11.5	≥1114	≥14	287-318	36-40	100	212
	N40M	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1114	≥14	302-334	38-42	100	212
	N42M	1.29-1.35	12.9-13.5	≥955	≥12.0	≥1114	≥14	318-350	40-44	100	212
	N45M	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1114	≥14	334-366	42-46	100	212
	N48M	1.37-1.43	13.7-14.3	≥1019	≥12.8	≥1114	≥14	358-390	45-49	100	212
	N50M	1.40-1.45	14.0-14.5	≥1043	≥13.1	≥1114	≥14	374-406	47-51	100	212
	N52M	1.42-1.48	14.2-14.8	≥1059	≥13.3	≥1114	≥14	390-422	49-53	100	212
H	N35H	1.17-1.24	11.7-12.4	≥876	≥11	≥1350	≥17	263-295	33-37	120	248
	N38H	1.22-1.30	12.2-13.0	≥915	≥11.5	≥1350	≥17	287-318	36-40	120	248
	N40H	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1350	≥17	302-334	38-42	120	248
	N42H	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1350	≥17	318-350	40-44	120	248
	N45H	1.31-1.37	13.1-13.7	≥979	≥12.3	≥1350	≥17	335-366	42-46	120	248
	N48H	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1274	≥16	358-390	45-49	120	248
	N50H	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1274	≥16	374-406	47-51	120	248
SH	N33SH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥1592	≥20	247-279	31-35	150	302
	N35SH	1.17-1.24	11.7-12.4	≥876	≥11	≥1592	≥20	263-295	33-37	150	302
	N38SH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥1592	≥20	287-318	36-40	150	302
	N40SH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1592	≥20	302-334	38-42	150	302
	N42SH	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1592	≥20	318-350	40-44	150	302
	N45SH	1.32-1.38	13.2-13.8	≥994	≥12.5	≥1592	≥20	335-366	42-46	150	302
UH	N30UH	1.08-1.16	10.8-11.6	≥812	≥10.2	≥1990	≥25	223-255	28-32	180	356
	N33UH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥1990	≥25	247-279	31-35	180	356
	N35UH	1.17-1.24	11.7-12.4	≥876	≥11	≥1990	≥25	263-295	33-37	180	356
	N38UH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥1990	≥25	287-318	36-40	180	356
	N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	302-334	38-42	180	356
	N42UH	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1990	≥25	318-350	40-44	180	356
EH	N30EH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2388	≥30	223-255	28-32	200	392
	N33EH	1.14-1.21	11.4-12.1	≥851	≥10.7	≥2388	≥30	247-279	31-35	200	392
	N35EH	1.17-1.24	11.7-12.4	≥876	≥11	≥2388	≥30	263-295	33-37	200	392
	N38EH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	200	292
AH	N28AH	1.04-1.12	10.4-11.2	≥772	≥9.70	≥2786	≥35	207-239	26-30	230	446
	N30AH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2786	≥35	223-255	28-32	230	446
	N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	230	446

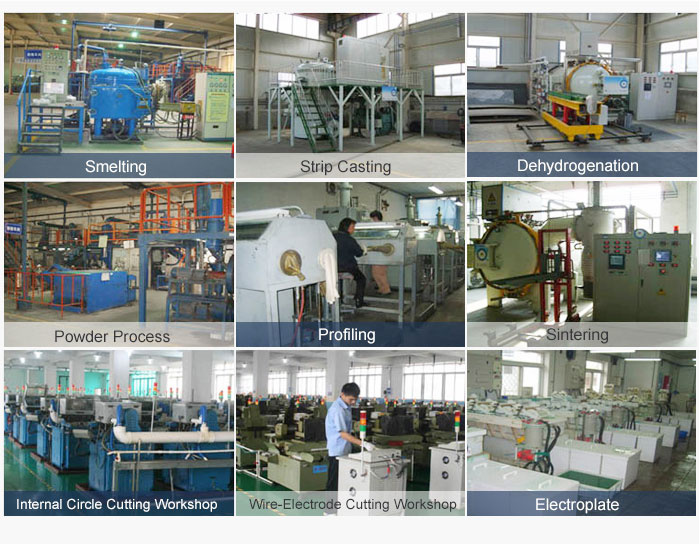

5.Our Equipment

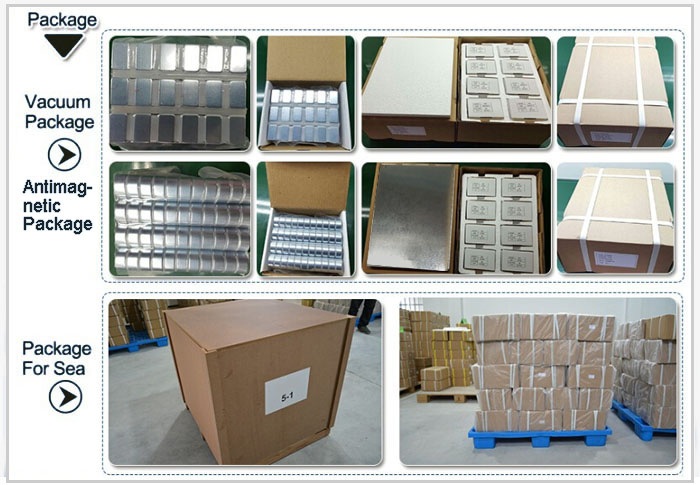

6. Safety and Stable Packing


7.Partner Customer



FAQ
1. Q: Which is the strongest type of magnet?
    A: Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.

2. Q: What are the size limitations on manufacturing neodymium magnets?
   A: The limits include:
        2" max in magnetized direction
        4" max diameter for discs and rings
        4" max length and width for blocks
        1/32" minimum on thickness on any magnet
        1/16" minimum diameter on outer diameter
        1/16" minimum diameter on any hole

3. Q: What information do I need to supply when I have an inquiry?
    A: If you have any inquiry, please kindly advise the following items:
         Dimensions, sizes, shape and drawing with tolerances.
         Material grade or magnetic properties.
         Magnetic direction, quantity. Surface coating (if necessary).
         Any special packing, delivering or other requirements.

4. Q: What about the sample time and charge?
    A: 7-10 days if the sample have to be customized, charge according to your design.
         3-7 days for our existing samples for reference

5. Q: What about the delivery time of your products?
    A: 10-15days.
         Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.

6. Q: Could you provide me the shortest lead time?
    A: That's based on whether we have the available materials in stock, we will try our best to satisfy you if any urgency.

7. Q: What is your MOQ?
    A: 10-100-500-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process. MIN and SMALL quantity accept accordingly.

8. Q: How to pay you?
    A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.
          Western Union cash - for small order or samples order.
          Other payment: Paypal.
          Different areas may exist some differences.

9. Q: Could I pay a visit to your factory?
    A: Yes, of course, if you need, we will help you visit our factory, everything will be well arranged.

10. Q: Where is your plants?
     A: Our plant located in No.120 Gaoxin West Road, Jianghai District, Jiangmen City, Guangdong Province, China. About 60 minutes from Guangzhou Airport by car.

11. Q: If I have more questions, where can I get the answer?
     A: Any issue, please feel free to contact us any time.
