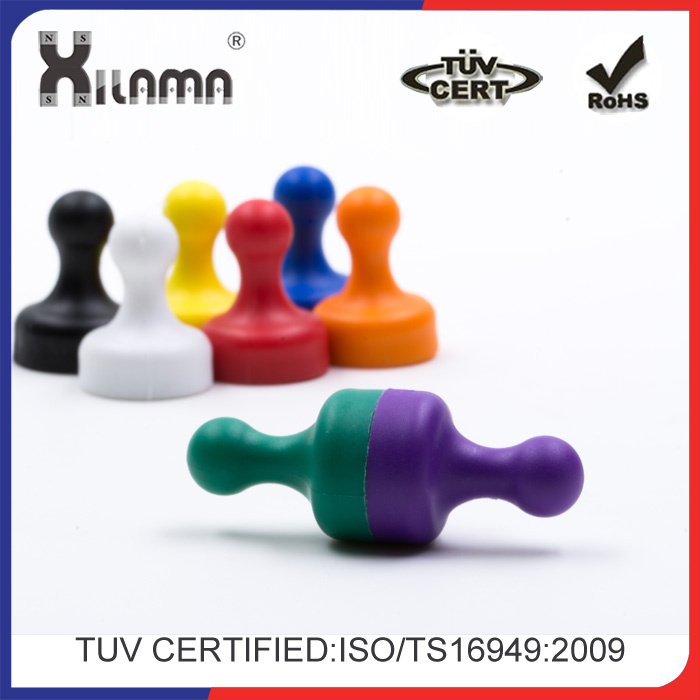

Color Plastic Mount Display Pin NdFeB Crystal Magnetic Push Pin

Product Specifications

Prod Model:	CY magnet pushpin
Size:	Custom-Make Welcome
Certificate:	SGS, RoHS, Reach
Quality System:	ISO/Ts16949:2009; ISO9001:2000; QS-9000
Factory:	Over 20 Years Experiences
Material:	Magnet+Plastic
Customized:	Customized Welcome

Product Description

Welcome to Jiangmen Magsource New Material Co.,LTD.
www.jpmfmagnet.com
Specialized in producing magnet materials over 20years
Aims to be the best Neodymium Magnet supplier in China
Offer Super Strong NdFeB Magnet, Professional Service.

NdFeB magnets -The Strongest Permanent Magnets Today
NdFeB(Neodymium-Iron-Boron) magnet is used most popular by people in industry and our daily life, because it has superior magnetic properties than other kind of magnets.

1. Specifications of Sintered Neodymium Magnet


Welcome to Jiangmen Magsource New Material Co.,LTD. www.jpmfmagnet.com Specialized in producing magnet materials over 20years Aims to be the best Neodymium Magnet supplier in China Offer Super Strong NdFeB Magnet, Professional Service. NdFeB magnets -The Strongest Permanent Magnets Today NdFeB(Neodymium-Iron-Boron) magnet is used most popular by people in industry and our daily life, because it has superior magnetic properties than other kind of magnets. 1. Specifications of Sintered Neodymium Magnet    Place of Origin Guangdong, China(Mainland) Magnet Type Sintered NeFeB / rare earth / Permanent Composite Neodymium-Iron-Boron Grade N35-N54( M, H, SH, UH, EH, AH series ) Working Temperature The Max. temp. is up to 80 / 100 /120 /150 / 230 celsius under different grade. Tolerance +/-0.03 to +/-0.15 Shape of Magnet Disc, Cylinder, Block, Ring, Sphere(ball), Arc Segment(Tile) and more custom shapes Size various sizes custom-make welcome Coating Ni, Zn, NiCuNi, gold, silver, copper, epoxy, etc. Magnetization Direction Axially Magnetized, Radially Magnetized(Diametrically), Multi-poles Magnetized or other customized Certificate ISO9001:2000,QS-9000:1998,SGS,RoHS,REACH Application Industrial Magnet, Toy Magnet, Health Magnet and more  Packaging Antimagnetic Packaging / Neutral Packing / Custom-make welcome Shipping Method by see, by air or by int'l express Lead Time 10~25days 2. Magnet Display Neodymium-Iron-Boron (NdFeB) magnets are composed of neodymium, iron, boron and a few transition metals. These kind of permanent magnets are extremely strong and can be producted in different shapes and sizes (ie. arcs, blocks, discs, rings). It has higher unit magnetic properties than other magnet and assure you of smaller size and lighter weight in designing devices. 3. Applications of Sintered NdFeB Magnets    · Automotive Starters                    · Microphone Assemblies  · Computer Rigid Disc Drives  · Particle Accelerators  · DC Motors  · Printers  · Headphone  · Relays  · Halbach Arrays  · Servo Motors  · Linear Actuators  · Stepper Motors  · Linear Motors  · Switches  · Loud Speakers  · Undulators  · Magnetic Bearings  · Vacuum Deposition   · Magnetic Couplings   · Voice Coil Motors (VCM)  · Magnetic Separators  · Wind Turbines  4. Technical Data of Sintered NdFeB Magnets  MAGNETIC AND PHYSICAL CHARACTERISTICS      Series Grade Remanence  Coercive Force  Intrinsic Coercive force  Max. Energy Product  Max. Working Temp. Br Hcb Hci (BH) max L/D=0.7 T kGs KA/m KOe KA/m KOe KJ/m3 MGOe ºC °F N N35 1.17-1.24 11.7-12.4 ≥860 ≥10.8 ≥955 ≥12 263-295 33-37 80 176 N38 1.22-1.30 12.2-13.0 ≥860 ≥10.8 ≥955 ≥12 287-318 36-40 80 176 N40 1.26-1.32 12.6-13.2 ≥860 ≥10.8 ≥955 ≥12 302-334 38-42 80 176 N42 1.29-1.35 12.9-13.5 ≥860 ≥10.8 ≥955 ≥12 318-350 40-44 80 176 N45 1.32-1.38 13.2-13.8 ≥860 ≥10.8 ≥955 ≥12 334-366 42-46 80 176 N48 1.37-1.43 13.7-14.3 ≥836 ≥10.5 ≥876 ≥11 358-390 45-49 80 176 N50 1.40-1.45 14.0-14.5 ≥836 ≥10.5 ≥876 ≥11 374-406 47-51 80 176 N52 1.42-1.48 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 390-422 49-53 80 176 N54 1.45-1.51 14.5-15.1 ≥836 ≥10.5 ≥876 ≥11 398-438 50-55 80 176 M N35M 1.17-1.24 11.7-12.4 ≥860 ≥10.8 ≥1114 ≥14 263-295 33-37 100 212 N38M 1.22-1.30 12.2-13.0 ≥915 ≥11.5 ≥1114 ≥14 287-318 36-40 100 212 N40M 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1114 ≥14 302-334 38-42 100 212 N42M 1.29-1.35 12.9-13.5 ≥955 ≥12.0 ≥1114 ≥14 318-350 40-44 100 212 N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 100 212 N48M 1.37-1.43 13.7-14.3 ≥1019 ≥12.8 ≥1114 ≥14 358-390 45-49 100 212 N50M 1.40-1.45 14.0-14.5 ≥1043 ≥13.1 ≥1114 ≥14 374-406 47-51 100 212 N52M 1.42-1.48 14.2-14.8 ≥1059 ≥13.3 ≥1114 ≥14 390-422 49-53 100 212 H N35H 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥1350 ≥17 263-295 33-37 120 248 N38H 1.22-1.30 12.2-13.0 ≥915 ≥11.5 ≥1350 ≥17 287-318 36-40 120 248 N40H 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1350 ≥17 302-334 38-42 120 248 N42H 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1350 ≥17 318-350 40-44 120 248 N45H 1.31-1.37 13.1-13.7 ≥979 ≥12.3 ≥1350 ≥17 335-366 42-46 120 248 N48H 1.37-1.43 13.7-14.3 ≥1011 ≥12.7 ≥1274 ≥16 358-390 45-49 120 248 N50H 1.40-1.45 14.0-14.5 ≥1027 ≥12.9 ≥1274 ≥16 374-406 47-51 120 248 SH N33SH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥1592 ≥20 247-279 31-35 150 302 N35SH 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥1592 ≥20 263-295 33-37 150 302 N38SH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥1592 ≥20 287-318 36-40 150 302 N40SH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1592 ≥20 302-334 38-42 150 302 N42SH 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1592 ≥20 318-350 40-44 150 302 N45SH 1.32-1.38 13.2-13.8 ≥994 ≥12.5 ≥1592 ≥20 335-366 42-46 150 302 UH N30UH 1.08-1.16 10.8-11.6 ≥812 ≥10.2 ≥1990 ≥25 223-255 28-32 180 356 N33UH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥1990 ≥25 247-279 31-35 180 356 N35UH 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥1990 ≥25 263-295 33-37 180 356 N38UH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥1990 ≥25 287-318 36-40 180 356 N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 302-334 38-42 180 356 N42UH 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1990 ≥25 318-350 40-44 180 356 EH N30EH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2388 ≥30 223-255 28-32 200 392 N33EH 1.14-1.21 11.4-12.1 ≥851 ≥10.7 ≥2388 ≥30 247-279 31-35 200 392 N35EH 1.17-1.24 11.7-12.4 ≥876 ≥11 ≥2388 ≥30 263-295 33-37 200 392 N38EH 1.22-1.29 12.2-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 200 292 AH N28AH 1.04-1.12 10.4-11.2 ≥772 ≥9.70 ≥2786 ≥35 207-239 26-30 230 446 N30AH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2786 ≥35 223-255 28-32 230 446 N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 230 446 5.Our Equipment 6. Safety and Stable Packing 7.Partner Customer FAQ 1. Q: Which is the strongest type of magnet?      A: Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world. 2. Q: What are the size limitations on manufacturing neodymium magnets?    A: The limits include:         2" max in magnetized direction         4" max diameter for discs and rings         4" max length and width for blocks         1/32" minimum on thickness on any magnet         1/16" minimum diameter on outer diameter         1/16" minimum diameter on any hole   3. Q: What information do I need to supply when I have an inquiry?     A: If you have any inquiry, please kindly advise the following items:          Dimensions, sizes, shape and drawing with tolerances.          Material grade or magnetic properties.          Magnetic direction, quantity. Surface coating (if necessary).          Any special packing, delivering or other requirements.   4. Q: What about the sample time and charge?     A: 7-10 days if the sample have to be customized, charge according to your design.          3-7 days for our existing samples for reference    5. Q: What about the delivery time of your products?     A: 10-15days.          Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.   6. Q: Could you provide me the shortest lead time?     A: That's based on whether we have the available materials in stock, we will try our best to satisfy you if any urgency.   7. Q: What is your MOQ?     A: 10-100-500-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process. MIN and SMALL quantity accept accordingly.   8. Q: How to pay you?     A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.           Western Union cash - for small order or samples order.           Other payment: Paypal.           Different areas may exist some differences.   9. Q: Could I pay a visit to your factory?     A: Yes, of course, if you need, we will help you visit our factory, everything will be well arranged.   10. Q: Where is your plants?      A: Our plant located in No.120 Gaoxin West Road, Jianghai District, Jiangmen City, Guangdong Province, China. About 60 minutes from Guangzhou Airport by car.    11. Q: If I have more questions, where can I get the answer?      A: Any issue, please feel free to contact us any time.              Tel: 0086 750 3369862/ 0086 750 3369189            Fax: 0086  750 3369362      Finally---Why you choose us?   1. Magsource qualified by ISO/TS 16949, ISO14001, RoHS, SGS, REACH.  2. 8 years export experiences makes us well know how to satisfy you.  3. The best quality with reasonable price. 4. Fast and on-time delivery.   Enquiry Hotline: Tel: (86) 750-3369-189 Tel: (86) 189-2335-8783 Fax: (86) 750-3369-362

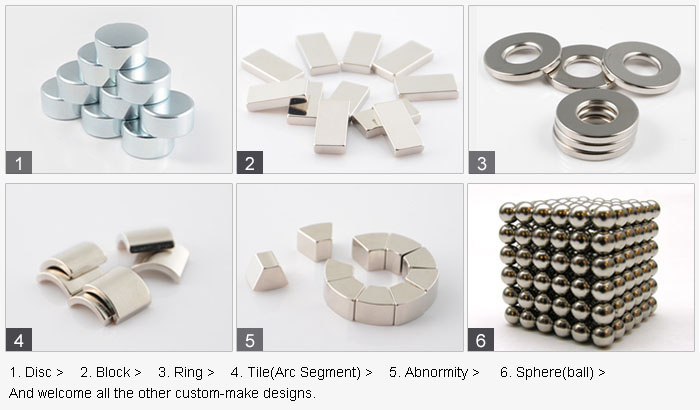

2. Magnet Display
Neodymium-Iron-Boron (NdFeB) magnets are composed of neodymium, iron, boron and a few transition metals. These kind of permanent magnets are extremely strong and can be producted in different shapes and sizes (ie. arcs, blocks, discs, rings).
It has higher unit magnetic properties than other magnet and assure you of smaller size and lighter weight in designing devices.

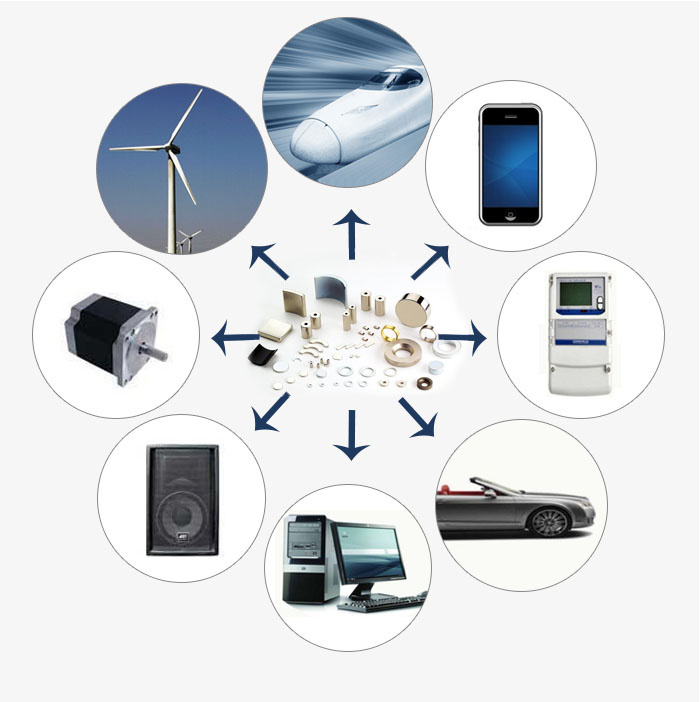

3. Applications of Sintered NdFeB Magnets


· Automotive Starters	· Microphone Assemblies
· Computer Rigid Disc Drives	· Particle Accelerators
· DC Motors	· Printers
· Headphone	· Relays
· Halbach Arrays	· Servo Motors
· Linear Actuators	· Stepper Motors
· Linear Motors	· Switches
· Loud Speakers	· Undulators
· Magnetic Bearings	· Vacuum Deposition
· Magnetic Couplings	· Voice Coil Motors (VCM)
· Magnetic Separators	· Wind Turbines

4. Technical Data of Sintered NdFeB Magnets
 MAGNETIC AND PHYSICAL CHARACTERISTICS

Series	Grade	Remanence		Coercive Force		Intrinsic Coercive force		Max. Energy Product		Max. Working Temp.
		Br		Hcb		Hci		(BH) max		L/D=0.7
		T	kGs	KA/m	KOe	KA/m	KOe	KJ/m3	MGOe	ºC	°F
N	N35	1.17-1.24	11.7-12.4	≥860	≥10.8	≥955	≥12	263-295	33-37	80	176
	N38	1.22-1.30	12.2-13.0	≥860	≥10.8	≥955	≥12	287-318	36-40	80	176
	N40	1.26-1.32	12.6-13.2	≥860	≥10.8	≥955	≥12	302-334	38-42	80	176
	N42	1.29-1.35	12.9-13.5	≥860	≥10.8	≥955	≥12	318-350	40-44	80	176
	N45	1.32-1.38	13.2-13.8	≥860	≥10.8	≥955	≥12	334-366	42-46	80	176
	N48	1.37-1.43	13.7-14.3	≥836	≥10.5	≥876	≥11	358-390	45-49	80	176
	N50	1.40-1.45	14.0-14.5	≥836	≥10.5	≥876	≥11	374-406	47-51	80	176
	N52	1.42-1.48	14.2-14.8	≥836	≥10.5	≥876	≥11	390-422	49-53	80	176
	N54	1.45-1.51	14.5-15.1	≥836	≥10.5	≥876	≥11	398-438	50-55	80	176
M	N35M	1.17-1.24	11.7-12.4	≥860	≥10.8	≥1114	≥14	263-295	33-37	100	212
	N38M	1.22-1.30	12.2-13.0	≥915	≥11.5	≥1114	≥14	287-318	36-40	100	212
	N40M	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1114	≥14	302-334	38-42	100	212
	N42M	1.29-1.35	12.9-13.5	≥955	≥12.0	≥1114	≥14	318-350	40-44	100	212
	N45M	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1114	≥14	334-366	42-46	100	212
	N48M	1.37-1.43	13.7-14.3	≥1019	≥12.8	≥1114	≥14	358-390	45-49	100	212
	N50M	1.40-1.45	14.0-14.5	≥1043	≥13.1	≥1114	≥14	374-406	47-51	100	212
	N52M	1.42-1.48	14.2-14.8	≥1059	≥13.3	≥1114	≥14	390-422	49-53	100	212
H	N35H	1.17-1.24	11.7-12.4	≥876	≥11	≥1350	≥17	263-295	33-37	120	248
	N38H	1.22-1.30	12.2-13.0	≥915	≥11.5	≥1350	≥17	287-318	36-40	120	248
	N40H	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1350	≥17	302-334	38-42	120	248
	N42H	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1350	≥17	318-350	40-44	120	248
	N45H	1.31-1.37	13.1-13.7	≥979	≥12.3	≥1350	≥17	335-366	42-46	120	248
	N48H	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1274	≥16	358-390	45-49	120	248
	N50H	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1274	≥16	374-406	47-51	120	248
SH	N33SH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥1592	≥20	247-279	31-35	150	302
	N35SH	1.17-1.24	11.7-12.4	≥876	≥11	≥1592	≥20	263-295	33-37	150	302
	N38SH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥1592	≥20	287-318	36-40	150	302
	N40SH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1592	≥20	302-334	38-42	150	302
	N42SH	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1592	≥20	318-350	40-44	150	302
	N45SH	1.32-1.38	13.2-13.8	≥994	≥12.5	≥1592	≥20	335-366	42-46	150	302
UH	N30UH	1.08-1.16	10.8-11.6	≥812	≥10.2	≥1990	≥25	223-255	28-32	180	356
	N33UH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥1990	≥25	247-279	31-35	180	356
	N35UH	1.17-1.24	11.7-12.4	≥876	≥11	≥1990	≥25	263-295	33-37	180	356
	N38UH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥1990	≥25	287-318	36-40	180	356
	N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	302-334	38-42	180	356
	N42UH	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1990	≥25	318-350	40-44	180	356
EH	N30EH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2388	≥30	223-255	28-32	200	392
	N33EH	1.14-1.21	11.4-12.1	≥851	≥10.7	≥2388	≥30	247-279	31-35	200	392
	N35EH	1.17-1.24	11.7-12.4	≥876	≥11	≥2388	≥30	263-295	33-37	200	392
	N38EH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	200	292
AH	N28AH	1.04-1.12	10.4-11.2	≥772	≥9.70	≥2786	≥35	207-239	26-30	230	446
	N30AH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2786	≥35	223-255	28-32	230	446
	N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	230	446

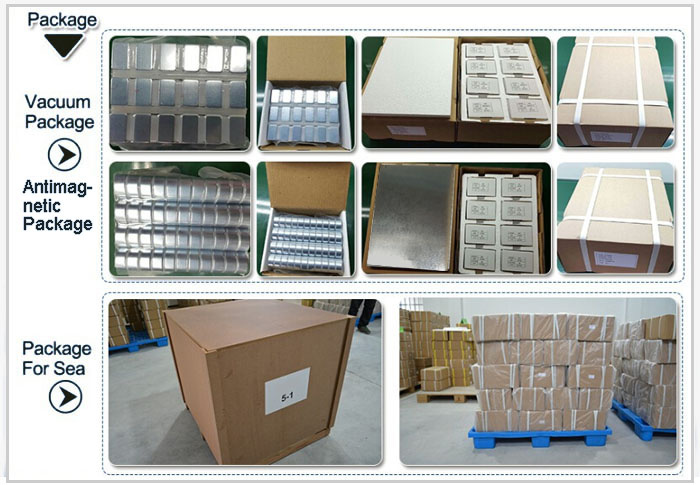

5. Safety and Stable Packing


FAQ
1. Q: Which is the strongest type of magnet?
    A: Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.

2. Q: What are the size limitations on manufacturing neodymium magnets?
   A: The limits include:
        2" max in magnetized direction
        4" max diameter for discs and rings
        4" max length and width for blocks
        1/32" minimum on thickness on any magnet
        1/16" minimum diameter on outer diameter
        1/16" minimum diameter on any hole

3. Q: What information do I need to supply when I have an inquiry?
    A: If you have any inquiry, please kindly advise the following items:
         Dimensions, sizes, shape and drawing with tolerances.
         Material grade or magnetic properties.
         Magnetic direction, quantity. Surface coating (if necessary).
         Any special packing, delivering or other requirements.

4. Q: What about the sample time and charge?
    A: 7-10 days if the sample have to be customized, charge according to your design.
         3-7 days for our existing samples for reference

5. Q: What about the delivery time of your products?
    A: 10-15days.
         Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.

6. Q: Could you provide me the shortest lead time?
    A: That's based on whether we have the available materials in stock, we will try our best to satisfy you if any urgency.

7. Q: What is your MOQ?
    A: 10-100-500-1000-5000-10000-200000 pcs etc. depend different size ,item, design and process. MIN and SMALL quantity accept accordingly.

8. Q: How to pay you?
    A: T/T in advance(telegraphic transfer-bank order), for small order, or samples order, or shipment by air.
          Western Union cash - for small order or samples order.
          Other payment: Paypal.
          Different areas may exist some differences.

9. Q: Could I pay a visit to your factory?
    A: Yes, of course, if you need, we will help you visit our factory, everything will be well arranged.

10. Q: Where is your plants?
     A: Our plant located in No.120 Gaoxin West Road, Jianghai District, Jiangmen City, Guangdong Province, China. About 60 minutes from Guangzhou Airport by car.

11. Q: If I have more questions, where can I get the answer?
     A: Any issue, please feel free to contact us any time.
           Tel: 0086 750 3369862/ 0086 750 3369189
           Fax: 0086  750 3369362


Finally---Why you choose us?

1. Magsource qualified by ISO/TS 16949, ISO14001, RoHS, SGS, REACH.
2. 8 years export experiences makes us well know how to satisfy you.
3. The best quality with reasonable price.
4. Fast and on-time delivery.
