Product Specifications
| Prod Model: |
customized |
| Weight: |
1200kg |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Structure: |
Steel Lathe Bed |
| Table: |
T-Slot |
| Transmits: |
Ball Screw or Rack |
| Precision: |
0.07mm |
| Voltage: |
AC380V, 50Hz |
| Electrical Equipment: |
Schneider |
| Drive: |
Leadshine 860 |
| Warranty: |
Two Year |
Product Description

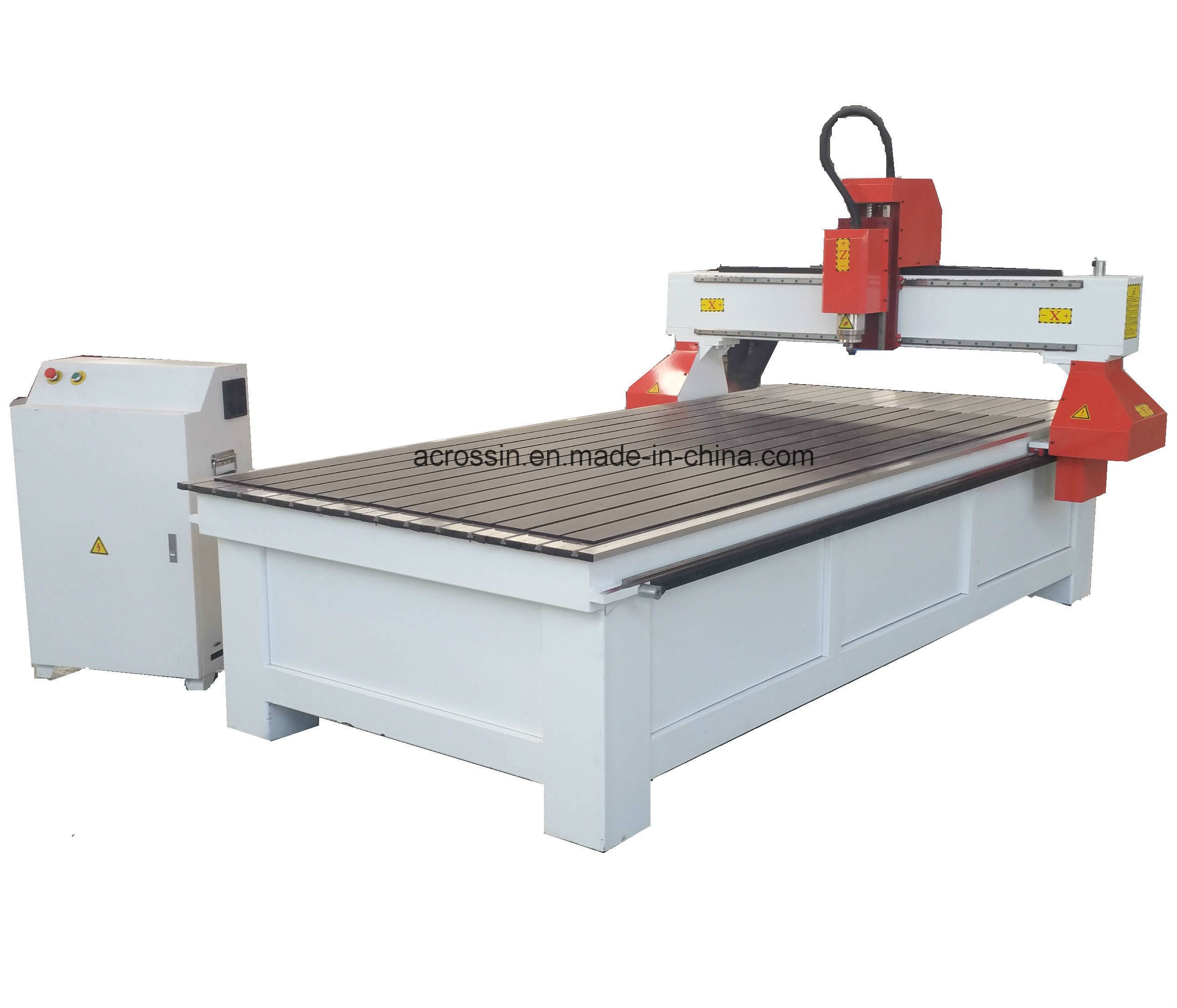

1300*2500mm 3D woodworking machine/woodworking CNC router
Our factory is established in 2007, in the past years, we only did OEM business for about 50
Companies and factories in jinan city.
Maybe your old CNC machine is made by us! ! !
Technical specifications:
| Model | AC-1325 | Optional |
| Working area (X*Y*Z, mm) | 1300*2500*100/1300*2500*200 | Customization is available |
| Machine structure | Steel structure lathe bed and T-slot of sectional material | Square tube lathe bed, vacuum system |
| Working holding | By clamps | By vacuum |
| Overall dimension | 3100*1810*1750/3100*2060*1850 | |
| Precision(mm) | 0.07 | |
| Position accuracy(mm) | 0.02 | |
| Repeatability(mm) | 0.02 | |
| Lding speed (mm/min) | 15, 000 | |
| Working speed(mm/min) | 10, 000 | |
| Spindle | 3kw, water-coolin(0-24000rpm) | 4.5kw,6.0kw,7.5kw, 9.0kw .
Air-cooling(0-18000rpm),
multi-head, |
| Available tools(mm) | Φ3.175~φ12.7 | Automatic tool changer |
| Drive system | Stepper motors | Servo motors |
| Working voltage | AC220V±30V, 50Hz | AC380V±30V, 50Hz |
| Command code | G Code(*. Nc, *. Mmg, *. U00, etc), *. Eng | |
| Control system | NcStudio/DSP Hand-held | DSP SYNTEC |
| Compatible software | Window98/XP/7 G code | |
Optional accessories
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine.
2. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing the materials on the working table, especially for bigger working table.
After added vacuum table, the voltage will need to be 3 phase/380V.
3. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
4. Bigger power spindle(1.5kw, 2.2kw, 5.5kw and so on)
optional machine type
Samples:
Accessories
The main application field of industryng: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden doors process, doors, screens, process window processing, video game cabinets and panels, computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, plastic sheeting, PVC pipe a variety of materials advertising the production of decorative products.
3, metal industry: A sculpture of copper, aluminum, iron and other metal molds,
4. Stone Granite, marble, Qingshi, sandstone, and other stone carvings
5, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries.
P. S.
All the parts of machine can do some changes to meet your requirements,
Such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ), inverter(DELTA or FULING) and the table of the machine also can
Be customized and so on.
Guarantee&Aftersales Service
1. Guarantee for two year
2.24-hour technical support by email or phone
3. User-friendly English manual and video CD for machine using and maintaining
4. Providing free operation training service in our factory.
FAQ
1)This is the first time I use this kind of machine, is it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me, thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
For processing and the thickness for materials processing engraving or cutting. Then perfect suitable CNC router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.
4) MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
Payment terms
A. 30% by T/T in advance, 70% bY T/T before shiping
B. L/C is acceptiable, if the amount is big, please issue the draft for our confirmation at first.
Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
Contact with us
Mr. Sinyu
MB +86 18615216576
Tel +86 531 67811996
+86 18753199058
JINAN SAICHENG MACHINERY Co., Ltd
Jinan acrossin imp&exp trading Co., Ltd
Our company manufacture CNC machinery.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We are belong to JINAN ACROSSIN IMP&EXP TRADING Co., Ltd,
We are a subsidiary corporation of it.
JINAN SAICHENG MACHINERY Co., Ltd is established in 2007, and be good at CNC router field in Chinese market, and get good feedback, Perfect quality and best Aftersale. Our products include woodworking CNC router, stone CNC router, laser machine, plasma machine, we can Produce many kinds of CNC router following client requirement.
JINAN ACROSSIN IMP&EXP TRADING Co., Ltd is a group company, it is established in 2006, scope of business include Machinery parts, building hoist, tower crane, and ball screw, and CNC machinery.
The continuously improving performance of our machines wins great trust of our customers. Our products are not only sold in Chinese maekrt, but also exported to Europe, north and south America, central and west Asia and other regions.
Of cause, we can produce every kind of CNC router, and We accept orders according to our customers' requirements.
