Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Weitao Glass |
| Technique: |
Flat/Float/Plain Glass |
| Types: |
Clear, Ultra Clear, Blue, Green, Grey, Bronze |
| Tickness: |
2-19mm |
| Size: |
1830X2440mm, 2134/2250/2440X3300/3660mm |
| Delivery: |
Within Two or Three Weeks |
| Payment Term: |
Telegraphic Transfer in Advance |
| Usage: |
Window |
| Color: |
Lear, Ultra Clear, Blue, Green, Grey, Bronze |
Product Description
Qingdao Vital Glass Co., Ltd Advantage
Experience:
More than 20 years production and technology experience and 10 year's exporting experience.
Certificate:
CE, ISO9001, AS/NZS2208: 1996, SGS. EN12150. GB11614-2009

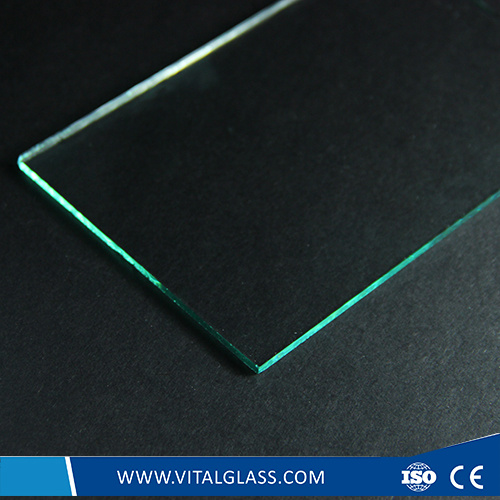

Clear float glass
Thickness: 2mm-19mm
Sizes: 1524x2134mm, 1830x2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 3660x2140mm, 3660x2250mm etc.
Extra/Low Iron clear glass
Thickness: 3mm-19mm
Sizes: 1830x2440mm, 2140x3300mm, 2140x3660, 2250x3300mm, 2250x3660mm etc.
Tinted/Colored float glass
Colors: Euro Bronze, Golden Bronze, Euro Grey, Mist Grey, Dark Grey, French Green, Dark Green, Lake Blue, Dark Blue, Ocean Blue, Pink etc.
Thickness: 3mm-12mm
Sizes: 1524x2134mm, 2140x3300mm, 2250x3210, 2250x3300mm, 2140x3660mm, 2250x3160mm etc.
Reflective Glass
Colors: Euro Bronze, Golden Bronze, Euro Grey, Dark Grey, French Green, Dark Green, Lake Blue, Dark Blue, Pink, Silver etc.
Thickness: 3mm-10mm
Sizes: 1524x2134mm, 2140x3300mm, 2250x3210, 2250x3300mm etc.
Laminated glass
PVB Color: Clear, Green, Blue, Bronze, Grey, Milk white etc.
Glass Color: Clear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey etc. Float glass and reflective glass are available.
Thickness: 3+0.38+3mm, 4+0.38+4mm, 5+0.38+5mm, 6+0.38+6mm, 3+0.76+3mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm etc. Till to 42.3mm
Sizes: 1830x2440mm, 2140x3300mm etc.
Tempered/Toughened glass Thickness: 3-19mm.
Size: Max. 2440*3600mm, Min. 200*300mm
Color: Clear, blue, green etc
Mirror
Types: Silver Mirror, Aluminum Mirror, Copper and Lead Free Mirror, Safety Mirror, Solar Mirror and Beveled Mirror etc.
Thickness: 1.5mm, 1.8mm, 2mm, 2.7mm, 3mm, 4mm, 5mm and 6mm etc.
Sizes: 1524x2134mm, 1830x1220mm, 1830x2440mm, 2140x3300mm, 2250x3300 etc.
Patterned/Figured glass
Thickness: 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm, 10mm etc.
Sizes: 1220x1830mm, 1524x2134mm, 1830x2440mm, 3300x2140mm etc.
Colors: Clear, Bronze, Blue, Amber, Grey, Green, Blue etc.
Patterns: Aqualite, Bamboo, Beehive, Chinchilla, Crystal, Diamond, Flora, Karatachi, Masterlite, Millennium, Mistlite, Morgon II, Moru, Nashiji, Rain and Wanji etc.
| | | | Clear Float Glass Technical Data | | |
| | | | | | | | | | | |
| | | | | | | | | | | |
| mm | (kg/m2) | Visible Light % | Solar Radiant Heat % | Standing Coefficien(s.c) | U Value(W/M2) | Sound Insulation(dB) |
| Transmission | Reflectivity | Direct Penetrate | Reflectivity | Absorb | Total Penetrate |
|
| 2 | 5 | 91 | 8 | 87 | 8 | 5 | 88 | 1.01 | 5.9 | * |
| 3 | 7.5 | 90 | 8 | 85 | 8 | 7 | 87 | 1 | 5.8 | 30 |
| 4 | 10 | 90 | 8 | 83 | 8 | 9 | 85 | 0.98 | 5.8 | 30 |
| 5 | 12.5 | 89 | 8 | 81 | 7 | 12 | 84 | 0.97 | 5.7 | 31 |
| 6 | 15 | 89 | 8 | 80 | 7 | 13 | 83 | 0.95 | 5.7 | 31 |
| 8 | 20 | 88 | 8 | 76 | 7 | 17 | 81 | 0.93 | 5.7 | 33 |
| 10 | 25 | 87 | 8 | 73 | 7 | 20 | 79 | 0.91 | 5.6 | 35 |
| 12 | 30 | 86 | 8 | 71 | 7 | 22 | 77 | 0.89 | 5.6 | 36 |
| 15 | 37.5 | 85 | 8 | 66 | 7 | 27 | 73 | 0.84 | 5.4 | 38 |
| 19 | 47.5 | 84 | 8 | 62 | 7 | 31 | 70 | 0.81 | 5.3 | 40
|
Qingdao Vital Glass Co., Ltd., after several years continual development and grandness, has become a professional glass manufacture and supplier in China. We are engaged to meet customer various need for glass. Hereby, you can find a comprehensive range of products at competitive prices and top quality, including Clear float glass, Ultra clear float glass, Tinted float glass, Reflective glass, Patterned glass, Laminated glass, Tempered glass, Acid etched glass, Louver glass, Mirror etc. We have been seeking actively in glass field in order to create more.
Our products sell well in 35 cities, provinces and autonomous regions at home as well as more than 80 countries and regions in Africa, South American, European, Asia etc. The product variety has expanded to provide customers with an even wider choice of quality products for residential, architectural, automotive and decorative uses. Wide assortment of colors and customization options make it even easier to make all your glass purchasing decisions from one supplier.
We are keeping insist as develop integrity-based, creat and keep choiceness achievement. Build up favorable brand visualize of vital glass, according to provide the glass to society which in high quality, beautification, environment and can saving energy as our target. With never stop, chasing perfection enterprise with all one's heart to provide excellent quality and service. Improve the quality of human's habitation and living, servings to harmonious society. Let's hand in hand: Surpass expectation, make the wonderful come true together.
