Colored/Tinted/Decorative Wired Figured Oven Glass/Vacuum Tempered Bent Ceramic Bulletproof Glass
| Price: |
US $ 7.5-64/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
C-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Weitao Glass |
| Technique: |
Flat/Float/Plain Glass |
| Types: |
Clear,Ultra Clear,Blue,Green,Grey,Bronze |
| Tickness: |
2-19mm |
| Size: |
1830X2440mm,2134/2250/2440X3300/3660mm |
| Delivery: |
Within Two or Three Weeks |
| Payment Term: |
Telegraphic Transfer in Advance |
| Packing: |
Wooden Crates or Plywood Crates |
| Certification: |
Ce, ISO9001, AS/NZS2208: 1996, SGS. En12150 |
| Country Of Origin: |
China |
| Shape: |
Flat |
| Structure: |
Solid |
| Function: |
Decorative Glass |
| Nominal Thickness: |
8mm |
| Surface State: |
Floats Law Glass |
| Grade: |
Grade One |
| Forming: |
Float Process |
| Workmanship: |
Molding machinery |
| Color: |
Clear |
| Usage: |
Window |
| Thickness: |
2-19mm |
Product Description
Qingdao Vital Glass Co., Ltd AdvantageExperience:
More than 20 years production and technology experience and 10 year's exporting experience.
Certificate:
CE, ISO9001, AS/NZS2208:1996, SGS. EN12150. GB11614-2009Patterned Glass- Clear patterned glassPatterned Glass, also known as figured glass is a kind of decorative translucent flat glass with embossed patterns on one or both surfaces. With the special property of decoration, patterned glass can fully allow the light to pass though and on the other hand can limit or prevent clear view effectively. It is mainly used on windows, indoor compartment, bathroom an so on…
is a kind of decorative translucent flat glass with embossed patterns on one or both surfaces. With the special property of decoration, patterned glass can fully allow the light to pass through and on the other hand, can limit or prevent clear view effectively.FEATURES:
1)Rich and colorful pattern designs provide unique decorative results: or obscure and quiet, or sparkling and lively, or serious and elegant, or bold and generous…
2)Tangible stereoscopic patterns will never fade.
3)Each distinctive pattern offers a different level of obscuration, providing privacy without sacrificing natural light.
4)Can help to give an impression of space and provides a personalized and timeless effect to all environments.
5)Can be cut, ground, drilled, tempered, laminated and printed, etc
APPLICATIONS:
1. Windows for housing, flats, general construction etc.
2. Furniture, display bases house fitting, partitions etc.
3. Decorations e.g. front doors, shop display
SPECIFICATION:
Thickness: 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm etc.
Sizes: 1220x1830mm, 1524x2134mm, 1830x2440mm, 3300x2140mm etc.
Colors: Clear, Bronze, Blue, Amber, Grey, Green, Blue etc.
Patterns: Aqualite, Bamboo, Beehive, Chinchilla, Crystal, Diamond, Flora, Karatachi, Masterlite, Millennium, Mistlite, Morgon II, Moru, Nashiji, Rain and Wanji etc.
- Colored patterned glass
-Wired patterned glass
Wired patterned glass is a translucent figured glass with melt wire inside for safety purpose which allows tranmission of daylight,while obscuring visibility of object.It is manufactured by the Roll-Out process,whereby a roller imprints the pattern onto the glass surface.Wired glass is one kind of safety glass as in case of breakage,the glass pieces will stay on the mesh.And the wired glass can also be used as fire-resistance glass.
Features - Safety: Even wired glass broken in shocking,the fragments will still be connected by the wire meshes and won't fall down
- Fire proof: Wired glass is suitable to be used as an efficient fireproof material.Even wired glass breaks in the fire,the fragments will still connect together and not fall down,so it can prevent fire spreading.
- Translucent decoration: it's pervious to light opaque, use more wait at closet decorate area
Applications - Windows for housing,flats,general construction
- Furniture,display bases house fitting,partitions
- Decorations e.g.front doors,shop display
- Wall and ceiling claddings
SPECIFICATIONS :
Thickness: 6mm,6.5mm,7mm
Patterns: Nahiji
Color: Clear, Bronze, Grey, etc
Size:1830x2440mm,1830x1220mm,1830x2134mm,1500x2000mm,2500x2000mm etc. | Title | Patterned Glass |
| Thickness | 6mm,6.5mm,7mmmm |
| Normal Sizes(mm) | 1830x2440mm,1830x1220mm,1830x2134mm,1500x2000mm,2500x2000mm etc. |
| Colors | Clear, Bronze,Green,Blue Grey etc |
| Application | architecture, furniture, mirrors, automobiles |
| Payment Term | Telegraphic Transfer in advance |
| MOQ | 1*20 FCL |
| Package | Standard wooden crates with interlayer papers or powder |

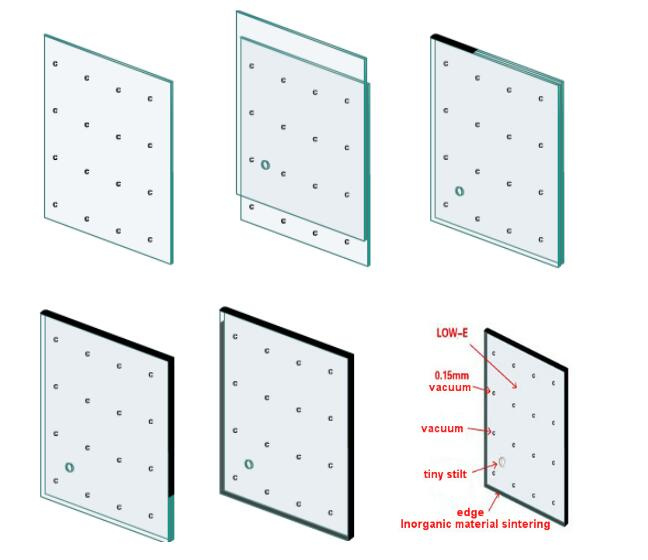

Vacuum glass
The vacuum glass is made according to the principle of vacuum flask, which is to airproof the circumference of two pieces of flat glass and keep the space between them as 0.1-0.2 with tiny props. Vacuumed the space to make the pressure reach 10-4Pa. In order to optimize function, one of the two pieces is double silver off-line LOW-E glass. Due to interior vacuum, the conduction and convection of gas nearly does not exist, LOW-E coating reflects almost more than 85% of the infrared back, and then the vacuum glass nearly interdicts the conduction, convection and eradiation, so its function in the aspect of heat preservation and heat insulation is superb! Aiming to reach the level of safe vacuum glass, the vacuum glass adopts compound of the tempered, IG, laminated glass and other deep processing techniques of glass.
Energy saving and environmental protection
Ultra-light - Reduce the building load-bearing and cost of construction.
Ultra-thin - Reduce the window frame materials and increase light transmittance.
HD-VIG thinnest is only 6mm, the architect's design to create more space, ease of transformation of the old window.
Significantly reduce the costs of healing and refrigeration. Reduce heat loss and save heating expenses in winter; reduce indoor temperature and the workload of the air condition in summer.
Environment protection - Reduce the coal consumption of the refrigeration and heating, power generation, reduce CO 2 and other harmful gas emissions, and reduce pollution of the environment! Become able to meet the requirements of low carbon construction of new building materials.
The advantages of HD-VIG
Better heat insulation performance than insulating glass.
Better than hollow glass in most voice-band, especially in the low frequency sound insulation performance.
The condensation temperature is lower, will not appear often insulating glass "condensation" phenomenon.
The resistance to wind pressure is twice that of the insulating glass, more durable, stable and reliable.
The thinnest thickness is only 6mm, easy old windows transformation.
The vacuum layer can avoid the low-E glass coating damp for a long time oxidation.
Does not exist like the hollow glass Splitting of the plateau region of low pressure.
HD-VIG --The Future Star of Energy-saving
Building energy consumption as one of the three energy consumption which include industry, transportation and building is 37.8% of total energy consumption, and energy consumption of building doors and windows accounted for 50% -80% of building energy consumption, building doors and windows energy saving has become the world the focus of research topics.
In 2012 Europe will be forced to use energy-saving architectural glass U-value of 0.7 (R = 8.1).
In 2013 Energy Star standards will use energy-saving architectural glass U-value of 0.5 (R = 11.1).
The standard vacuum glass Guradian RLE-HT (4C-0.25V-4L) U value has reached 0.7 (R = 8.1). We have been to improve the performance of vacuum glass products with the world's glass industry giant Guardian in order to meet requirements of U.S. and European States for future energy-saving architectural glass.
Vacuum Compound Laminated Glass
Vacuum glass is made according to principle of vacuum flask, seal two pieces of flat glass with a 0.15mm gap and pump the vacuum to 0.1Pa, using a LOW-E glass to achieve the best features. Due to internal vacuum, conduction and convection of the gas is almost non-existent, LOW-E coating more than 85% of the turn of the infrared radiation reflected back, vacuum glass block conduction, convection, and radiation basically with super thermal insulation! Vacuum glass tempered, laminated and insulating composite glass deep-processing technology to achieve the security vacuum in the glass.
Laminated glass join a tough one or more layers and thermoplastic resin intermediate film between two or more pieces of glass, high temperature and pressure and permanently bonded into one of the glass products.Performance:
Coating type
| Visible parameters (%) | Thermal parameters (%) | Shading coefficient
(SC value) | U-value
W / m.K | Sound reduction
dB | Condensation temperature
ºC |
| Transmittance | Outdoor reflectivity | Interior reflectivity | Transmission | Outdoor reflectivity |
| Vacuum Compound Laminated Glass 6mmC+1.52PVB+5mmC+0.15mmV+5mmLOW-E-in#5 |
| SGGPLANITHERM1.16 | 76 | 12 | 12 | 44 | 14 | 0.63 | 0.7 | ≈ 38 | ≤ -42 |
| SGGPlanisol | 57 | 13 | 19 | 32 | 16 | 0.58 | 0.8 | ≈ 38 | ≤ -35 |
| SGGSKN174 | 67 | 12 | 11 | 35 | 22 | 0.55 | 0.6 | ≈ 38 | ≤ -46 |
| GuardianRLE-HT | 66 | 12 | 11 | 29 | 23 | 0.48 | 0.6 | ≈ 38 | ≤ -46 |
Tempered/Toughened Glass
Tempered/Toughened glass is made by heating flat glass to just below its softening temperature (650 °c) and suddenly chilling it with jets of cold air. It results in the outer skins under powerful compressive stress and the interior with severe tensile stress. In consequence, the impact applied to the glass will be overcome by the compressive stress on the surfaces to assure safety of use. It is ideal for areas with high wind loads and areas where human contacts are an important consideration.
Features:
1.High strength: 5 times stronger than annealed glass.
2.Excellent thermal stability: it withstands abrupt change of temperature
3. Safety: once breakage occurs, the glass disintegrates into small cubical fragments which are relatively harmless to human body.
4 Can't be drilled or any other processed and edge worked in any manner.
Application:
1. Windows and doors
2. Facades and curtain walls
3. Automobile, train, vessel
4. Furniture and decoration
Specification:
Glass type: various float glass, patterned glass,
Color: Clear, Ultra clear, bronze, Grey, Blue, Green, Pink etc.
Thickness: 3-19mm
Mini size: 300*300mm
Maxi size: 2700*7000mm
Quality standards:
GB 15763.2-2009;EN 12150; ASTM 1048; BS 6206:1918; AS/NZS 2008:1996 | Title | Tempered/Toughened Glass |
| Thickness | 3-19mm |
| Normal Sizes(mm) | Mini size: 300*300mm;Maxi size: 2700*7000mm |
| Colors | Clear, Ultra clear, bronze, Grey, Blue, Green, Pink etc. |
| Application | architecture, furniture, mirrors, automobiles |
| Payment Term | Telegraphic Transfer in advance |
| MOQ | 1*20 FCL |
| Package | Standard wooden crates with interlayer papers or powder |
Ceramic glass
Ceramic Glass is made of a special glass-ceramic, a material with fascinating properties. This glass-ceramic has extraordinary thermal stability and resists thermal shocks of up to +700 degree C. It stands up to everyday wear and tear in the kitchen. The 4mm thick cooktop panel transmits heat very efficiently, with virtually no heat loss.
Other name as below
1. heat resistant glass
2. ceramic heat-resistant glass
3. ceramic glass plates
4. fireplace glass
5. Crystallite glass
Features:
1. Glass ceramic is resisting to heat and cold, even to extreme temperature changes.
This extraordinary property enables a variety of applications: cooking on glass ceramic appliances day after day , and protecting your fire places or stoves, still enjoying flames view.
2. Among the heat resistant glasses, glass ceramic is really special. Its key property, is low thermal expansion, lower than borosilicate glasses or standard glasses. It means that, unlike most materials, the crystallite glass ceramic will not expand nor contract with heat. It barely changes its dimensions. This is the reason behind efficient and long time resistant cooktops.
Application:
1.Vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels;
2.Cover panels for heating radiators, drying stand, towel heaters;
3.Cover panels for reflectors and high performance floodlights
4.Cover panels in IR drying appliances
5.Cover panels for beamers
6.UV blocking shields
7.Cover panels for kebab grill radiators, electric heating fish bowl
8.Safety protection (bullet proof glass
Specification:
Thickness:4mm and 5mm
Max size:600*2000mm
Color: Clear and black
Technical Data
1. Density---approx. 2.56 g / cm3
2. Modulus of Elasticity--- approx. 93 x 103 Mpa
3. Bending Strength--- approx. 36 MPa
The bending strength testing is to be accomplished according to DIN EN 1288 part 5 (R45).
4. Thermal Characteristics
Coefficient of Mean Linear Expansion---α(20 - 700oC) (0 ± 0.5) x 10-7 /K
5. Resistance to Temperature Differences (RTD)
Resistance of the panel to temperature differences between heated zone and cold panel edge(room-temperature). No cracking due to thermal stress at Tes, max1<=700 degree C
6. Thermal Shock Resistance
Resistance of the panel to thermal shock when the hot panel (780 degree C) is quenched with cold water (20oC temperature). No cracking due to thermal stress at Tes, max<=700 degree C
7. Chemical Characteristics of Base Material
Acid Resistance--- DIN 12116: at least class S3
Alkaline Resistance---based on ISO 695: at least class A2
8. Screen printing: complies with RoHS standards, normal ink available
9. Impact resistance: A steel ball (diameter 60mm, weight 188g) freefall from180mm height, striking the panel

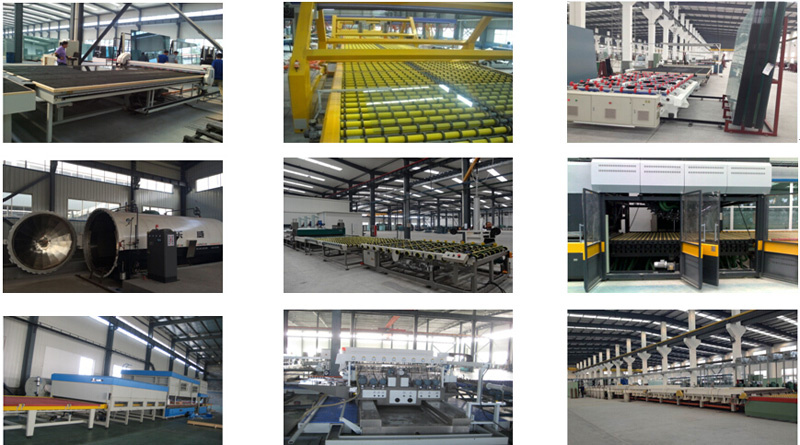

10 times. No scratching or cracking.Workshop & Equipment:

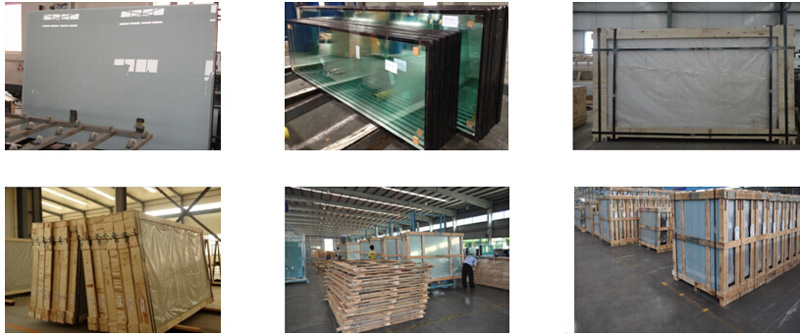

Products & Package:
Loading & Transportation:

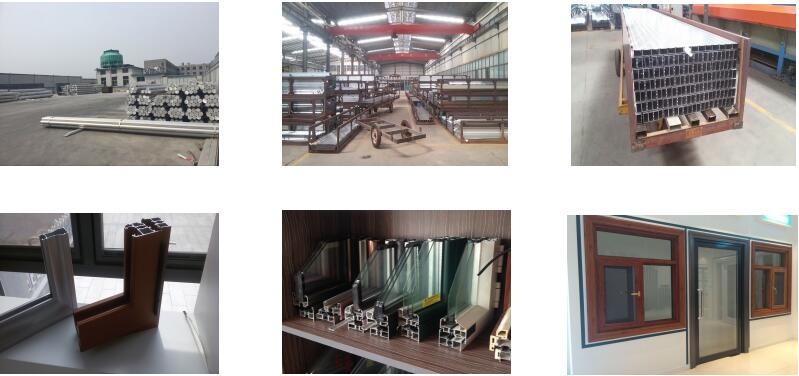

Aluminium Profile

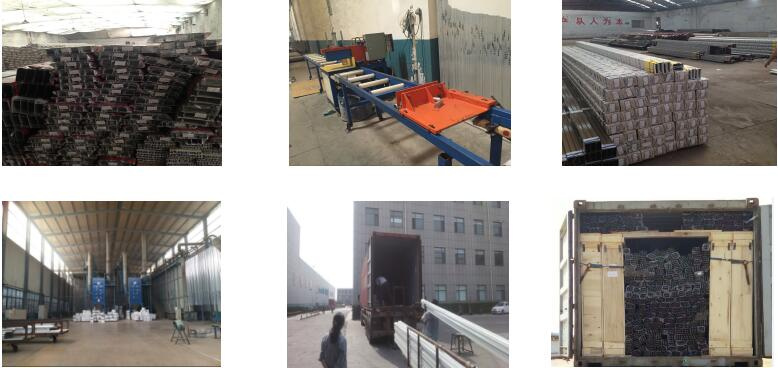

Stock and Loading
Qingdao Vital Glass Co., Ltd., after several years continual development and grandness, has become a professional glass manufacture and supplier in China. We are engaged to meet customer various need for glass. Hereby, you can find a comprehensive range of products at competitive prices and top quality, including Clear float glass, Ultra clear float glass, Tinted float glass, Reflective glass, Patterned glass, Laminated glass, Tempered glass, Acid etched glass, Louver glass, Mirror etc. We have been seeking actively in glass field in order to create more.
Our products sell well in 35 cities, provinces and autonomous regions at home as well as more than 80 countries and regions in Africa, South American, European, Asia etc. The product variety has expanded to provide customers with an even wider choice of quality products for residential, architectural, automotive and decorative uses. Wide assortment of colors and customization options make it even easier to make all your glass purchasing decisions from one supplier.
We are keeping insist as develop integrity-based, creat and keep choiceness achievement. Build up favorable brand visualize of vital glass, according to provide the glass to society which in high quality, beautification, environment and can saving energy as our target. With never stop, chasing perfection enterprise with all one's heart to provide excellent quality and service. Improve the quality of human's habitation and living, servings to harmonious society. Let's hand in hand: Surpass expectation, make the wonderful come true together.
