Product Specifications
| Prod Model: |
LFJS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application1: |
Hard Refractory Ceramic Material, Cermet Material |
| Application2: |
Hard Refractory Ceramic Material Chronium Carbide |
| Application3: |
Good Thermal Conductivity Cr3c2 |
| Character1: |
High Surface Activity |
| Character2: |
Chemical Additives on Carburo De Tungsteno Tungsto |
| Testing Methods Of Zrc Particle Size-1: |
Laser Particle Analyzer, Appare |
| Testing Methods Of Zrc Particle Size-2: |
Sem(Scaning Electron Microscope), Fsss Particle Si |
Product Description
1, Character:

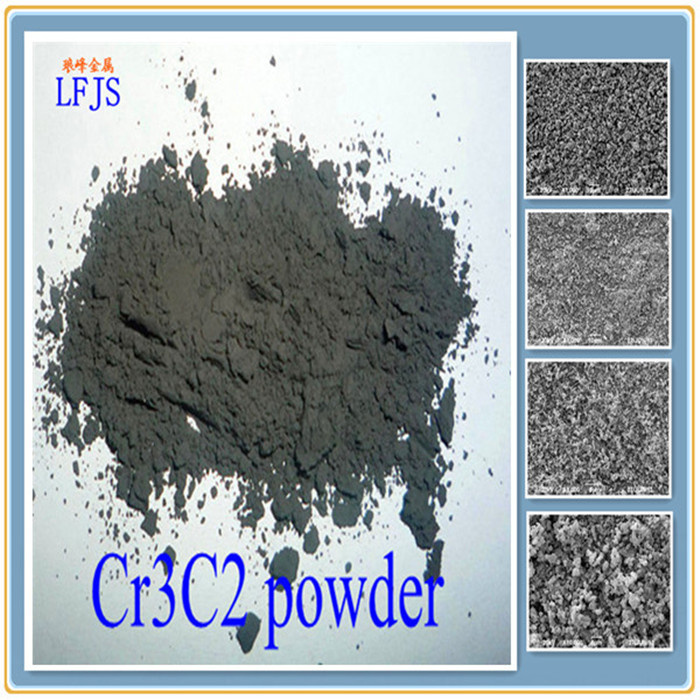

Chromium carbide,Chemical formula Cr3C2,Molecular weight 180.02,Carbon content 13.344%,Density 6.68 g/cm3, Melting point 1890ºC,Boiling point:3800ºC.Chromium carbide is gray powder with rhombic system structure,which is un-dissoluble in water and resistant to acid and alkali .It is high melting-point inorganic material with wear resistance,corrosion resistance and resistance to oxidation at elevated temperature(1000~ 1100ºC),and is expansively used as thermal spray material to protect the metal surface,and as additive to fine the cemented carbide crystal and some other wear-resistant and corrosion-resistant organ as well.Cr3C2 cermet has excellent resistance to oxidation at high temperature.The cermets surface only will darken in some sort after exposed at 980 ºC for 5 hours.However,18-8 stainless steel destroyed obviously and the WC-6Co alloy oxidized entirely at the same condition.
At standard conditions it exists as a gray solid. It is extremely hard and corrosionresistant. It is also a refractory compound, which means that it retains its strength at high temperatures as well. These properties make useful as an additive to metal alloys. When chromium carbide crystals are integrated into the surface of a metal it improves the wear resistance and corrosion resistance of the metal, and maintains these properties at elevated temperatures.
2, Properties:
| Formula | Cr3C2 | CAS NO. | 12012-35-0 | EINECS NO. | 234-576-1 |
| Mol. Wt. | 180.01 | UN. NO. | 3178 | Class | 4.1 |
3, Chemical Parameters
| NO. | Test Items | Test Result |
| 1 | Total Carbon | 12.80% min |
| 2 | Free carbon | 0.30% max |
| 3 | Nb | 0.01% max |
| 4 | Fe | 0.08% max |
| 5 | Si | 0.04% max |
| 6 | O | 0.70% max |
| 7 | N | 0.10% max |
| 8 | S | 0.03% max |
| 9 | K | 0.005% max |
| 10 | Ca | 0.005% max |
Particle Size: 0.5-500 micron, 5-400 mesh
Particle Size and chemical composition are modified on request. |
4, Chromium Carbide Synonyms
chromiumcarbide(cr3c2); CR3C2 160; CR3C2 300; CHROMIUM CARBIDE; CHROMIC CARBIDE; CHROMIUM (IC) CARBIDE; Chromium carbide gray powder; trichromium dicarbide
5, Application:
1, Used in the production of abrasion resistance film and semiconductor film
2, Used for chromium carbide ceramics.Coarse grain chrome carbide as melt-blown material in the formation of molten metal and ceramic surface spray coating line, giving the latter such as wear-resisting, heat resistant, corrosion resistant performance, widely used in aircraft engines and petrochemical mechanical device, in order to improve the mechanical life.Also used in semiconductor film spray system.
3, Also can use in Plasma gas spraying, supersonic flame spraying
4, Also used in producing ultra-fine grain cemented carbide, which could make cemented carbide with high hardness, wear resistance, high strength and toughness.
FAQ:
1. Can I negotiate the Prices?
Yes, we may consider discounts for bulk orders of individual products.
2. What is your minimum order requirement?
We will indicate the MOQ for each item in the quotation sheet. We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
3. How long will it take to execute my order?
For the stock items, we can arrange the shipment within 3-5 days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.
4. Does the customized powder or TiCN cermet blank available ?
Yes, customized chemical composition /particle size / dimension could be adjusted by our R&D Center.
5. Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with TDOER 's quality or service.
Other metallic carbide powders:
zirconium carbide ZrC | hafnium carbide HfC | tantalum carbide TaC |
| niobium carbide NbC | vanadium carbide VC | chromium carbide Cr3C2 |
| molybdenum carbide Mo2C | titanium carbide TiC |
titanium carbide nitrides TiCN
TiCN 50/50 & TiCN 30/70 |
compound carbide powder: (Ta,Nb)C, (W,Ti)C, (W,Ta)C, (Ti,Ta)C, (W,Ti,Ta)C,
(W,Ti,Ta,Nb)C powders |
Changsha Langfeng Metallic Material Co., Ltd, founded in 2009 Changsha Long-ping High-Tech Park, is an patent-owning firm specializing in metal carbide powders' research, production and sale.
With 100 sets of various manufacturing equipments covering the process of raw material mixing, carbonization, sintering, grinding, sieving, mixing and packing, the group distinguishes itself also by 182 workers and 2 academician in engineering material from Chinese Academy of Science. Furthermore, we established technical support relationship with Powder Metallurgy Research Institute of Central Sounth University and Changsha Research Institute of Mining And Metallurgy.
Our products: Metal carbide powder, multiple carbide powder, compound powder, Ti(C, N) Based cermet, Tungsten carbide tile cutter, glass cutter wheel, planetary ball mill, industrial microwave furnace.
