as an Additive of Grain Refiner in Wc Hard Alloy Tantalum Carbide Powder

Product Specifications

Prod Model:	LF-TaC
Application1:	Used as Carbide and Cermet Additives
Application2:	Used as Materials for The Textile Field
Application3:	Used as Materials for The Aerospace Field
Application4:	Used as Materials for The Military Field
Application5:	Used as Materials for The Hard Alloy and Metallurg
Classification:	Metal Carbide Powder

Product Description

Parameters of Carbide powder:


GRADE	CHEMICAL COMPOSITION(max,%)
	Total carbon	Free carbon	Impurities(max,%)
			Nb	Fe	Si	O	N	Na	K	Ca
ZrC	≥11.2	≤0.40	0.01	0.05	0.05	0.5	0.1	0.01	0.005	0.01
HfC	≥6.15	≤0.30	0.005	0.05	0.005	0.5	0.05	0.005	0.005	0.05
TaC	≥6.20	≤0.10	0.1	0.05	0.01	0.15	0.02	0.005	0.005	0.01
NbC	≥11.1	≤0.15	---	0.01	0.01	0.3	0.02	0.005	0.005	0.01
VC	≥17.7	≤0.5	0.01	0.05	0.01	0.5	0.1	0.01	0.005	0.01
Cr3C2	≥12.8	≤0.30	0.01	0.08	0.04	0.7	0.1	0.03	0.005	0.005
TiC	≥19.1	≤0.30	0.01	0.05	0.02	0.5	0.2	0.01	0.005	0.01
Mo2C	≥5.85	≤0.20	0.01	0.05	0.05	0.50	0.10	0.01	0.005	0.01
Particle size:0.5-500micron ,5-400mesh
Particle size and chemical composition are modified on request.

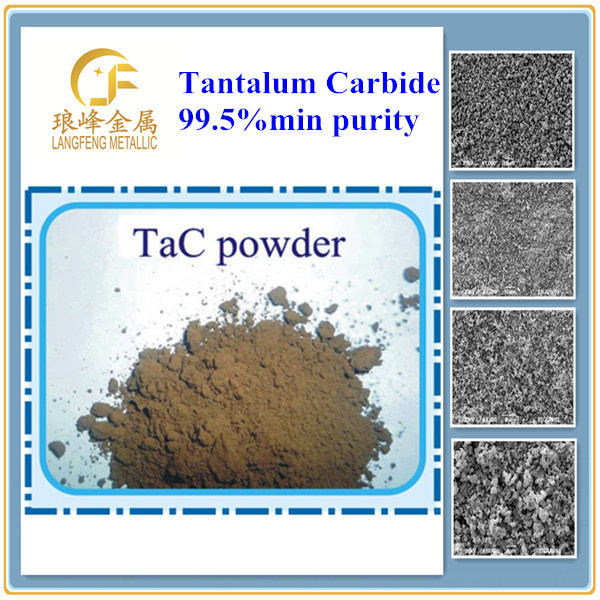

Description of Tantalum Carbide powder:
,
Tantalum carbide,Chemical formula TaC,Molecular weight 192.96,Carbon content 6.224%,Density 14.3g/cm3  ,Melting point 3875ºC,Boiling point 5500ºC.Tantalum carbide is brown powder with high chemical stability and favorable high-temperature character.It is hard and heavy.Fine TaC powder is an important cermet material.The cutting tool made of it,having a hardness similar to the diamond,can offer resist high temperature lower than 3800ºC .As an additive of fine crystalline grain to WC hard alloy,TaC powder can improve notably the performance of alloy .



GRADE	CHEMICAL COMPOSITION(%)										Particle size                               FSSS(μm)
	Ctotal	Cfree	Nb	Fe	Si	O	N	Na	K	Ca
TaC-1	≥6.2	≤0.10	0.1	0.05	0.01	0.15	0.02	0.005	0.005	0.01	0.05-500 micron

*Particle size and chemical composition are modified on request*



,
Application of Tantalum Carbide powder:

Uses in the powder metallurgy, the cutting tool, fine ceramic, chemistry gas phase deposition, the flinty antifriction metal cutting tool, the tool, the mold and the wear-resisting anticorrosion structural element chemical additive, enhances the alloy toughness. The tantalum carbide sintered body demonstrates golden yellow, may make the wristwatch ornament. In addition may apply in the flinty thin film, the target material, the welding material, the spray coating material and so on.
As suppresses the alloy crystal grain growth and the improvement organizational structure TaC which, NbC, Cr2C3, VC increases for the main application and so on rare metal carbide, no matter is produces the macrograin like mine tool or the dowel and so on ultra-fine grain alloy, should choose Fei the granularity low rare metal carbide, because increases the rare metal carbide is micro, it is only adjusts the WC granularity and the improvement organizational structure function, thus, hoped that the chemical additive thinner dispersion effect is better the line. Especially to the dowel and so on ultra-fine grain alloy, if the chemical additive is excessively thick, instead will form the alloy to clamp thickly, that will certainly not be suitable.


Tantalum carbide powder production process as following:
1) First Step: Mixing (V-type Mixer) - mass production Mixing;samll batch Mixing.
2) Second Step: Sintering /Carbonization process - carbonization furnace;Vacuum Carbonization Furnace
3)A) & B)  Ball Mill:    A) Grinding Mass batch;B)Grinding ultrifine planetary ball mill
4) Mixing(Finished Mixed)
5)sieving


FAQ:

1. Can I negotiate the Prices?
Yes, we may consider discounts for bulk orders of individual products.
2. What is your minimum order requirement?
We will indicate the MOQ for each item in the quotation sheet.We accept the sample and trial order. If the quantity of single item can't reach the MOQ, the price should be sample price.
3. How long will it take to execute my order?
For the stock items, we can arrange the shipment within 3days after received your payment. For the customized items, we will indicate the delivery time in the quotation sheet.
4. Does the customized powder or TiCN cermet blank available ?
Yes, customized chemical composition /particle size / dimension could be adjusted by our R&D Center.
5. Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with  TDOER 's quality or service.


Our factory major products as following:

Changsha Langfeng is a metallic material factory,we specialized in carbide powder for 10 years,with the customers of Germany,Korea,USA,Canada etc.Specially zirconium carbide powder is our patent product:


1) Cermet rods,cermet plates. (very suitable finish machining, for some CNC cutting tools, drill bit.etc)
2) High purity Metal Carbide powder,such as ZrC powder,HfC powder,VC powder,Cr3C2 powder,Mo2C powder,NbC powder,TaC powder,Compound carbide powder,such as(Ta,Nb)C powder,Ti(C,N)powder,(W,Ti)C,(W,Ta)C,(Ti,Ta)C,(W,Ti,Ta)C,(W,Ti,Ta,Nb)C powder,etc.(Key raw materials of: thermal spray,plasma coating,semiconductor,3d printing,abrasives, carbide cutting tools,cermet products, welding materials, military industry, aerospace industry,etc.)
3)Tile cutting wheels,glass cutter wheels(for cutting a variety of ceramic tile and glass,long service life)
4)Machinery: Lab planetary ball mill machine  and industrial microwave oven;

Some FREE SAMPLES can be sent if you need for testing.Contact with me,let's talk details!
