| Price: | US $ 7000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1540 |
|---|---|
| Service: | Offering Oversea Service |
| Voltage: | 220/380V, AC380V/50Hz |
| Rotary Axis: | Optional |
| Motor And Drive: | Stepper 3.5kw |
| Software: | Type 3 or Artcam |
| Controller System: | Weihong or DSP |
| Table: | Vacuumm or Aluminum |
| After-Sales Service: | Engineers Available to Service Machinery Overseas |
| Spindle: | Hqd Spindle |
| Inverter: | Fulling or Delta |
| Function: | Lettering |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Automation: | Automatic or Manual for Opitional |
| Application Material: | Wood |

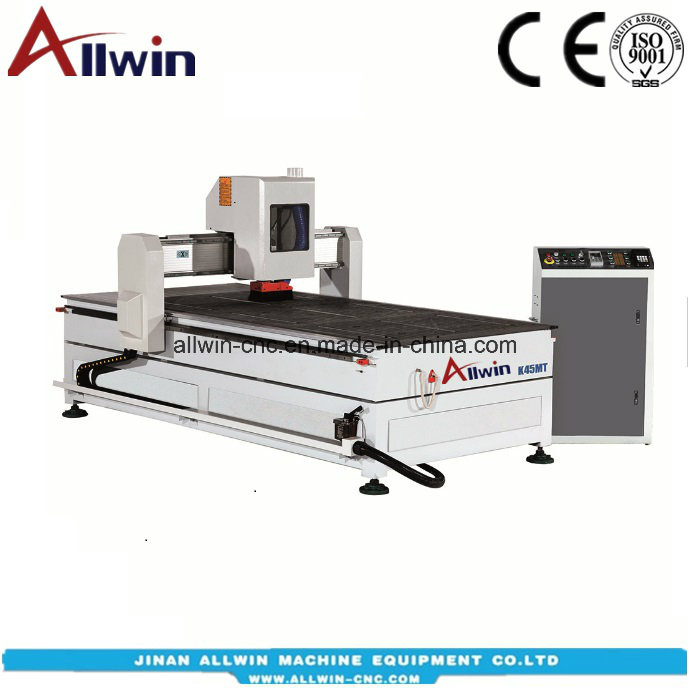

Model | K45MT/1540 | ||
X-Y-Z axis working area | 1,500x4,000x200mm | ||
Machine size | 3,600x2,150x1,700mm | ||
Repositioning resolution | 0.02mm | ||
System resolution | 0.0025mm | ||
X-Y movement | rack and pinion,gear driver/Taiwan | ||

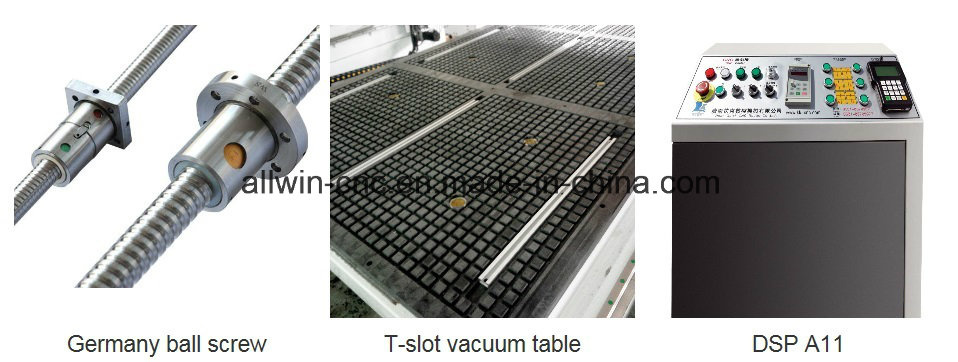

Z movement | ball screw drive/Germany | ||
Guide | Linear 20 square/Taiwan | ||
Max speed | 35,000mm/min | ||
Max cutting speed | 25,000mm/min | ||
Spindle power | 4.5kw (chinese air cooling) | ||
Spindle speed | 24,000rpm | ||
Inverter power | 3.5kw | ||
Drive motor | stepper | ||
Working voltage | AC380V/50-60HZ,3-phase | ||
Commend code | G code | ||
Computer interface | USB 2.2 | ||
Collet | ER32-3.175mm,6mm,12.7mm | ||
Software | artcam&alphacam software/UK | ||
Controls | DSP A11 | ||
Packing dimensions | 3830x2290x1870mm,2000kgs | ||

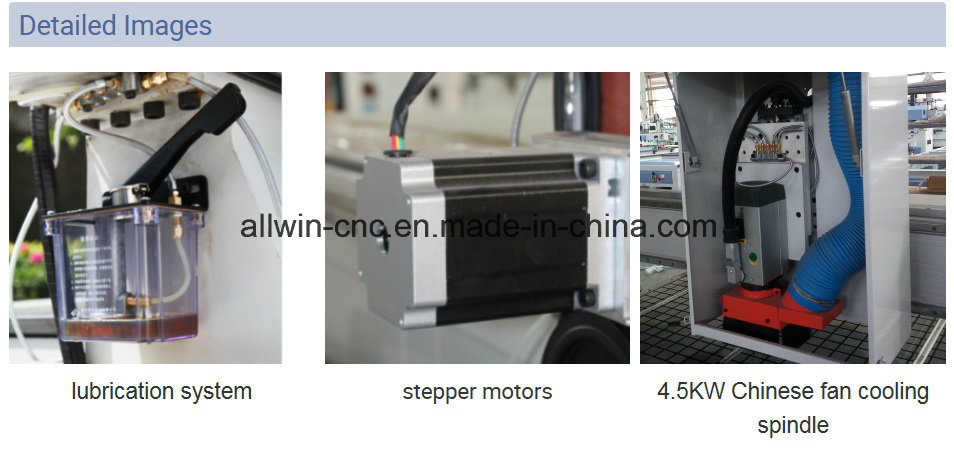

1. auto tool surface sensor 2.manual oil lubrication system 3.Dust hood 4.T-slot vacuum table 5.regenerative blower 7.5kw | |||
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Support
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
