Cathodic Multi Arc Ion PVD Vacuum Coating Machine Equipment
| Price: |
US $ 80000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
LH-1215, LH-1618, LH-1820 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type1: |
Multi-Arc Ion Vacuum Coating Machine |
| Name: |
Multi-Arc Ion Plating Machine |
| Chamber Size: |
1250*1500mm, 1600*1800mm |
| Bigger Size: |
1800*2000mm, 2100*2100mm |
| Coating Technology: |
Multi-Arc Ion Coating |
| Coating Film: |
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Coating Color: |
Silver, Golden, Black, Rose Gold, Pink, Bronze, Co |
| Coating Material: |
Stainless Steel, Metal Alloy, Ceramic, Glass etc. |
| Application: |
Jewelry, Watch, Mobile Phone Shell etc. |
| Control Mode: |
Automatic PLC Touch Screen Control |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Glass, Metal, Ceramic, Alloy |
Product Description

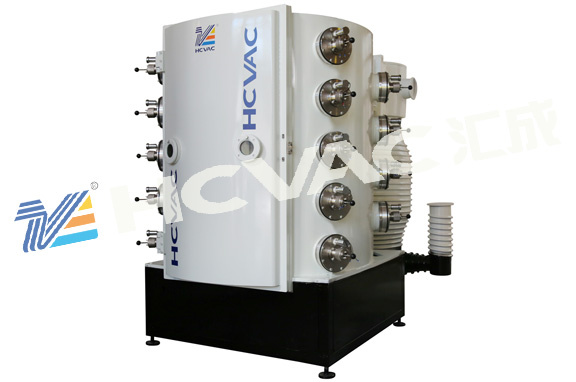

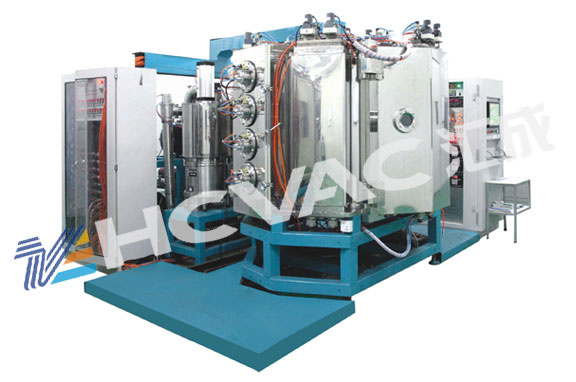

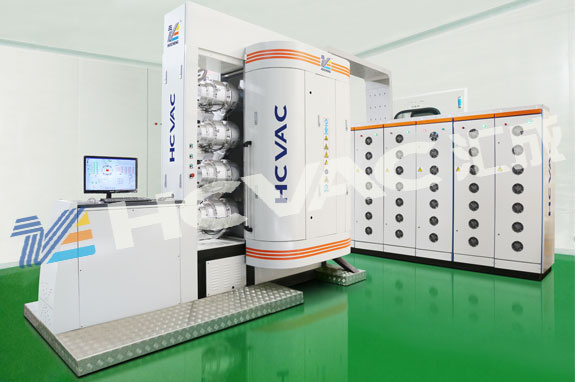

Cathodic Multi Arc Ion PVD Vacuum Coating Machine EquipmentMulti-arc ion coating machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Arc evaporation
One form of physical vapour deposition (PVD coating) is arc evaporation.
Targets
The metal to be evaporated is placed as solid block (target) against the inside of a vacuum chamber. A glow discharge is ignited and runs on the target, leaving a footprint. Small spots of a few µ M diameter target material are evaporated. The movement of the arc can be guided by magnets.
Plasma coating
The evaporated, ionized material is used as plasma coating on a product which rotates inside the vacuum chamber. Arc coatings are e. G. Used as tool coating and component coating.
Coating film
This machine can coat TiN, AlTiN, AlCrN, TiSiN, TiCN, CrCN and CrN coating etc.
Arc coating technology is characterized by:
High deposition rates (~1-3 µ M/h)
High ionisation, resulting in good adhesion and dense coatings
As the target is cooled, little heat to the substrate is generated, i. E. Even coating at temperatures below 100° C is possible
Several compositions of metals can be evaporated, leaving the remaining solid target unchanged in its composition
The cathodes can be placed in any position (horizontal, vertical, upside down), which makes flexible machine design possible
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Huicheng manufactures and supplies all kinds of PVD vacuum coating machines. Now it is a market leader in the high-vacuum treatment field with customers from all around the world. Huicheng produces a complete range of machinery, offering different types of processes: High vacuum evaporation, multi-arc, DC sputtering, MF magnetron sputtering, continuous magnetron sputtering line etc.

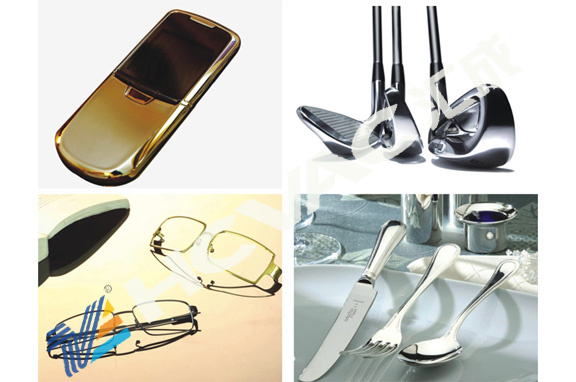

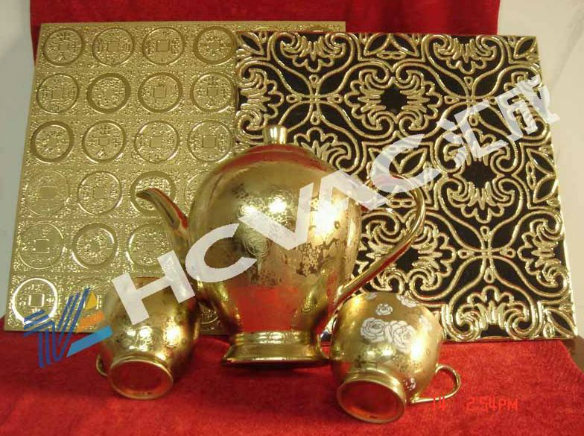

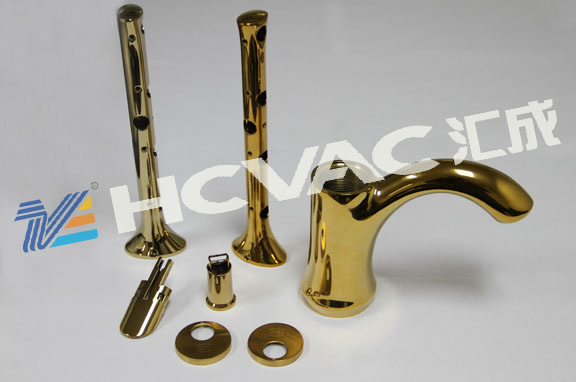

Applied industries:
Surface vacuum coating for watch&clock, jewelries, tools, plastic, glass, crystal, ceramic stainless steel sheet etc.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Contact: Lillian Yang
Mobile: 0086-13825720037Please send us your detailed requirements. We will provide the best solution for you!
Technical details:
Mode
Dimension |
LH-800 |
LH-1250 |
LH-1416 |
LH-1618 |
800*1000mm |
1200*1500mm |
1400*1600mm |
1600*1800mm |
Coating mode and main confirguration | Eight multi-arc targets | Twelve multi-arc targets | Fourteen
multi-arc targets | Twenty
multi-arc targets |
Power source |
Electric-arc power, Filament power, Pulsed bias power supply |
Process gas control |
Mass flowmeter + Electromagnetic ceramic valve |
Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling |
Vacuum system |
Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
Workpiece motion mode |
Public rotation Frequency control: 0-20 rotation per minute |
Measure mode |
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
Control mode |
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
Remark |
We can design the dimension of the equipment according to customer's special technique requirement. |

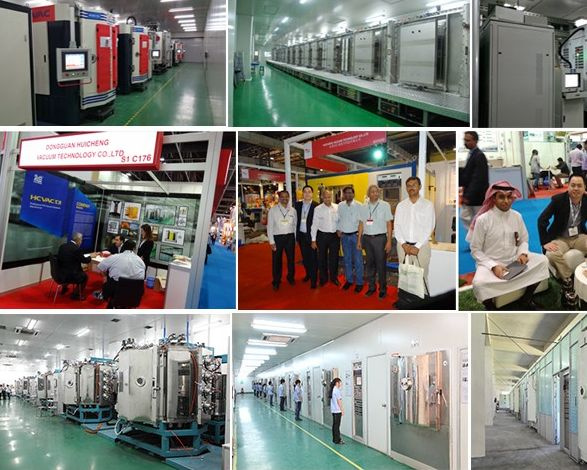

Why a HCVAC system? Over 1000 plants installed worldwideQuick cycle timesHigh production capability with low energy consumptionMore up time due to ease of loading/unloading and low maintenanceHigh productivity with only a single operatorSteel process chambers, built to lastEco-friendlySpace saving designPVD option available on all plants1 year component warranty and 12 years minimum guaranteed working lifeComplete global network of consulting, engineering and renowned after sales service
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
