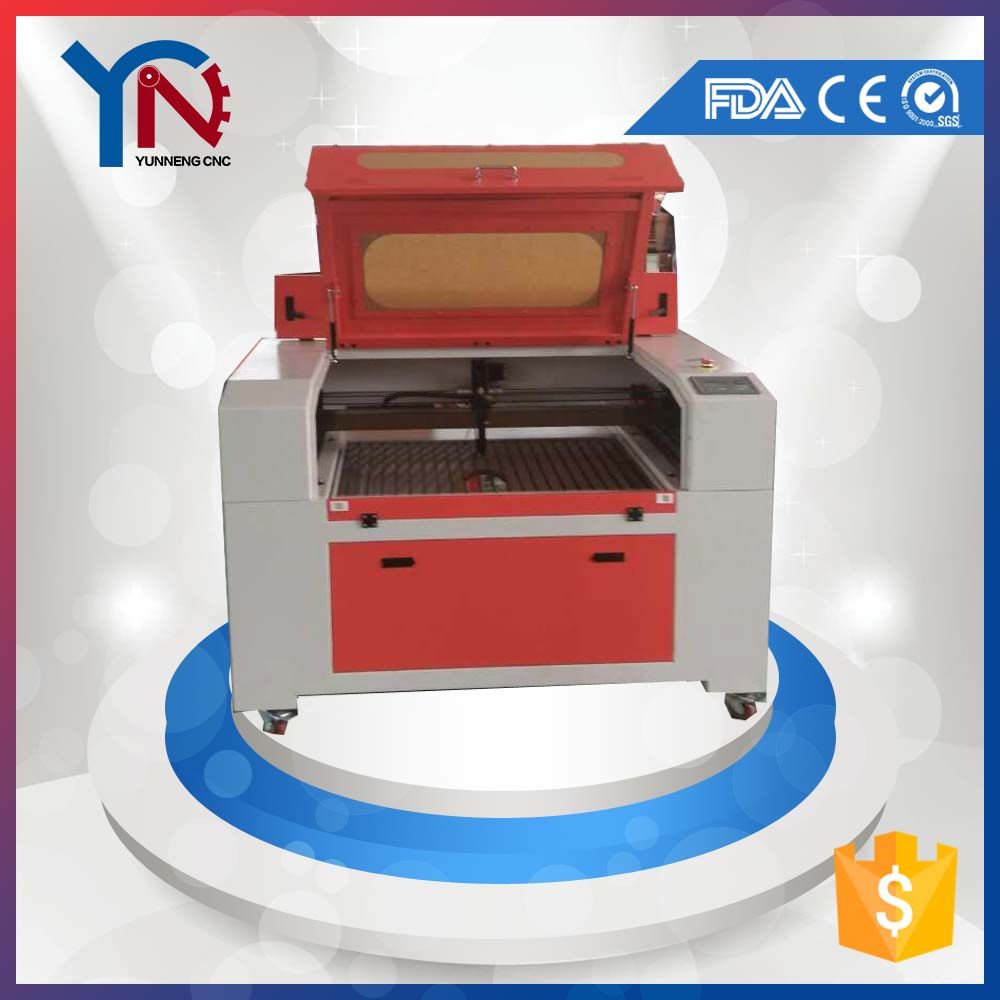

Automatic Cutting Laser for Acrylic/Plastic
| Price: |
US $ 3200-4500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
Product Description
Applications:
1)Wood, paper, leather, cloth,epoxy resin, acrylic, wool, rubber, plastic,
2)ceramic tile, marble, crystal, jade, bamboo products and other non-metallic materials.
Features:
Standard configuration Includes:
- Includes 60 watt CO2 laser tube or optional 100W upgrade (up to 5x's longer life)
- NEW! premium LaserWORKS V8 stand alone laser software with direct output to CorelDraw. Works with most graphic programs.
- NEW! Front, back, and side material "Tru-Pass-Thru" options for maximum material handling
- U.S. focal lenses manufactured locally from American Photonics. Proven 14% beam transmission improvement vs. chinese optics.
- Inline Beam Combiner combines red beam with laser to pinpoint a red dot on the material for improved accuracy and alignment
- Auto Focus attachment quickly regulates the initial distance between the laser head and material
- Depth of machine cabinet under 35" width to fit through most doorways
- 250 CFM exhaust fan with venting for removing fumes and smoke
- Max Air compressor powers laser head air-assist to keep laser area clean.
- Illuminated LCD panel for automated laser head control
- Motorized Z Table offers push button Z axis movement up to 7" for tall materials
- Optional CW-3000 or 5000 water chiller & Exhaust fan to keep laser clean and cool
- Honeycomb and Knife Blade platform for cutting and engraving
- Vacuum table conveniently collects finished product into sliding tray.
- Industrial CNC machined components in stock for long term reliability
- Ball bearing guide rails promotes smooth & precise laser movement
- Optional Roller or Chuck Rotary Attachments for cylindrical objects
- Windows 10 8, 7 (64 or 32 bit), XP, 2000 compatible
Technial parameter
| Engraving Area | 23.6 x 35.4in. (600 x 900mm) |
| Work Area | 23.6 x 35.4in + material pass thrus |
| Laser Power | 60W, 100W & 150W power options |
| Software Interface | LaserWORKS 8 |
| Machine Dimensions | 81.5"L x 58.2"W x 44.5"H |
| Material Capability | Organics or non-metals + pre-treated metals |
| Motor type | Nema Stepper |
| Material platform | Equipped with Honeycomb & Knife Blade cutting tables |
| Z table | Auto Z-table lowers 7" |
| Venting Attachments | Air exhaust fan with venting pipe |
| Net Weight | 645 lbs. |
| Gross Power | 1500 Watts / 13 Amps |
| Net Weight | 695 lbs. |
| Power Supply | Premium AC 110V (220V upon request) |
| OS Compatibility | Windows XP, Vista, 7, 8, 10 (32 or 64 bit) |
| Software Interface | LaserWORKS v8 (includes image processing) |
| Resolution | Up to 1000 dpi |
| Laser / PC Connectivity | USB connect |
| Job Memory Capacity | 128mb via. USB flash drive |
| Crate Dimensions / Gross Weight | 84"L X 60"W x 50"H |
| Warranty | 18 months (not
includes parts & CO2 tube) |
| Class | Class 4 laser |
Warranty:
1.18months equipment warranty and maintenance for lifetime. 2.Free installation and test before sending and free training for operators 3.Advice for the solutions best for customers requirements.
4.free training and sample provided
