Product Specifications
Product Description
Applicable Materials
Wood, paper, leather, cloth,epoxy resin, acrylic, wool, rubber, plastic, ceramic tile, marble, crystal, jade, bamboo products and other non-metallic materials.
Application
1) Advertising industry
2) Carved gifts and crafts industry
3) Packing and printing industry
4) Leather clothing industry
5) Architectural model industry
6) Production totem industry
Advantage

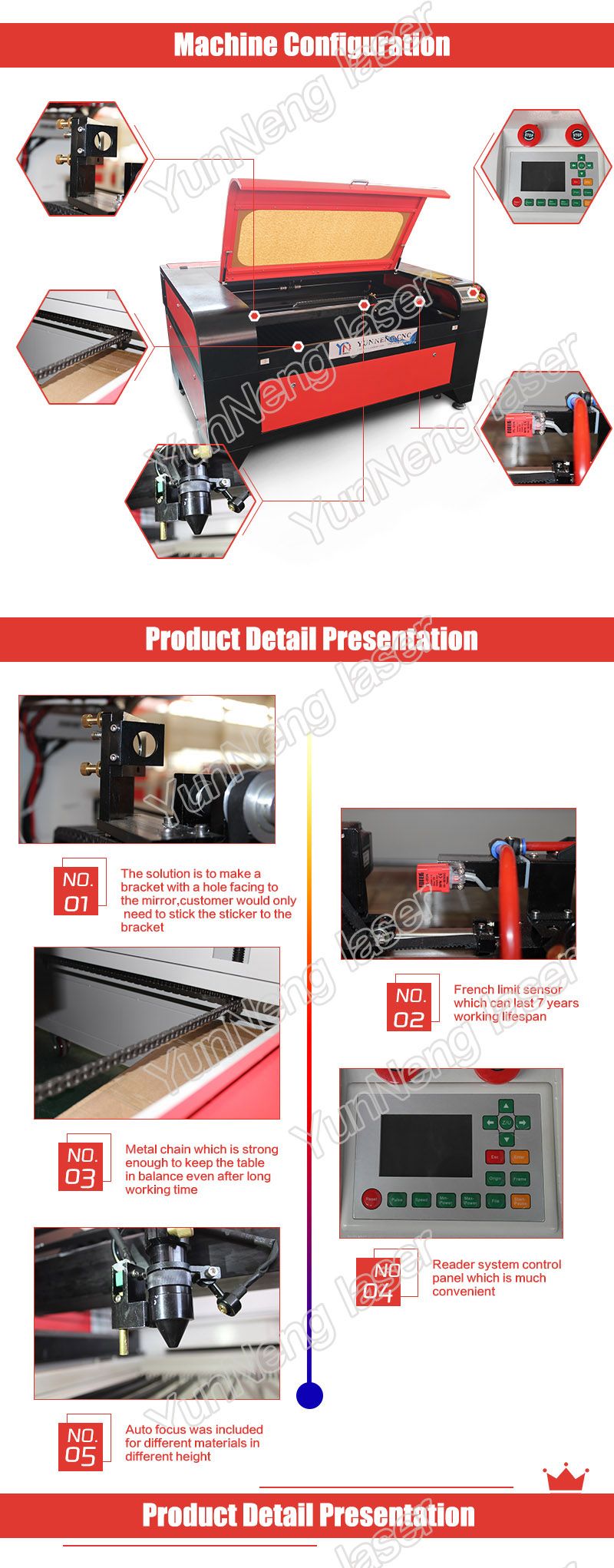

1. All the equipment parts are mouldedly made to ensure high precision and stability: USA Imported lens and mirror, Best square rail, and 3M belt ensures high precision at high speed. Extra auxiliary parts such as exhaust fan, air compressor are all first-level parts.
2. Transmission: coupling with spring washer for Y axis automatic correction, and middle transmission of Y axis for uniform stree ensures machinery which make engraving and cutting perfectly. Distinctive laser head design can process about 30mm thickness workpiece without extra updown table.
3. Special professional leveling tool helps to adjust platform level
4. Unique aluminum knife strip platfrom can be adjusted according to processing features.
5. Best controller: Reader control card + USB +RD software
6. Individual electrial cabinet is specially designed to improve anti-interference ability and meet work stability.
Technicial parameter | Product Type | Co2 laser Equipment |

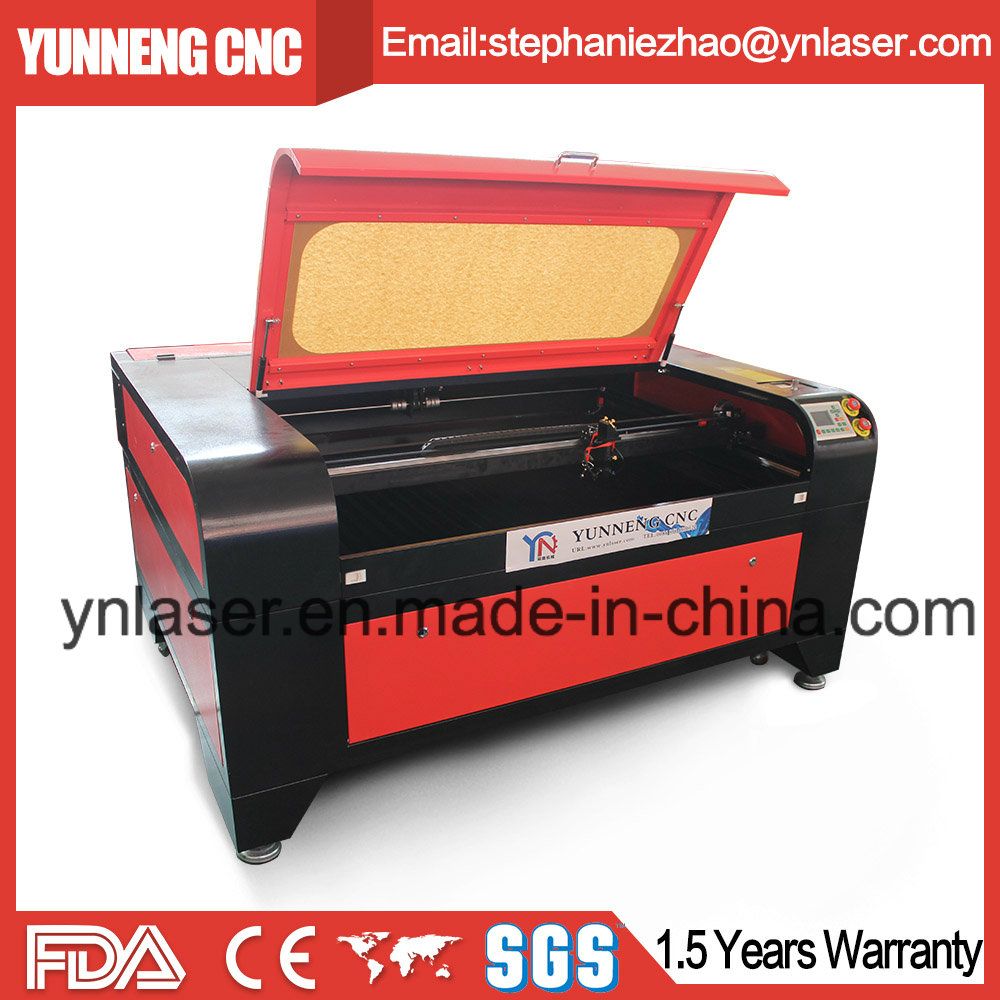

| Model | YN-6090 |
| Effective area | 600*900mm |
| Laser power | 60w,80w,100w,130w,150w,180w |
| Laser type | 10.6um,co2 sealed glass laser tube |
| Cooling mode | Water cooling |
| Engraving scanning speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Laser energy control | 1-100% software setting |
| Mini-shaping character | Chinese character2.0*2.0mm,English1.0*1.0mm |
| Max-scanning precision | 4500DPI |
| Positioning precision | 0.01mm |
| Supported graphic format | DSP PLT BMP DXF AI |
| Operating system | Windows98/ME/2000/XP/VISTA/2007 |
| power | AC110V-220V+10%,50-60HZ |
| Driving system | Stepper motor |
Weifang Yunneng CNC Equipments Co., Ltd is a new and high technology enterprise in China. Our company is specialized in computer software development and technology transfer, laser equipment. Undertake precise laser processing business.
Relying on the China from universities and research institutions, we are the main business agent of the optical equipment such as: Metal laser marking machine, laser engraving machine, laser metal cutting machine, laser welding machine, laser die board making machine, CNC router channel letter bending machine and vacuum forming machine. Our products can be applied to the fields of hardware auto parts, clothing, leathers, toys, electronic appliance, models, process advertising, stones, decorations, plastics, glass industry and others.
Yunneng insists on "quality wins the market and the quality service wins the customers". Complying with European CE certification, our products sell well in over 30 countries and regions, such as Brazil, Mexico, Belgium, Iran, Thailand, Korea, Vietnam, the USA, Germany, Italy, Australia, Pakistan, Egypt, Spain, South Africa and Lithuania.
Our success depends entirely on the satisfaction of our customers. Ensuring that you are completely happy and comfortable with your machine is always our first priority. We work tirelessly to make sure that your experience with our laser is always both professional.
