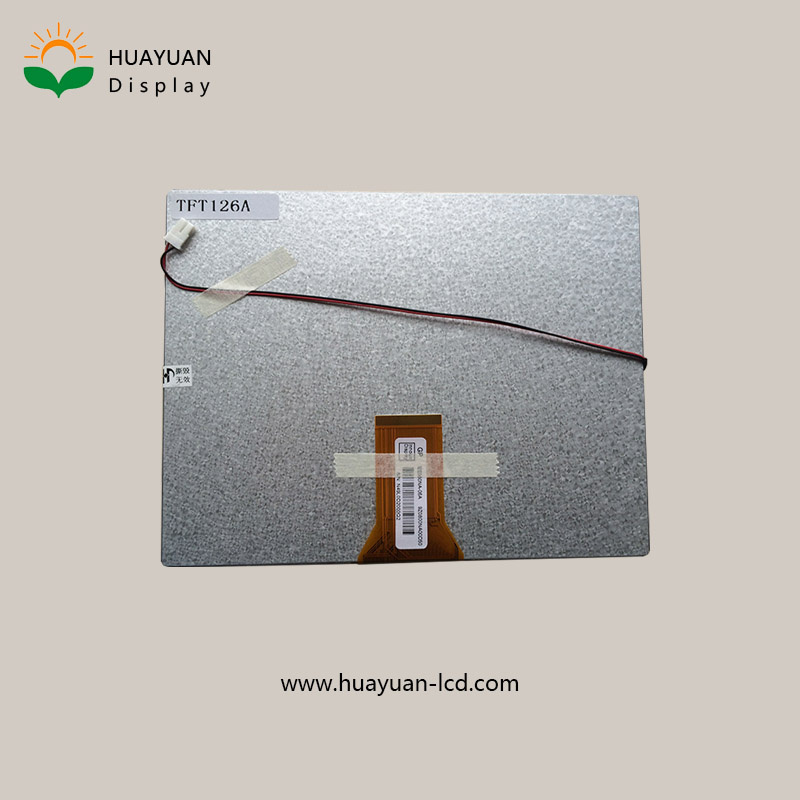

8 Inch Color TFT LCD Display Screen Panel
| Price: |
US $ 22.98-29.8/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
TFT126A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Size: |
8.0 Inch(Diagonal) |
| Driver Element: |
a-Si TFT Active Matrix |
| Resolution: |
800 X 480 |
| Display Mode: |
Normally White, Transmissive |
| Color Arrangement: |
RGB-Stripe |
| Surface Treatment: |
Anti-Glare |
| Interface: |
Digital |
| DOT Pitch: |
0.0675(W)*0.2025(H) mm |
| Driver Elemen: |
a-Si TFT Active Matrix |
| Size: |
8inch |
| Screen Size: |
≤17" |
| Application: |
Taxi |
| Aspect Ratio: |
16:10 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
6ms |
| 3D: |
3D |
| Optimum Resolution: |
800X480 |
| Interface Type: |
RGB |
Product Description
8 Inch Color TFT LCD Display Screen PanelGeneral Specification
1LCD size: 8.0 inch(Diagonal)
2 Driver element: a-Si TFT active matrix
3 Resolution: 800 X 3(RGB) X 480
4 Display mode: Normally White, Transmissive
5 Dot pitch: 0.0675(W) × 0.2025(H) mm
6 Active area:162.0(W) × 121.5(H) mm
7 Module size:171.0(W) × 132.7(H) × 1.43(D) mm
8 Surface treatment:Anti-Glare
9 Color arrangement:RGB-stripe
10 Interface: Digital
11Backlight Power consumption: TBD
12 Panel Power consumption: TBD
13 Place of Origin:Guangdong China (Mainland
14 Brand Name:Huayuan
15 Model Number: TFT126A
Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
Handling
1. The LCD panel is plate glass. Do not subject the panel to mechanical shock or to
excessive force on its surface.
2. The polarizer attached to the display is easily damaged. Please handle it carefully
to avoid scratch or other damages.
3. To avoid contamination on the display surface, do not touch the module surface
with bare hands.
4. Keep a space so that the LCD panels do not touch other components.
5. Put cover board such as acrylic board on the surface of LCD panel to protect panel
from damages.
6. Transparent electrodes may be disconnected if you use the LCD panel under
environmental conditions where the condensation of dew occurs.
7. Do not leave module in direct sunlight to avoid malfunction of the ICs.
Static Electricity
1. Be sure to ground module before turning on power or operating module.
2. Do not apply voltage which exceeds the absolute maximum rating value.
Storage
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive
gas.
3. Store the module in an anti-electrostatic container or bag. | FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung,, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2017 electronics exhibition in Korea. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
