Product Specifications
| Prod Model: |
w2030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): |
2000*3000*200mm |
| Weight: |
2000kgs |
| After-Sales Service: |
Provided: Engineers Available to Service Machinery |
| Resolution: |
0.03 |
| Y Drive System: |
Rack and Pinion Drive |
| X Drive System: |
Rack and Pinion Drive |
| Z Drive System: |
Ball Screw |
| Spindle Power: |
3kw, Er25 |
| Spindle Speed: |
0-18000rpm |
| Operating System: |
Servosystem |
| Type: |
Wooden Mold Router |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Color: |
Black |
| Customized: |
Customized |
Product Description

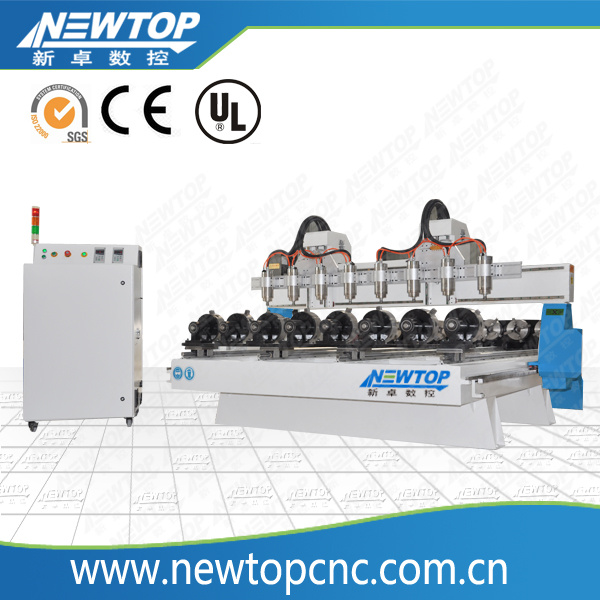

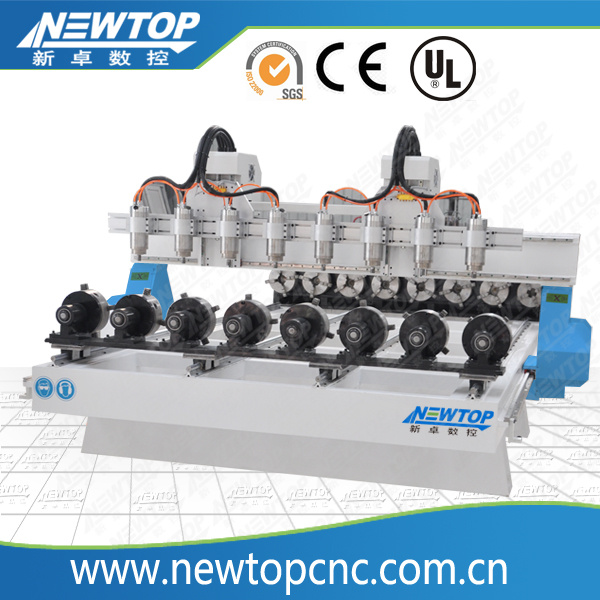

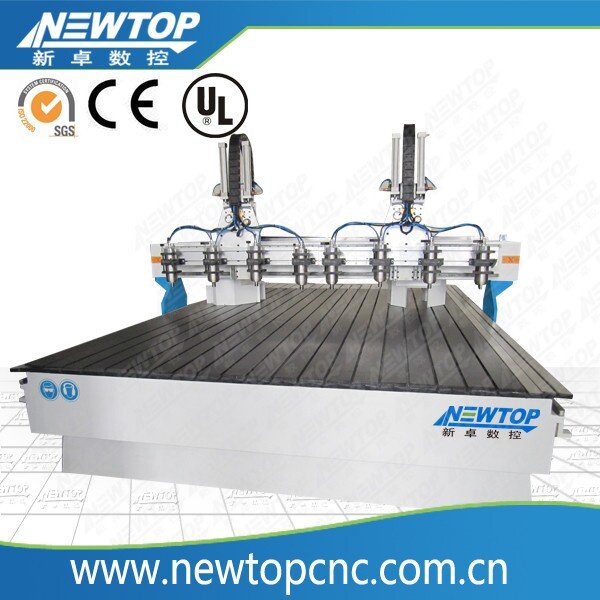

NEWTOP CNC Router is suitable for hard woodworking, cutting and engraving on rosewood for furniture, indoor decoration, MDF, acrylic, plastic and so on.

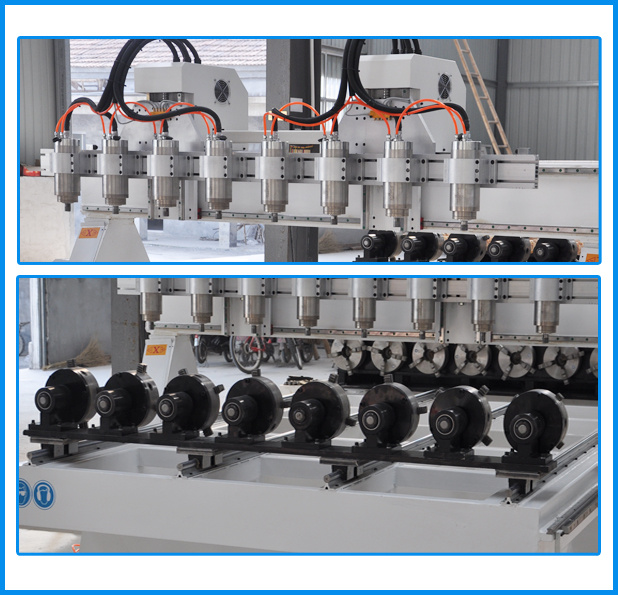

The 2-8 spindles can produce items with time and cost efficiencies making production more economic.
Sale service
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
| Item | Description | Parameter | | 1 | X, Y, Z working area | 2000*3000*200mm | | 2 | Table size | 2165*3500mm | | 3 | Resolution | ±0.03/300mm | | 4 | Repeatability | ±0.05mm | | 5 | Lathe sructure | Steel tube frame | | 6 | X structure | Rack pinion, linear rails | | 7 | Y structure | Rack pinion, linear rails | | 8 | Z structure | Ball screw, linear rails | | 9 | Max. consume power | 6.5kw | | 10 | Max. rapid | 0-32000mm/min | | 11 | Max. working speed | 0-20000mm/min | | 12 | Spindle power motor | 3kw 8 AXIS Spindle, ER25 | | 13 | Spindle speed | 0-18000RPM | | 14 | Driving system | Japan panasoinc servo system | | 15 | Working voltage | 3 phase AC380V/50HZ/60Hz | | 16 | Command code | G code(*uoo,*nc,*mmg, *plt) | | 17 | Operating system | DSP System | | 18 | Interface | Printer port 50pins or USB | | 19 | System memory | 128M (or pen driver) | | 20 | Collet | ER25 | | 21 | X, Y working delicacy | <0.01mm | | 22 | Software | Type3 software | | 23 | Running circumstance | Temperature: 0°C~45°C | | relative humidity: 30%~75% | | 24 | Packing size | 3680*2200*1750mm | | 25 | Net weight | 1500KG | | 26 | Gross weight | 1700KG |
|
Jinan NewTop CNC Machine Co., Ltd. is professional manufacturer as a leader in high-speed CNC Router, engraving machine, CNC router machine, foam cutting machine, CNC Machining Center, laser cutting machine, laser engraving machine, laser machine, laser marking machine, plasma cutting machine; Our mission is to provide the best quality CNC routers to our customers. The main products are CNC routers for woodworking, sign making, cutting plastics, making molds, marble, metal and other uses.
We can offer standard/custom CNC Router for customers. One our great strengths is in our capability to engineer, manufacture and deliver CNC Router in delivery times that are the shortest in the industry. Meanwhile we have a professional sale team and engineer team with more than 10 years experience. So we can supply good training to customers and supply service perfectly. Our high quality machines and good service have earned us good reputation in the world market.
We can establish a long term business relations with all the customers and enjoy the benefits.
