Product Specifications
| Prod Model: |
4040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension(L*W*H): |
600*900*100mm |
| Weight: |
140kgs |
| After-Sales Service: |
Provided: Engineers Available to Service Machinery |
| Resolution: |
0.03 |
| Y Drive System: |
Rack and Pinion Drive |
| X Drive System: |
Rack and Pinion Drive |
| Z Drive System: |
Ball Screw |
| Spindle Power: |
1.5kw, Er16 |
| Spindle Speed: |
0-18000rpm |
| Operating System: |
DSP or Studio |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

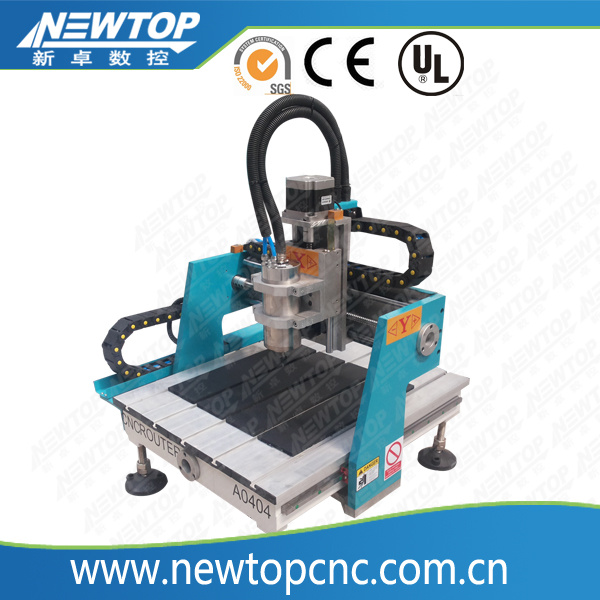

High quality cnc router 0609
600*900*100mm
vacuum table
1.5kw water cooling
DSP control or Studio
FEATURES OF THE CNC MACHINE
1.X,Y axies Transmission: helical tooth rack and pinion, faster speed than straight tooth with higher accuracy.
2. The Machine adopts seamless welded steel structure and performance is strong, not deformed.
3.NC studio control card : Introduction , convenient, easy to learn. the user can quickly use the
equipment , strong independence.
4.The machine system has the functions of continuing carving after power failing and breakpoint.
5. Y axis adopts dual drivers design, dual drive power, making sure the process precision of the workpiece.
6. The machine adopts all good components and parts, long service lifetime.
7. Guide rail and transmission part from Taiwan, top quality.
8. Workpiece clamps fixture, vacuum adsorption optional.
Sale service
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving
5.Cylindrical object
Good after-service
1,Use Instruction
If you order our machine,we will enclose the instruction manuals,or CD information with the machine and you can send your representative also go to our factory for training.Moreover,the training fees are free of charge.
2,Technology Support
During the using machine,if you encounter any troubles,you contact with us in various way,such as telephone,fax,skype,MSN and so on,we also can solve the problems online for you.we still stand by 24 hours for you.
3,Guarantee
The guarantee period of whole machine is one year,expect incorrect operation,since purchasing.
Jinan NewTop CNC Machine Co., Ltd. is professional manufacturer as a leader in high-speed CNC Router, engraving machine, cnc router machine, foam cutting machine, CNC Machining Center, laser cutting machine, laser engraving machine, laser machine, laser marking machine, plasma cutting machine; Our mission is to provide the best quality CNC routers to our customers. The main products are CNC routers for woodworking, sign making, cutting plastics, making molds, marble, metal and other uses.
We can offer standard/custom CNC Router for customers. One our great strengths is in our capability to engineer, manufacture and deliver CNC Router in delivery times that are the shortest in the industry. Meanwhile we have a professional sale team and engineer team with more than 10 years experience. So we can supply good training to customers and supply service perfectly. Our high quality machines and good service have earned us good reputation in the world market.
We can establish a long term business relations with all the customers and enjoy the benefits.
Number | Description | parameter |
| 1 | XYZ Working area | 600*900*100MM |
| 2 | Table Size | 710*1100MM |
| 3 | Repeatability | ±0.05MM |
| 4 | X Drive System | Rack and pinion drive |
| 5 | Y Drive System | Rack and pinion drive |
| 6 | Z Drive System | Ball Screw |
| 7 | Max Consume Power | 3kw |
| 8 | Max Rapid Traverse | 0-6000mm/min |
| 9 | Max Working Speed | 0-3000mm/min |
| 10 | Spindle Power | 1.5kw,ER16 |
| 11 | Spindle Speed | 0-24000rpm |
| 12 | 3-axis Control Motor | stepper motor |
| 13 | Working Voltage | 3p380 |
| 14 | Supported Command Code | G code |
| 15 | Operating System | DSP or Nc Studio |
| 16 | Software | Type3 or ucancam or artcam |
| 17 | Packing Size | 1380*1080*950mm |
| 18 | Net Weight | 140kgs |
| 19 | Gross Weight | 250kgs |
