| Price: | US $ 1900/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 6090 |
|---|---|
| Housing: | Half Housing |
| Service: | Offering Oversea Service |
| Voltage: | 220/380V |
| Rotary Axis: | 150*1500mm |
| Z Working Size: | Flexible |
| Driver And Motor: | Stepper or Servo |
| Controller: | Match3 or Weihong |
| Motor And Drive: | Easy Servo |
| Spindle: | Constant Power |
| Carving Material: | Stainless Steel |
Features:
1.Whole machine cast by iron, very strong.
2. Imported Hiwin square rails and TBI ball screw for 3 axis.
3. Working area 600*900*200mm, Z axis zone can according your need make it.

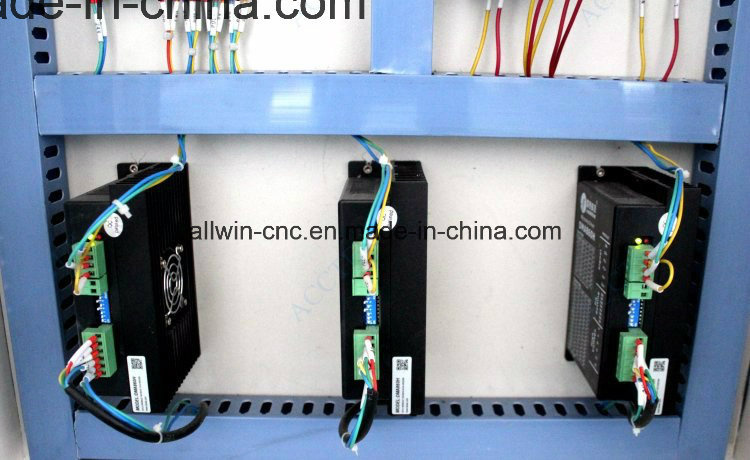

4. Leadshine hybrid servo motor and driver, Japan servo motor for option.

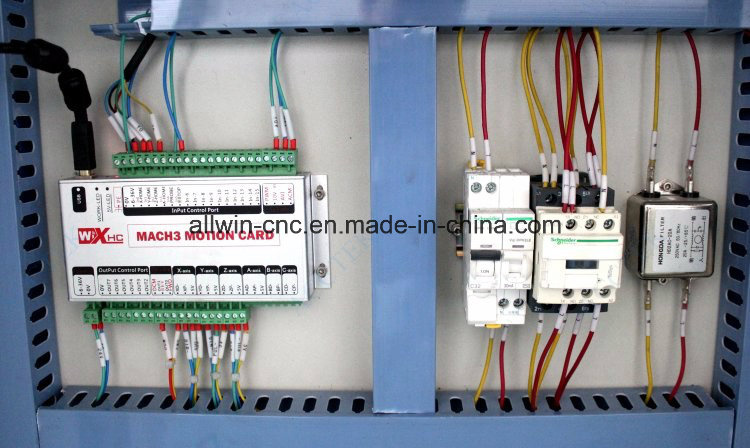

5. DSP control system, NC Studio and Mach3 for option.
6. Machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
| Description | Parameter |
| X,Y,Z Working Area | 600*900*200mm |
| Table Size | 720x1150mm |

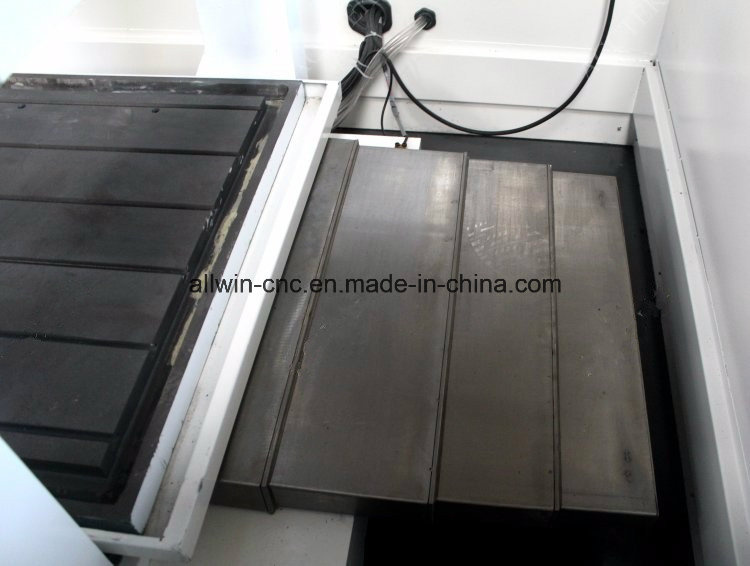

| Table surface | T-slot Table |
| Max Travel Speed | 6m/min |
| Guide Rails | Hiwin or PMI Square Rail |
| Transmission Type | Ball Screw |
| Frame | Cast by iron |
| Max Engraving Speec | 4m/min |
| Max Feeding Heigh | 150mm |
| Resolution Ratiom | 0.005mm |
| Reposition Accuracy | 0.054mm |
| Spindle Power | 3 KW |
| Type Of Cooling | Ware Cooling |
| Work Mode | Stepper |
| Driver | Leadshine542 |
| Powe (not include sipndle power) | 0.3kw |
| Spindle Rotating Speed | 0-24000rpm/min |
| Voltage | AC220V/50Hz |
| Commad | G Code |
| Surroundings For Software | Windows98/200/XP |
| Control System | Nc Stduio/DSP/Mach3 |
| Limit Swith | OMRON |
| Electrical Components | Schneider |
| Warranty | One year, expect consumable parts |
| Support | By calling or email or training |
Advantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
