| Price: | US $ 2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 6090 |
|---|---|
| Power(W): | 2.2kw |
| Weight: | 700kgs |
| Operating System: | Nc-Studio/DSP |
| Warranty: | 1 Year |
| Table Structure: | T-Slot Table |
| Driving System: | Servo Motor/Stepper Motor |
| Command: | G Command |
| Guide Rail: | Square Rail |
| Lathe Bed: | Pipe-Welding |
| Service: | Offering Oversea Service |
Features:
1.2.2 kw water cooling spindle(top brand in China),with high precision and strong power.
2.It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. with fast speed and high accuracy, and it can meet the demand of all the needs of engraving.
3.It is equipped with the international leading NC studio control system (DSP for choice), which could memorize the breakpoint if it happens accident so that to guarantee to process in the other day..
4.With T-slot working table, holding the materials with clamps, you can do variety of high-precision works.
Parameter:

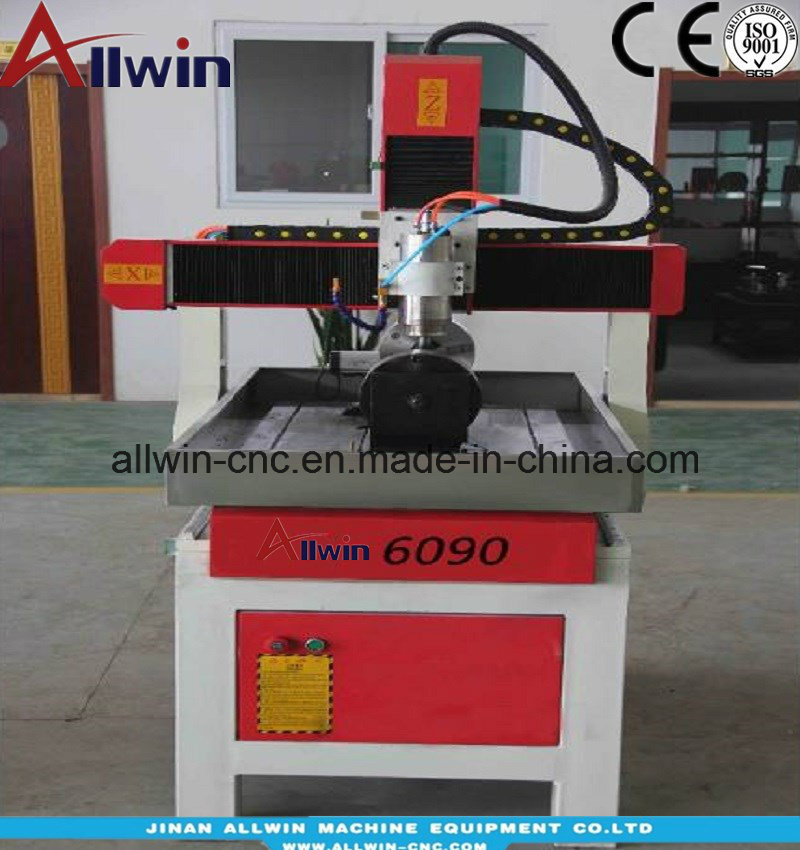

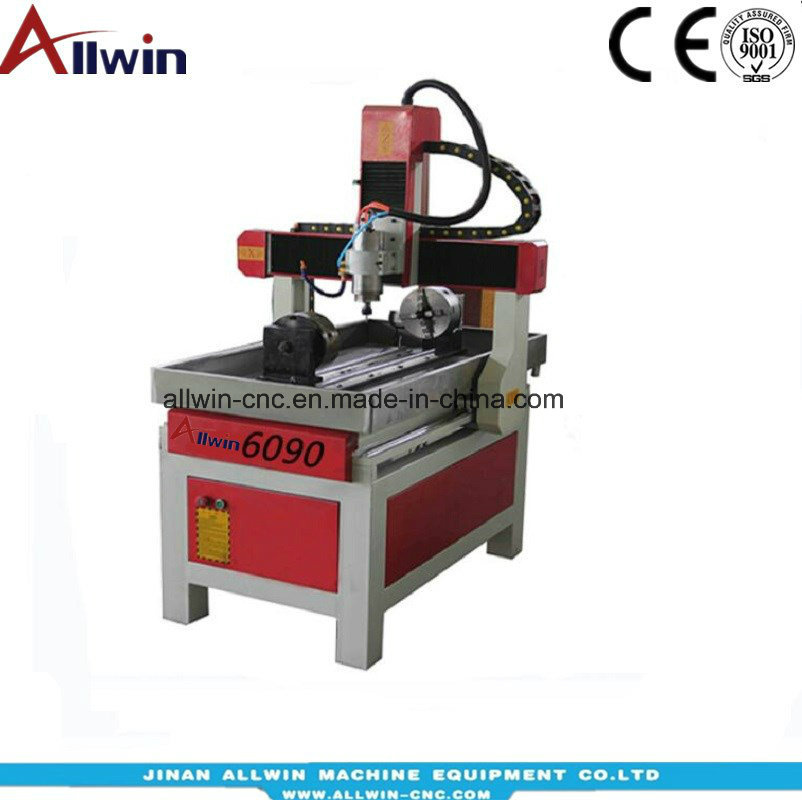

Model | ALLWIN-6090 CNC Router |
Machine size | 1300 x 1300mm |
Resolutions | 0.002mm |
X-Y-Z movement | Ball screw drive/Germany |
Max. speed | 8,000mm/min |
Max. cutting speed | 5,000mm/min |
Spindle | 2.2kw(water cooling) |
Spindle speed | 18,000rpm |
Inverter power | 2.2kw |
Drive motors | stepper |
Working voltage | AC220V/50-60Hz,2-phase |
Software | Type3 Software/France |
Controls | DSP A18 (Digital Signal Processor) |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Yes
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
Packing & shipment :
Save space as much as possible for container loading.
