Product Specifications
| Prod Model: |
6040 |
| Power(W): |
1.5kw Water Cooled Spindle |
| Weight: |
80 Kgs |
| Operating System: |
Nc-Studio/DSP |
| Warranty: |
1 Year |
| Table Structure: |
T-Slot Table |
| Driving System: |
Stepper Motor |
| Command: |
G Command |
| Guide Rail: |
Square Rail |
| Lathe Bed: |
Pipe-Welding |
| Service: |
Offering Oversea Service |
Product Description

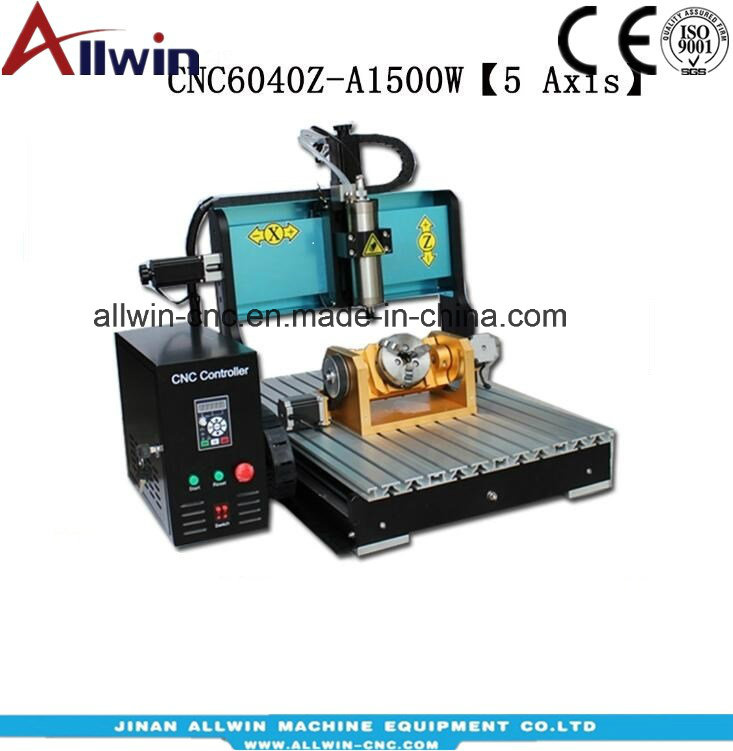

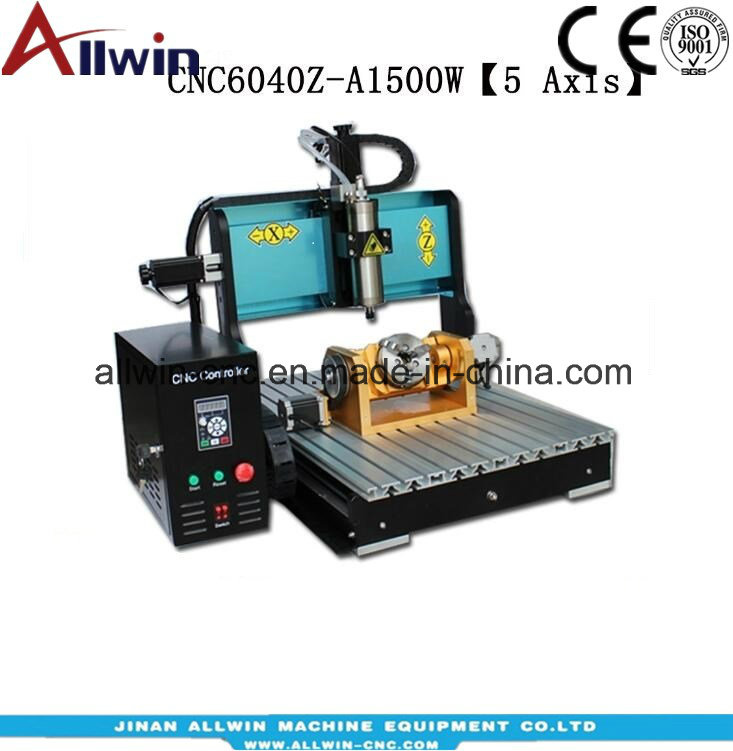

5 Axis cnc router machine 6040/ CNC engraving machine 6040 with 1.5kw water cooling spindle

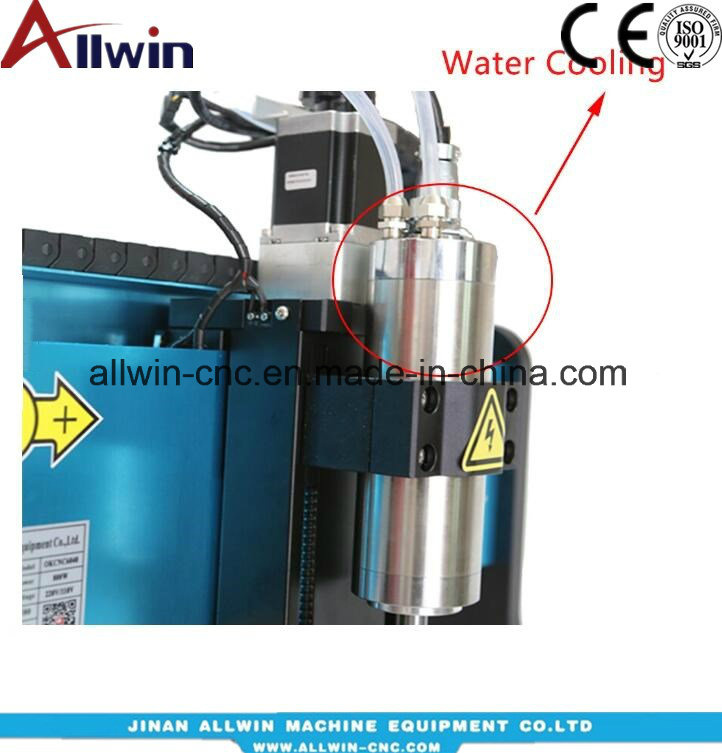

Features:1. 1500w / 2200w Water Cooled Spindle
2. With live video support.
3. Ball screw high precision
4. Independent power supply for mainboard, prolong using life.
5. USB CNC software or Mach3 is simple and intelligent
6. Limited switch added
7. Auto-Checking function

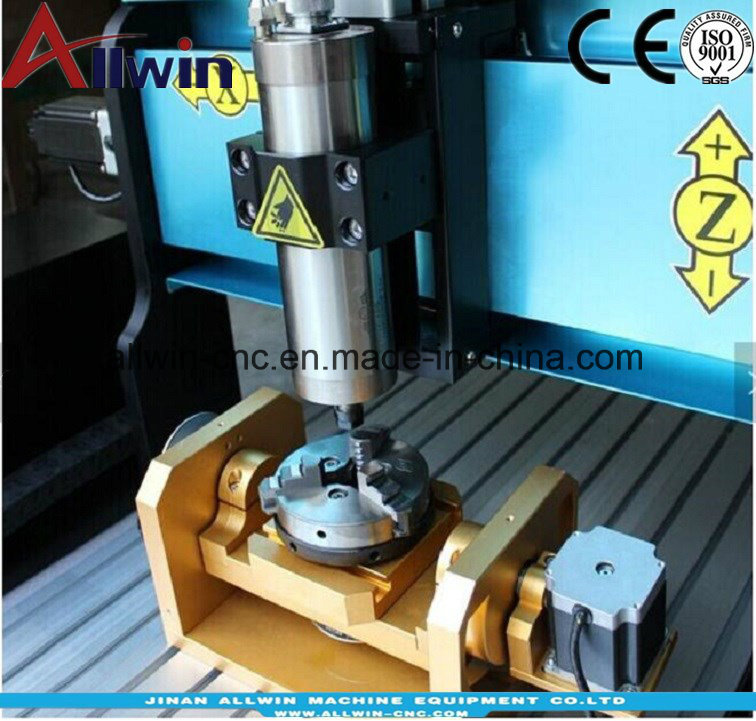

8. With 5 axis, can engrave cylinderical object.
9. USB Interface
10. Spindle speed: 24000rpm/min
Parameter:
Model | ALLWIN-6040 |
Dimension | 900*650*590mm(L*W*H) |
Working area | 400mm*600mm *100mm |
Frame material | cast iron |
Type of Screw | TBI SFU1605 ball Screw |
Rail type | Chrome plate shaft + Linear Bearings(surface hardening 61 HRC) |
Spindle Motor(rated voltage) | 1500W(600HZ 2200WVFD) |
Cooling mode | Water cooling |
Control system | Mach3 LPT / USB port |
Collet type | ER11 1/8"(3.175mm)and 6mm collet |
Stepper motor | 57 type,100 length, high torque, 5.6A heavy current |
Max. working speed | 8000mm/min(engraving speed: 50-7500mm/min) |
Repeat positioning | Less than or equal to 0.02mm |
Carving accuracy | 0.02mm |
Spindle speed | 24000rpm/min |
Command code | G Code(tap, nc, ncc, text) |
Input voltage | AC220V/AC110V |
Package size | 94*67*43cm(L*W*H) |
Package weight | 80Kg |
Packing | Wooden case |
Advantages:1.Advertising/artwork/woodworking2.CE, SGS,ISO 3.Customized:Yes4.High sensitivity5.High efficiency6. Warranty: 1 year 7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support Application Industry and Materials:Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards(drilling and engraving),Double color boards,acrylic etc.Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,besidecabinets,folding screen etc.Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Package:Inside:Water-proof Plastic Film Package With Foam ProtectionOutside:Solid Seaworthy Wood Box Package Below: Steel Tube
FAQ:1.How long about the machine's guarantee?2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agentsContact information:JINAN ALLWIN CNC MACHINERY CO;LTDAddress: 906 Room of Luding Building,Jinan City, Shandong Province, China.
Contact person: Cherry LiuTel: 0086-18053176036 Website: http://www.allwin-cnc.com
Jinan ALLWIN CNC Machinery Co. Ltd is located in Jinan, Shandong Province, which specializes in manufacturing CNC and laser machines.
ALLWIN CNC Machinery Co. Ltd is a platform for equal and mutual benefit, no cheating but a win-win. We are friends of suppliers as well as buyers, our aim is to let buyers to find great products at a reasonable price.
Our main products are CNC Router and Laser Machine, 5 Axis ATC CNC Router, General 3 Axis CNC
Router, CNC Plasma Cutting Machine, The application covers Woodworking, Advertising, Marble,
Metal, Nonmetal, MDF, Plastic, etc. Our products are widely sold in European, American countries
Africa, Asia, etc.
And we also have some very gold partner for Laser engraving machine and cutting machine.
We are trying our best to produce innovative products to help customers lower their cost and our business is to improve your business. We offer overservice to our clients and we are looking for sales agent over the world
