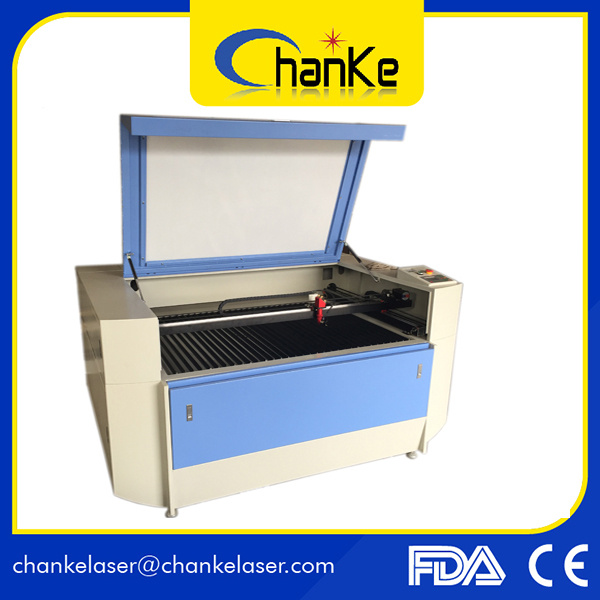

600X900mm 80W CNC Laser Cutting Machine for Wood MDF Plywood Glass Paper Fabric
| Price: |
US $ 1set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1set |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
ck6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Red Point: |
Yes |
| Voltage: |
3 Phases and 220V 50Hz |
| Power: |
60W/80W/90W/100W/130W |
| Drive Type: |
Leadshine Stepper Driver |
| Control Software: |
Rdcam6442g |
| Certification: |
SGS, Ce, ISO 9001 |
| Structure: |
Heavy Steel Structure of Lathe Bed |
| Rail: |
Taiwan Hiwin Linear Square Guide Rail |
| Mirrior: |
Singapore Lens and Mirrors |
| Transmission: |
Shanghai Fulong Belt |
Product Description
Model |
CK960 laser engraving machine |
| Working area : | 60cm*90cm / 47in*35in (L*W) |
| Laser power : | 40W/60W/90w/100w |
| Laser type : | CO2 sealed laser tube,water-cooled |
| Engraving speed : | 25-24000mm/min |
| Cutting speed : | 50-5000mm/min |
| Power supply : | 220V±10%/50HZ , 110V±10%/60HZ |
| Min.Shaping character : | Letter 1.0 x 1.0mm |
| Graphic format supported: | BMP, PLT, DST, DXF, AI, CDR, |
| Software supported : | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control: | 1-100% software setting |
| Highest Scanning Precision: | 2500DPI |
| Resolution ratio : | <0.01mm |
| Location precision: | <0.01mm |
| Working temperature: | 5ºC-40ºC |
| Operating humidity: | 5%-95%(without condensed water) |
| Equipment Dimension: | 1650mm*1250mm*970mm/65in*49in*38in (L*W*H) |
| Net Weight: | 350kg |
| Optional parts: | Up-down worktable, Red light pointer, Auto focus, Rotary device |
This machine can cut and engrave on the acrylic , the max thickness can cut and engrave on the acrylic is :20mm.We have many size of laser machine , as working size:1300x900mm, 1300x2500mm, 600x900mm, 1400x1000mm 1600x1000mm and so on.Laser tube has 60w, 80w, 100w, 120w,150w, using the Beijing RECI, or Chengdu Weegiant , having the honey nest table and the blade table.
Honey nest table fit for the soft materials, like leather, cloth, paper, fiber..
Blade table:Can withstand heavy materials, can hold 200kg, materials, suitable for cutting and engraving hard materials, like wood , acrylic and so on.

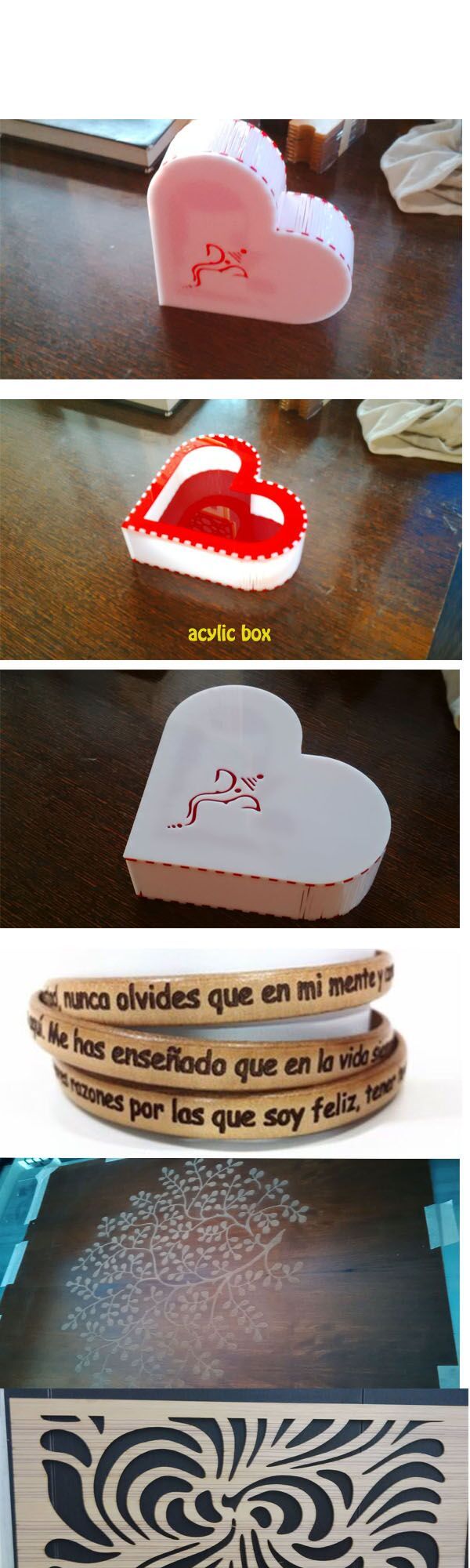

This machine is one Type of machine of chanke company, it is main working on the acrylic, double colour board, glass, crystal, marble, bowlder.Ceramic, wooden products, bamboo, cloth, leather, paper, plastic, rubber...
Have the up and down with rotary table.
Would be more clear if you could supply more information regarding the machine colour, machine size, what will you do using this machine...
Forget to tell you, we can according to your requirments to produce the machine.
Agent price and end user price is different, so please tell me you are the ender user or agent, when you send us the letter.
So don't hesitate contact us !Features1.The imported linear guide way ensures the high precision and the long service.
2.The stepper motor guarantees cutting and engraving smooth.We also have the SEVEO, The motor can be choice .But price is higher than the stepper motor.
3.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4.High quality laser tube provides the strong beam and long service life.
5.More scientific design and high strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6.The anti-pollution design improves the stability of the whole machine greatly.

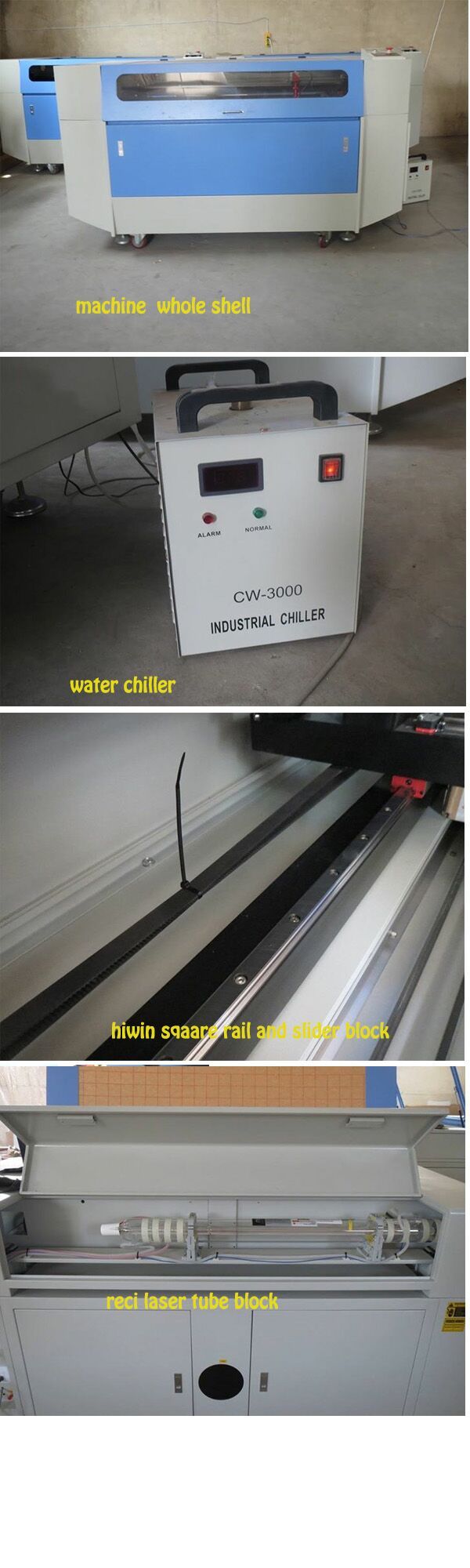

7.Configure higher power laser tube.Beijing RECI LASER TUBE, can be over 10000 hours.Machine photo:
Jinan Chanke Mechanical Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of laser engraving machine, laser cutting machine, wood CNC router, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the CE, FDA certificate.
We prize quality above all else. We have a talented engineers and an experienced workers team. They have been in laser and CNC router area for a lot of years and love these machines very much. Our QC department is famous for strict attitude. Every parts should be checked step by step.
Competitive Pricing, Small Profit, Large Quantity is our rule when pricing. We keep our prices low through enhancing production efficiency, reducing the number of rejects and leaving more profit margins for clients to help them to get more orders. In addition, all our prices are based on good quality raw materials.
The aim of Jinan Chanke Mechanical Equipment Co., Ltd is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
