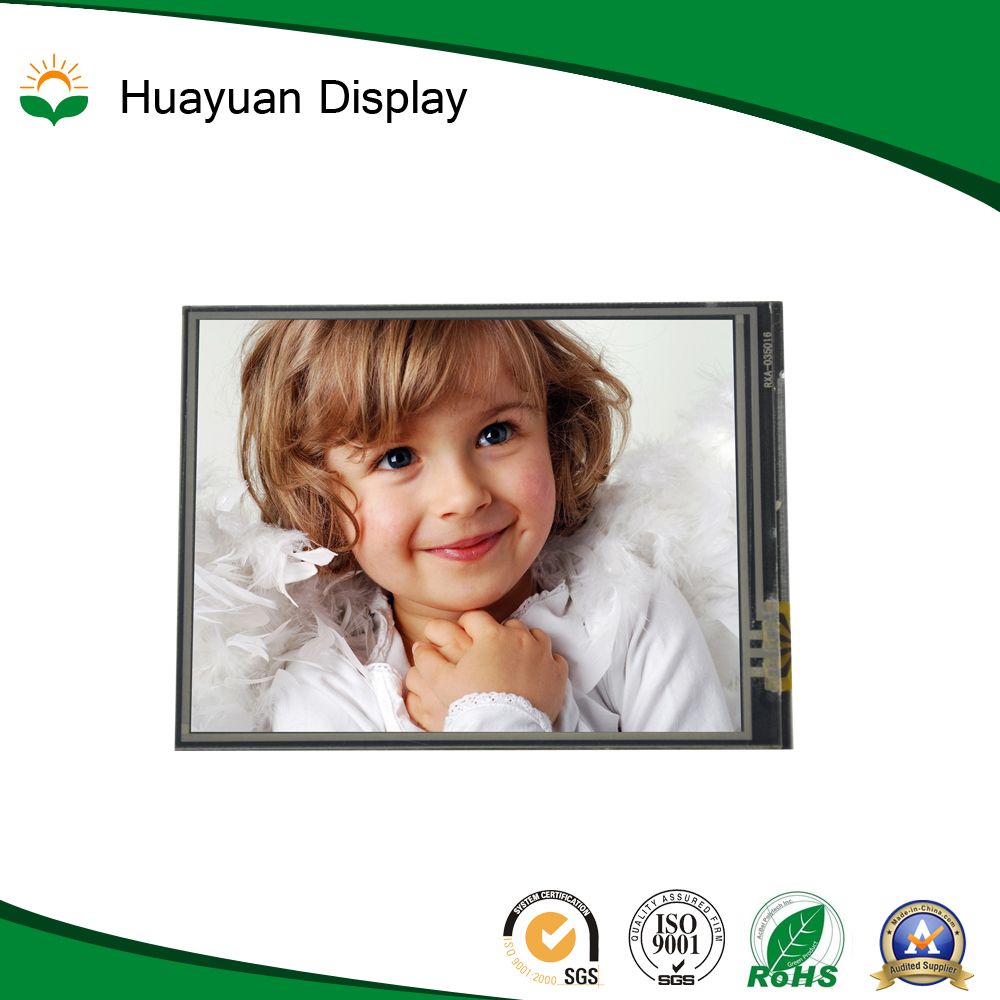

| Price: | US $ 1-10/Piece |
|---|---|
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | TFT131A |
|---|---|
| LCD Type: | TFT Transmissive |
| Operating Temperature(Degree Celsius): | -20ºC~70ºC |
| Storage Temperature(Degree Celsius): | -30ºC~80ºC |
| Viewing Direction: | 12:00 |
| DOT Matrix: | 240*320 |
| Active Area: | 52.56*70.08 |
| Module Size: | 63.5*85.5*4.2 |
| FPC Cable: | 50 |
| System Interface : | 8bits 8080 Parallel Interface |
| Pixel Arrangement : | RGB Vertical Stripe |
| Application: | Graphic Design |
| Aspect Ratio: | 4:3 |
| Feature: | LED Backlight Display |
| Type: | TFT |
| Widescreen: | Not Widescreen |
| Response Time: | 10ms |
| 3D: | Not 3D |
| Screen Size: | 3.5" |
| Optimum Resolution: | 176*220 |
| Interface Type: | RGB |
| Model | TFT131A |
| Lcd Type | TFT Transmissive |
| Pixel | 240*320 |
| Active Area | 52.56*70.08 |
| Module Size | 63.5*85.5*4.2 |
| Pixel Arrangement | RGB Vertical Stripe |
| Driver IC | ILI9340N |
| Operating Temperature(degree Celsius) | -20ºC~70ºC |
| Storage Temperature(degree Celsius) | -30ºC~80ºC |
| Viewing Direction | 12 o'clock |
| Approx. Weight | TBD |
| Backlight | LED,White |
| System interface | 8BITS 8080 parallel interface |
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
| A2: Our factory is located in Hunan Province, China. Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
| A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity. And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
| A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end. Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2017 electronics exhibition in Korea. |
| Related products: |
| Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. ) Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. ) TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on. TN/STN/HTN/VA segment customized lcd LED backlight panel All kinds of LCD Module can customized. |
| Application: |
| Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication, Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics. |
| Contact Us: Send inquiry to us to get newest price and information. |
| Tel: +86-731-28668968 |
| Fax: +86-731-28660280 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
| 1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4. TN/STN/HTN/VA segment custom lcd,LED backlight panel |
| All kinds of LCD Module can customize according to customer`s requirement. |
