| Price: | US $ 7000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 1530 |
|---|---|
| Power(W): | 1.5kw |
| Weight: | 324kgs |
| Operating System: | DSP/Weihong |
| Warranty: | 1 Year |
| Table Structure: | T-Slot Table |
| Driving System: | Servo Motor/Stepper Motor |
| Command: | G Command |
| Guide Rail: | Square Rail |
| Spindle Speed: | 0-24000 (R/ Min) |
| Service: | Offering Oversea Service |

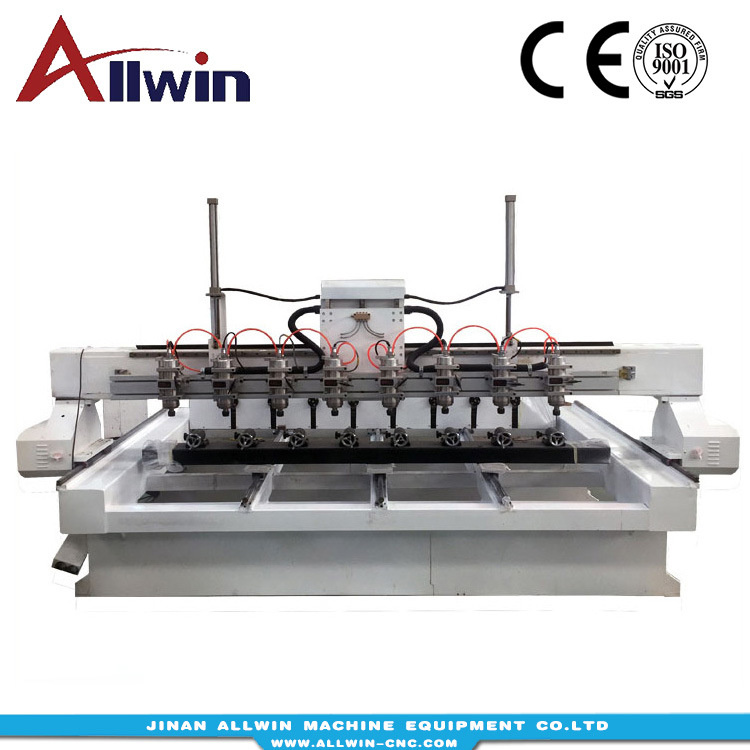

4 axis cnc router technical parameter
NOr | Description | Parameter |
1 | Model | 1530 |
2 | X Y Z working area | 1500x3000x1500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.02mm |
4 | X,Y,Z Repositioning Accuracy | ±0.02mm |
5 | Frame | Square pipe Welded Structure 10mm thickness |
6 | X, Y axis transmission | Precision gear rack |
7 | Z transmission | Ball Screw |
8 | Max. traveling speed | 45000mm/min |
9 | Max. Working Speed | 25000mm/min |
10 | Rail Configuration | 25 square rail(TAIWAN HIWIN) |
11 | Spindle Power | ITALY 4.5KW 4 AXIS SPINDLE |
12 | Spindle rotationg Speed | 0-24000RPM |
13 | Drive Motors | Japan YASKAWA servo driver and motor( Stepper as optional ) |
14 | Working Voltage | AC380V/60Hz,3PH |
15 | Operating System | TAIWAN SYNTEC SYSTEM |
16 | Command Language | G code, u00, mmg, PLT, HPG |
17 | Packing | Wooden case |
Advantages:
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:YES
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support

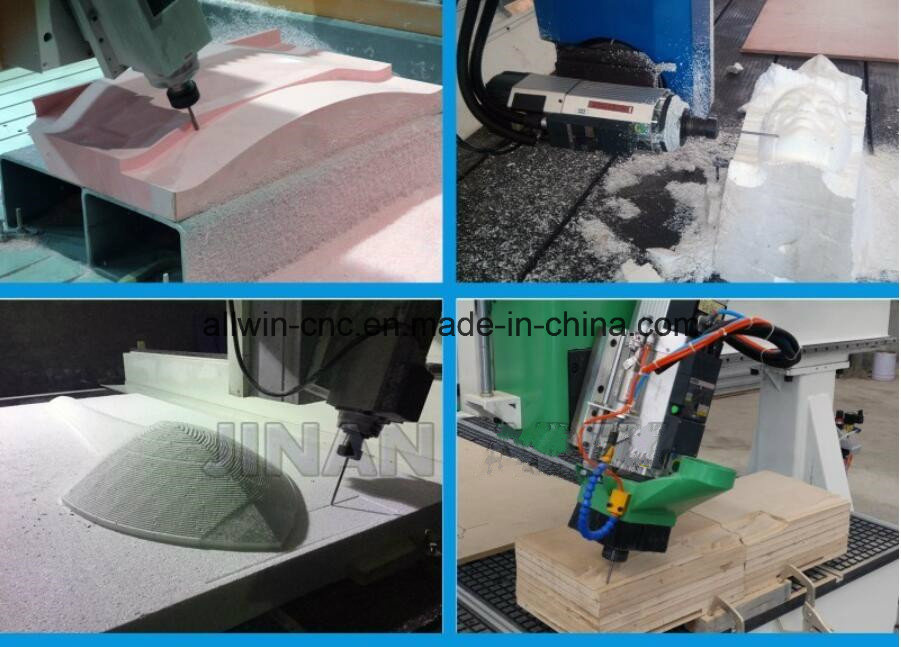

Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving
Save space as much as possible for container loading.
