| Price: | US $ 1500/Ton |
|---|---|
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Sorbent: | Molecular Sieves |
|---|---|
| Desiccant: | Chemical Desiccant |
| Shape: | Sphere, Pellet |
| Kind: | Molecular Sieve Desiccant |

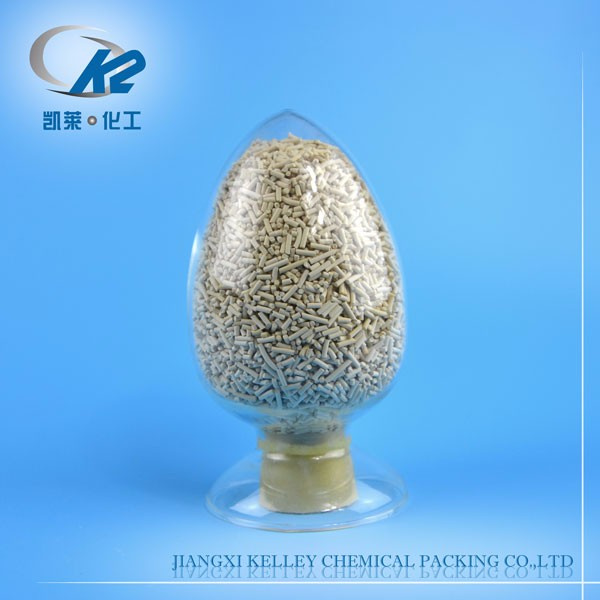

Molecular Sieve type 3A is an alkali metal alumino-silicate; it is the potassium form of the type A crystal structure. Type 3A has an effective pore opening of about 3 angstroms (0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers; and this maximises lifetime when dehydrating such molecules.
Model | 3A | |||||
Color | Light gray | |||||
Nominal pore diameter | 3 angstroms | |||||
Shape | Sphere | Pellet | ||||
Diameter (mm) | 1.7-2.5 | 3.0-5.0 | 1.6 | 3.2 | ||
Size ratio up to grade (%) | ≥98 | ≥98 | ≥96 | ≥96 | ||
Bulk density (g/ml) | ≥0.72 | ≥0.70 | ≥0.66 | ≥0.66 | ||
Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.2 | ≤0.2 | ||
Crushing strength (N) | ≥55/piece | ≥85/piece | ≥30/piece | ≥40/piece | ||
Static H2O adsorption (%) | ≥21 | ≥21 | ≥21 | ≥21 | ||
Ethylene adsorption (‰) | ≤3.0 | ≤3.0 | ≤3.0 | ≤3.0 | ||
Water content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ||
Typical chemical formula | 0.4K2O . 0.6Na2O . Al2O3. 2SiO2. 4.5 H2O SiO2: Al2O3≈2 | |||||
Typical application | a) Drying of unsaturated hydrocarbons (e.g. ethylene, propylene, butadien) | |||||
Package | Carton box; Carton drum; Steel drum | |||||
MOQ | 1 Metric Ton | |||||
Payment terms | T/T; L/C; PayPal; West Union | |||||
Warranty | a) By National Standard GBT 10504-2008 | |||||
b) Offer lifetime consultation on problems occurred | ||||||
Container | 20GP | 40GP | Sample order | |||
Quantity | 12MT | 24MT | < 5kg | |||
Delivery time | 3 days | 5 days | Stock available | |||
Molecular sieve Type 3A can be regenerated by either heating in the case of thermal swing processes; or by lowering the pressure in the case of pressure swing processes.
To remove moisture from a 3A molecular sieve, a temperature of 200-230°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process.
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
