Product Specifications
Prod Model: |
SX-TYN-LD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
30W60W90W Solar Street Light with Pole Price List |
Colour: |
Required |
Material: |
Aluminum |
CRI (Ra>): |
>75 |
Lumens: |
3390lm |
Temperrature Color (K): |
6500-6500k |
Beam Angle: |
120 |
Warranty: |
3years |
Application: |
Highway Street Park |
Light Source: |
LED Lamp |
Lamp Body Material: |
Aluminum |
Light Type: |
Solar |
Color Temperature: |
Warm White |
Technics: |
Painted Matte |
Illumination Time: |
8h |
Cell Type: |
Ni-MH Battery |
Charging Time (',H): |
8 |
Usage: |
Street |
IP Rating: |
IP65 |
Certification: |
RoHS |
Voltage: |
12/24V |
With Light Source: |
With Light Source |
Power: |
30W |
Product Description

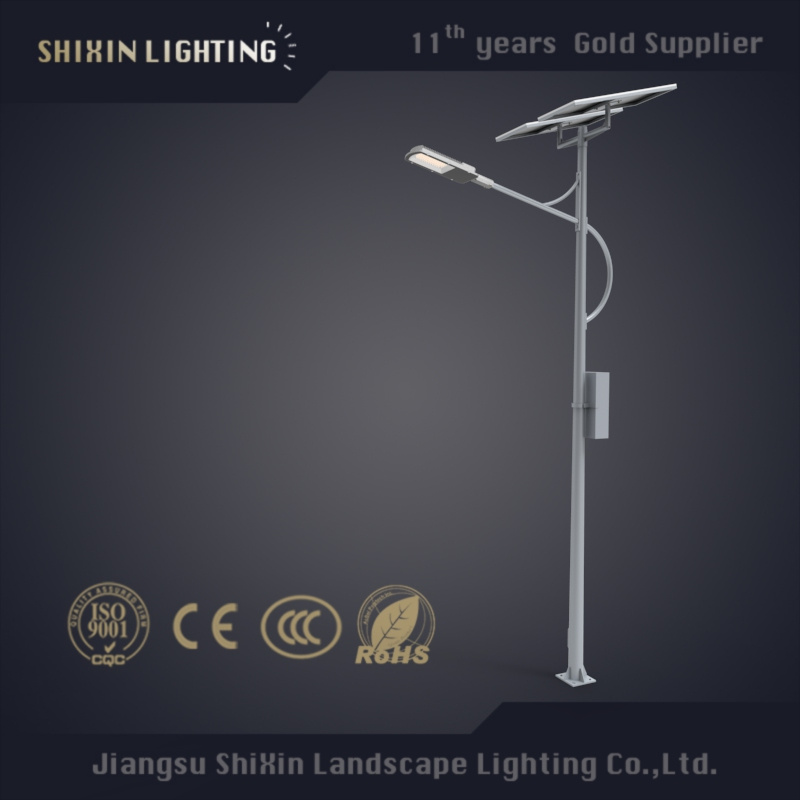

Product DescriptionModern 12V Solar 30W LED Street Light with Pole HDG CE RoHS

Specification
1, 12V/24V system auto identify.
2, Built-in high function LED driver, the maximum efficiency can reach 96%.
3, Lighting + Timing control, intelligent 4-phase PWM digital dimming which makes power regulation and color temperature performance more accurate.
4, Intelli8gent power mode, capable of adjusting load power according to the capacity status of battery so as to extend the battery's service life.
5, Supreme ripple current control and load linear control, decreasing the LED light decline and increasing the LED service life.
6, Ceramic capacitor design with an ever-long service life.
7, IP68 waterproof design which can working under different severe environments, industrial grade quality guaranty.
8. High precision crystal oscillator adopted for precise timing control.
9, Outer temperature sensor leading to high precision temperature compensation.
10, Metal outer case for better cooling performance and high power density design.
11, TVS lightning protection.
12, Improved protection for battery reversed connection, LED short circuit and open circuit protection, the system can be totally protected. C
Specification
1, 12V/24V system auto identify.
2, Built-in high function LED driver, the maximum efficiency can reach 96%.
3, Lighting + Timing control, intelligent 4-phase PWM digital dimming which makes power regulation and color temperature performance more accurate.
4, Intelli8gent power mode, capable of adjusting load power according to the capacity status of battery so as to extend the battery's service life.
5, Supreme ripple current control and load linear control, decreasing the LED light decline and increasing the LED service life.
6, Ceramic capacitor design with an ever-long service life.
7, IP68 waterproof design which can working under different severe environments, industrial grade quality guaranty.
8. High precision crystal oscillator adopted for precise timing control.
9, Outer temperature sensor leading to high precision temperature compensation.
10, Metal outer case for better cooling performance and high power density design.
11, TVS lightning protection.
12, Improved protection for battery reversed connection, LED short circuit and open circuit protection, the system can be totally protected. C
Specification
1, 12V/24V system auto identify.
2, Built-in high function LED driver, the maximum efficiency can reach 96%.
3, Lighting + Timing control, intelligent 4-phase PWM digital dimming which makes power regulation and color temperature performance more accurate.
4, Intelli8gent power mode, capable of adjusting load power according to the capacity status of battery so as to extend the battery's service life.
5, Supreme ripple current control and load linear control, decreasing the LED light decline and increasing the LED service life.
6, Ceramic capacitor design with an ever-long service life.
7, IP68 waterproof design which can working under different severe environments, industrial grade quality guaranty.
8. High precision crystal oscillator adopted for precise timing control.
9, Outer temperature sensor leading to high precision temperature compensation.
10, Metal outer case for better cooling performance and high power density design.
11, TVS lightning protection.
12, Improved protection for battery reversed connection, LED short circuit and open circuit protection, the system can be totally protected. C

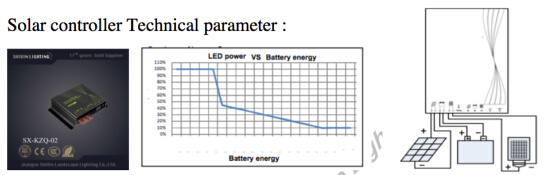

System Voltage(V) | Output current | No-load loss | The Max charging current | Overvoltage protection | Float charging voltage |
12/24V Auto | 330mA-2310mA | <55V | 8A | 17.0V; *2/24V | 13.8V; ×2/24V(25ºC) |
Ascending charhing voltage | Equal charging voltage | Light-control voltage | Return voltage for over-discharging | Over-discharging voltage | Temperature compensation |
14.4V×2/24V(25ºC) duration: 2h | 14.6V×2/24V(25ºC) duration: 1h | Light-control open 5V Light-control close 6V | 12.5V; ×2/24V | 11.1V; ×2/24V | -4.0mv/ºC/2V |
Return voltage during charging | Efficiency of constant current | Current accuracy | Light-control judgment | The Max output voltage | Working Temperature |
13.2V; ×2/24V(25ºC) | 90%-96% | +/-2% | 10min | <70V | -40ºCTO+70ºC |
Protection Level | Weight | Dimensions | | | |
IP68 | 160g | 82×58×20(mm)(L×W×H) | | | |

Open circuit voltage(voc) | V | 43 |
Short circuit current(ISC) | A | 3.02 |
Diodes | 1by-pass |
Dimension | mm | 1206*546*35 |
Weight | KG | 10 |
Protection Class | IP65 |
Operate temp. Scope | | -40/+70 |
Relative humidity | 0 to 1005 |
Resistances | 227g stell ball fall down from 1m height and 60m/s wind |
Warranty | PM is hot less than 90% in 10years and 80% in 25 years |
