Product Specifications
| Prod Model: |
SX-TYN-LD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

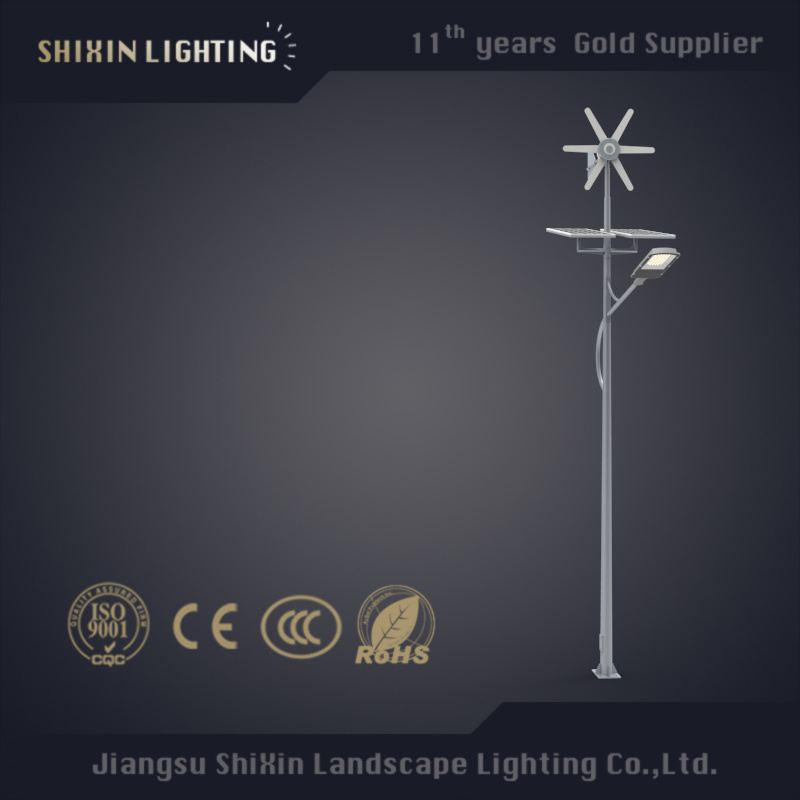

30-100W Solar Street Light with CE RoHS New Model |
| Height: |
3~15m |
| Flange: |
400*400 |
| Usage: |
Street \ Road \Park |
| Light Source: |
LED Light |
| Color Temperature(',CCT): |
Warm White |
| Lamp Body Material: |
Aluminum |
| Power Supply: |
Solar |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
EMC |
| Voltage: |
220V |
| Lamp Power: |
30W~100W |
| Average Life: |
50000h |
Product Description

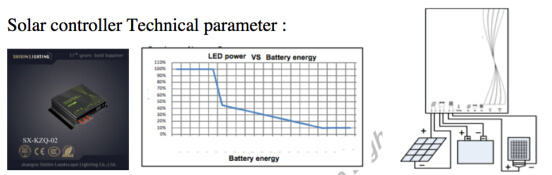

Specification
1, 12V/24V system auto identify.
2, Built-in high function LED driver, the maximum efficiency can reach 96%.
3, Lighting + Timing control, intelligent 4-phase PWM digital dimming which makes power regulation and color temperature performance more accurate.
4, Intelli8gent power mode, capable of adjusting load power according to the capacity status of battery so as to extend the battery's service life.
5, Supreme ripple current control and load linear control, decreasing the LED light decline and increasing the LED service life.
6, Ceramic capacitor design with an ever-long service life.
7, IP68 waterproof design which can working under different severe environments, industrial grade quality guaranty.
8. High precision crystal oscillator adopted for precise timing control.
9, Outer temperature sensor leading to high precision temperature compensation.
10, Metal outer case for better cooling performance and high power density design.
11, TVS lightning protection.
12, Improved protection for battery reversed connection, LED short circuit and open circuit protection, the system can be totally protected. C
| System Voltage(V) | Output current | No-load loss | The Max charging current | Overvoltage protection | Float charging voltage |
| 12/24V Auto | 330mA-2310mA | <55V | 8A | 17.0V; *2/24V | 13.8V; ×2/24V(25ºC) |
| Ascending charhing voltage | Equal charging voltage | Light-control voltage | Return voltage for over-discharging | Over-discharging voltage | Temperature compensation |
| 14.4V×2/24V(25ºC) duration: 2h | 14.6V×2/24V(25ºC) duration: 1h | Light-control open 5V
Light-control close 6V | 12.5V; ×2/24V | 11.1V; ×2/24V | -4.0mv/ºC/2V |
| Return voltage during charging | Efficiency of constant current | Current accuracy | Light-control judgment | The Max output voltage | Working Temperature |
| 13.2V; ×2/24V(25ºC) | 90%-96% | +/-2% | 10min | <70V | -40ºCTO+70ºC |
| Protection Level | Weight | Dimensions | | | |
| IP68 | 160G | 82×58×20(mm)(L×W×H) | | | |

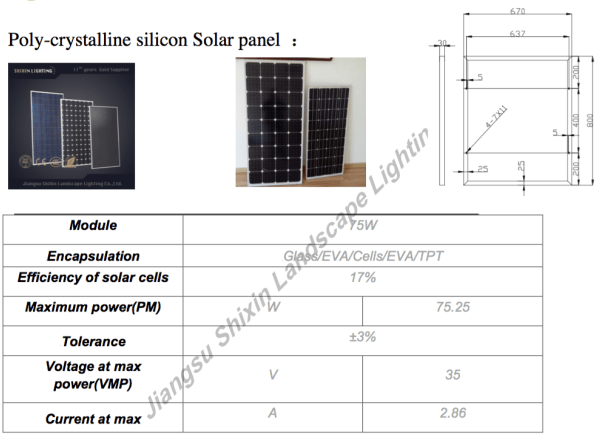

| Power(IMP) | | |
| Open circuit voltage(voc) | V | 43 |
| Short circuit current(ISC) | A | 3.02 |
| Diodes | 1by-pass |
| Dimension | mm | 1206*546*35 |
| Weight | KG | 10 |
| Protection Class | IP65 |
| Operate temp. Scope | | -40/+70 |
| Relative humidity | 0 to 1005 |
| Resistances | 227g stell ball fall down from 1m height and 60m/s wind |
| Warranty | PM is hot less than 90% in 10years and 80% in 25 years |
Blower Model: M-300Configuration1- Blade(6 pieces)2- Motor(1 piece)3- Rudder(1 piece)4- Lasso(4 pieces)5- Guy cable tower(3 pieces)6- Floor and other installation accessories(1 Internal)7- Controller(Internal)Feature: 1. Start Breeze2. Continued Generation3. Stable performance4. Simple structure, easy installationWidely used in street lamp public lighting system, communication base stations, sewage treatment stations, toll stations, monitoring indication system (traffic signals, traffic signals, security monitoring, forest fire monitoring), etc. | Parameter |
| Brand | Guangmang |
| The maximum power(W) | 300 |
| Rated voltage (V) | 12/24 |
| Wind wheel diameter (m) | 0.99 |
| Start wind speed (m/s) | 1 |
| Security wind speed (m/s) | 35 |
| Number of Blade (Piece) | 6 |
| Blade material | FRP |
| Blade life(Year) | 15-20 |
| Blade Gross(kg) | 15 |
| Package style | Carton(foam lining) |
| Package Size | 47×41×33cm |
| Guy cable tower height (m) | 6 |
| Standard configuration price(RMB) |
| Motor (built-in controller) + fan | 860 |
| Optional accessories Price (RMB) |
| Guy cable tower and accessories | 550 |
Remarks: 1. The above price is ex-factory price including tax. 2. The date of a host of products from the factory, tower, blades 2-year warranty. 3. The actual packaging volume, weight, number of copies can be loaded may be less than 10% error. Why will you choose us? Provide professional person to communicate with you before the order.
Provide permanent magnet generator with advanced technology, exquisite workmanship, top design.
Provide strict quality check for each part, each process before export.
Provide optimum system solution based on each client's specific requirement and local location's weather condition.
Provide complete post-sale service, including installation, technical guide and training.
Terms and condition: Price term: EXW yangzhou based on project quantity of over 100 sets. The price includes solar panel, LED street lamp, controller, battery, battery box and pole set. The price does not include foundation. Shipping seaport: Shanghaior ningbo seaport. For CFR or CIF price, please specify which exact model you need and whether pole is needed, and tell us your order quantity so that we can calculate the local charges and sea freight.
MOQ: 10 sets. For less than 10 sets.
Payment: Typically 30% by T/T as down payment, balance by T/T or L/C before shipment. Other payment way can be negotiated.
Package: Export standard plywood case or carton packing suitable for tough handling and long-distance ocean transport.
Delivery: For 100 sets, goods can be ready for shipment within 20 working days.
