| Price: | US $ 750/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 3020 |
|---|---|
| Housing: | Half Housing |
| Service: | Offering Oversea Service |
| Voltage: | 110V/220V |
| Stepper Motor: | Two-Phase Hybrid Stepping Motor |
| Software Compatability: | Mach3/Type3/Artcam |
| Spindle Motor: | 230W/11000r/Min((Very Small Noise)) |
| Engarving Area: | 300X200mm |
| Acceptable Material Thickness: | 60mm |
| Command Code: | G Code |
| Weight: | 22 Kgs |
| Carving Material: | Stainless Steel |

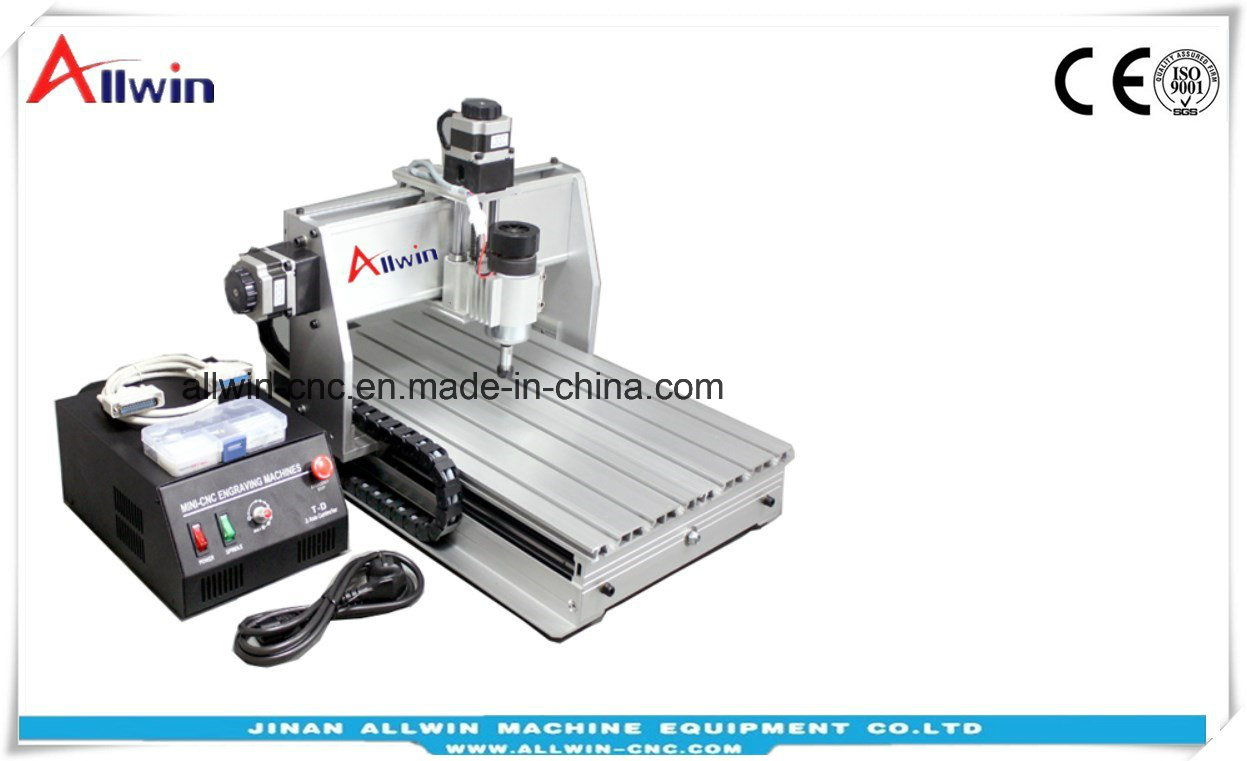

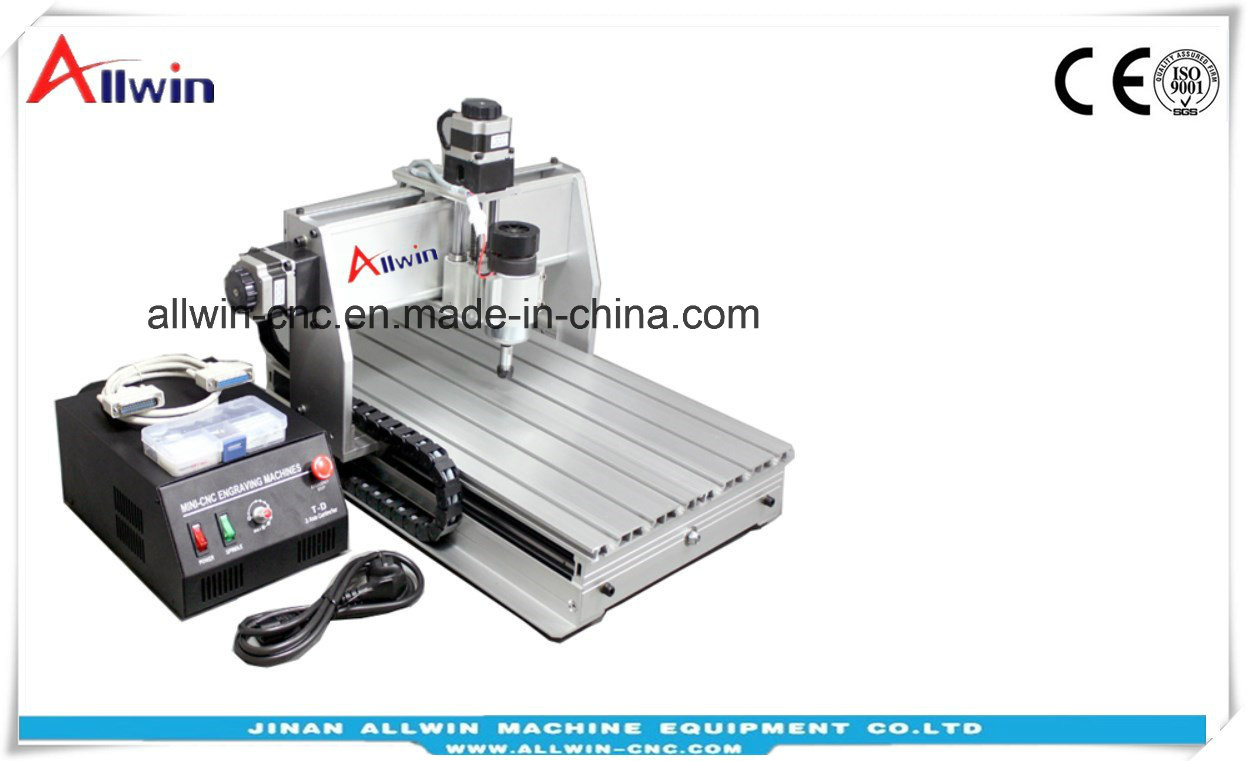

Mini CNC 3020 Router Engraver Machine With Ball Screw 230W DC Spindle
Features:.
1.Independent power supply for mainboard, prolong using life.
2.More steady and strong equiped with aluminum alloy frame materials
3.Mach 3 software is simple and intelligent,Can be controlled by computer
4.Emergency stop button enhance security
5.Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.Can engraving much more materails by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone.
6.Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
7.Cover plates reducing pollution for the screws and shafts.
8.The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
9.The chrome shafts is not easy to deform,suitable for long time use.
10.Flexible coupling can be used for high torque transmission.
Advantages:
1.Advertising/artwork/woodworking/cutting
2.CE, SGS,ISO
3.Customized:Yes
4.High sensitivity
5.High efficiency
6. Warranty: 1 year
7. Engineers Available to Service Machinery Overseas
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury: Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates, badges, decorative gift, embossed
medals, certificates, souvenirs, photo frames, furniture decoration, PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry:
in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
| Machine Dimensions | 525X400X370mm |
| Rack material | 6061 and 6063 Hard aluminum alloy |
| Engraving area | 300×200mm |
| Z-Axis Stroke | 45mm, Engraving depth depends on the length of the tool edge |
| Acceptable material thickness | ≤60mm |
| Rail type | Chromeplate shaft+Linear Bearings,)(Surface hardening 61HRC) |
| Type of screw | 1204 Double thread Trapezoidal Screw |
| Spindle motor | 230W/11000r/min((Very small noise)) |
| Collet type | ER11,1/8"(3.175mm) Collet |
| Stepper motor and drive | two-phase hybrid stepping motor , 1.8A/PHASE,40N.cm, 8 segments drive |
| Maximum operating speed | 4000mm/min (Engraving speed :300-3000mm/min) |
| Repeat positioning Accuracy | 0.04mm |
| Communication interface | Parallel port (Must use the desktop computer, Does not support laptop) |
| Software Compatability | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
| Command code | G code |
| Machine weight | 22kg |
